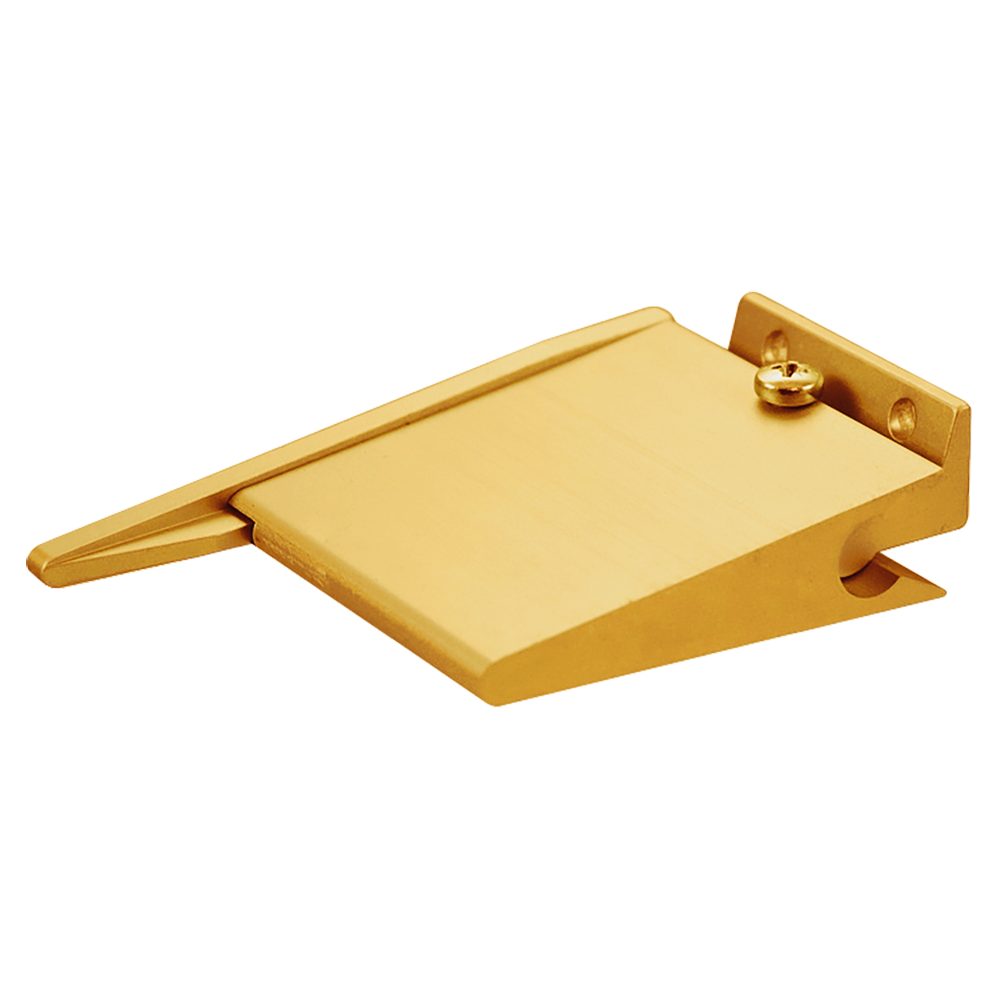

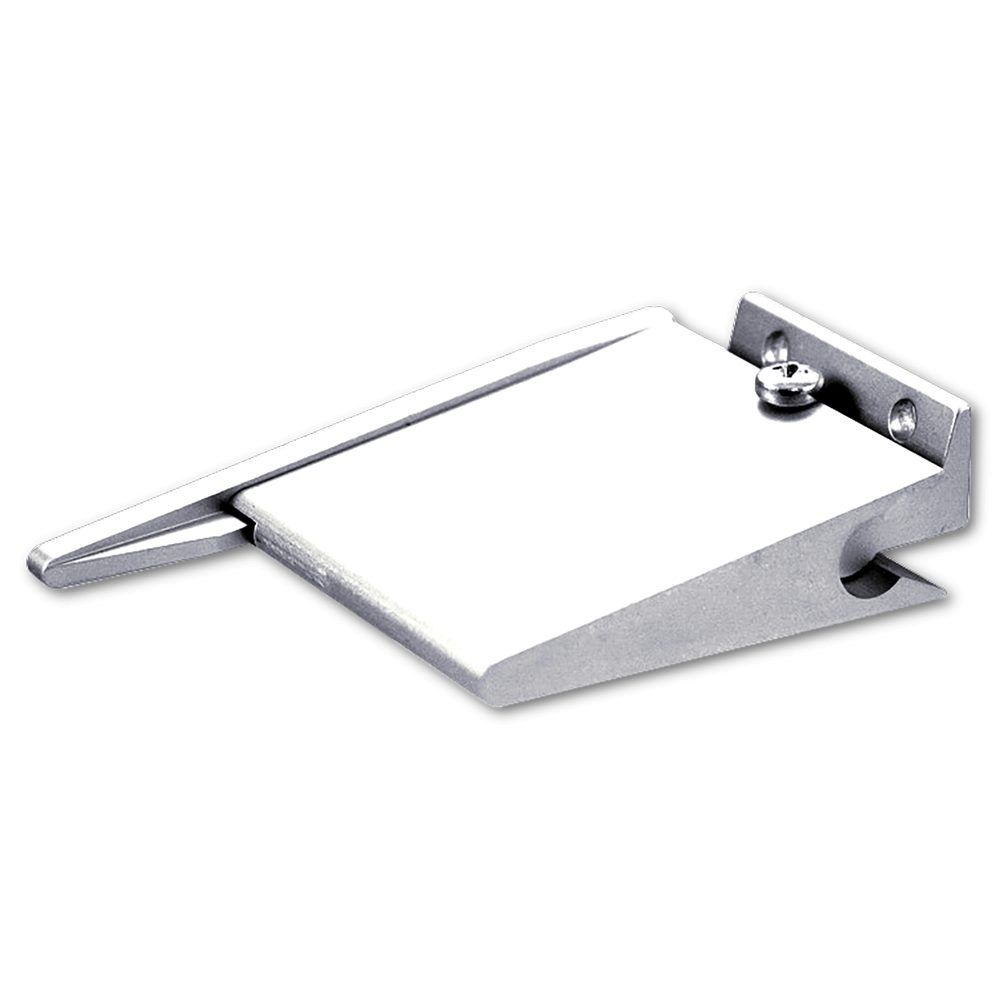

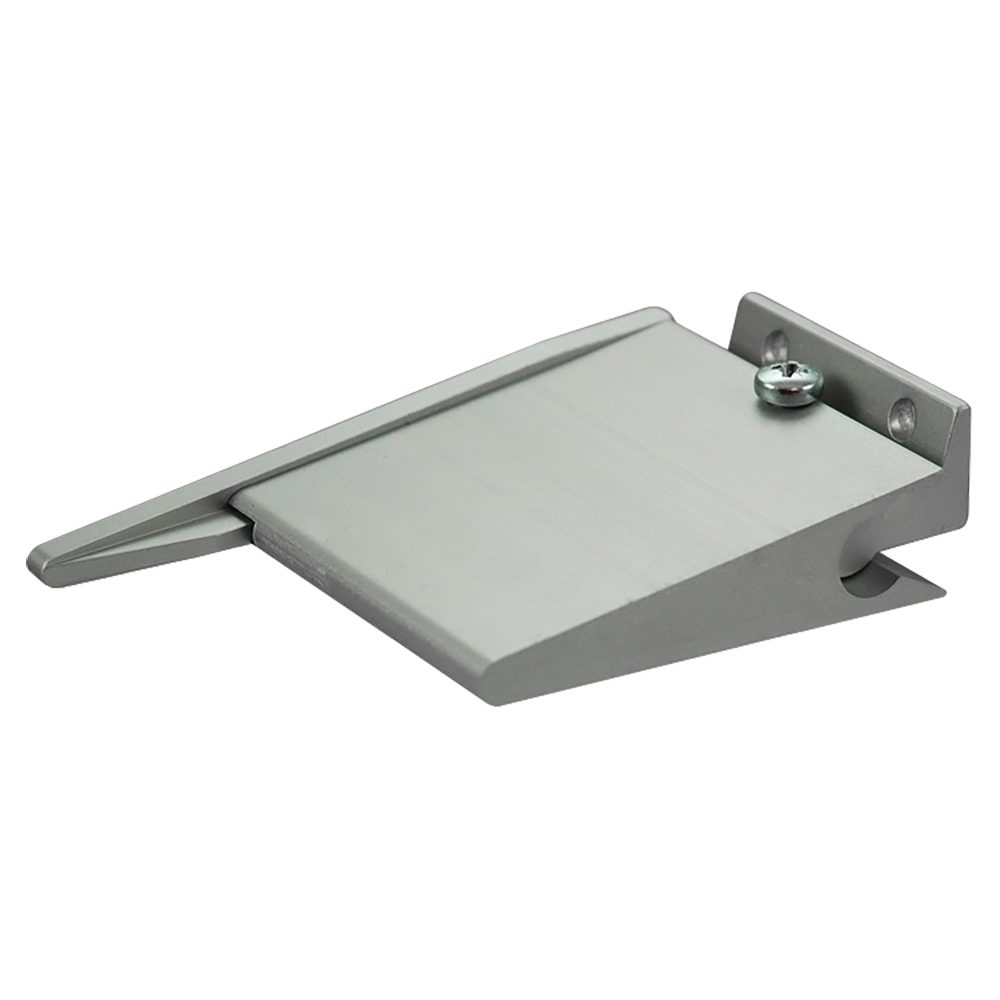

The Dorline Fire Rated Door Selector MK2 is a wedge-shaped door coordinator designed to ensure the correct closing sequence on a pair of rebated double doors. By holding the first opening leaf open until the second leaf has fully closed, it ensures the doors shut in the correct order to maintain the integrity of fire and smoke seals.

This selector is suitable for use on fire doors and features a surface-mounted rebate catch to prevent damage to the door frame structure. It is designed to suit doors of any thickness and rebate size, up to a maximum door width of 1220mm.

This product is available in a range of finishes, including Gold Anodised Aluminium, Polished Brass, Satin Anodised Aluminium, and Satin Stainless Steel, with weights ranging from 342g to 354g. Please select your preferred finish, manufacturer reference, and barcode from the options below.

Technical Specifications

Brand: Dorline
Length: 80mm
Max Door Width: 1220mm
Standards: CE Marked, tested to BS EN 1158
Suits Product: Fire doors (rebated double doors)
Finishes: Gold Anodised Aluminium, Polished Brass, Satin Anodised Aluminium, or Satin Stainless Steel (please choose from the options below)
Manufacturer References: DSGFD, DSPBFD, DSSFD, or DSSSFD (please choose from the options below)
Weight: 342g to 354g (please choose from the options below)
Barcodes: Multiple options available (please choose from the options below)
Pack Quantity: 1 (boxed)

Key Features

Correct Closing Sequence: Holds the first opening leaf open until the second leaf has closed to ensure correct overlapping.
Frame Protection: Features a surface-mounted rebate to prevent damage to the frame structure of fire doors.
Versatile Compatibility: Suitable for doors up to 1220mm wide of any thickness and rebate size.
Certified Safety: CE marked and successfully tested to BS EN 1158 for peace of mind on fire-rated doors.

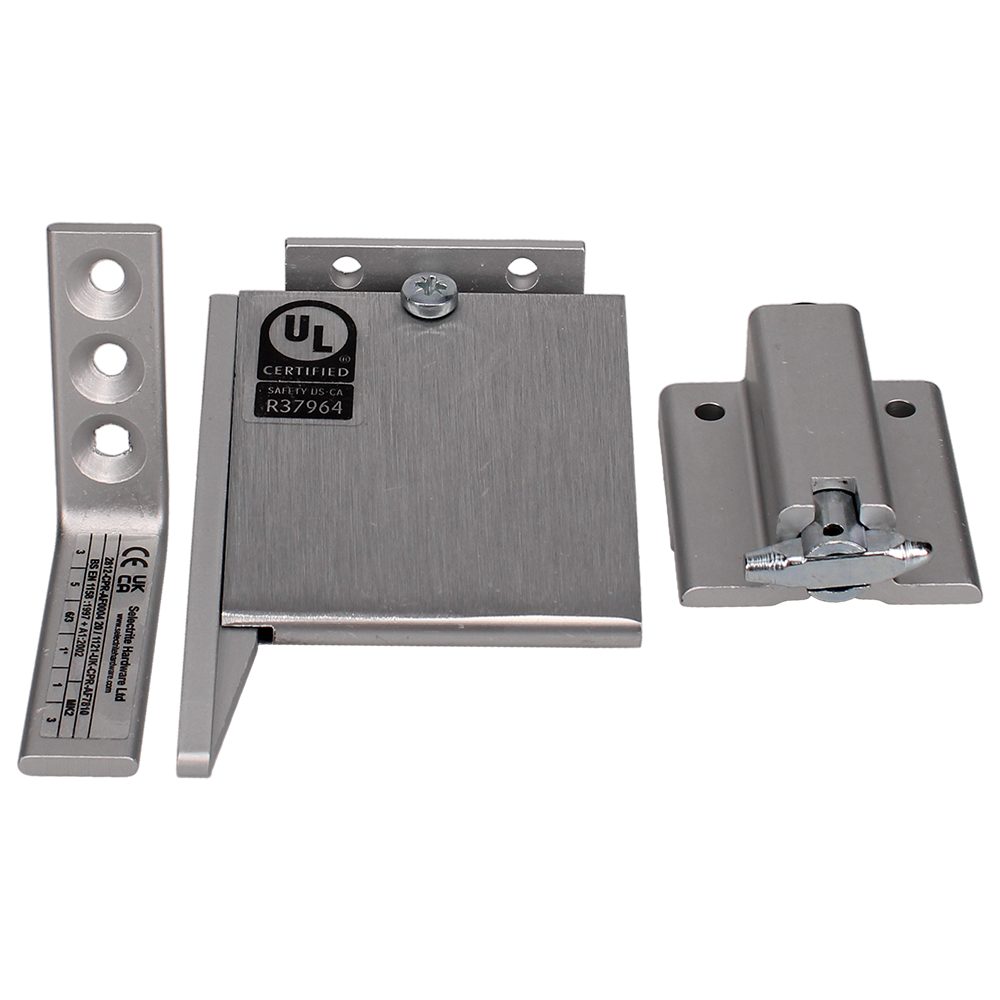

Complete Kit: Supplied complete with fixings and installation instructions for straightforward fitting.
