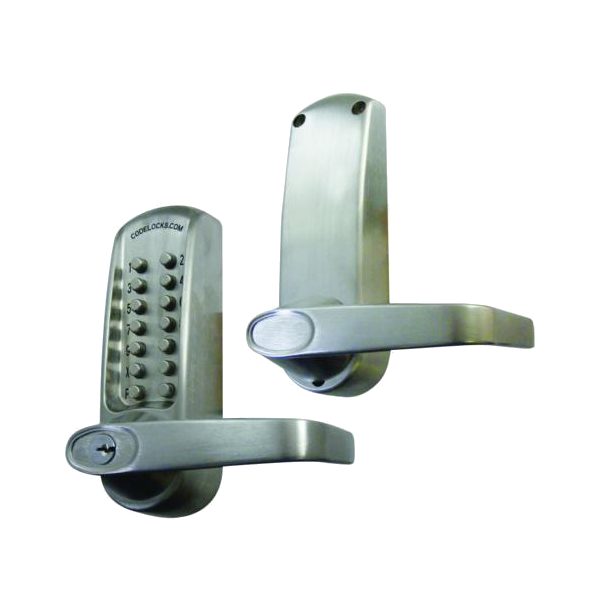

CODELOCKS CL620 Digital Lock With Mortice Lock & Cylinder

The Codelocks CL620 is a heavy-duty mechanical digital lock from the CL600 series, designed for high-traffic internal and external doors. It features a robust Euro profile mortice sash lock with a double cylinder, three keys, and an integrated anti-panic safety function.

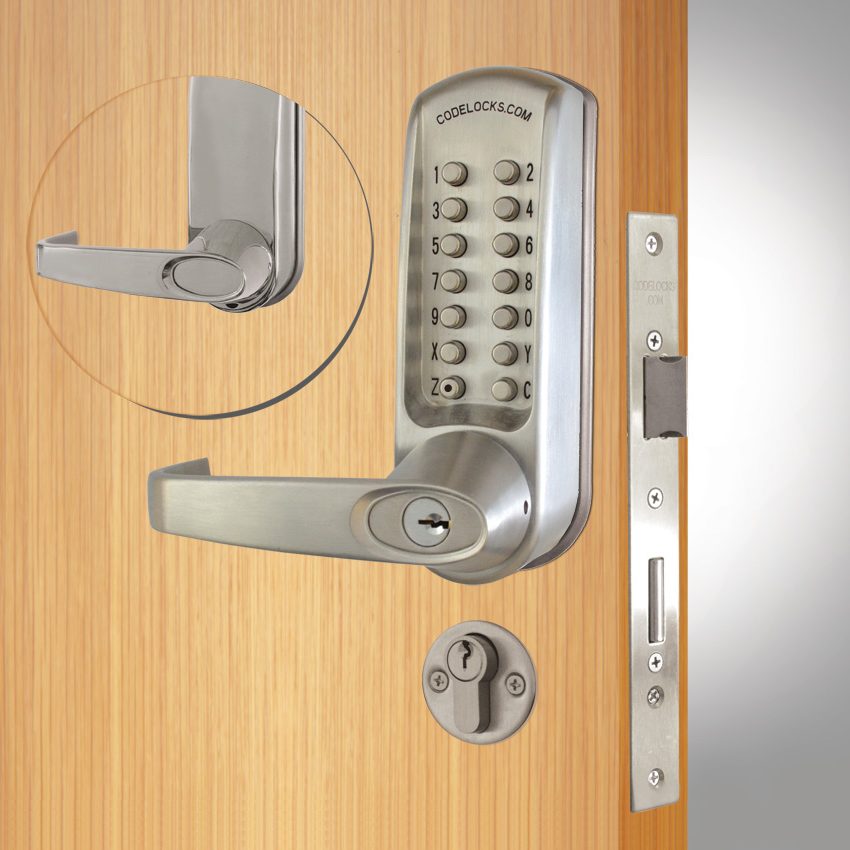

Access is managed via a code on the outside lever, which retracts the latchbolt. For key override, the cylinder allows entry without a code and controls the deadbolt. When the deadbolt is projected, code access is denied from the outside. However, the inside lever handle always retracts both the deadbolt and the latchbolt, ensuring a safe, quick exit and preventing accidental lock-ins.

A standout feature of the CL600 range is the Quick Code system, allowing you to change the code on the door in seconds without removing the lock.

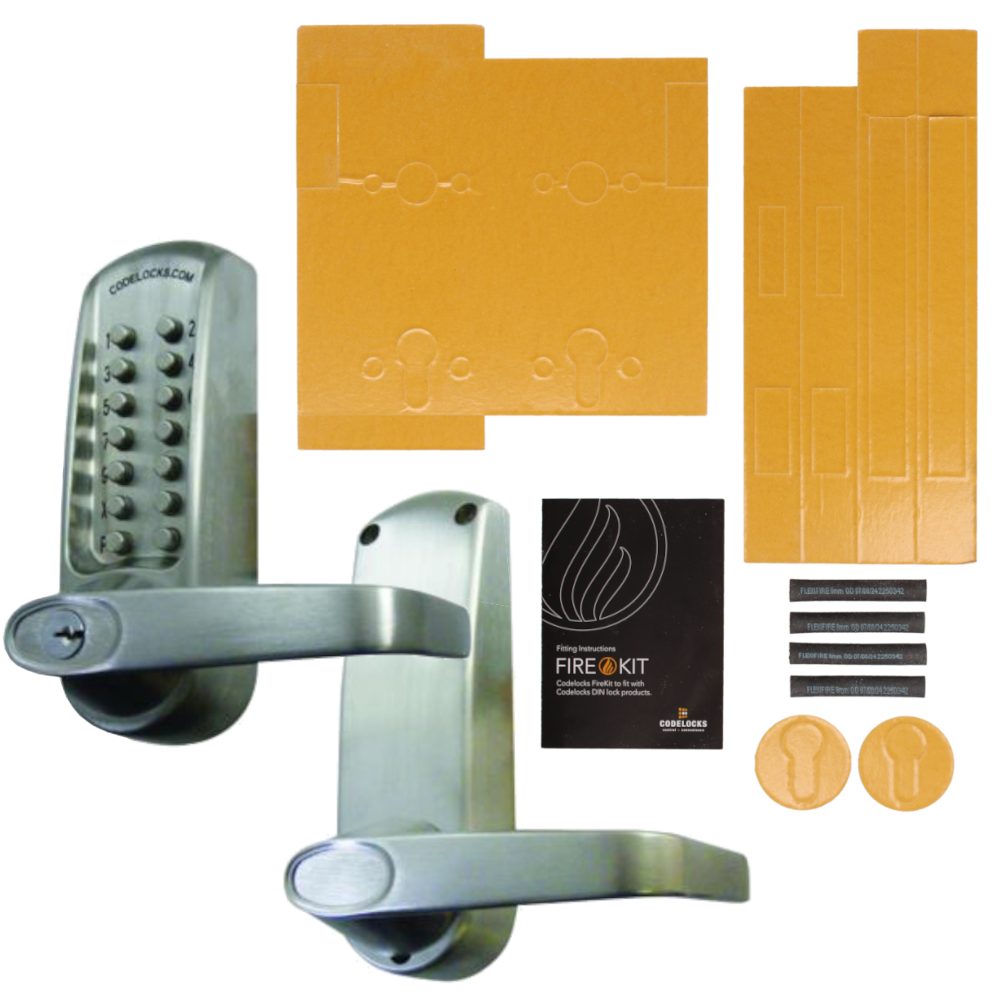

This lock is available in both fire-tested and non-fire-tested options, with weights ranging from 4.359kg to 4.74kg depending on the selected model. Depending on the variant chosen, it is either supplied with a fire pack or requires an appropriate intumescent pack to achieve its fire rating. Please choose your preferred fire rating, weight, and manufacturer reference from the options below.

Technical Specifications

• Brand: Codelocks
• Series: CL600 Series
• Backset: 55mm
• Case Depth Required: 85mm
• Width: 58mm
• Door Thickness: 35mm to 65mm
• Code Length: 4 to 6 digits (14 buttons, 8,000+ combinations)
• Handing: Reversible
• Keys Supplied: 3
• Latch: Euro Profile Mortice Sash Lock
• Fire Tested: Yes / No (Option dependent - please choose below)
• Weight: 4.359kg to 4.74kg (Option dependent - please choose below)
• Finish: Stainless Steel

Key Features

• Heavy-duty mortice lock with double cylinder and anti-panic safety function
• Quick Code change system allows on-door code changes in seconds
• Key override retracts latchbolt and controls deadbolt position
• Inside lever handle retracts both deadbolt and latchbolt for emergency free exit
• Large three-coil lever return spring suitable for high-traffic use
• Tested to Grade 2 ANSI A156.2
• Suitable for both internal and external doors
