CODELOCKS CL5520 Smart Digital Lock With Mortice Lock & Cylinder

Codelocks More Codelocks Codelocks

Price

£803.80

Select size, finish, and quantity from the variant table.

View options

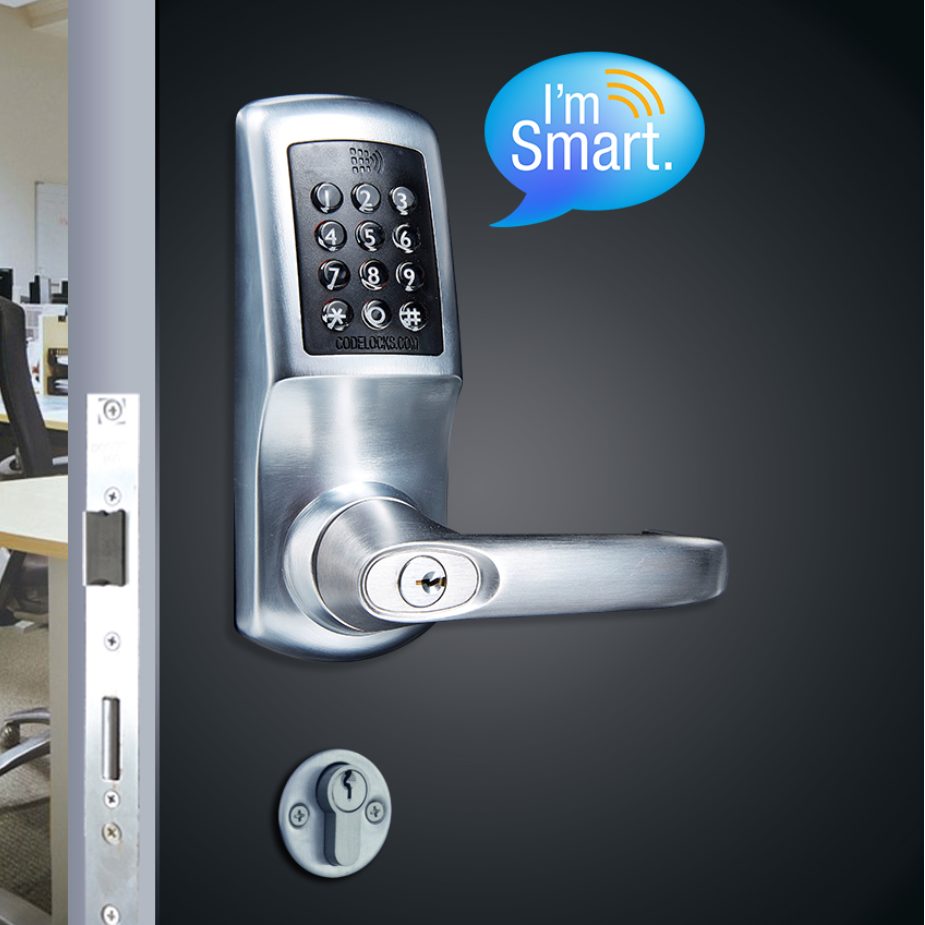

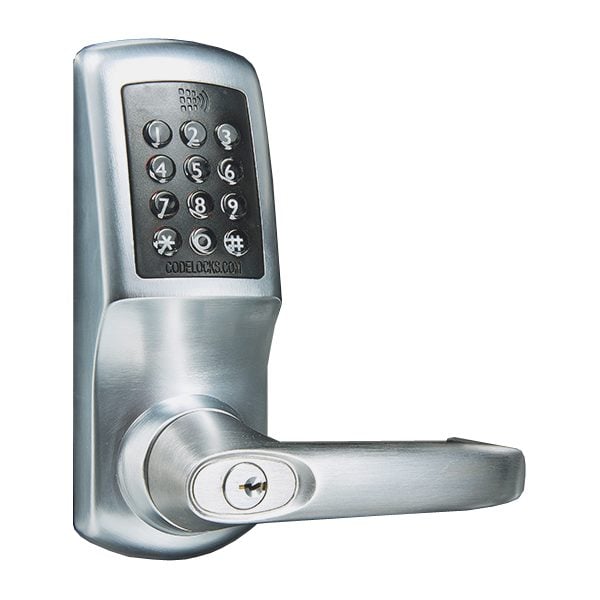

The Codelocks CL5520 is a heavy-duty smart digital mortice lock with a double cylinder, designed to provide flexible and secure access control for high-traffic applications. This advanced electronic lock can be programmed and managed entirely via Bluetooth using the K3 Connect App on your smartphone (compatible with iOS and Android), eliminating the need for complex manual programming.

Building managers can easily generate and distribute timed NetCodes via email or SMS, allowing temporary access with a set start date and duration. Once the pre-set time expires, the code becomes invalid. The lock supports up to 350 users across multiple entry methods, including 100 client user codes, 100 phone clients, and 150 smart cards. Additionally, the CL5520 features an audit trail function to track entry history, and allows up to 10 scheduled "code-free" periods for easy access during deliveries, cleaning, or maintenance.

The lock is supplied with a Euro profile mortice sashlock and double cylinder, featuring a key override for manual entry and management functions.

Technical Specifications

Brand: Codelocks
Manufacturer Reference: CL5520
Backset: 55mm
Case Depth: 84mm
Bolt Throw: 22mm (Double Throw)
Faceplate Width: 25mm
Door Thickness: 35mm to 60mm
Key Override: Yes (Double cylinder)
Power Supply: 4 x AA batteries
Keypad: 12-button backlit keypad
Code Length: 6 digits
Handing: Reversible
Material: Zinc Alloy
Finish: Brushed Steel
Spindle: 8mm spring-loaded
Suitability: Suitable for internal and external use (weather-resistant)

Key Features

Smart App Management: Program and manage the lock remotely via the K3 Connect App on iOS and Android devices.
Multiple Access Methods: Supports entry via smart code, smartphone, smart card, or physical key override.
High User Capacity: Supports up to 350 users (100 user codes, 100 phone clients, and 150 smart cards).
Timed NetCodes: Generate temporary codes with a set duration and expiry, sent easily via email or SMS.
Audit Trail Tracking: Download and review entry history to monitor staff and visitor movements.
Scheduled Code-Free Mode: Set up to 10 automatic code-free periods for hassle-free access during peak times or deliveries.
Heavy-Duty Construction: Durable zinc alloy build with a brushed steel finish, suitable for high-traffic internal and external doors.
