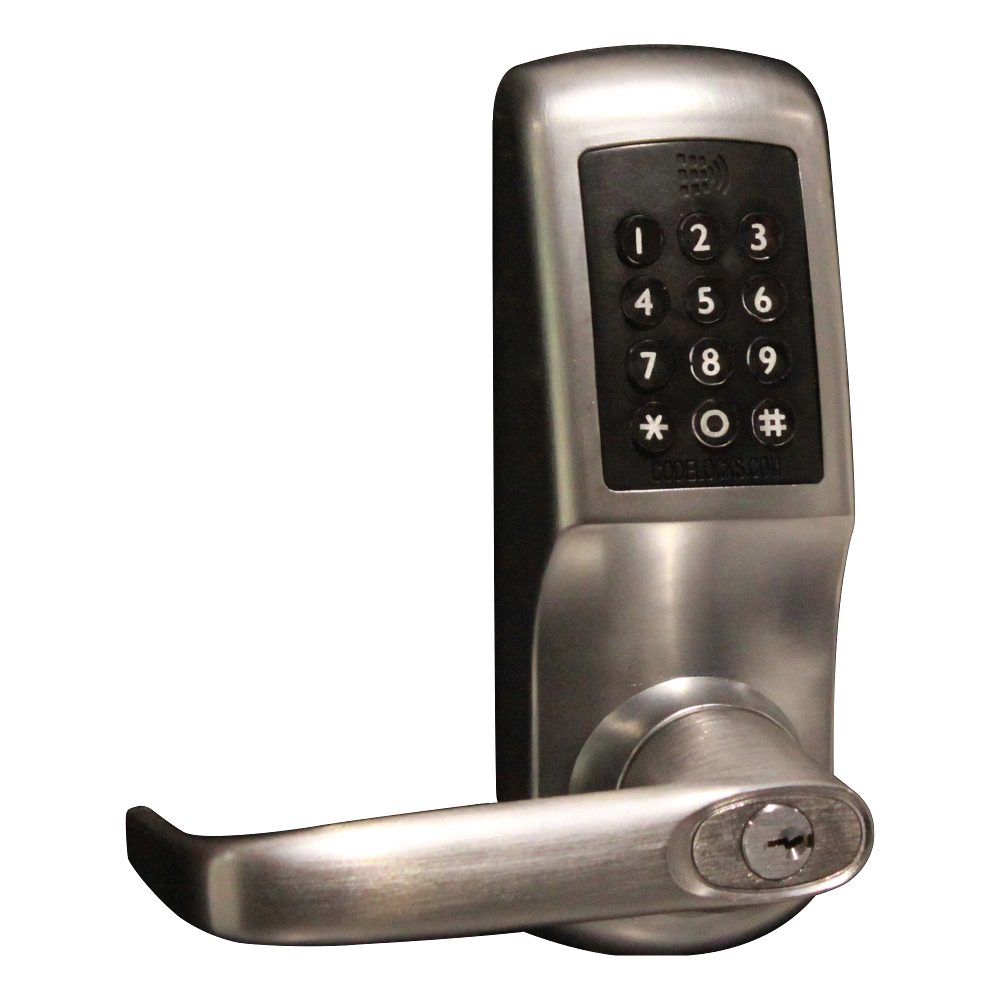

CODELOCKS CL5510 Smart Lock - Manage Via Your Smartphone

The Codelocks CL5510 Smart Lock is a heavy-duty, Bluetooth-enabled electronic digital lock designed to bring advanced access control and convenient smartphone management to your premises. Using the K3 Connect App (compatible with iOS and Android), building managers can easily program the lock, generate access codes, distribute smart cards, and track audit trails directly from a smartphone.

This versatile smart lock supports up to 350 users, offering multiple entry options including 100 user codes, 150 MIFARE® smart cards (or fobs/wristbands), and 100 phone clients. For enhanced security and temporary access, the CL5510 features Codelocks’ innovative NetCode technology. This allows you to generate timed access codes with a specific start date and duration, which can be sent via email or SMS and automatically expire after use.

With additional features like scheduled 'code-free' periods, a backlit 12-button keypad, and a key override with two keys supplied, the CL5510 provides a highly flexible and secure solution for busy commercial environments.

Technical Specifications

• Brand: Codelocks
• Model: CL5510
• Power Supply: 4 x AA batteries (approx. 1-year battery life)
• Backset: 60mm
• Latch: 60mm standard latch
• Case Depth Required: 95mm
• Door Thickness: 35mm to 65mm

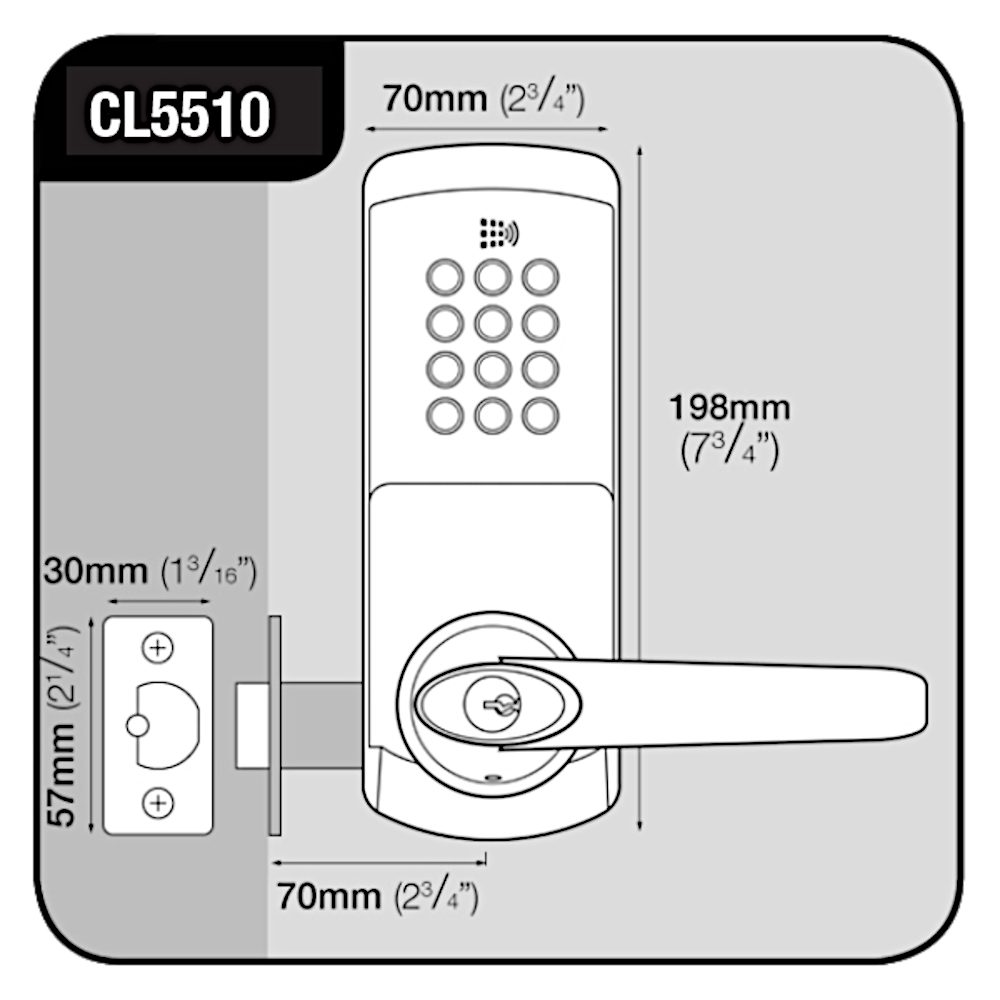

• Body Dimensions: 198mm (H) x 70mm (W)
• Spindle: 8mm
• Body Material: Zinc Alloy
• Finish: Satin Stainless Steel
• Keypad: 12-button backlit keypad
• Code Length: 4 to 6 digits (NetCode is 6 digits)
• User Capacity: Up to 350 users (100 user codes, 150 smart cards, 100 phone clients)
• Handing: Reversible
• Key Override: Yes (2 keys supplied)
• Operation Inside: Lever handle free exit
• Operation Outside: Lever handle on entry of code, via phone Bluetooth, or by key
• Weather Resistant: Yes
• Guarantee: 2 years

Key Features

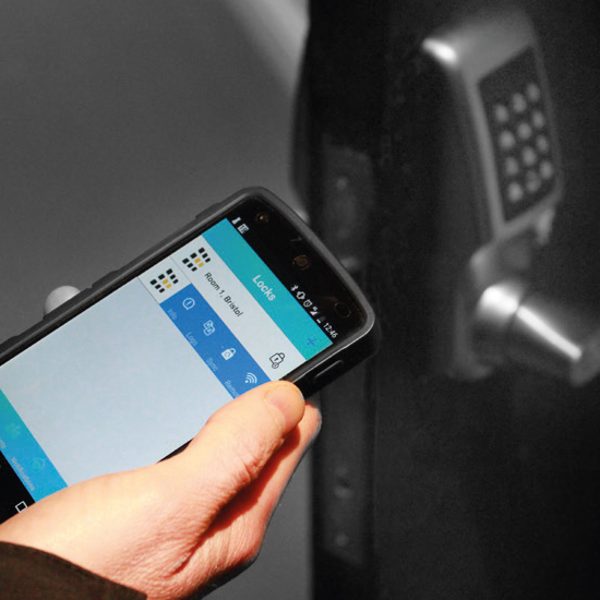

• Smartphone Management: Easily program and manage the lock via Bluetooth using the K3 Connect App (iOS and Android compatible).
• NetCode Technology: Generate and distribute temporary, timed access codes via email or SMS that automatically expire after a set duration.
• Audit Trail Tracking: Download and analyse a history of code and card usage to monitor staff and visitor movements.

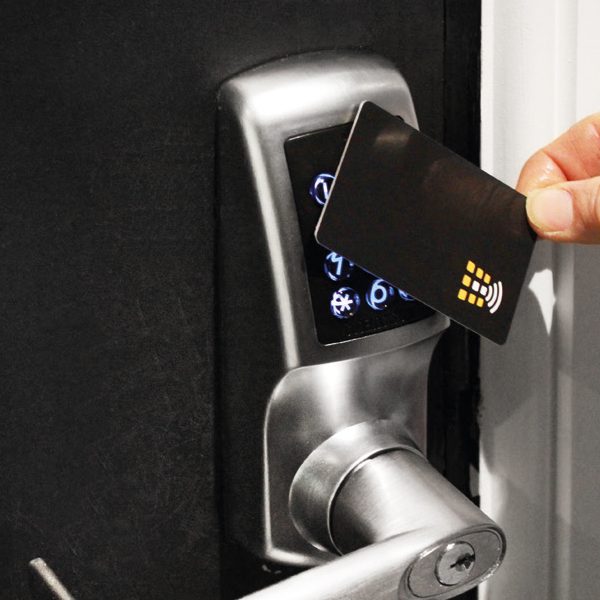

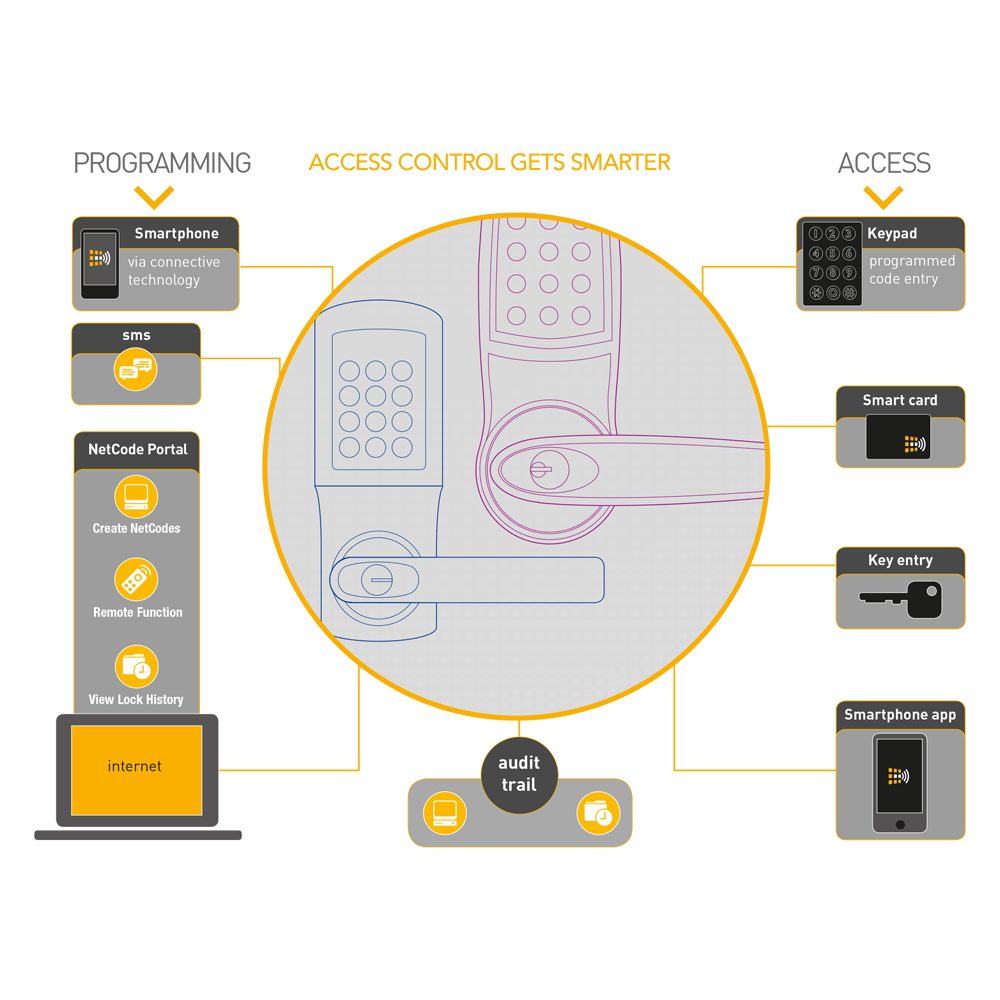

• Flexible Entry Options: Supports entry via keypad code, MIFARE® smart card/fob, smartphone, or physical key override.
• Scheduled Access: Set up scheduled 'code-free' periods and timed client access windows for hassle-free entry during business hours.
• Clean by Codelocks Option: Available to special order with a photocatalytic coating that reduces bacterial growth by up to 99.96%.
