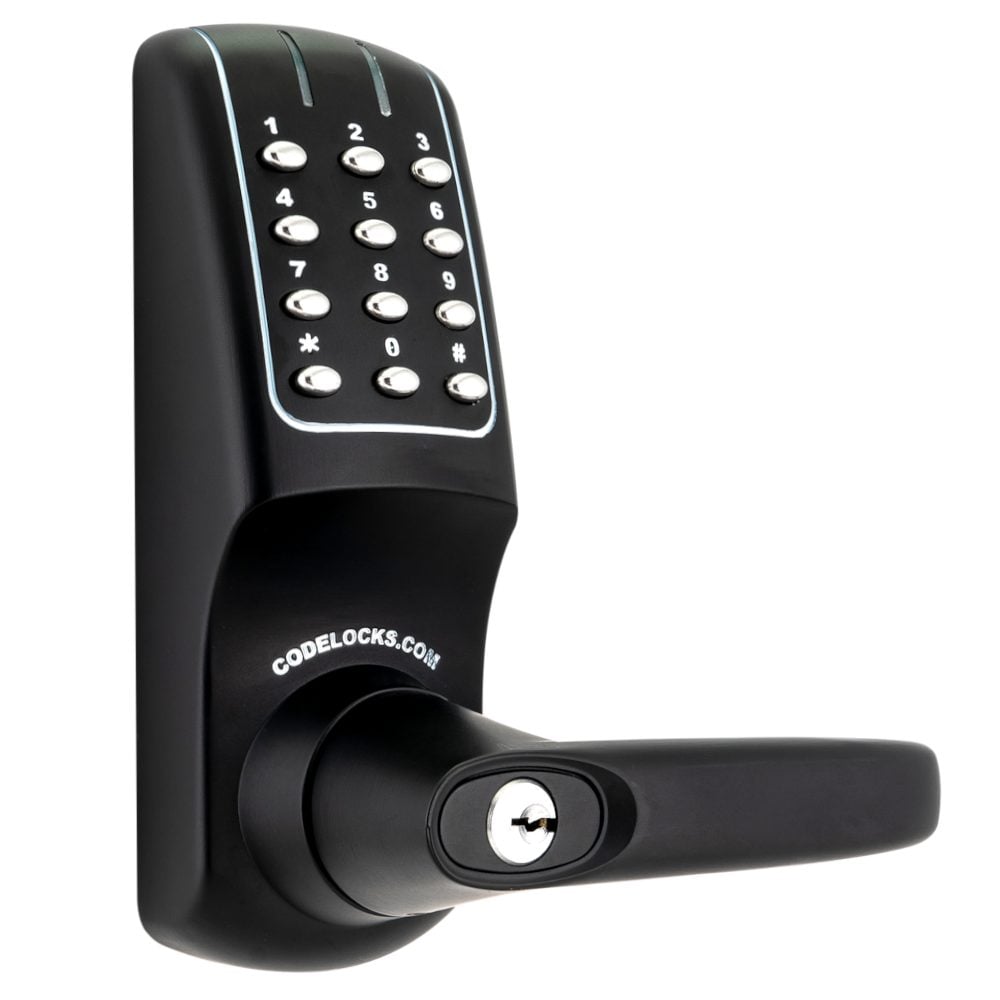

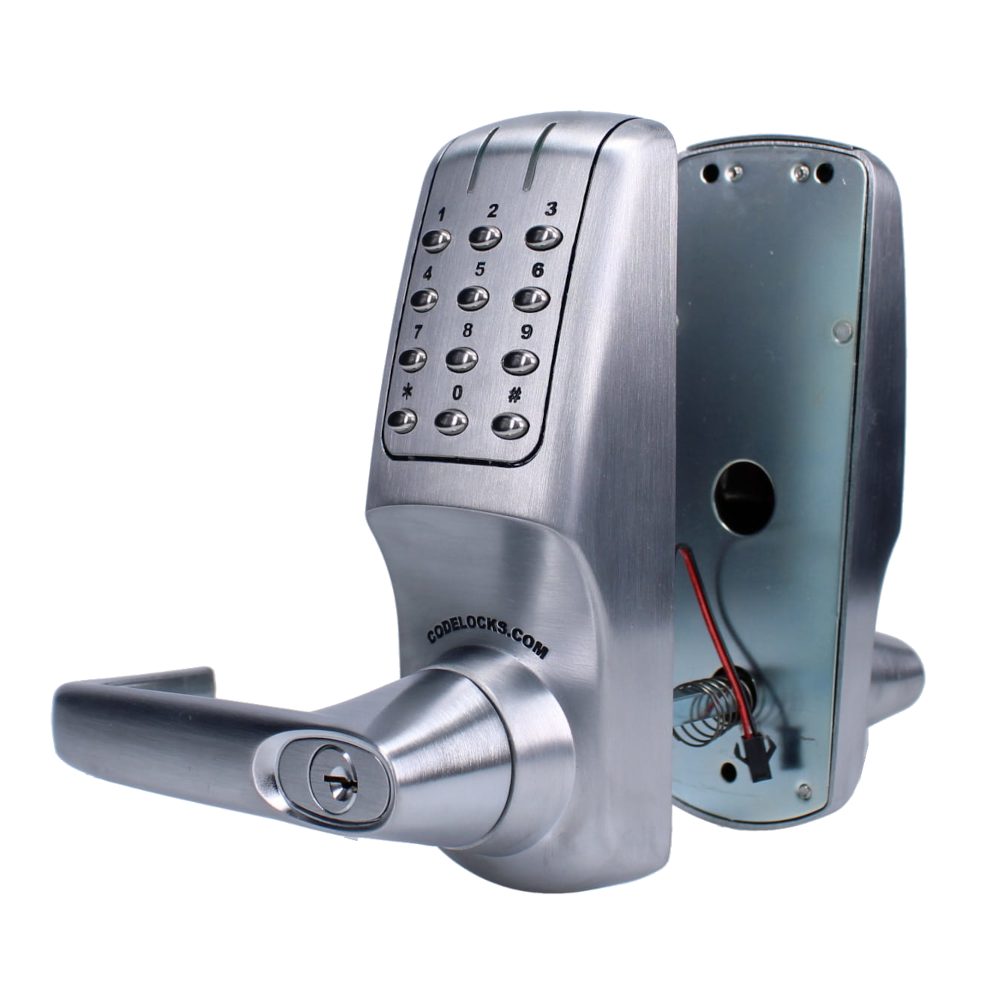

CODELOCKS CL5010 Battery Operated Digital Lock

The Codelocks CL5010 is a heavy-duty, standalone electronic digital door lock designed for high-traffic environments. It is particularly suited for use in healthcare, educational, commercial, and residential settings where reliable, keyless access control is required.

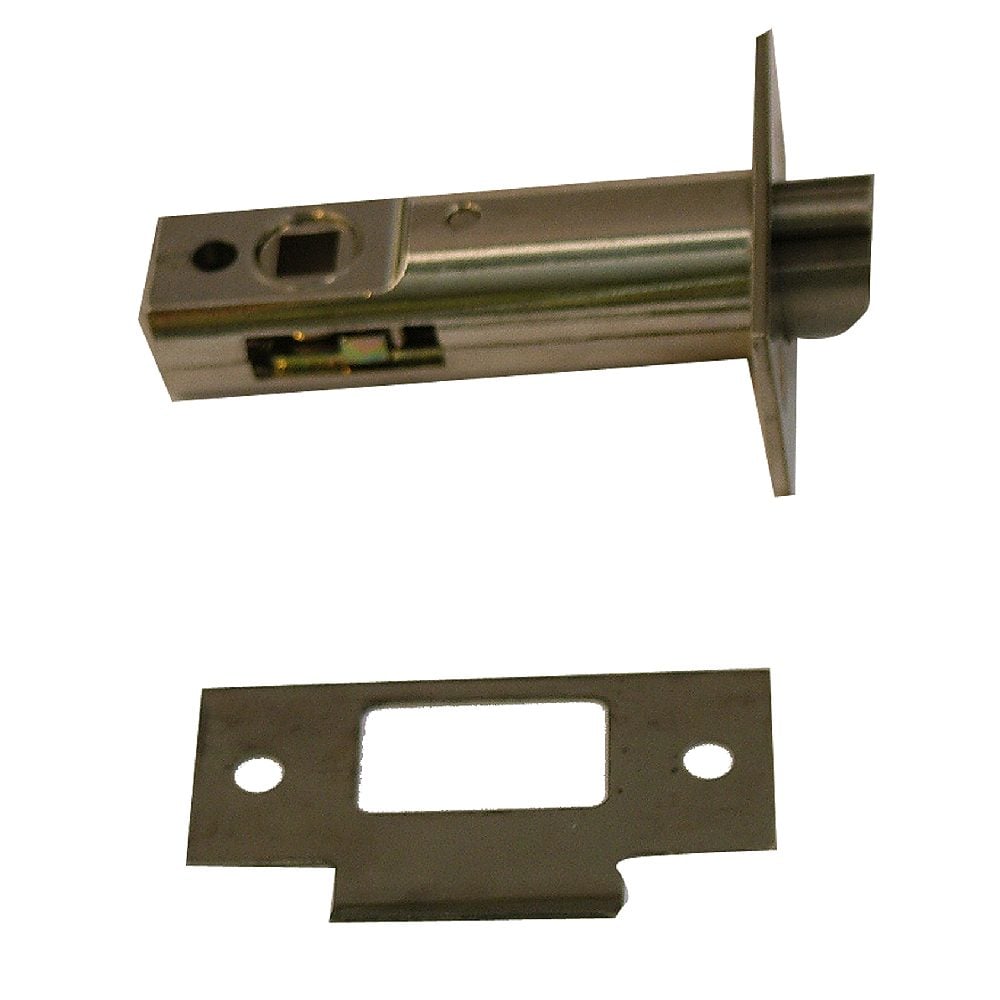

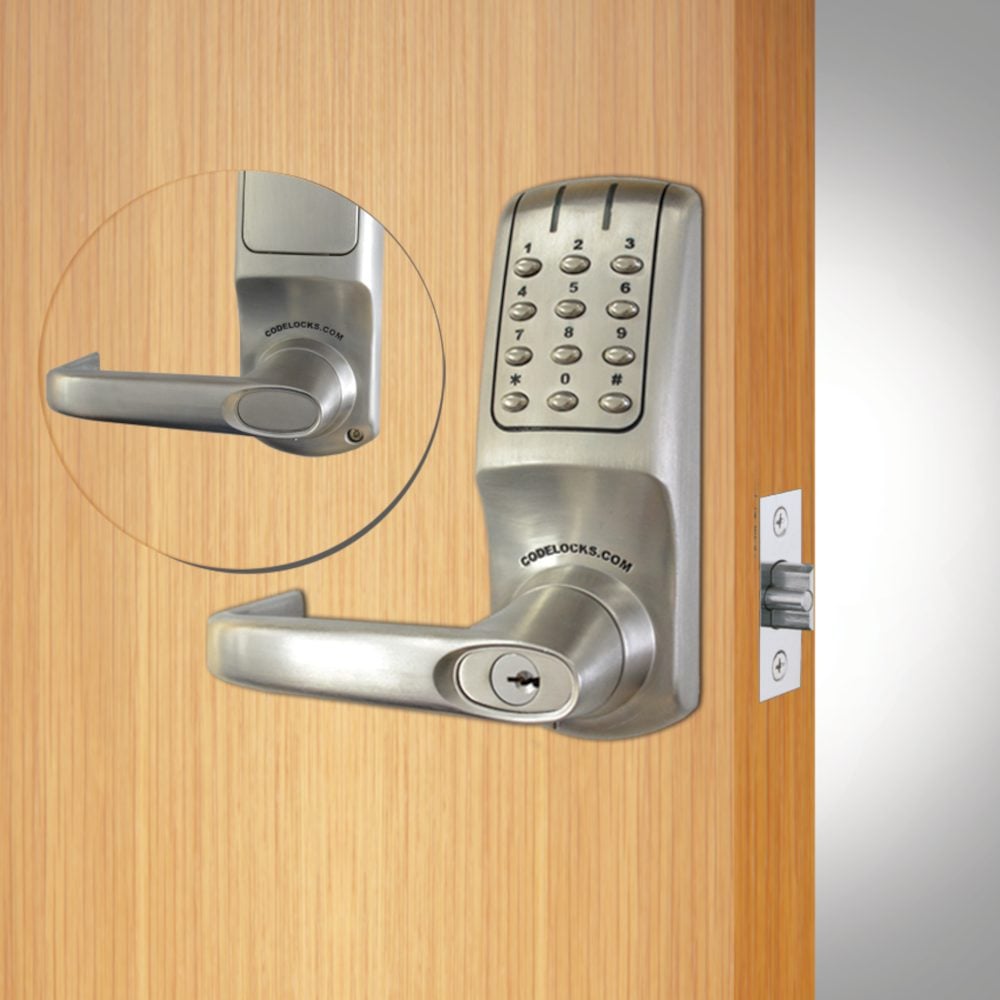

Operating via a standard 60mm tubular mortice latch, the lock features an external lever handle that retracts the latch upon entry of a valid 4 to 6-digit code or by using the key override. The inside lever handle provides a free exit at all times. For added convenience, a code-free passage mode can be programmed directly via the 12-button keypad.

The CL5010 is built for durability and convenience, featuring non-volatile memory that retains all user codes and settings during battery changes. It also includes connections for remote release (such as a reception desk button or alarm system integration), a tamper alarm, and a low battery warning.

This versatile digital lock is available in multiple finishes, weights, and configurations, including standard and fire-tested versions. Please select your preferred finish, fire-testing requirements, and other options from the choices below.

Technical Specifications

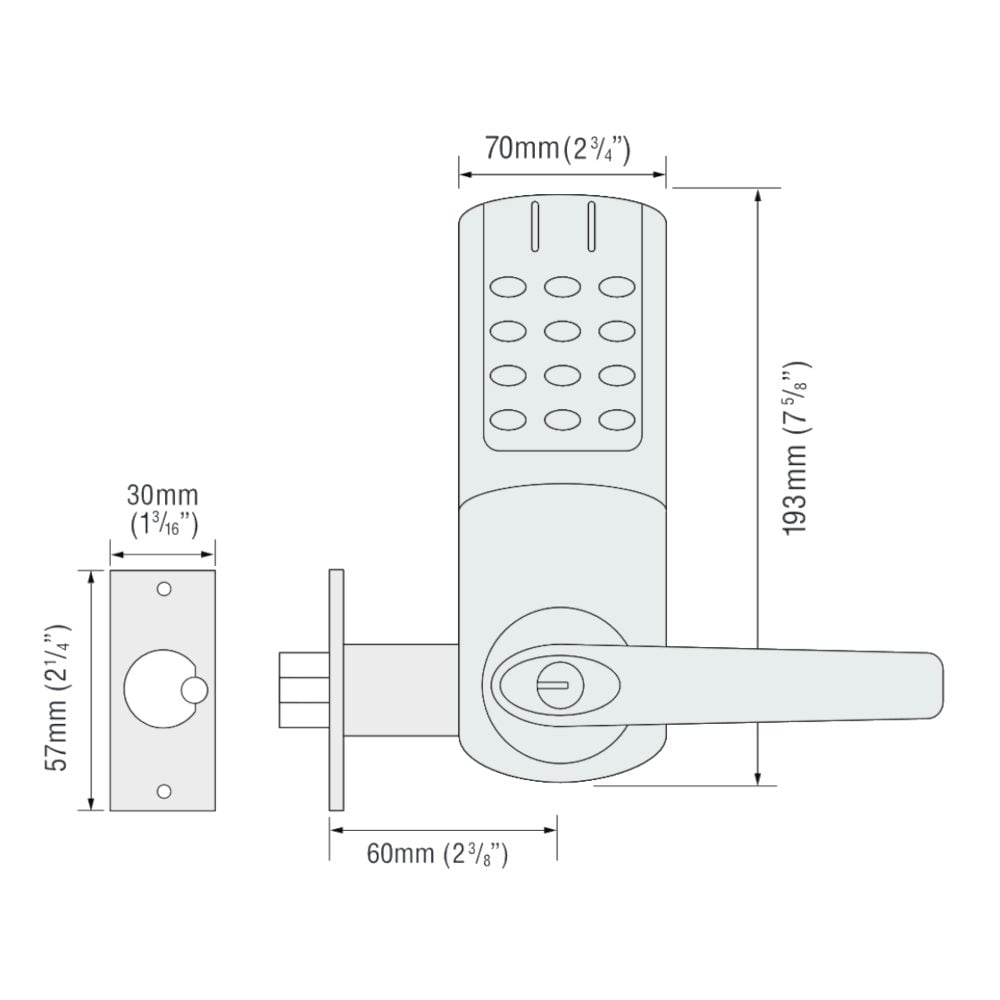

• Backset: 60mm
• Required Case Depth: 95mm
• Door Thickness: 35mm to 65mm
• Power Supply: 4 x AA batteries (providing up to 200,000 operations)
• Code Length: 4 to 6 digits (supporting over 1,000,000 combinations)
• User Capacity: Up to 80 user codes
• Key Override: Yes (supplied with 2 keys)
• Handing: Reversible (fits left and right-handed doors)
• Finishes Available: Black or Stainless Steel (please select from the options below)

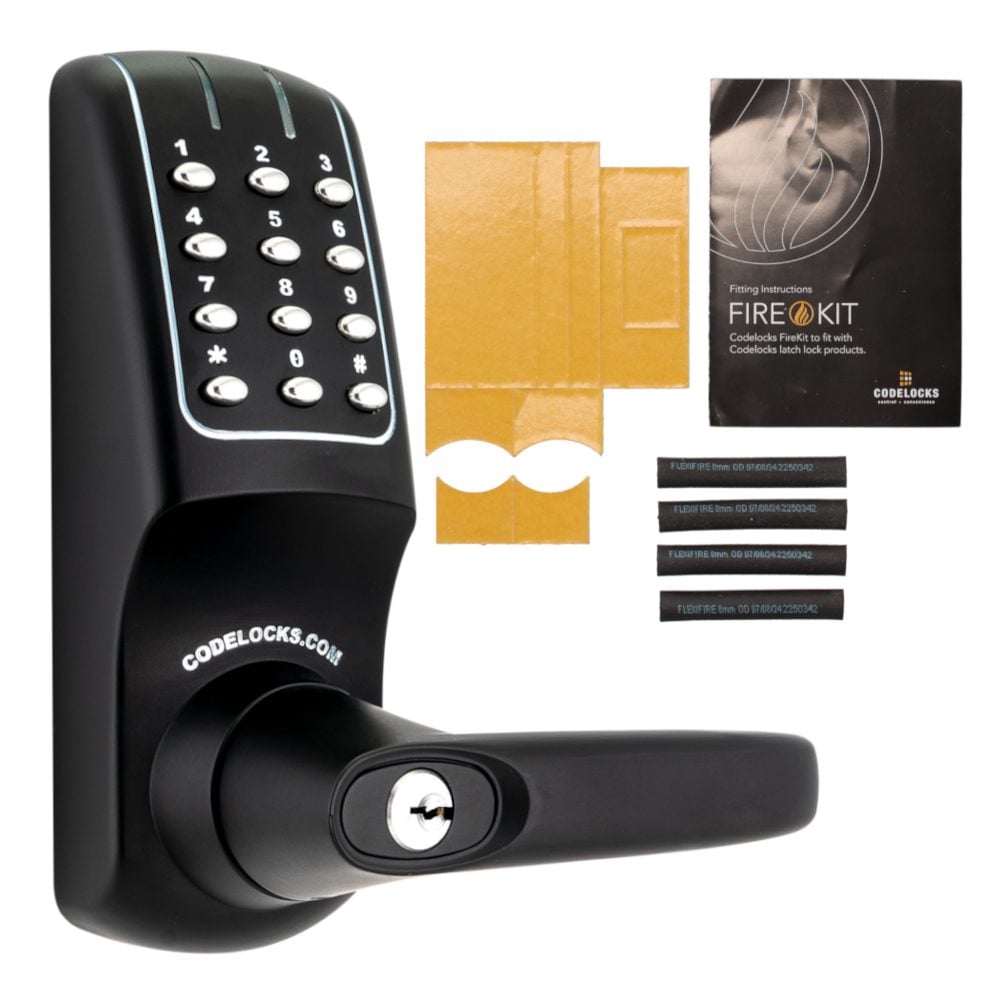

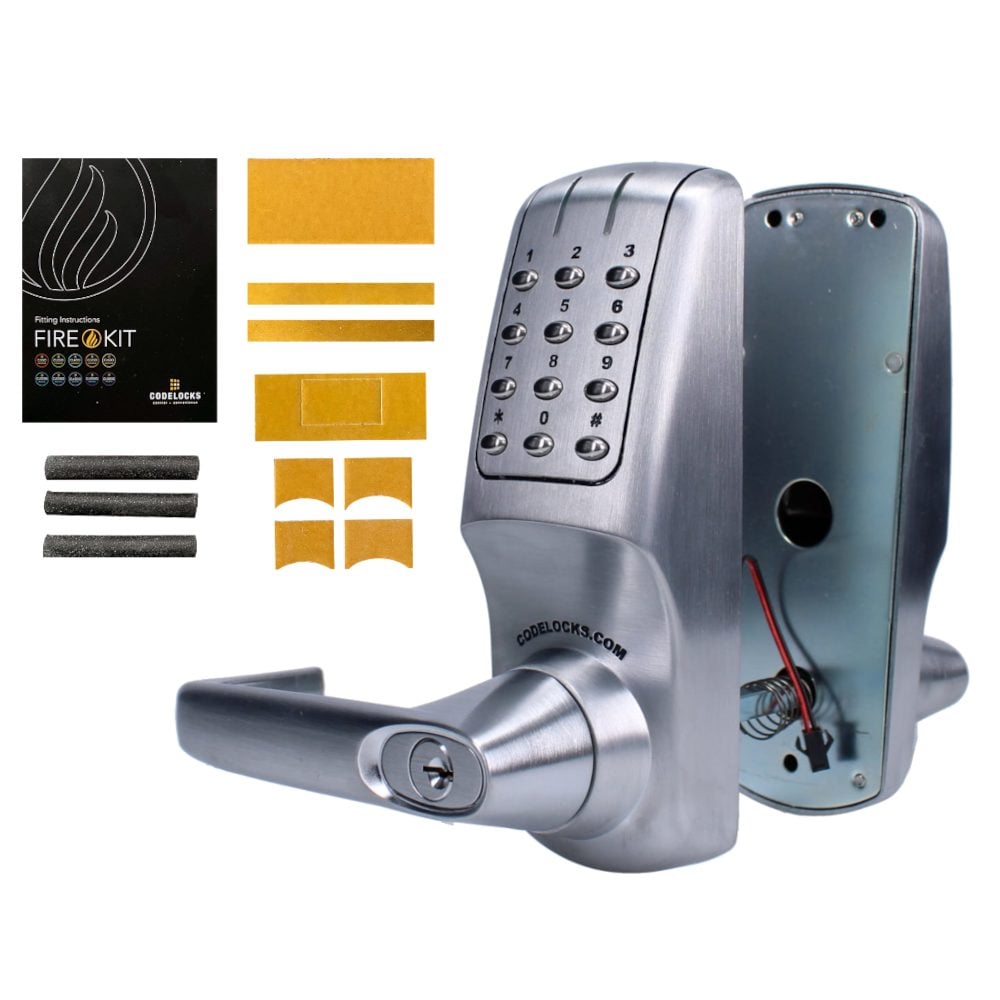

• Fire Testing: Standard and fire-tested (BS EN 1634-1) versions available (please select from the options below)
• Guarantee: 2 Year manufacturer's guarantee

Key Features

• Heavy-Duty Performance: Designed for high-traffic applications in commercial, educational, healthcare, and residential settings.
• Non-Volatile Memory: Retains all programmed codes and settings even when the batteries are being replaced.

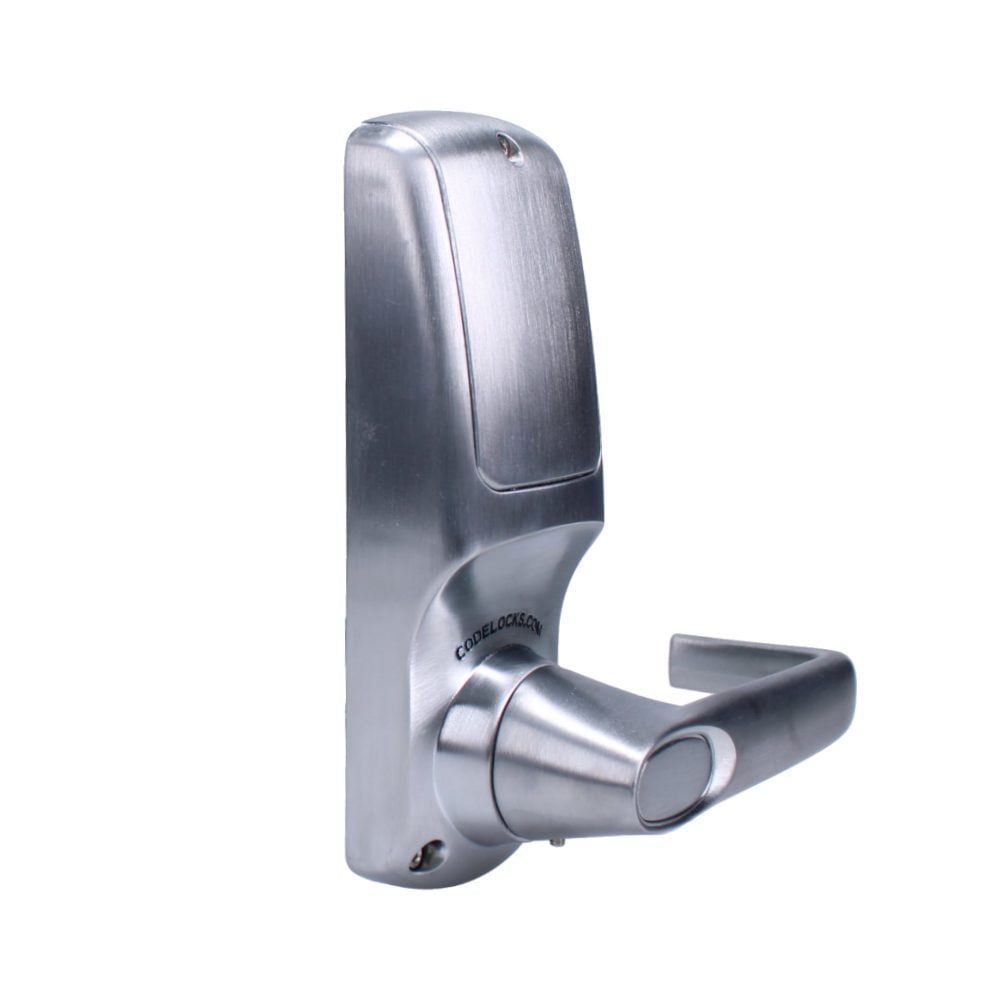

• Dual Operation: Features lever handle entry via code or key override, with a free-exit lever handle on the inside.
• Code-Free Passage Mode: Easily program a code-free option via the keypad for unrestricted access when needed.
• Remote Release Connections: Terminals included for remote release via a reception desk button or integration with alarm systems.
• Security & Alerts: Equipped with a built-in tamper alarm and a low battery warning indicator.
• All-Weather Protection: PVD weather-resistant finish makes it suitable for both internal and external door installations.
