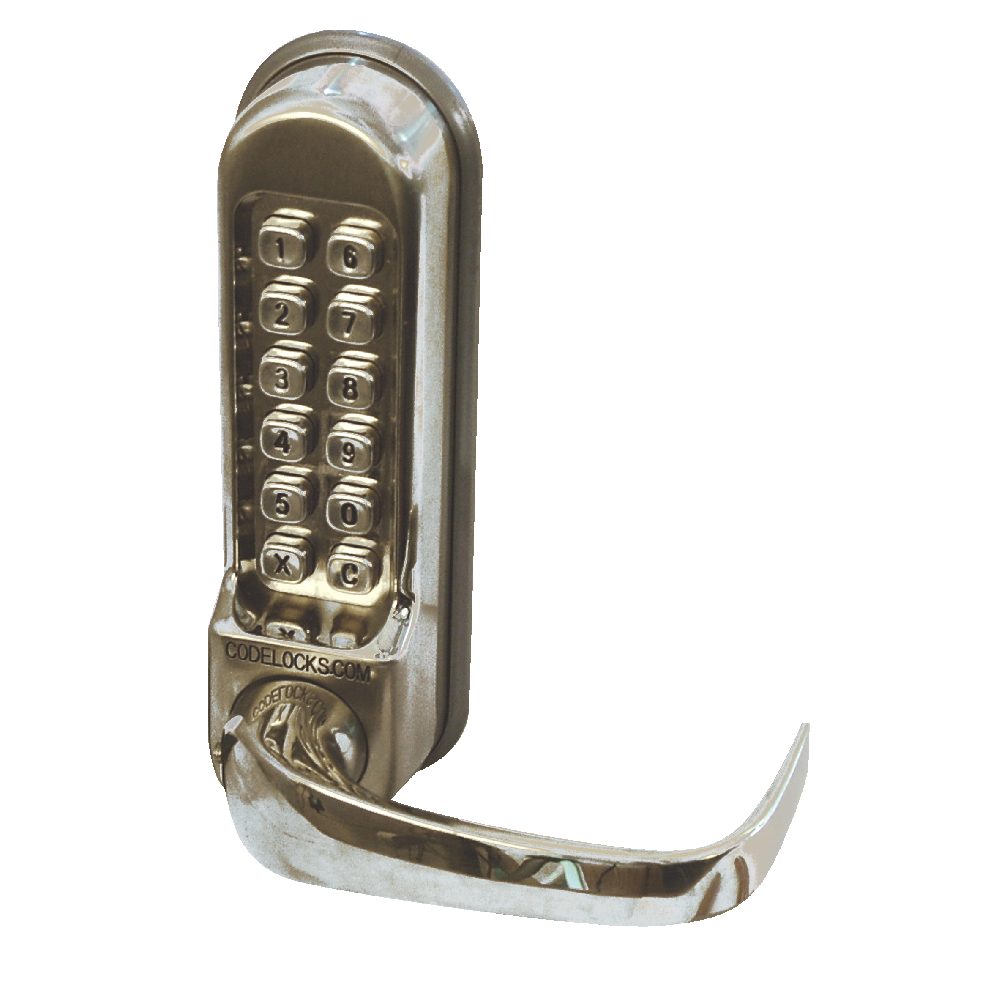

CODELOCKS CL500 PK Series Front Only Digital Lock To Suit Panic Latch
Codelocks

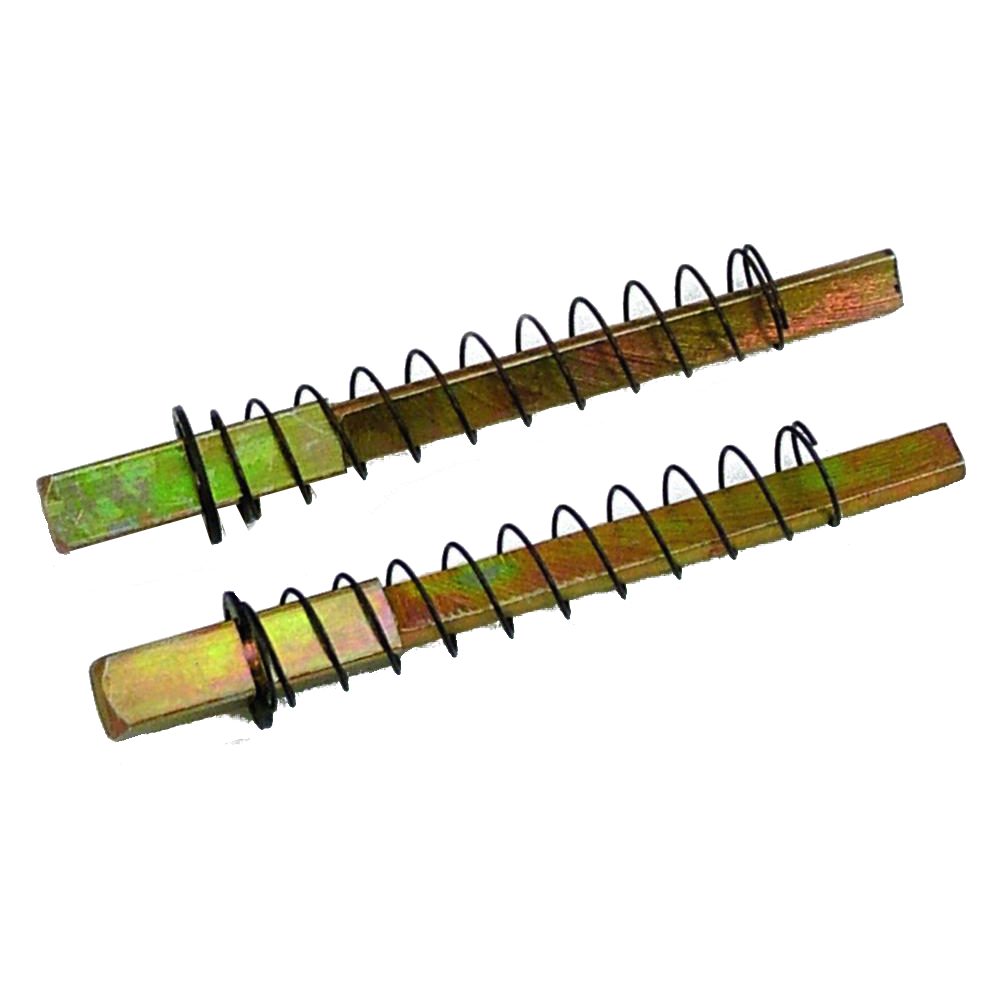

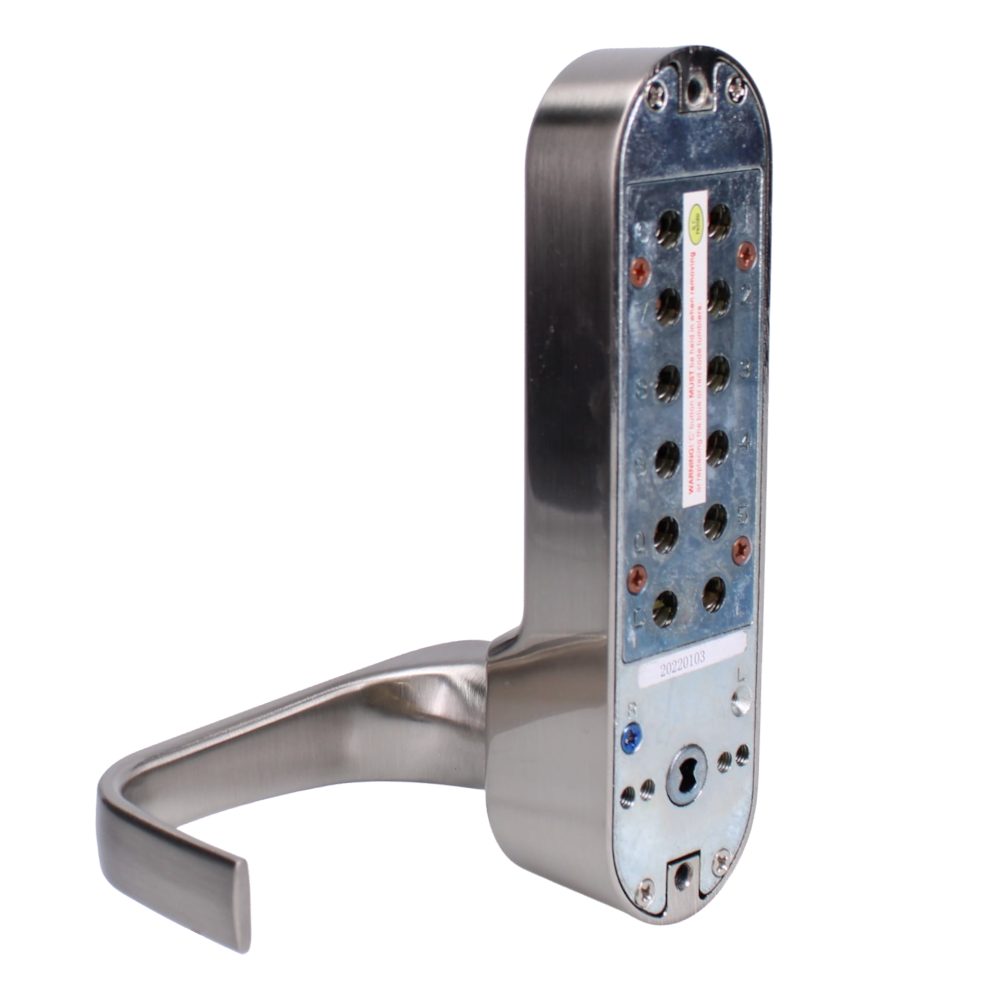

The Codelocks CL500 PK (Panic Kit) is a heavy-duty mechanical digital front plate designed to provide secure, coded access control from the outside of doors fitted with panic hardware. Supplied with an extra-long spindle, this front-only unit is engineered to work seamlessly with most single-point panic pads or bars.
Constructed for demanding environments, it features a weather-resistant PVD stainless steel finish, making it suitable for both internal and external doors. The outside lever handle is equipped with a protective clutch mechanism to prevent damage to the internal lock if forced. It is fully reversible (non-handed), allowing for easy installation on left or right-hand hung doors.

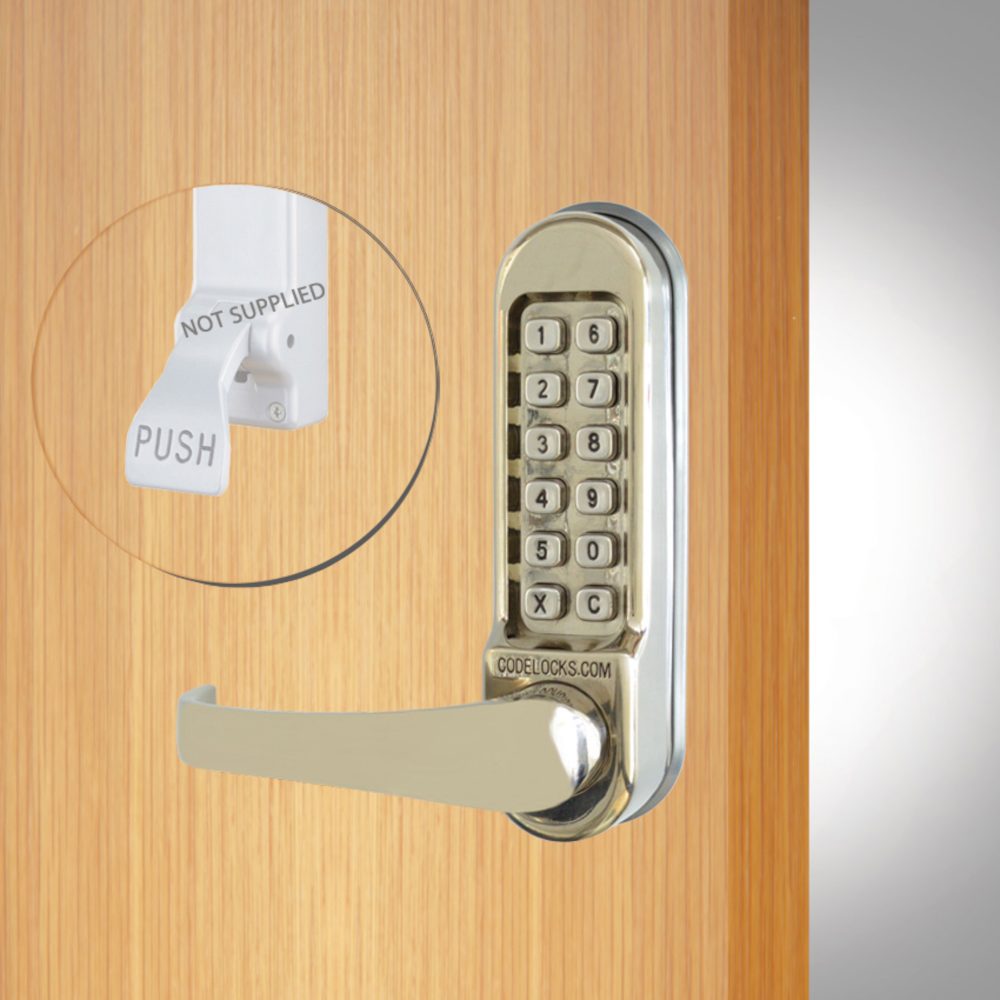

Please note that this is a front plate only; the panic latch/hardware is not supplied. Before ordering for use with an existing lock case or panic device, please ensure compatibility. An optional "Clean by Codelocks" anti-bacterial finish is also available to special order.
Technical Specifications
- Brand: Codelocks
- Manufacturer Reference: 0500 SS PK
- Finish: Stainless Steel (PVD)
- Code Length: 4 to 6 digits
- Combinations: 8,000+
- Door Thickness Compatibility: 35mm to 65mm
- Backset: 60mm
- Required Case Depth: 85mm
- Outside Operation: Lever handle on entry of code
- Inside Operation: Panic latch (not supplied)
- Handing: Reversible (non-handed)
- Key Override: No
- Holdback / Passage Mode: No
- Weather Resistant: Yes
- Width: 48mm
- Weight: 1.36kg
Key Features
- Panic Kit Integration: Supplied with an extra-long spindle to work with most single-point panic pads or bars.
- Heavy-Duty Build: Designed for high-traffic internal and external door applications.
- Clutch Protection: Protective clutch mechanism on the lever handle prevents damage from forced entry attempts.
- Weather-Resistant PVD Finish: Durable stainless steel finish designed to withstand outdoor elements.
- Fully Reversible: Non-handed design allows for easy installation on both left and right-hand hung doors.
- Optional Clean Coating: Available to special order with "Clean by Codelocks" photocatalytic coating to help reduce bacterial growth.
