CODELOCKS CL415 Digital Lock With Tubular Latch

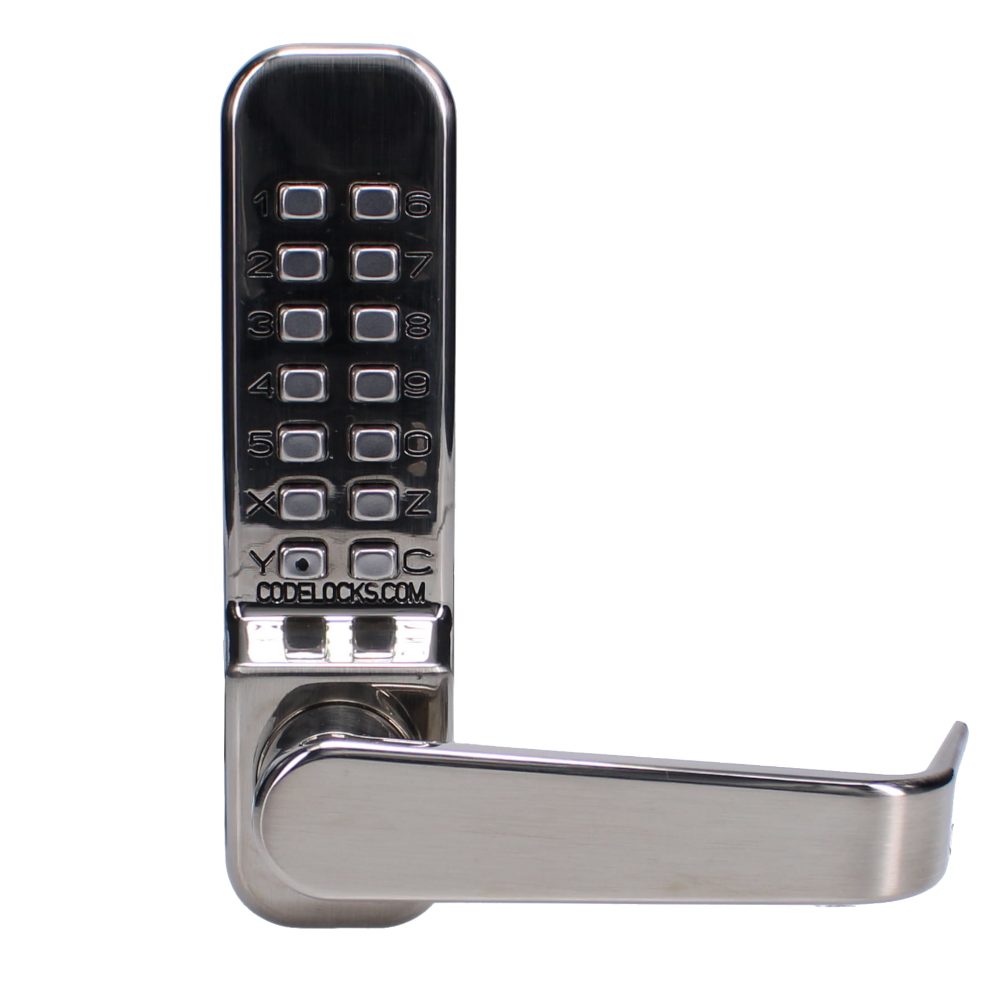

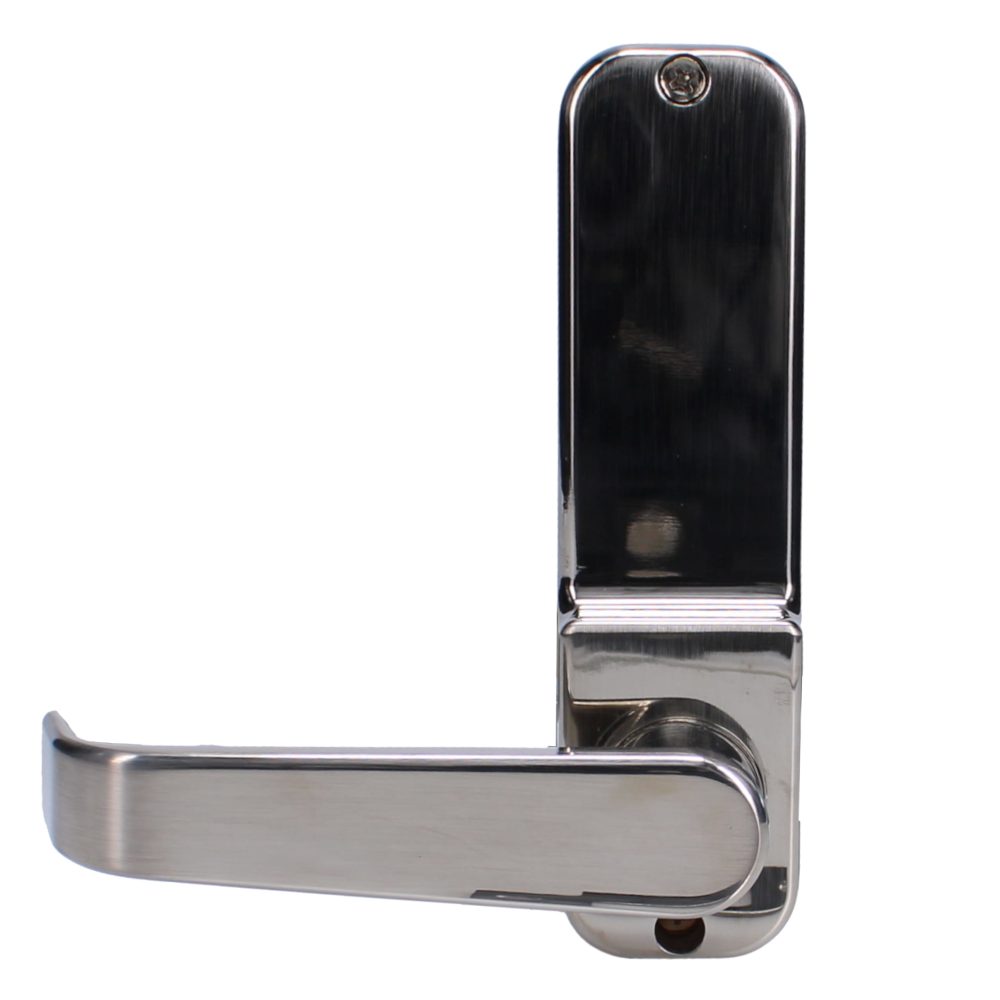

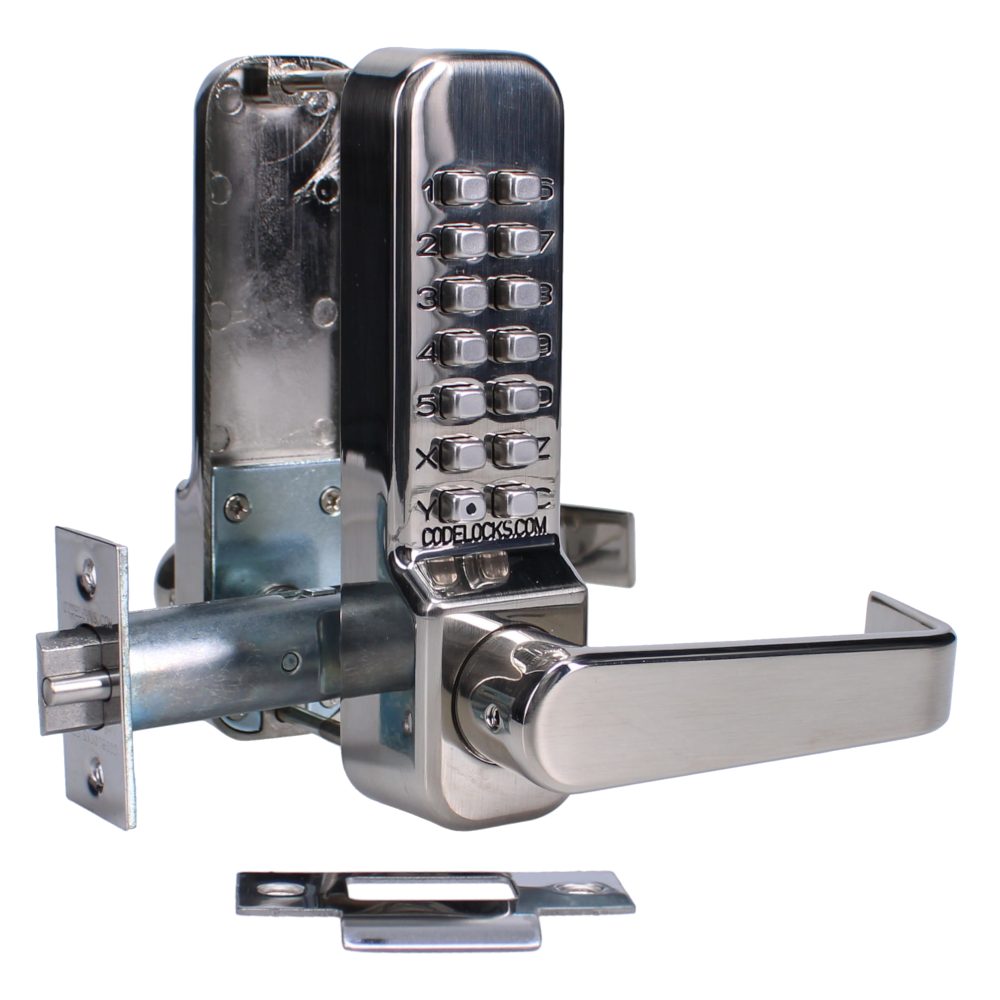

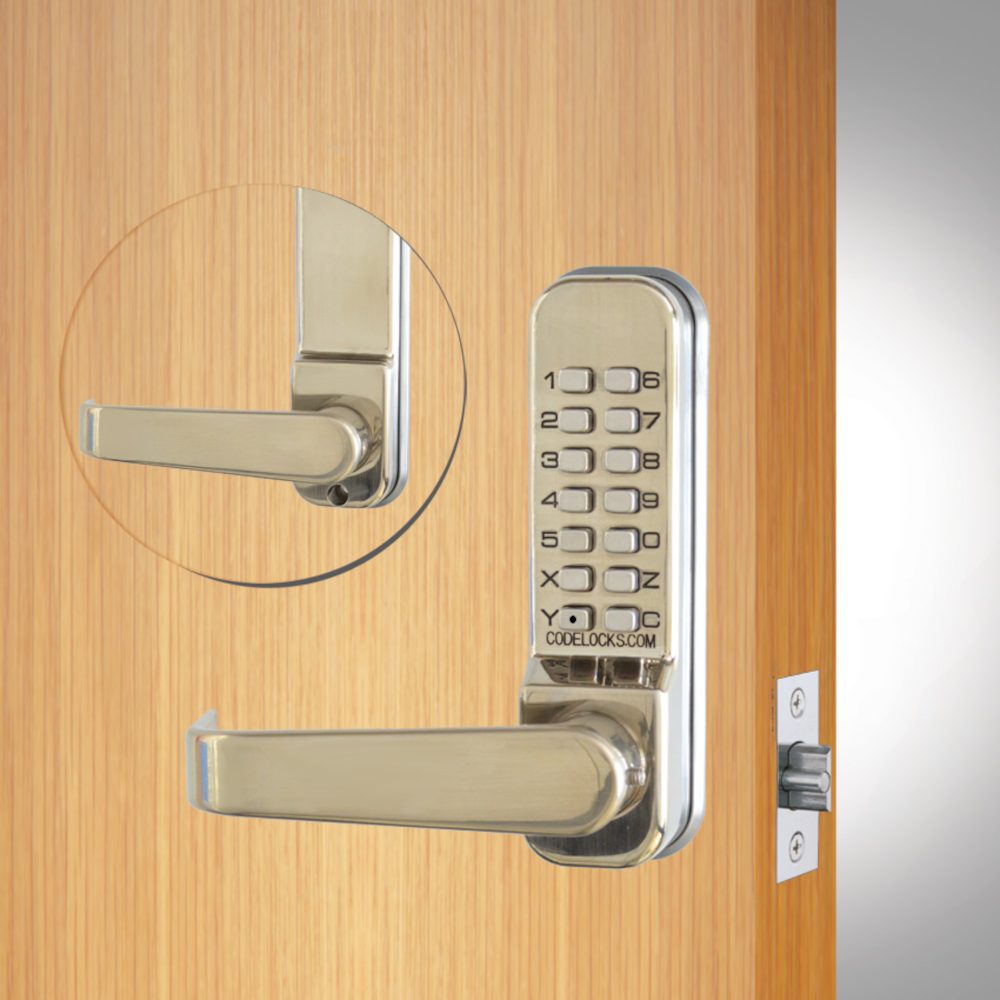

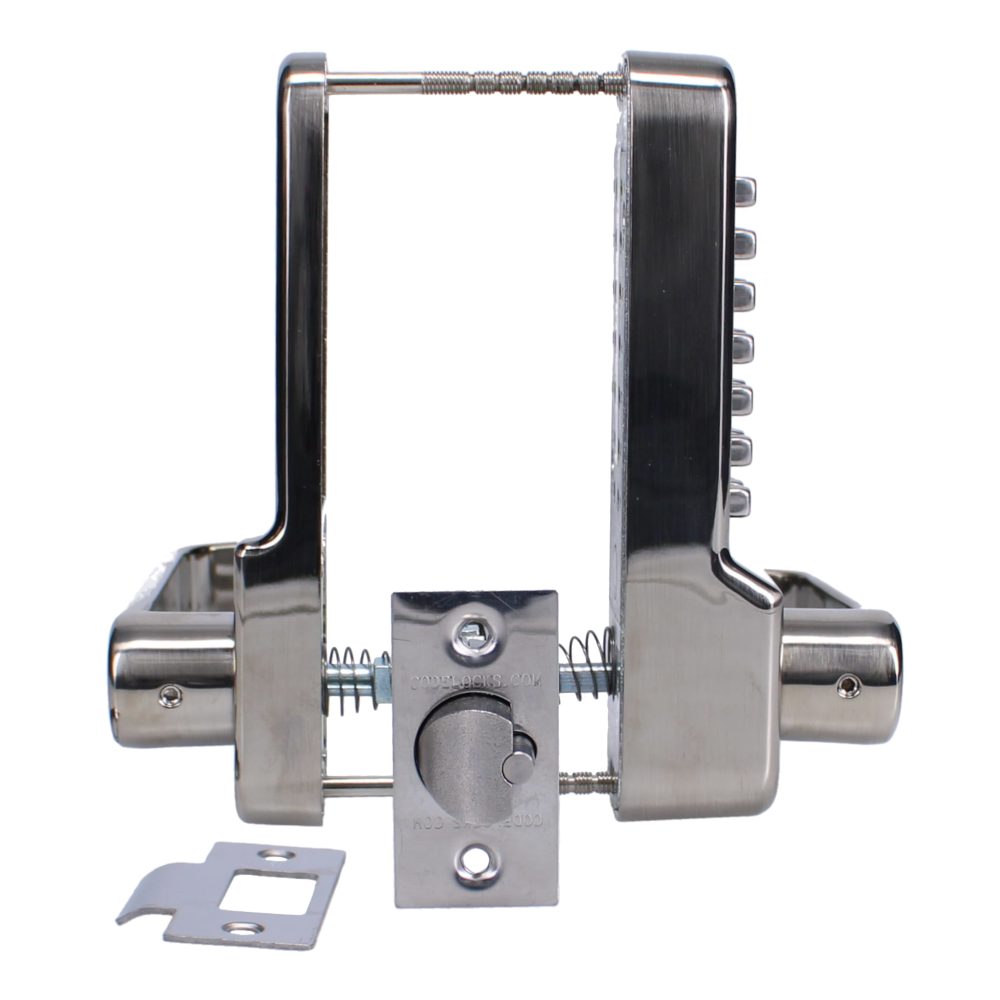

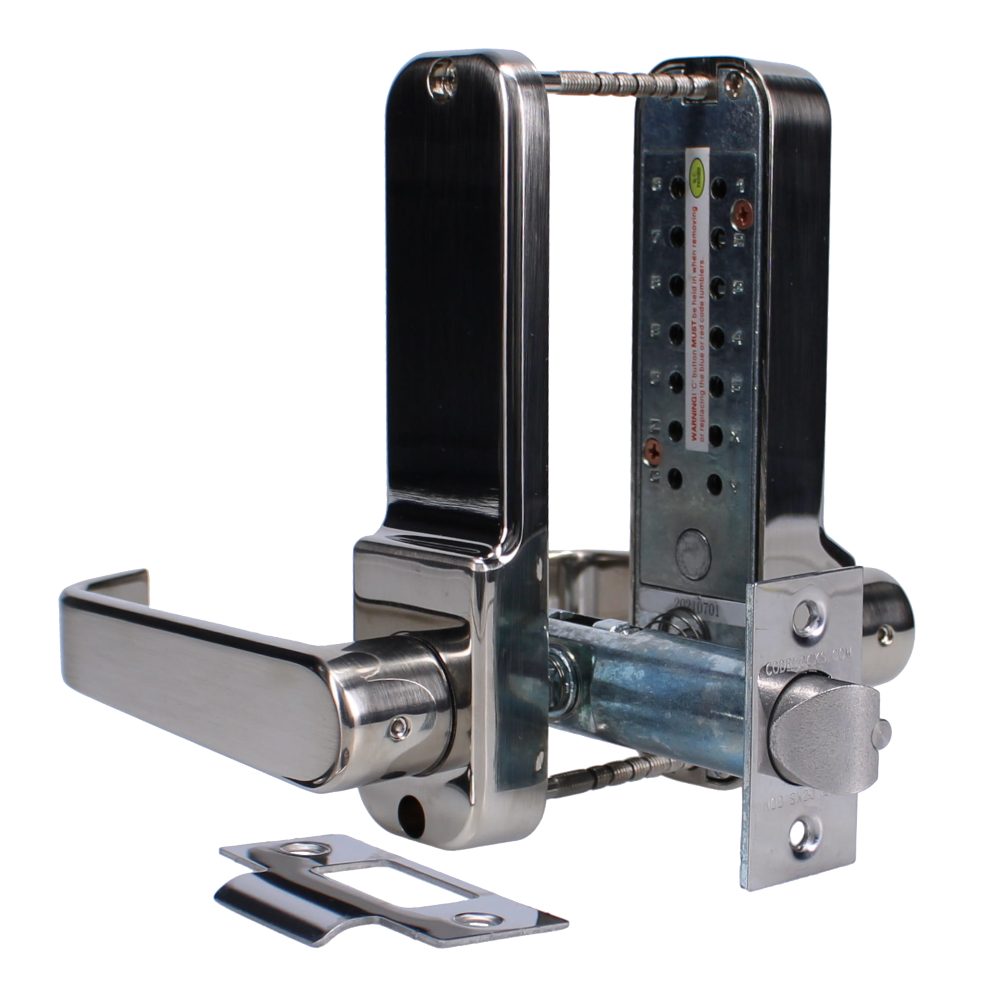

The Codelocks CL415 is a medium-duty mechanical digital lock from the CL400 series, featuring full-size lever handles and a tubular mortice latch. It is designed for both internal and external doors, providing a robust and reliable security solution where a knob-operated lock would be unsuitable.

A standout feature of the CL415 is its Code Free entry option (passage mode). By pressing the 'Y' button with a correct code input, users can set the lock to allow free passage without needing to enter the code every time - ideal for high-traffic periods. The outside lever handle retracts the latch once a correct code is entered, while the inside lever handle offers free exit at all times.

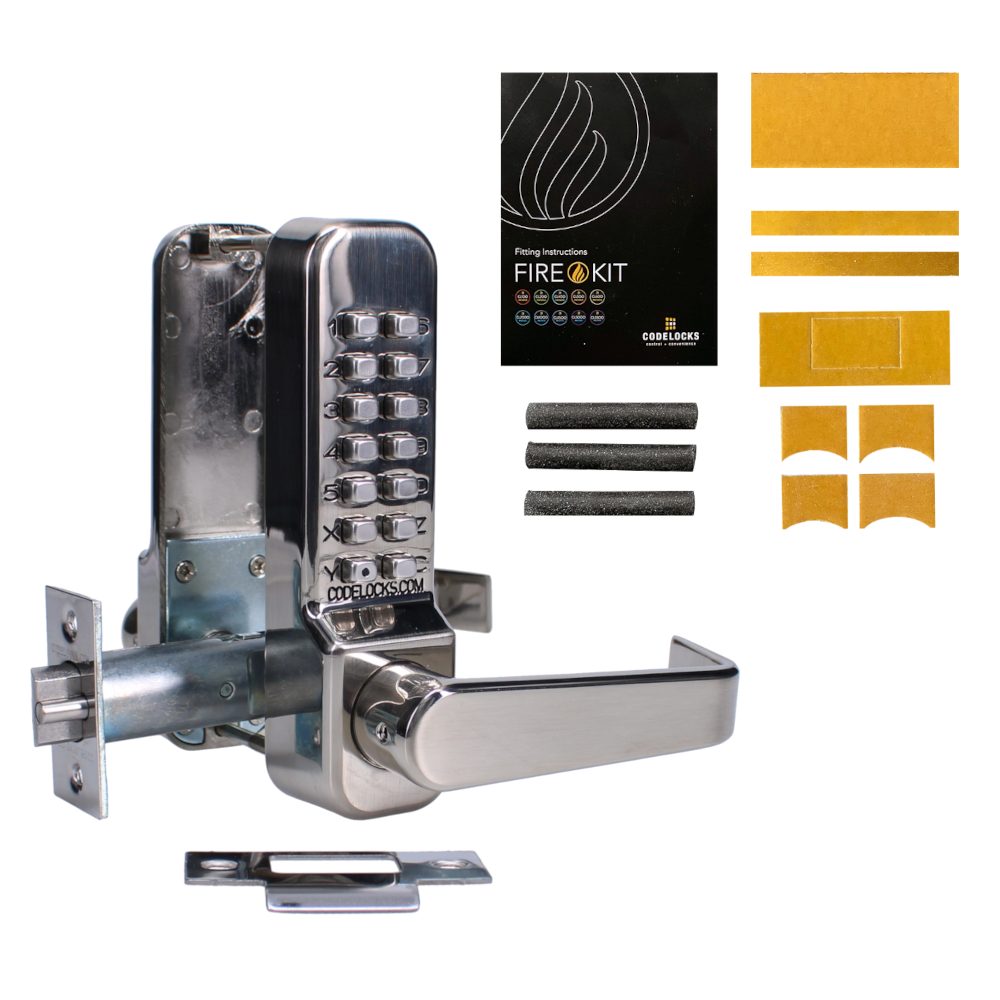

This lock is available in multiple configurations to suit your specific installation needs. You can choose between fire-tested (complying with BS EN 1634-1) and non-fire-tested variants, with weights ranging from 1.504kg to 1.54kg. Depending on the variant selected, the lock is supplied either with an optional fire holdback kit or will require an appropriate intumescent pack to achieve its fire rating. Please select your preferred manufacturer reference and specifications from the options below.

Technical Specifications

• Brand: Codelocks
• Model Range: CL400 Series (CL415)
• Buttons: 14 stainless steel buttons
• Code Length: 4 to 6 digits
• Combinations: 8,000+ possible combinations
• Backset: 60mm
• Latch: 60mm standard tubular latch
• Case Depth Required: 85mm
• Door Thickness: Suitable for doors 35mm to 65mm thick
• Finish: Stainless Steel (weather-resistant PVD)
• Handing: Reversible (non-handed)
• Fire Tested: Available in both fire-tested (BS EN 1634-1 compliant) and non-fire-tested options (please choose from the options below)
• Weight: 1.504kg to 1.54kg (depending on variant selected)
• Width: 41mm

Key Features

• Code Free Entry Option: Features a passage mode function allowing unrestricted entry without a code when required.
• Medium Duty Construction: Suitable for both internal and external applications on wooden or metal doors.
• Full-Size Lever Handles: Return-to-door lever design provides an ergonomic and accessible alternative to knob-operated locks.
• Protective Clutch Mechanism: Prevents damage to the internal lock mechanism from forced entry attempts on the outside handle.
• Automatic Locking: The spring-loaded latchbolt locks automatically when the door is closed, ensuring continuous security.
• Easy Code Changes: Tumbler alignment design allows for straightforward code changes.
• Reversible Handing: Non-handed units are suitable for both left and right-handed doors.
