CODELOCKS CL290 Back To Back Digital Lock
Codelocks

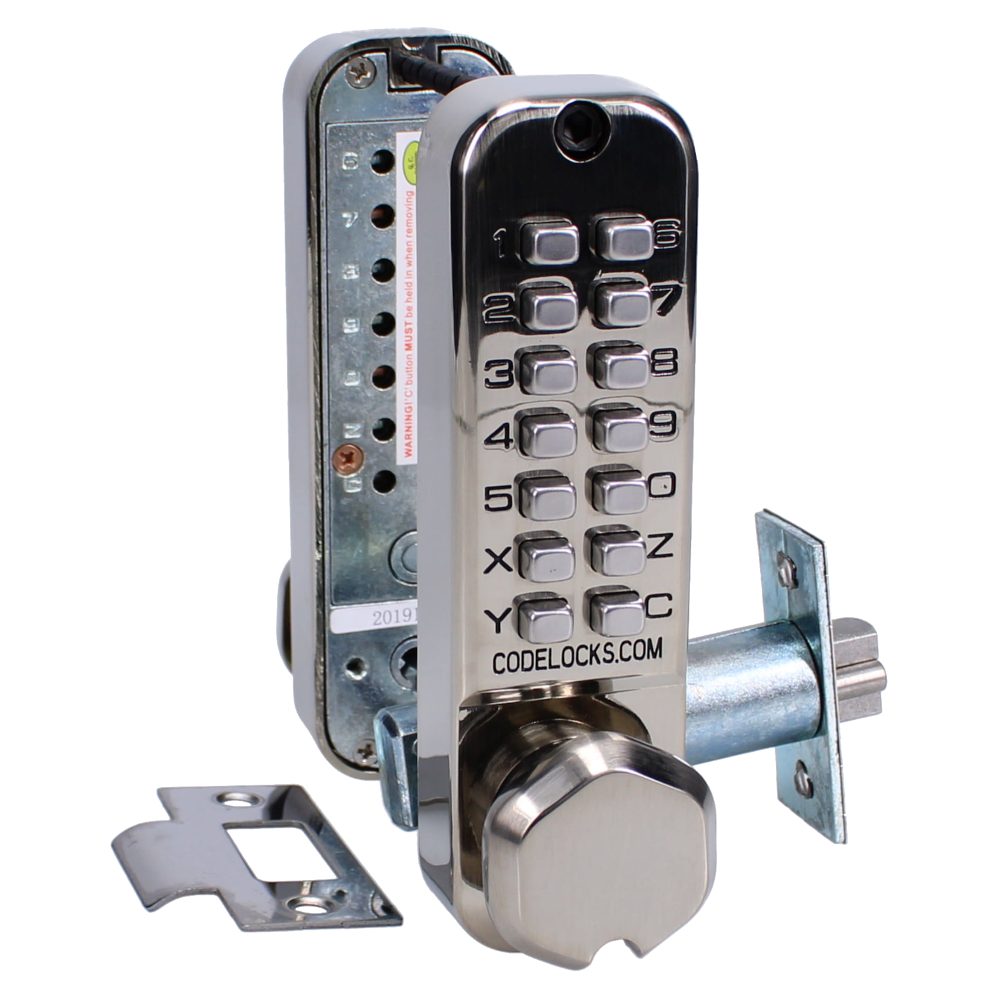

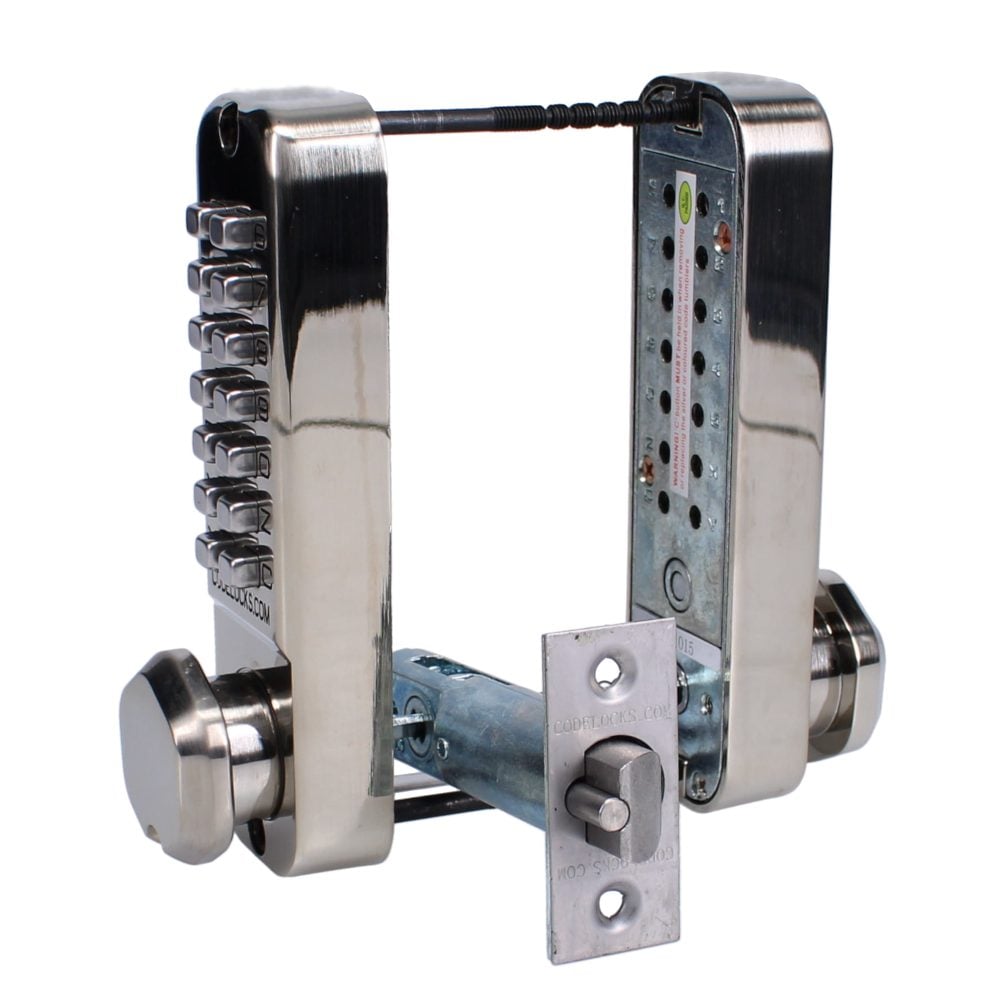

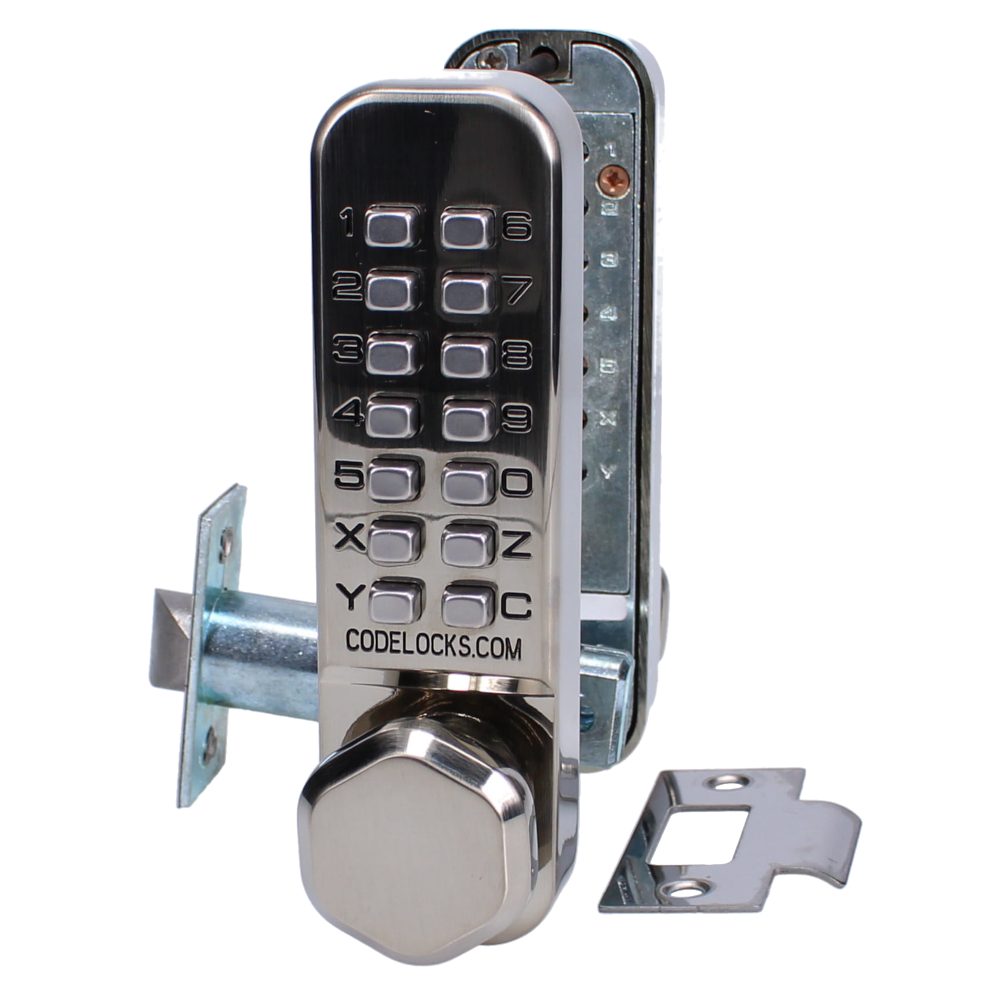

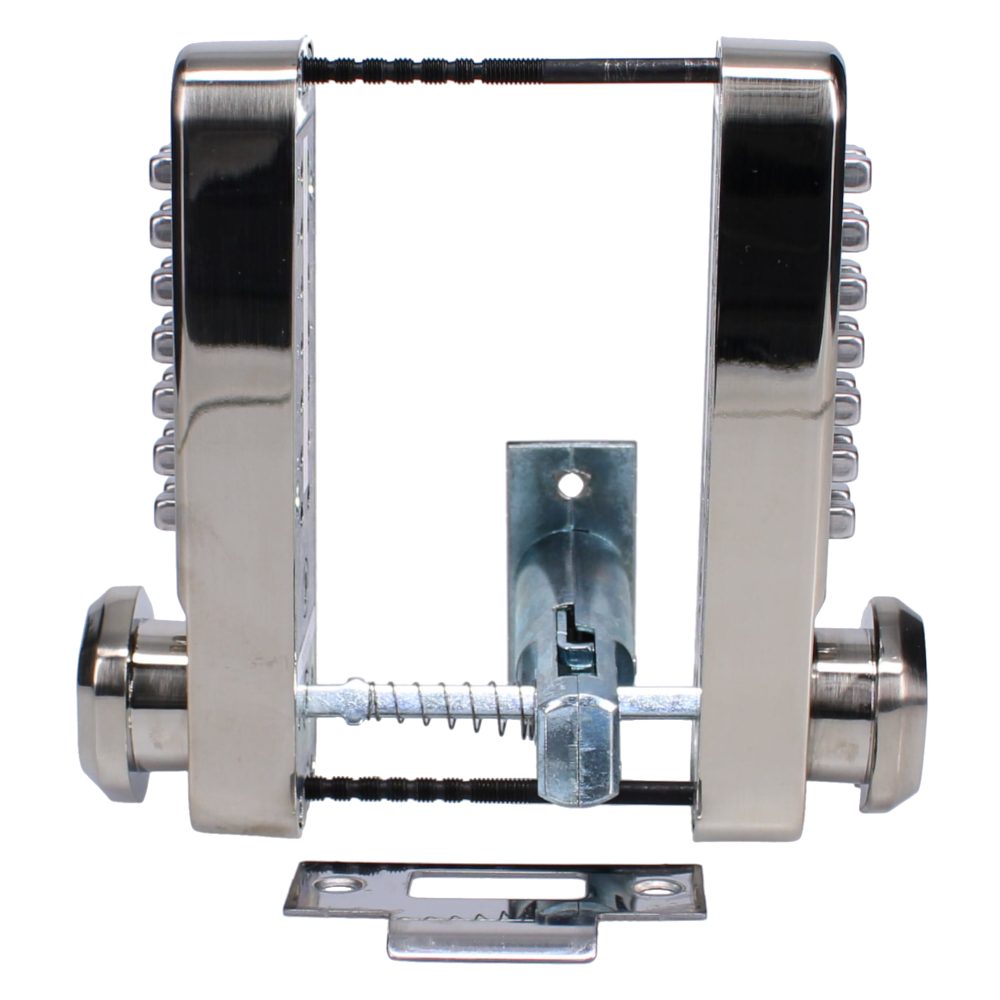

The Codelocks CL290 is a light-duty, mechanical back-to-back digital lock designed to provide secure, coded access from both sides of a door. Part of the popular CL200 series, this model features two keypad plates installed back-to-back, making it an ideal solution for restricting entry and exit on internal or external doors.

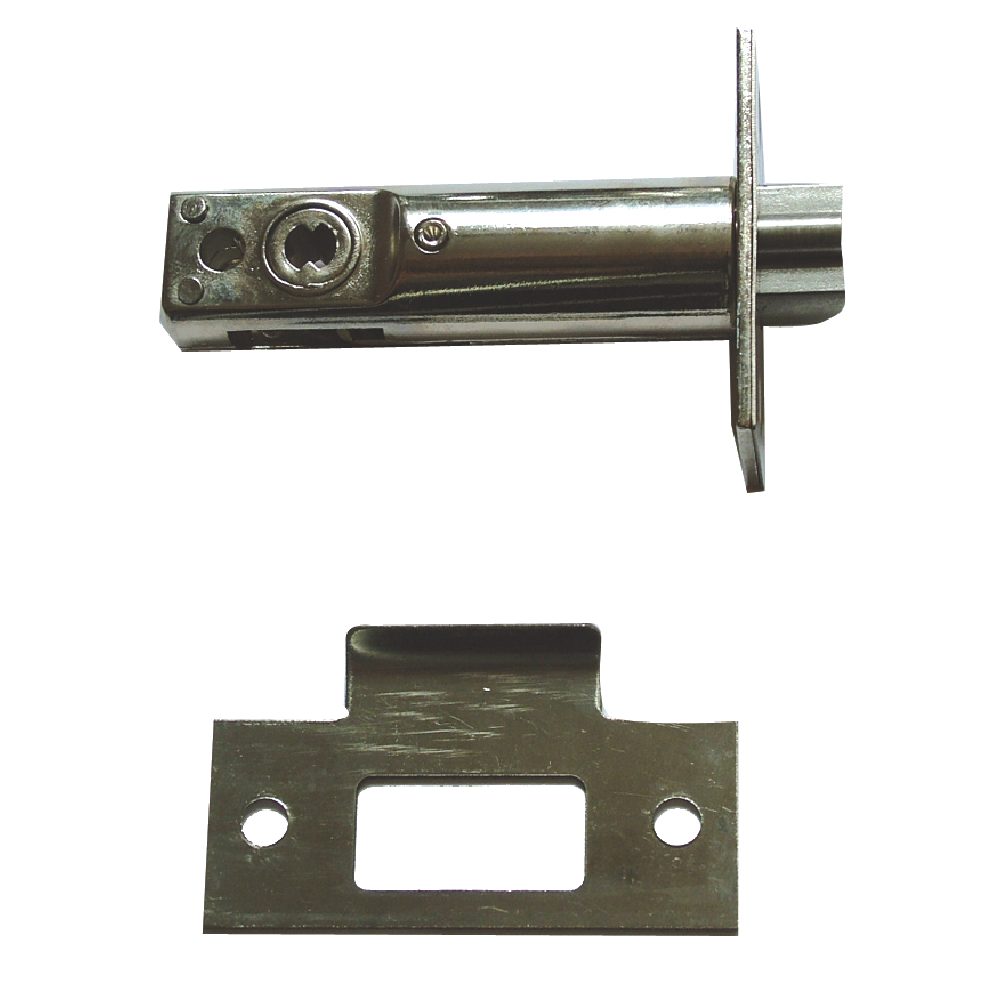

Security is enhanced by a spring-loaded tubular mortice latch that automatically locks when the door is closed. Additionally, the latch bolt is equipped with a deadlocking plunger feature to prevent unlawful shimming or manipulation of the latch. The unit is fully reversible (non-handed) and is suitable for wooden doors with a thickness between 35mm and 65mm.
For fire-rated installations, this digital lock must be fitted with an appropriate intumescent pack (sold separately). Additionally, "Clean by Codelocks" - an ISO-certified photocatalytic clear coating that reduces bacterial growth by up to 99.96% - is available as an optional finish via special order.
Technical Specifications
- Brand: Codelocks
- Model: CL290 (CL200 Series)
- Backset: 60mm
- Case Depth Required: 85mm
- Door Thickness: 35mm to 65mm
- Finish: Satin Stainless Steel (PVD weather-resistant finish)
- Keypad: 14 buttons (2 x 7 buttons)
- Code Length: 4 to 7 digits
- Combinations: 1,000+ non-sequential combinations
- Handing: Reversible (non-handed)
- Latch: 60mm standard spring-loaded latch with deadlocking plunger
- Operation: Thumbturn on entry of correct code (both sides)
- Key Override: No
- Holdback: No
Key Features
- Back-to-Back Keypads: Dual-sided coded entry and exit provides controlled access in both directions.
- Automatic Locking: Spring-loaded latch automatically locks the door when closed.
- Anti-Shim Protection: Deadlocking plunger feature prevents unauthorised latch manipulation and shimming.
- Weather Resistant: Durable PVD satin stainless steel finish makes it suitable for both internal and external applications.
- Fire Rated Potential: Can achieve a fire rating when fitted with the appropriate intumescent pack (available separately).
- Optional Clean Finish: "Clean by Codelocks" photocatalytic coating available to special order for enhanced protection against bacteria and environmental toxins.
- Easy Code Management: Simple mechanical code change via tumblers (off-door).
