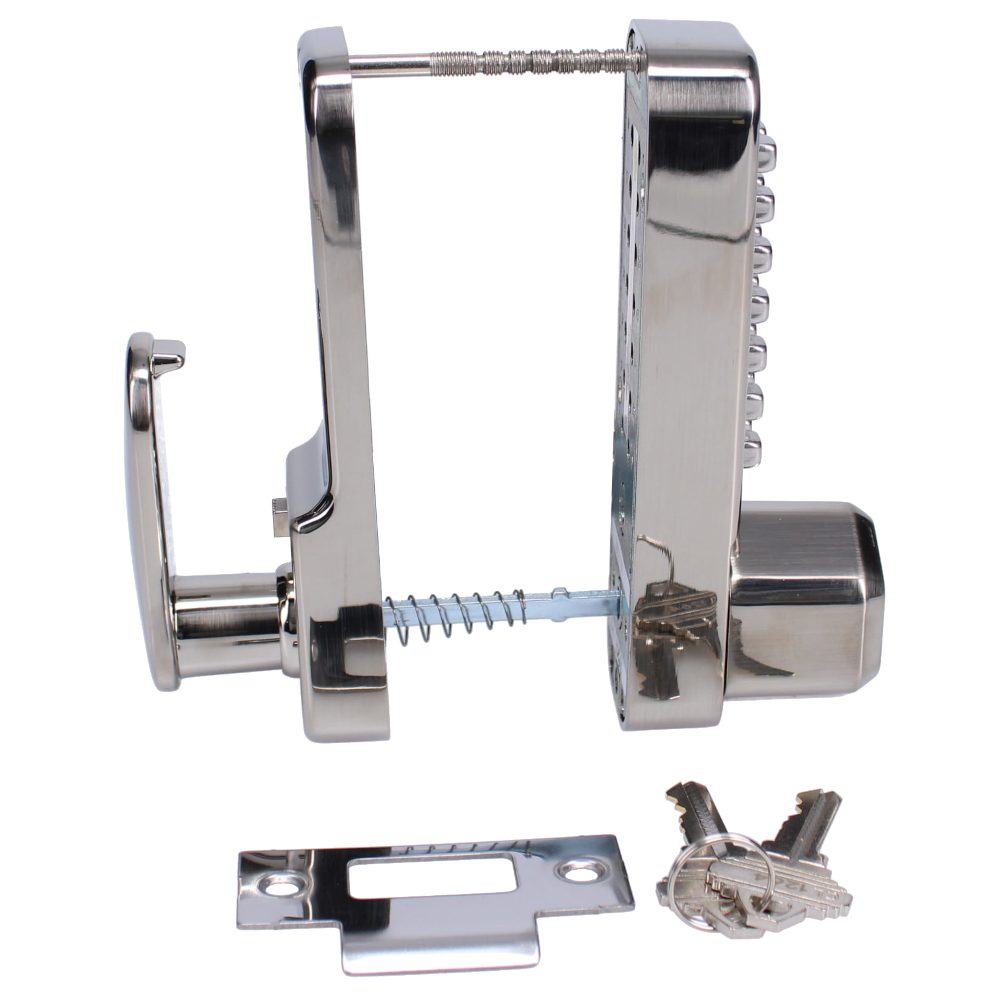

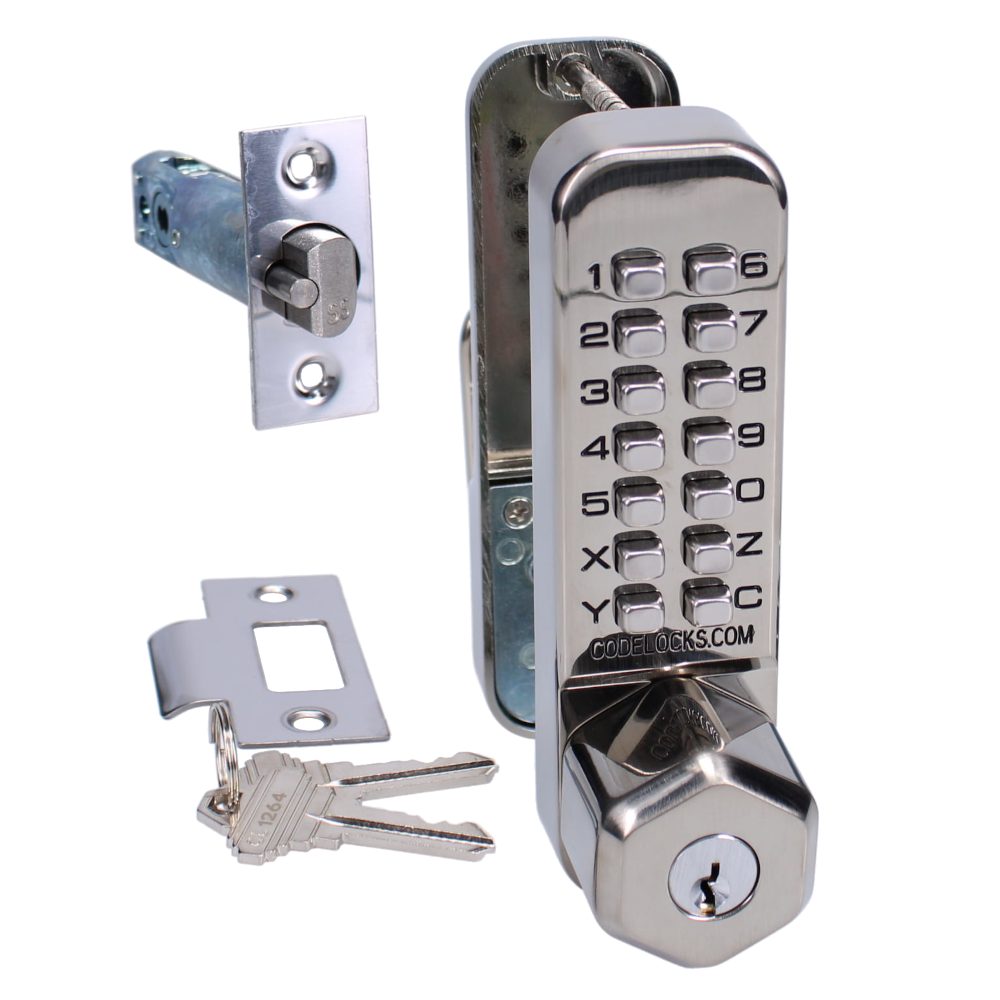

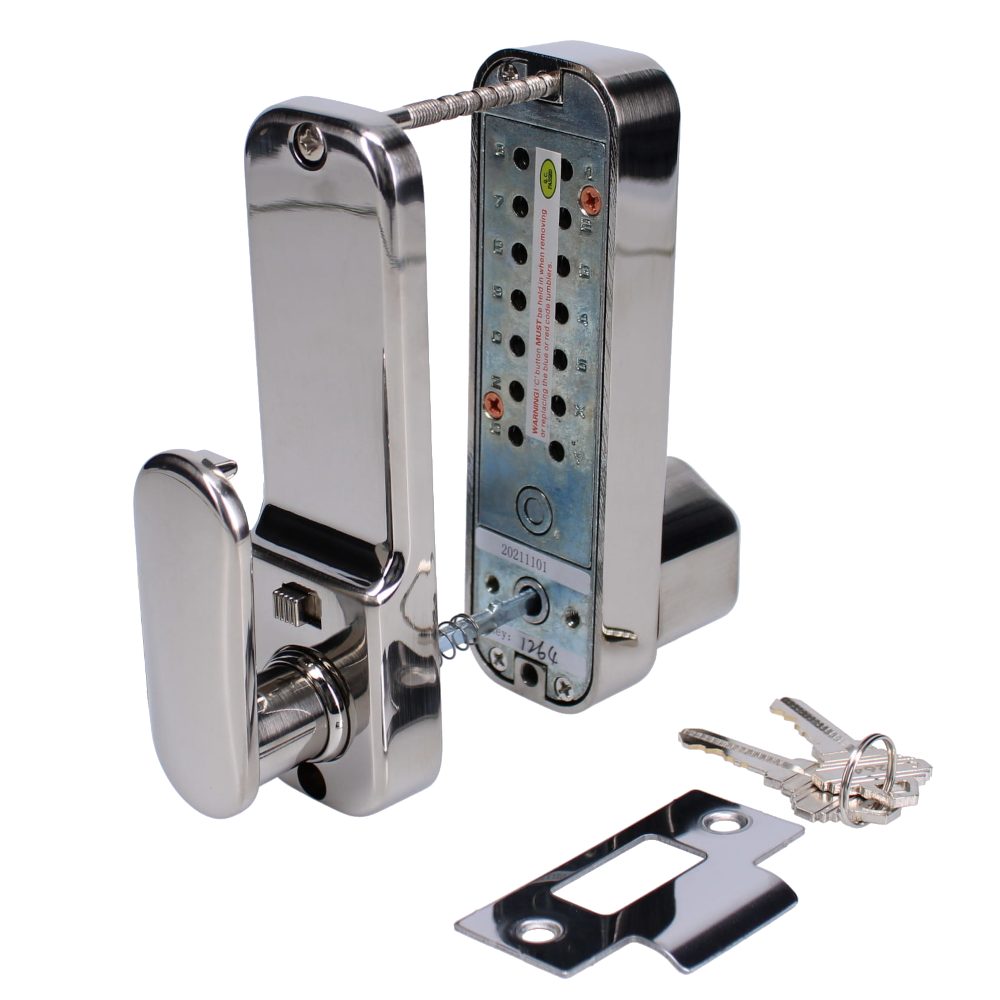

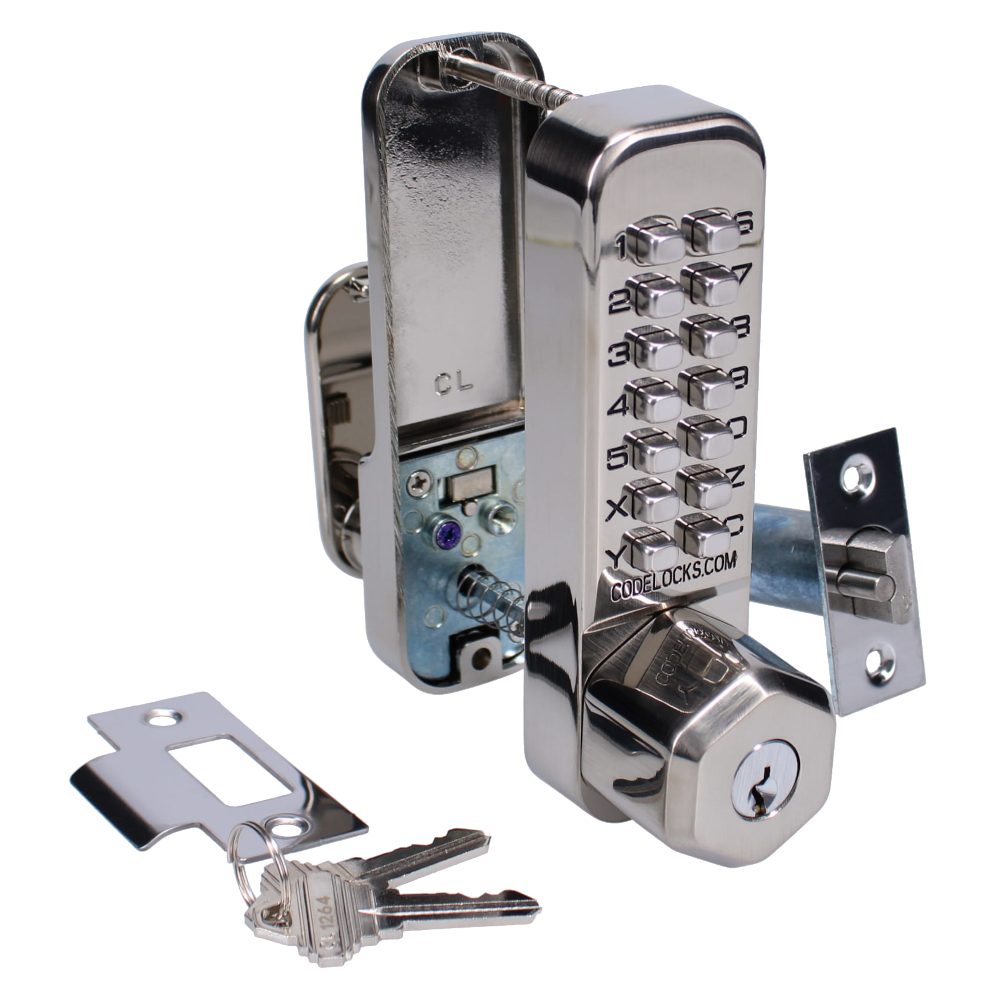

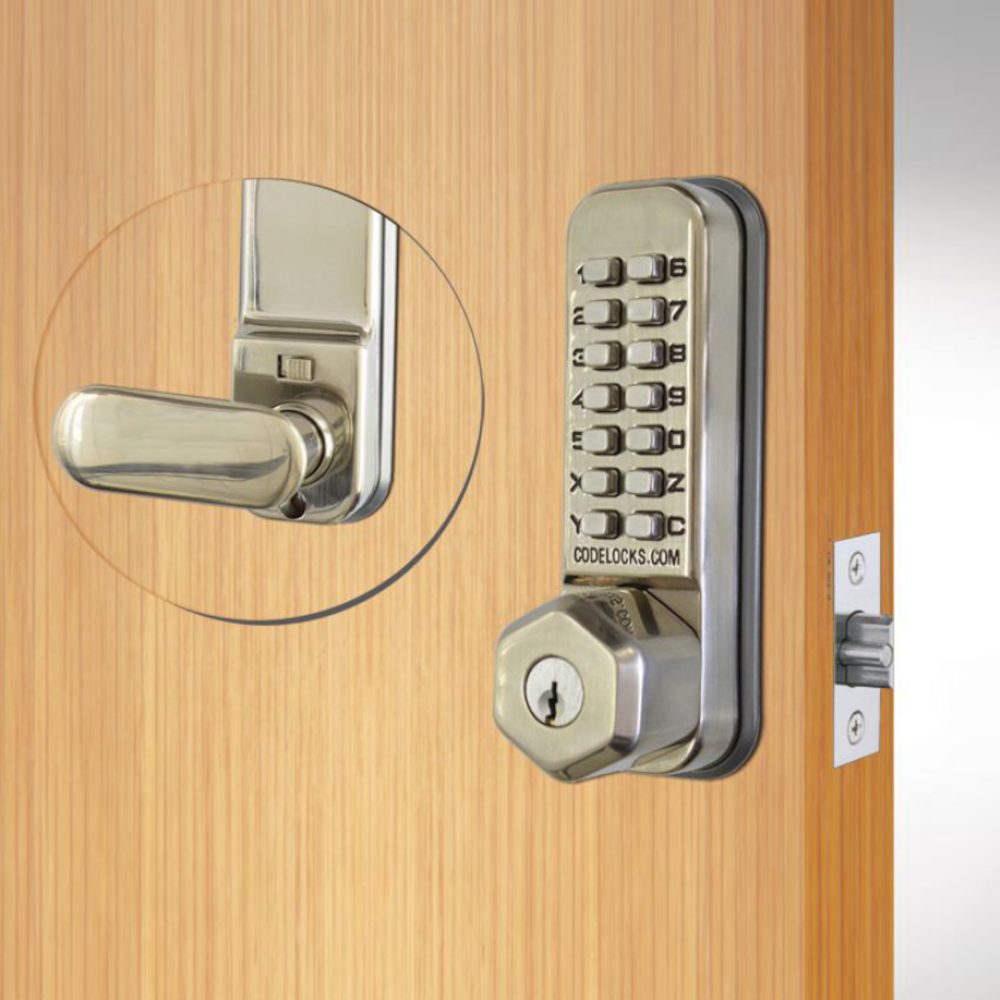

CODELOCKS CL255KO Series Digital Lock With Key Override

The Codelocks CL255KO is a premium, light-duty mechanical digital lock from the popular CL200 series. Designed with a dual backplate and a mortice latch, it features a highly convenient key override facility. This key override is particularly useful for cleaning, maintenance, and security staff, allowing immediate access by bypassing the code.

The spring-loaded latch locks automatically when the door is closed, and it is equipped with a deadlocking plunger to prevent unlawful shimming. For added flexibility, a slide button on the backplate can be used to hold open the latchbolt for free entry without entering a code. If required, this hold-open function can be disabled during installation to ensure a code is always required.

This digital lock is available in both fire-tested and non-fire-tested versions. Please choose your preferred option from the selection below. The fire-tested model is supplied complete with an optional fire holdback kit and is tested to BS EN 1634-1 standards. For the non-fire-tested model, an appropriate intumescent pack must be fitted to achieve a fire rating (please see associated products). Depending on the version selected, the weight ranges from 1.229kg to 1.28kg, and the manufacturer reference will vary. Please select your preferred options below.

Technical Specifications

• Backset: 60mm
• Required Case Depth: 85mm
• Door Thickness: Suits doors 35mm to 65mm thick
• Code Length: 4 to 6 digits (non-sequential)
• Combinations: 1,000+
• Finish: Stainless Steel (weather-resistant PVD)
• Keys Supplied: 3
• Handing: Reversible (fits left or right-handed doors)
• Width: 41mm
• Operation Inside: Thumbturn free exit
• Operation Outside: Thumbturn on entry of code or key override
• Weight: 1.229kg to 1.28kg (depending on model selected - please choose below)
• Fire Tested: Available as Yes (BS EN 1634-1) or No (please choose from the options below)

Key Features

• Key Override Facility: Allows quick access for security, cleaning, or management staff by overriding the code.
• Deadlocking Plunger: Prevents unlawful shimming of the latch for enhanced security.
• Hold-Open Function: Features a slide button to hold the latchbolt open for free passage, which can be disabled during installation if not required.
• Automatic Locking: Spring-loaded latch automatically locks the door upon closing.
• Weather Resistant: Durable PVD stainless steel finish suitable for internal and external applications.
• Flexible Fire Options: Available in fire-tested and non-fire-tested variants - please select your preferred option below.
