CODELOCKS CL255 Digital Lock With Optional Holdback

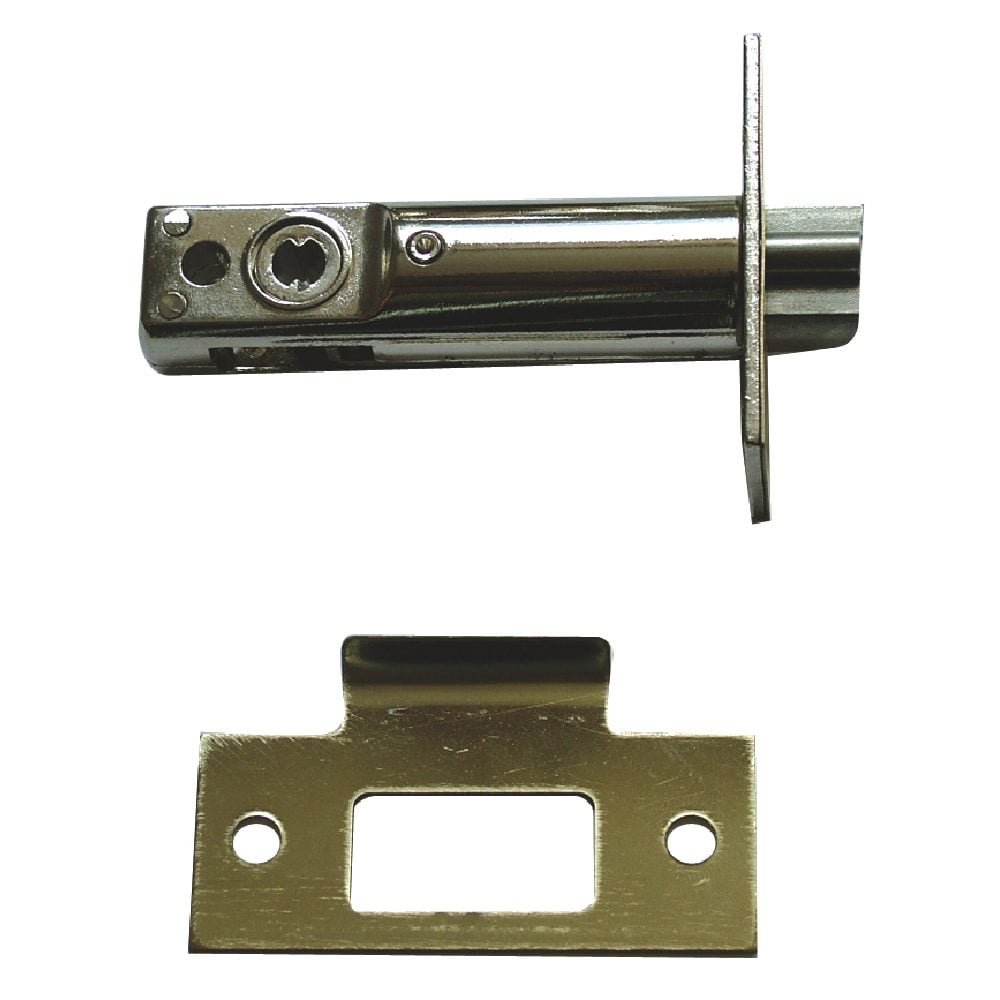

The Codelocks CL255 is a light-duty mechanical digital lock from the CL200 series, featuring a spring-loaded mortice latch with a dual backplate. Ideal for low-traffic environments such as offices, schools, and domestic properties, it provides reliable access control without the need for batteries or wiring.

The lock features a deadlocking plunger to prevent unlawful shimming of the latch. It also includes a slide button that can be used to hold open the latchbolt for free entry when required. This holdback function can be disabled during installation if continuous code-only access is preferred.

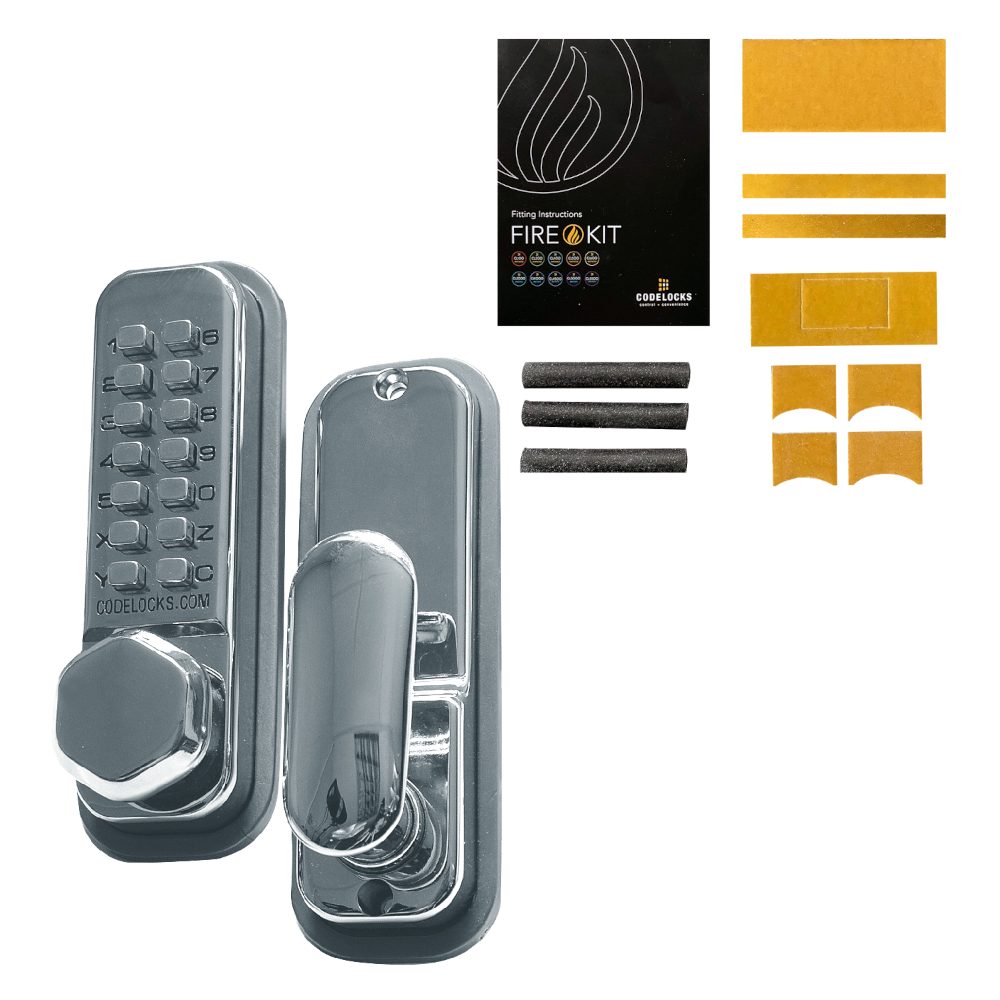

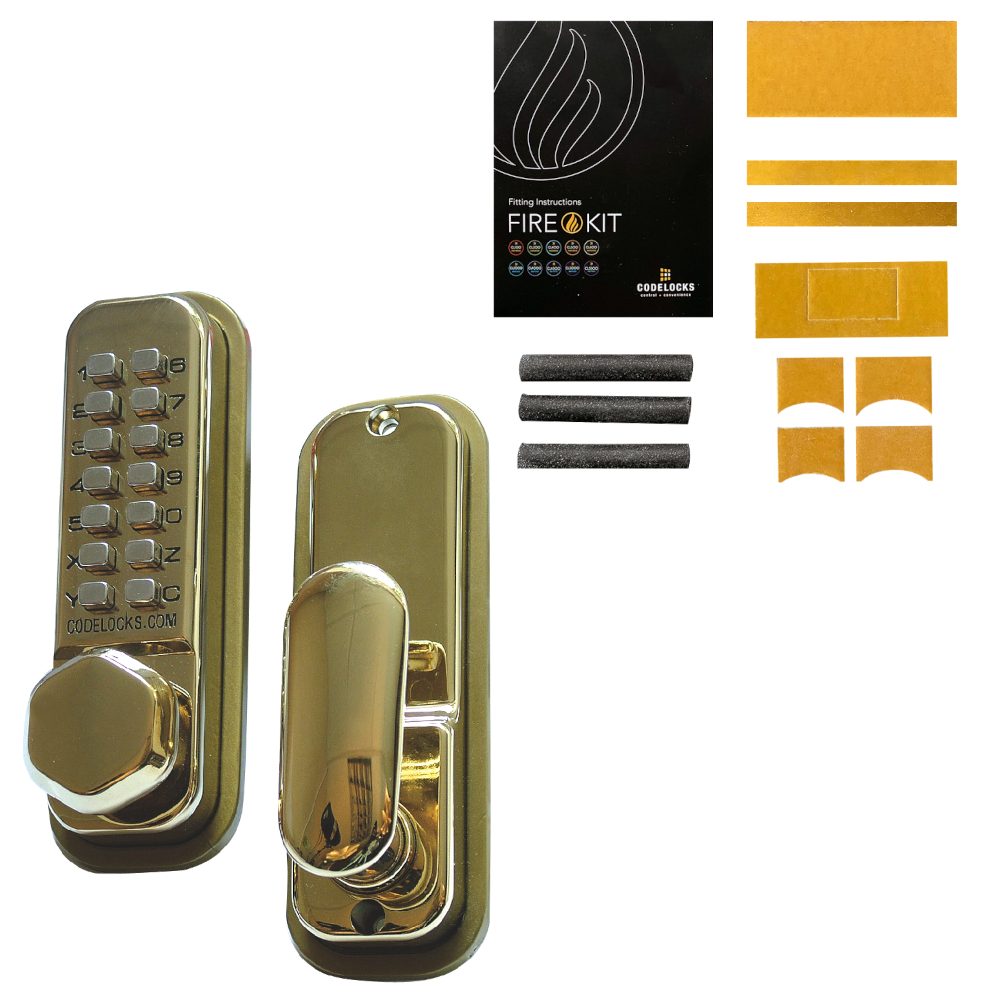

This versatile digital lock is available in multiple finishes, including Polished Brass and Stainless Steel, and can be ordered with or without fire testing. Fire-tested models are certified to BS EN 1634-1 and come complete with an optional fire holdback kit. Please select your preferred finish, fire-testing option, and specification from the options below.

Technical Specifications

• Brand: Codelocks
• Series: CL200 Series
• Backset: 60mm
• Door Thickness: 35mm to 65mm
• Case Depth Required: 85mm
• Code Length: 4 to 6 digits
• Combinations: 1,000+
• Buttons: 14
• Operation Outside: Thumbturn on entry of code
• Operation Inside: Lever handle free exit
• Handing: Reversible (suitable for left or right-hand hung doors)
• Standards: BS EN 1634-1 (on fire-tested variants)
• Finish: Available in Polished Brass or Stainless Steel (please select from the options below)
• Fire Tested: Available as fire-tested or non-fire-tested (please select from the options below)
• Weight: 1.144kg to 1.2kg (please select from the options below)

Key Features

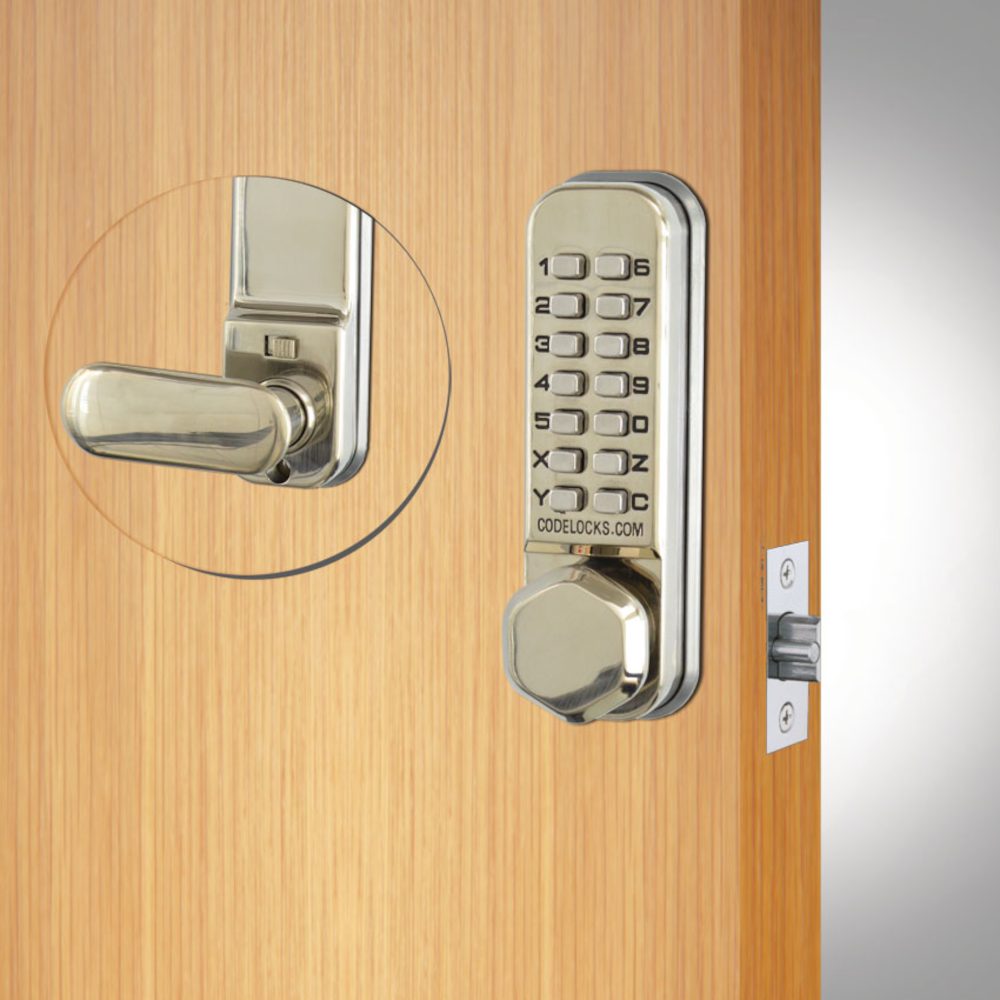

• Holdback Function: Slide button allows the latch to be held open for free passage (can be disabled on installation).
• Anti-Shim Protection: Deadlocking plunger feature prevents unlawful shimming of the latch bolt.
• Weather Resistant: Durable PVD finish provides excellent weather resistance.
• Protective Clutch: Built-in clutch mechanism protects the lock from damage through forced entry.
• No Batteries Required: Fully mechanical operation ensures low maintenance and continuous reliability.
• Fire Rated Options: Certified to BS EN 1634-1 when purchased with the fire-tested option (must be fitted with the appropriate intumescent pack).
