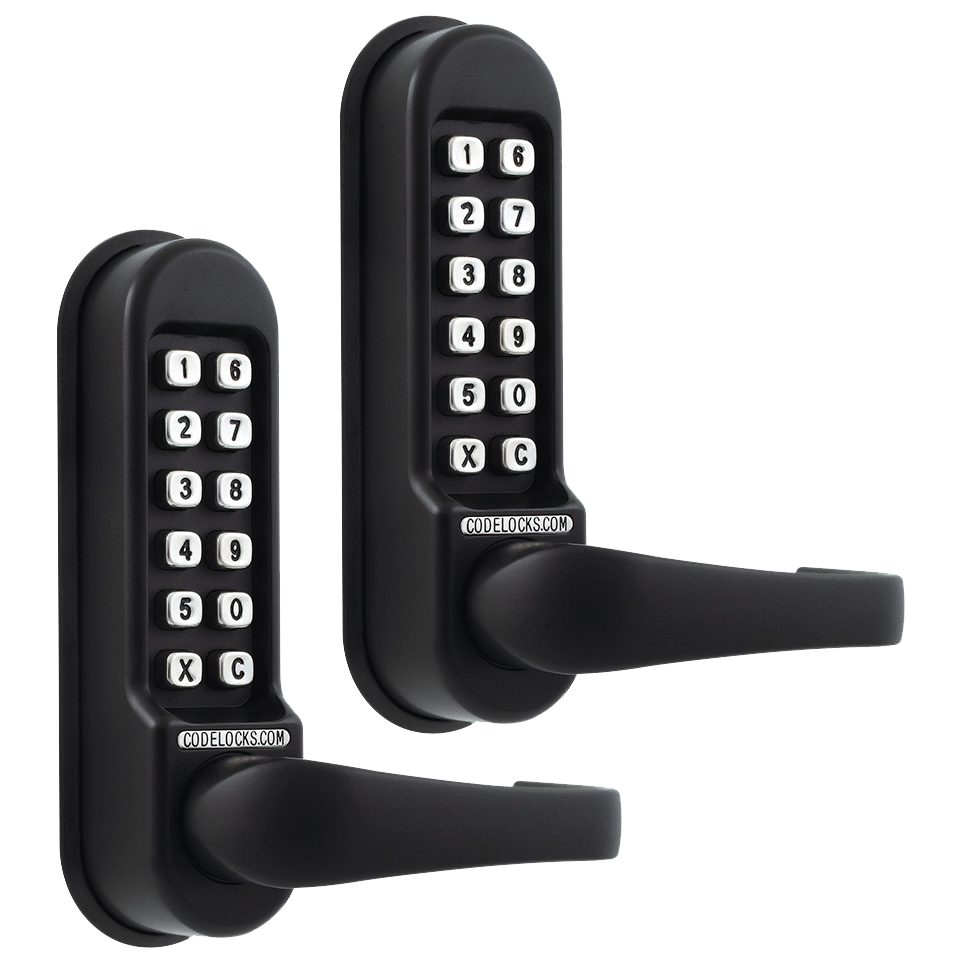

CL0510 Back To Back Marine By Codelocks Digital Lock
Codelocks
The CL0510 MB Back To Back Digital Lock from the Marine by Codelocks 500 series is a heavy-duty mechanical lock engineered for high-traffic internal and external applications. Featuring two coded keypads, this lock provides secure, coded access in both directions, making it ideal for restricted perimeters, gates, and commercial doors.
Designed to withstand the harshest outdoor conditions, the lock features a durable black marine-grade finish with stainless steel buttons and has been salt spray tested to 1,000 hours. It comes complete with neoprene seals to protect against moisture and coastal environments. The heavy-duty, spring-loaded, anti-shim tubular mortice latch locks automatically when the door is closed, and the latch is easily retracted from either side upon entering the correct code.
With up to 2,047 non-sequential code combinations and tumbler alignment for straightforward code changes, this lock offers flexible and robust access control. For fire door applications, it can be fitted with Codelocks Fire Kit Packs to suit 30 or 60-minute fire doors (tested in accordance with BS EN 1634-1:2008).
Technical Specifications
- Brand: Codelocks
- Series: CL500 Series (Marine by Codelocks)
- Finish: Black with stainless steel buttons
- Latch: 60mm heavy-duty anti-shim tubular mortice latch
- Backset: 60mm
- Case Depth Required: 85mm
- Door Thickness: 35mm to 65mm
- Code Length: 4 to 6 digits
- Combinations: Up to 2,047 non-sequential combinations
- Handing: Reversible (non-handed)
- Weather Resistant: Yes (salt spray tested to 1,000 hours)
- Fire Rated: Suitable for 30 or 60-minute fire doors when fitted with an appropriate Codelocks Fire Kit Pack (tested to BS EN 1634-1:2008)

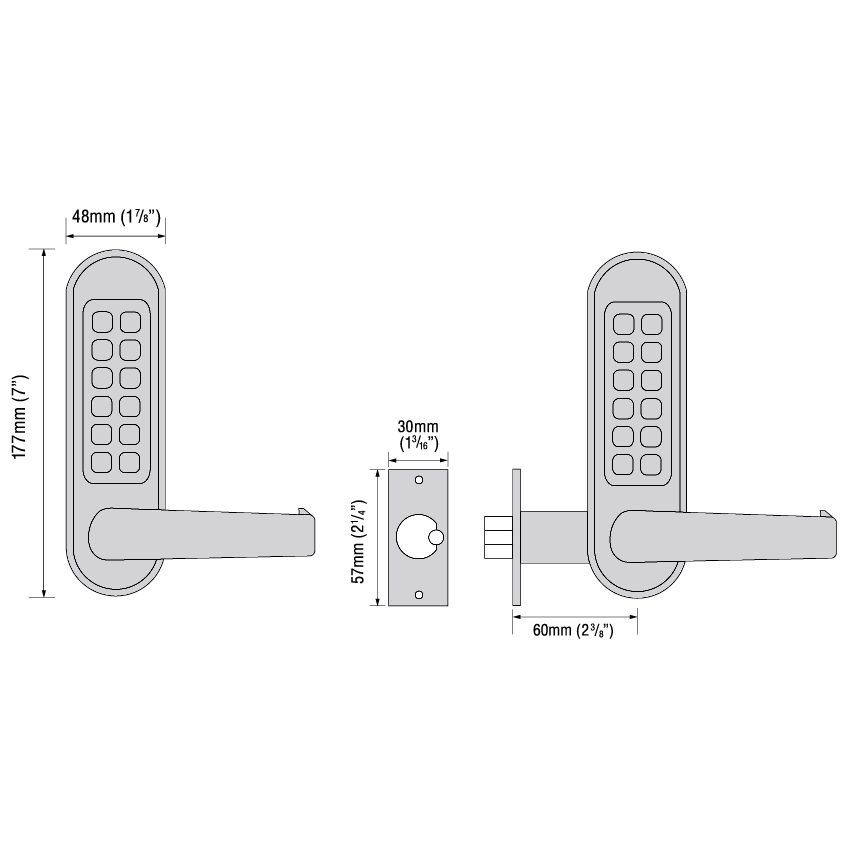

- Dimensions: 177mm (H) x 48mm (W)
Key Features
- Dual Keypads: Provides secure, coded access and control from both directions
- Marine-Grade Protection: Black finish with neoprene seals, specifically designed for harsh outdoor and coastal environments
- Automatic Locking: Heavy-duty, spring-loaded, anti-shim tubular mortice latch locks automatically upon door closure
- High-Traffic Design: Large, full-size return-to-door lever handles suitable for high-frequency use
- Easy Code Changes: Tumbler alignment mechanism allows for straightforward manual code updates
- No Power Required: Fully mechanical operation requires no batteries or external wiring
- Quality Guaranteed: Backed by a Codelocks limited lifetime guarantee
