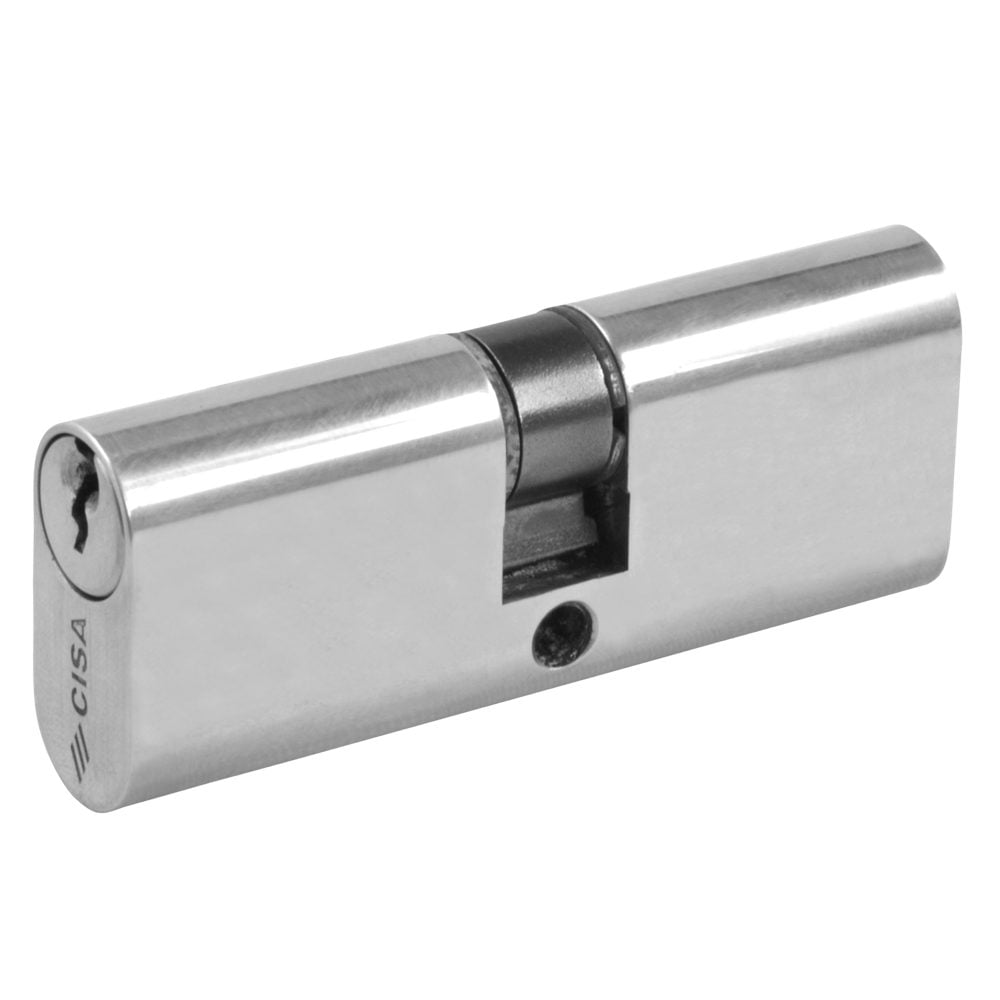

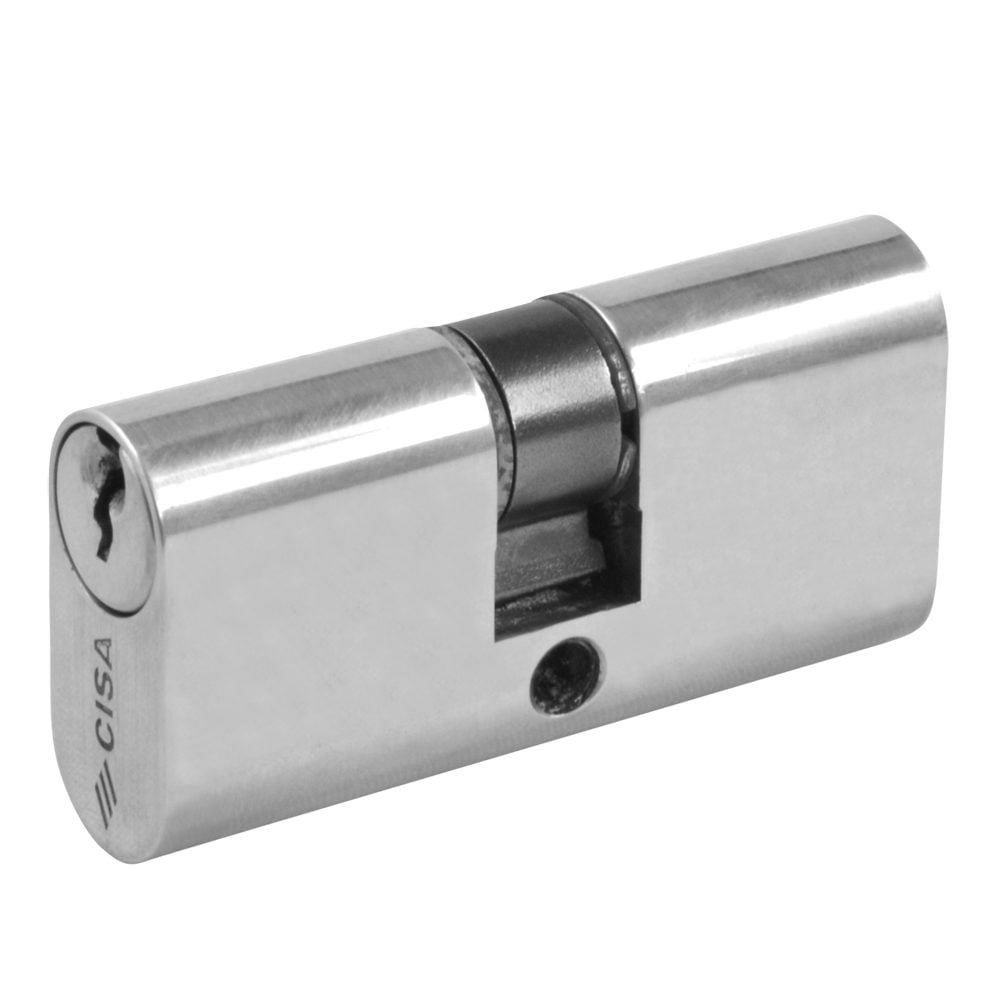

CISA C2000 Small Oval Double Cylinder

The CISA C2000 Small Oval Double Cylinder is a high-quality, reliable locking solution designed for use with small oval profile mortice locks, such as the CISA 44210. Commonly used on patio doors and specialised narrow-profile doors, this cylinder features a robust 5-pin mechanism and offers dependable security.

To suit your specific door thickness and aesthetic preferences, this cylinder is available in multiple overall lengths (55mm or 70mm) with corresponding cylinder sizes (27.5/27.5 or 35/35 overall, and 22.5/10/22.5 or 30/10/30 with cam). Depending on the size selected, the weight ranges from 150g to 1.5kg. You can also choose between two high-quality finishes: Polished Brass and Nickel Plated, with manufacturer references 08210 02 or 08210 13. Please select your preferred size, finish, and specifications from the options below to ensure a perfect fit for your door.

Each cylinder is supplied complete with a retaining screw and three keys. For added peace of mind, it features drill-resistant hardened steel pins and is fire-tested to Grade A standards.

Technical Specifications

• Cylinder Profile: Small Oval (28mm high x 13mm wide body)
• Cylinder Type: Double Cylinder (keyed entry from both sides)
• Cylinder System: CISA C2000
• Mechanism: 5 Pin
• Overall Lengths Available: 55mm or 70mm (please select from the options below)
• Sizes Available (A/B Sides): 27.5/27.5mm or 35/35mm (please select from the options below)
• Cylinder Size with Cam: 22.5/10/22.5 or 30/10/30 (please select from the options below)

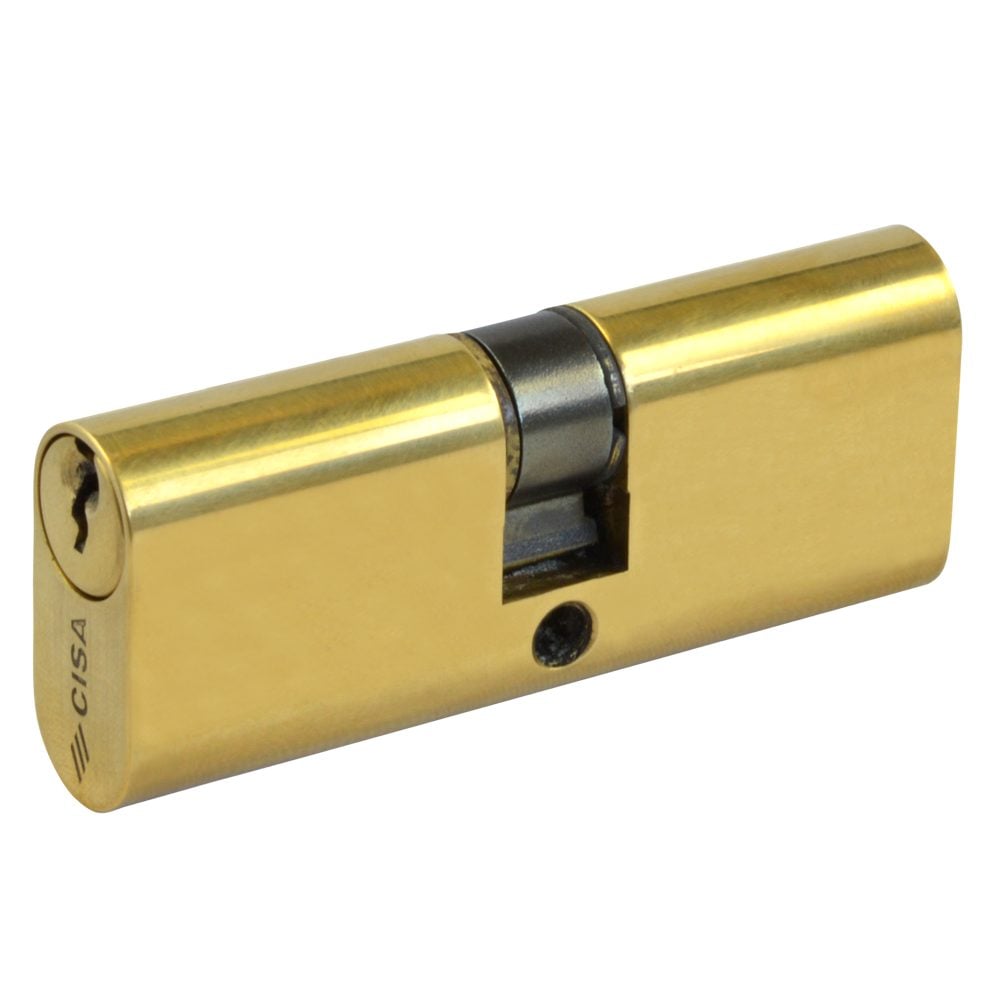

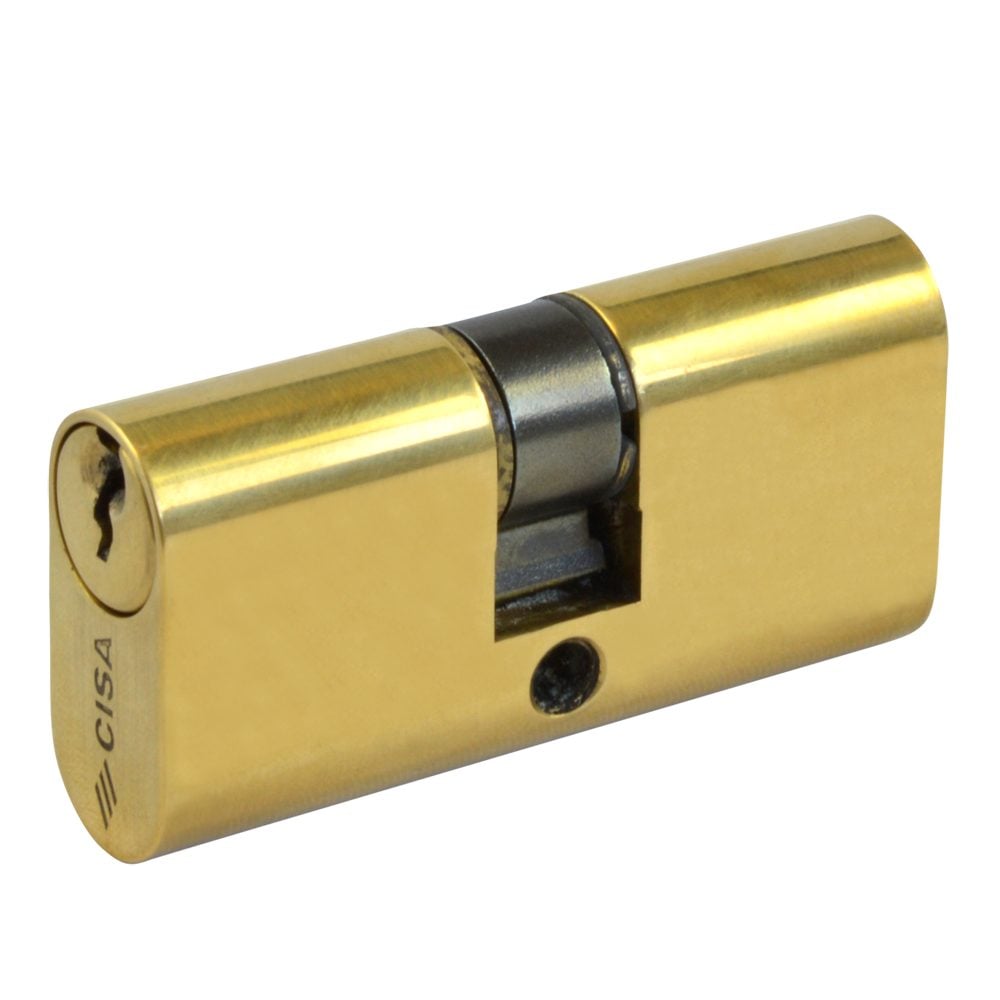

• Finishes Available: Polished Brass or Nickel Plated (please select from the options below)
• Standards: BS EN 1303:2005
• Fire Tested: Grade A
• Keying: Keyed to differ (3 keys supplied)
• Weight: Ranges from 150g to 1.5kg (please select from the options below)
• Manufacturer References: 08210 02 or 08210 13 (please select from the options below)

Key Features

• Drill Resistant: Features a hardened steel pin to protect against drilling attacks.
• High Security Differs: Offers up to 30,000 key differs for enhanced security.
• Versatile Compatibility: Ideal for small oval cylinder mortice locks, such as the CISA 44210.
• Complete Package: Supplied with a cylinder retaining screw and 3 keys as standard.
• Multiple Options: Available in a range of sizes and finishes to suit your specific door requirements.
