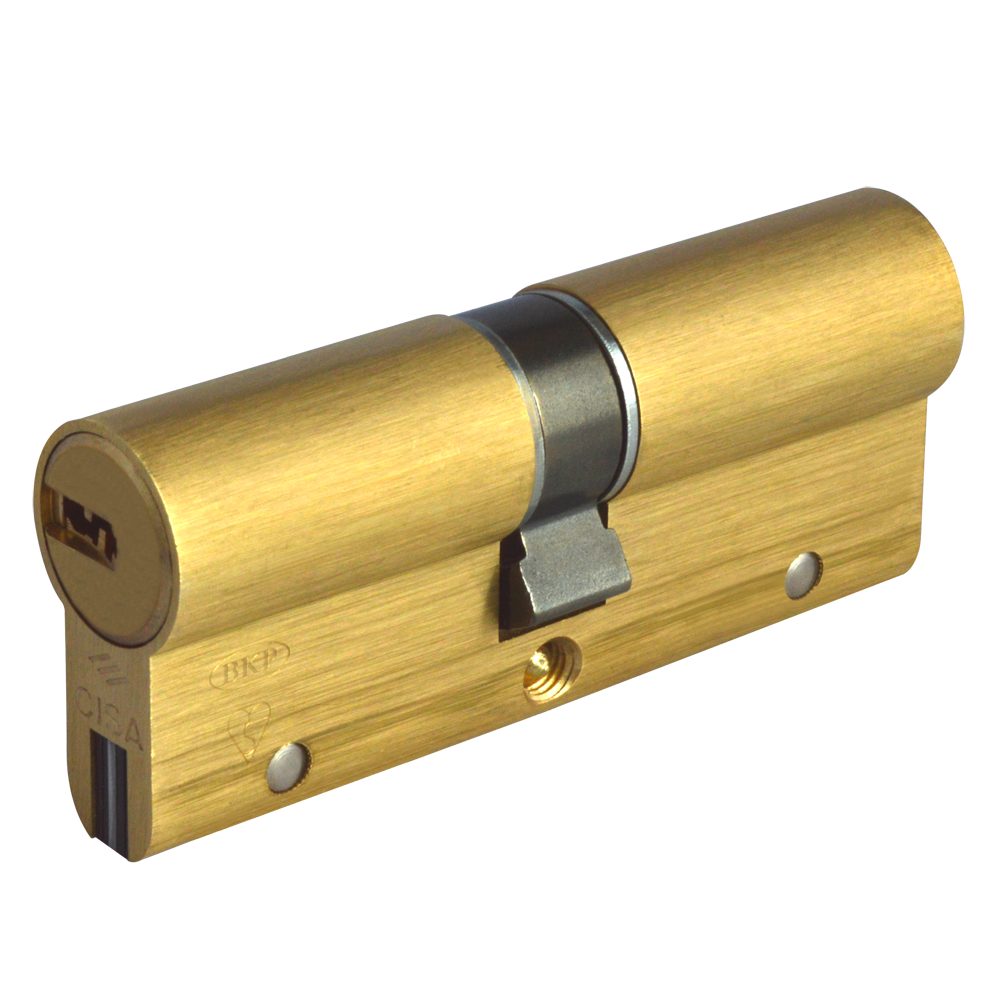

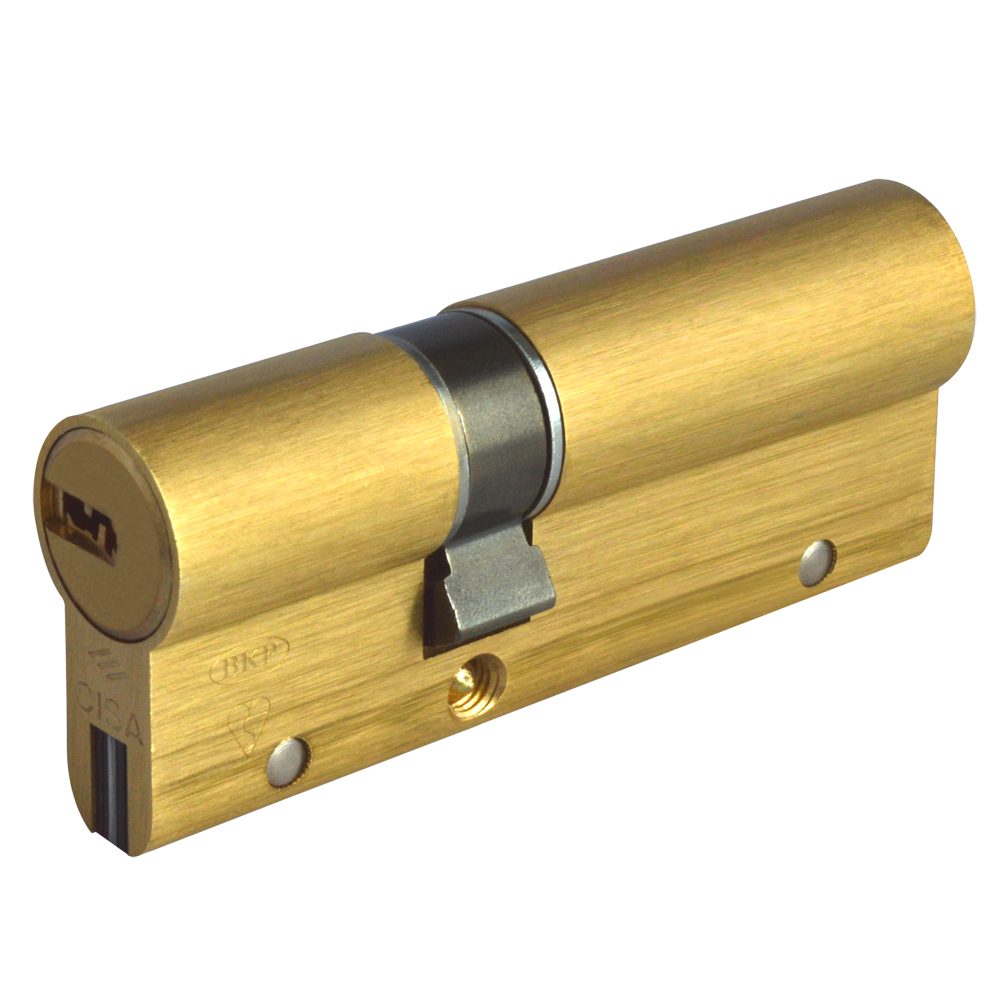

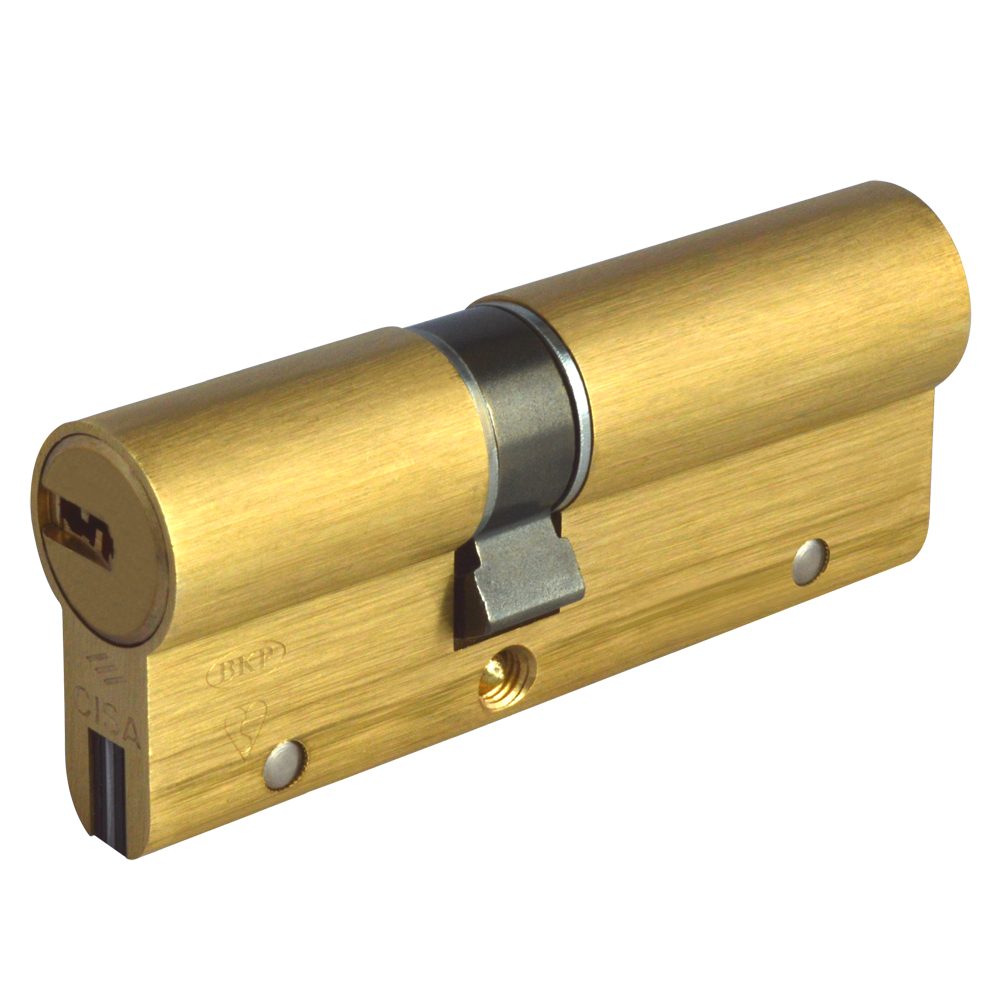

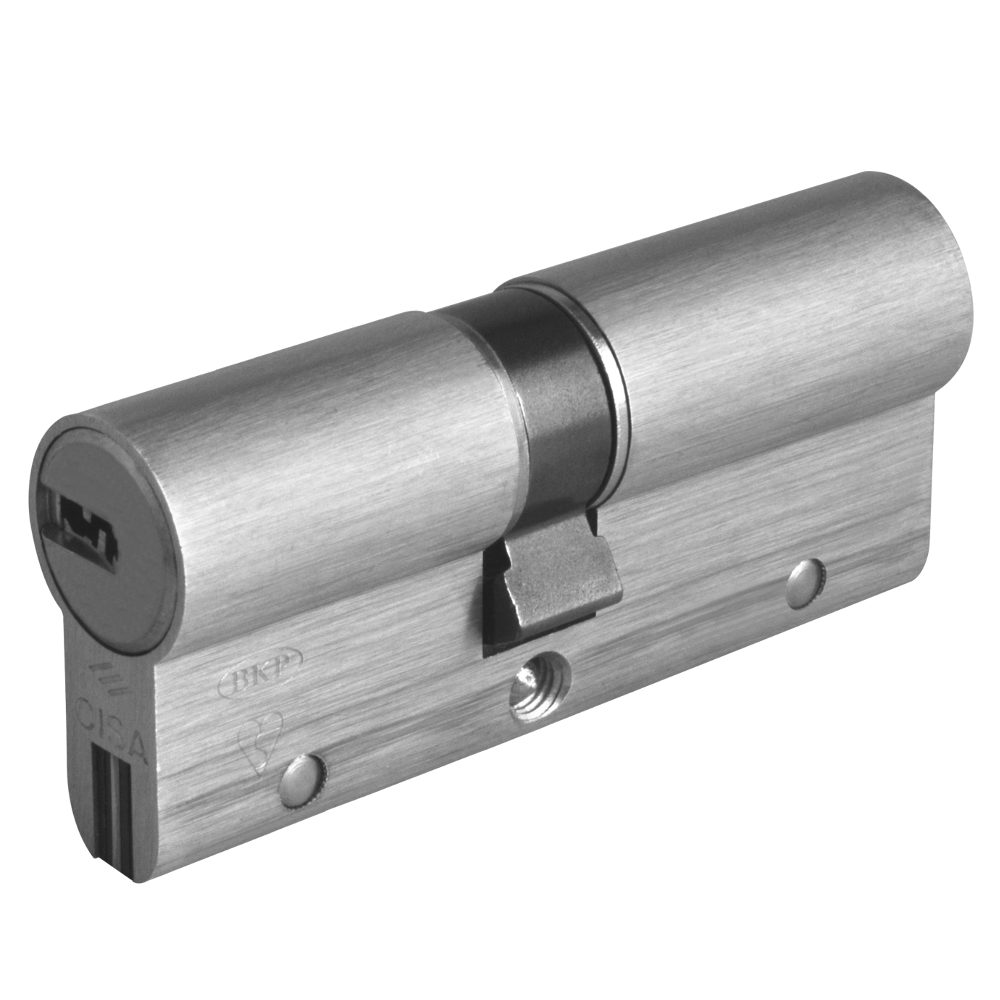

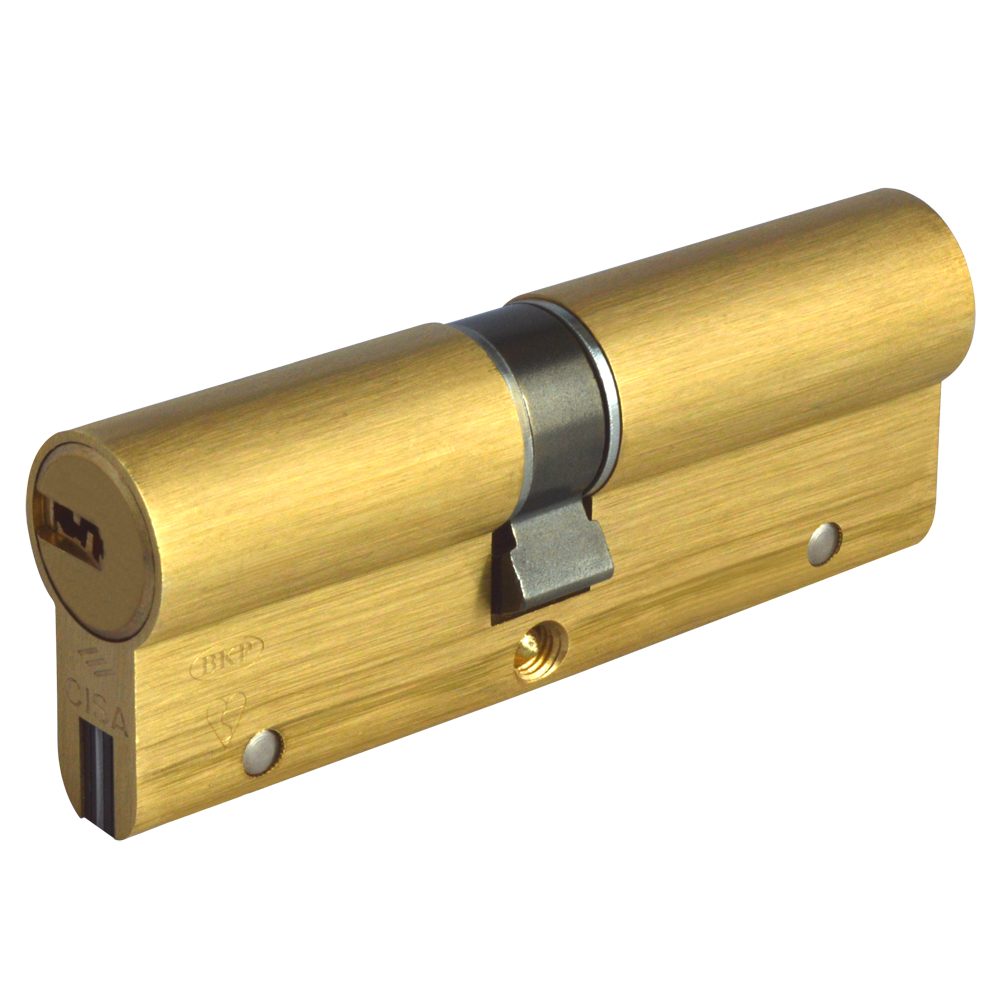

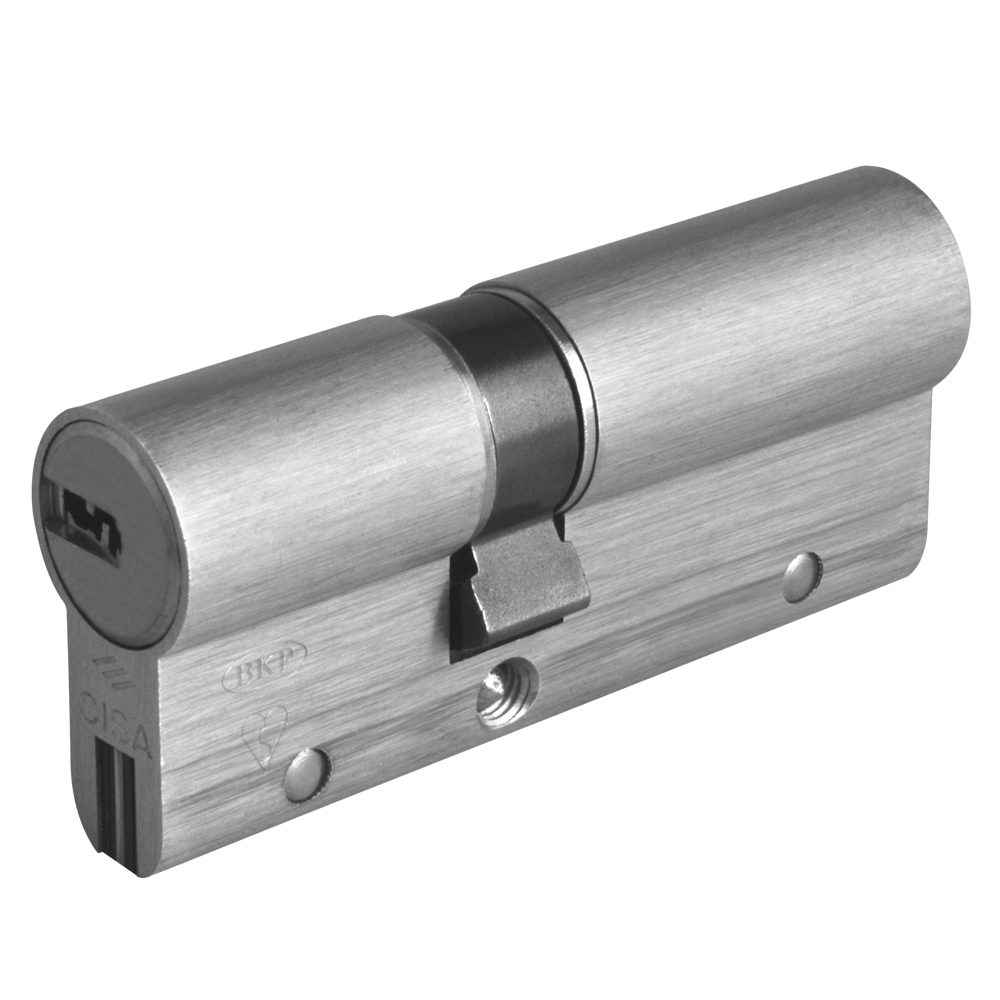

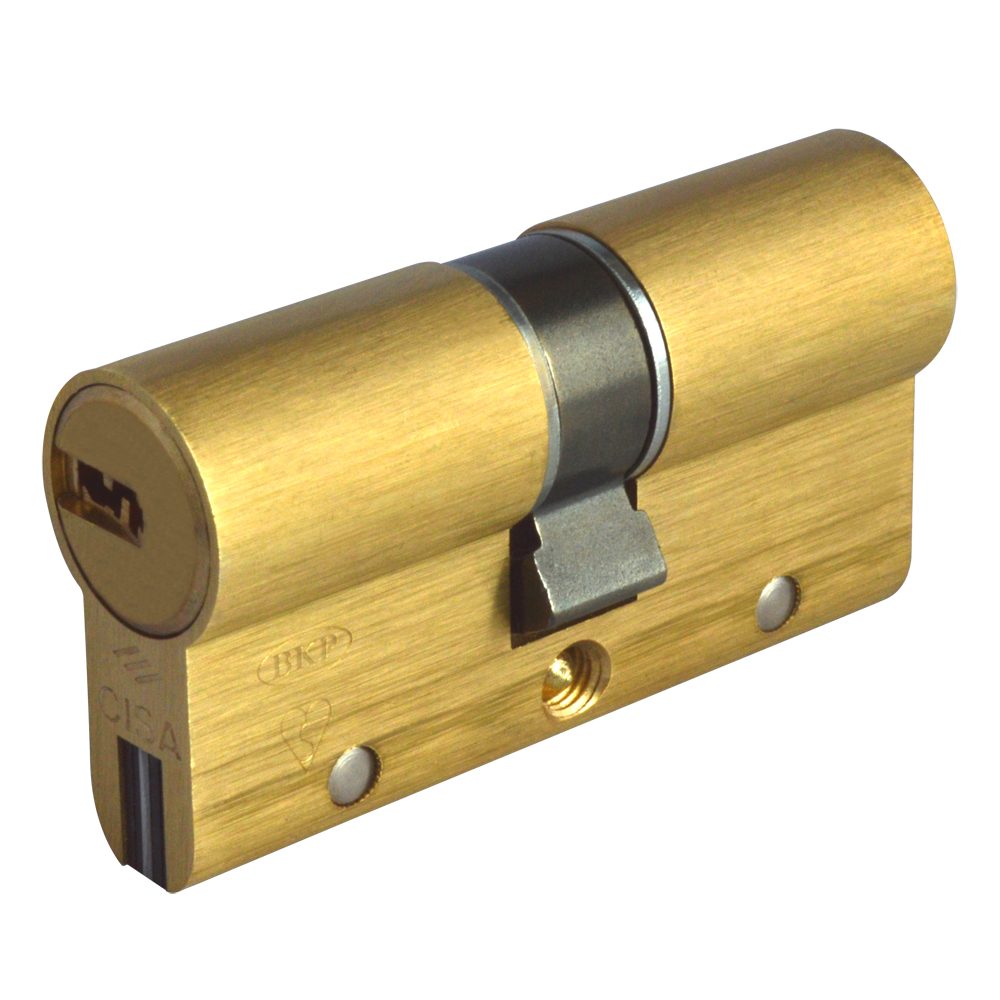

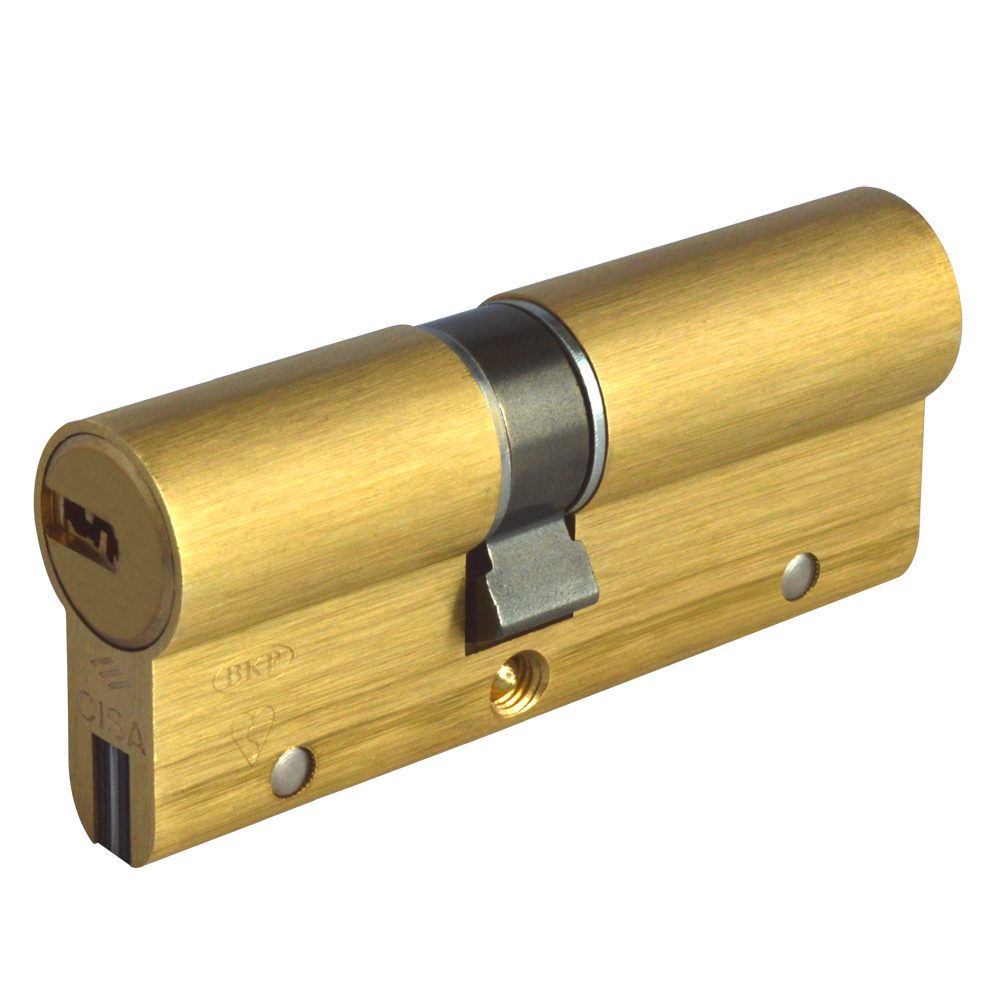

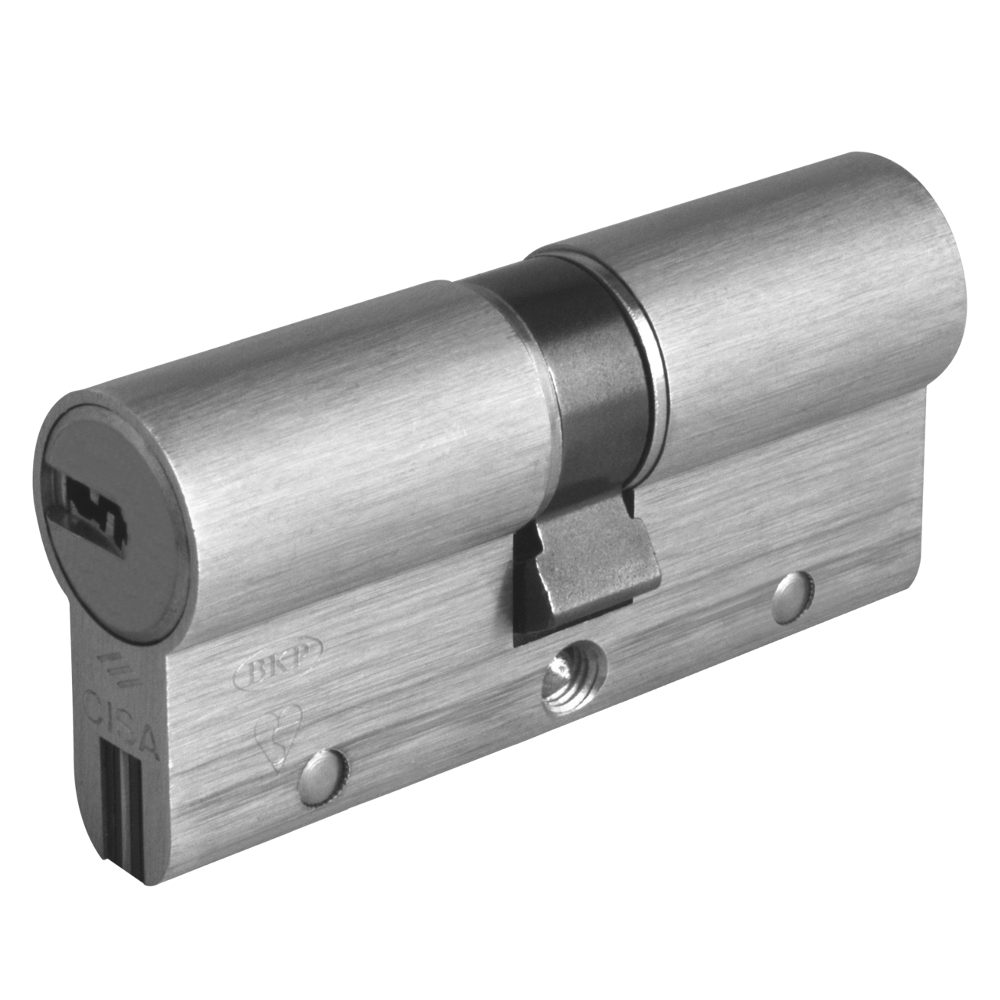

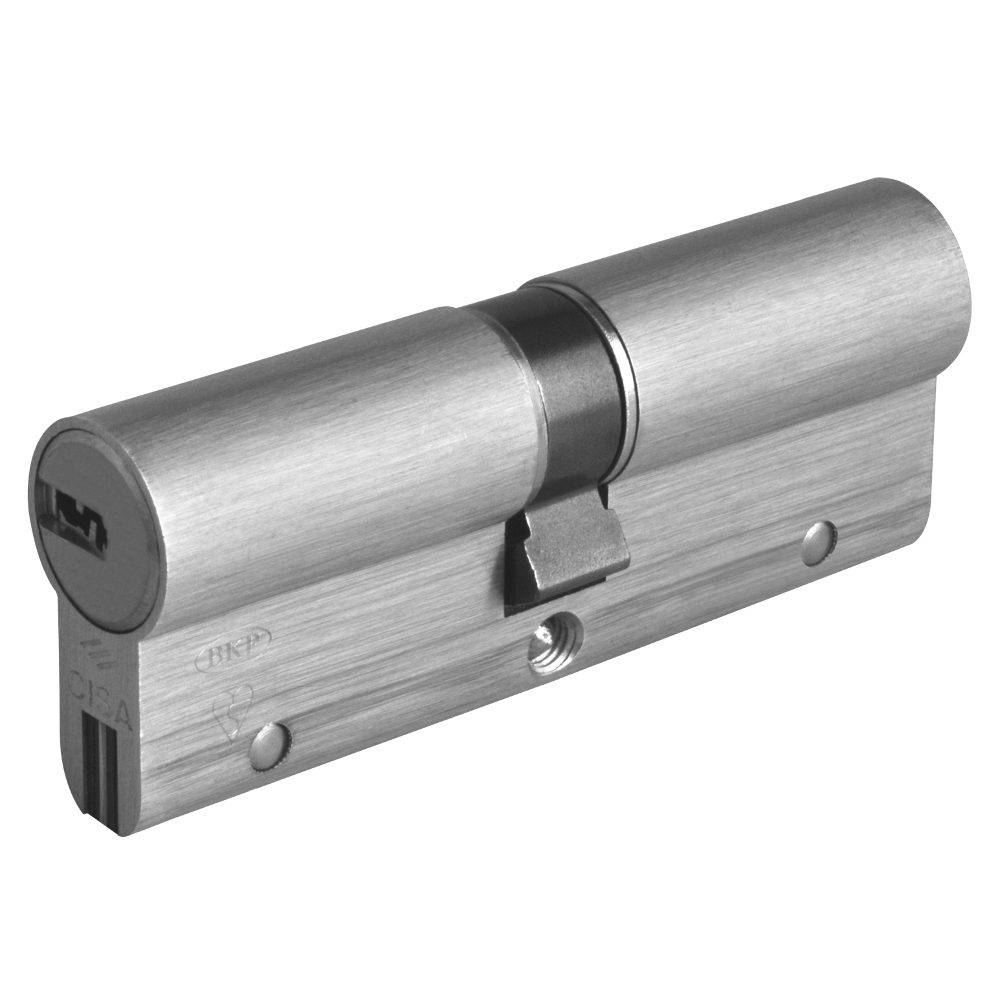

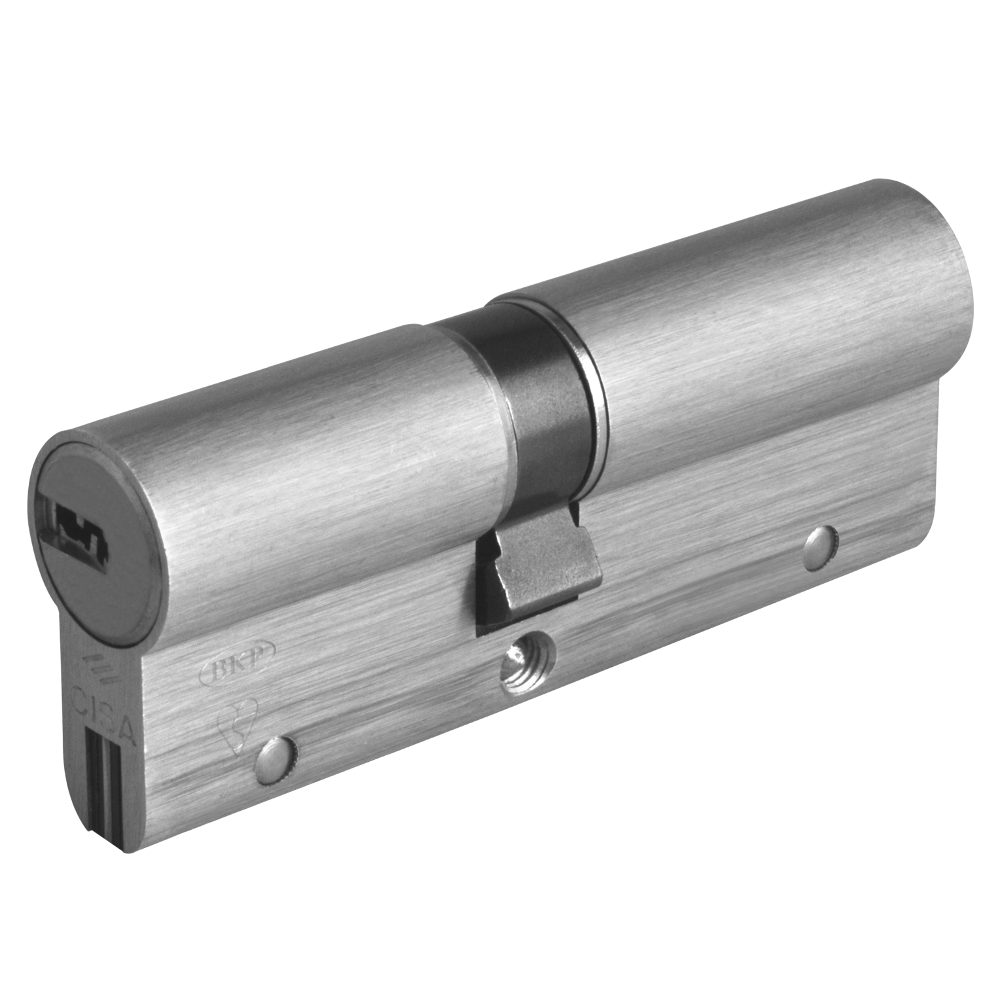

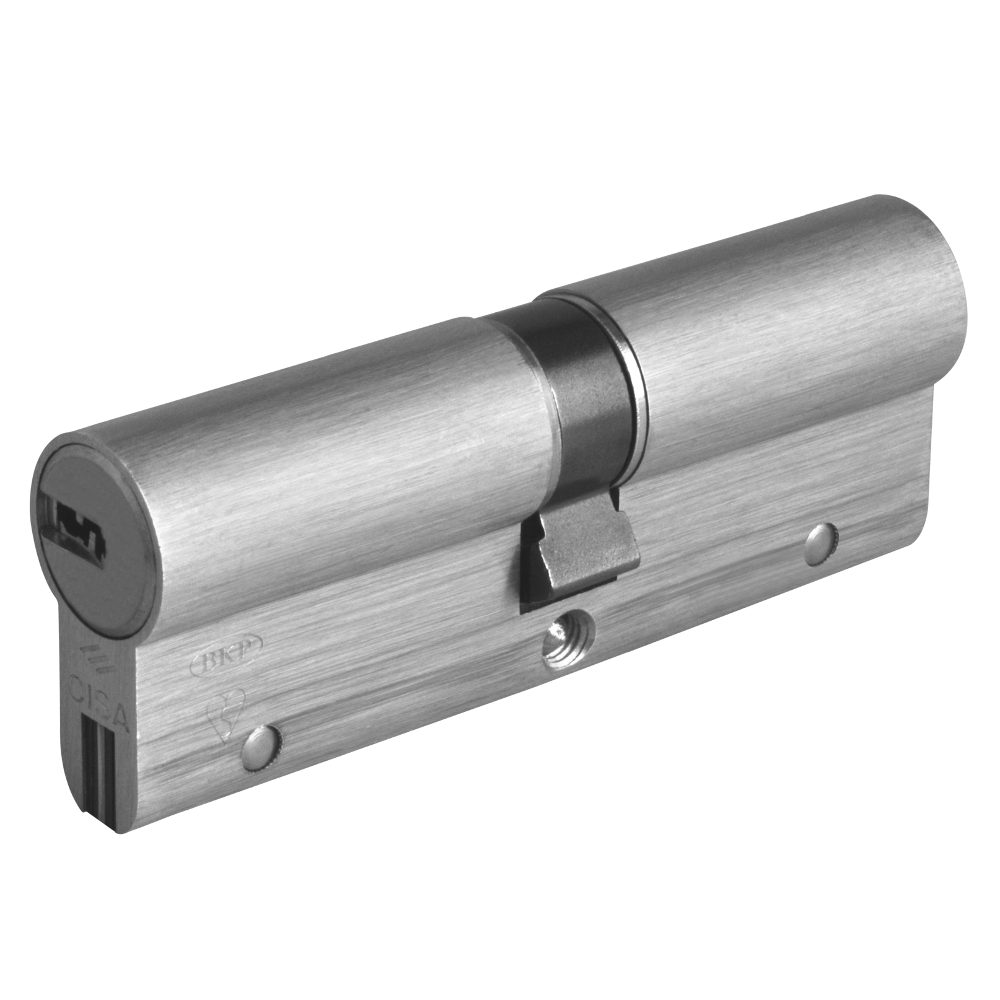

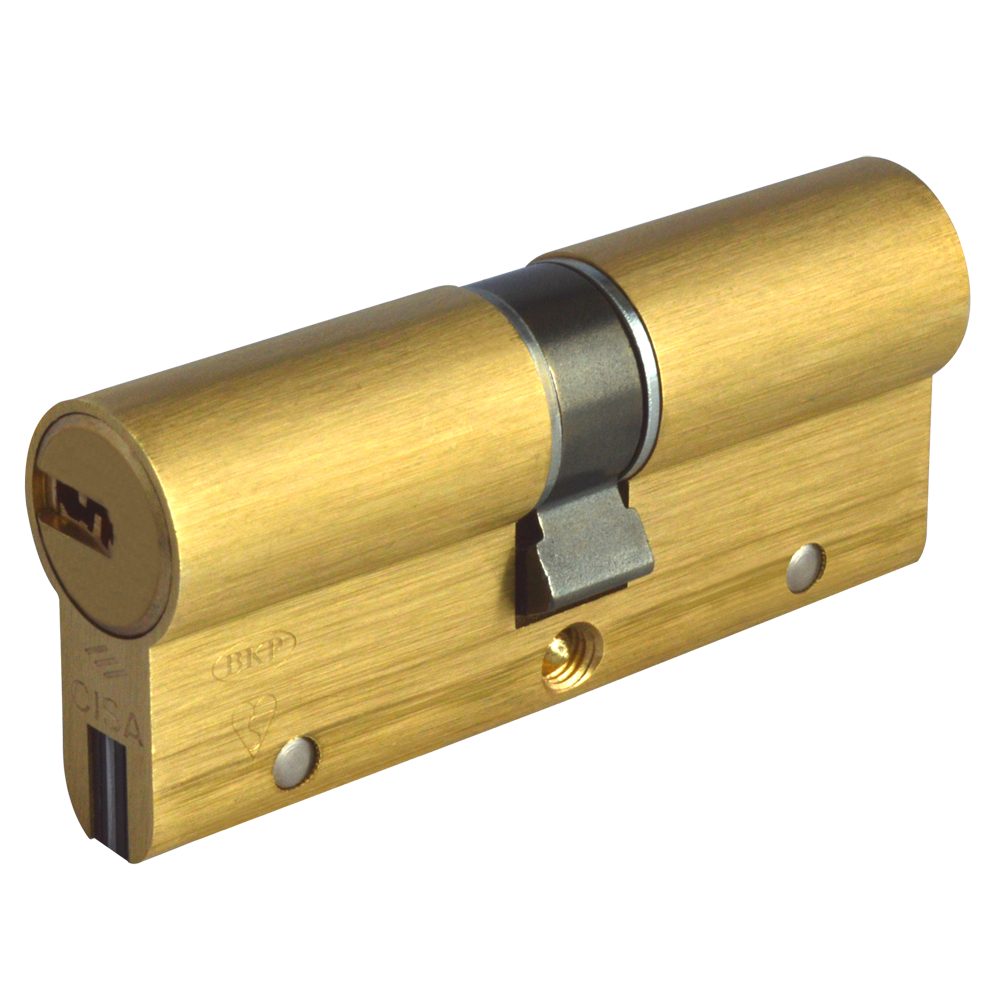

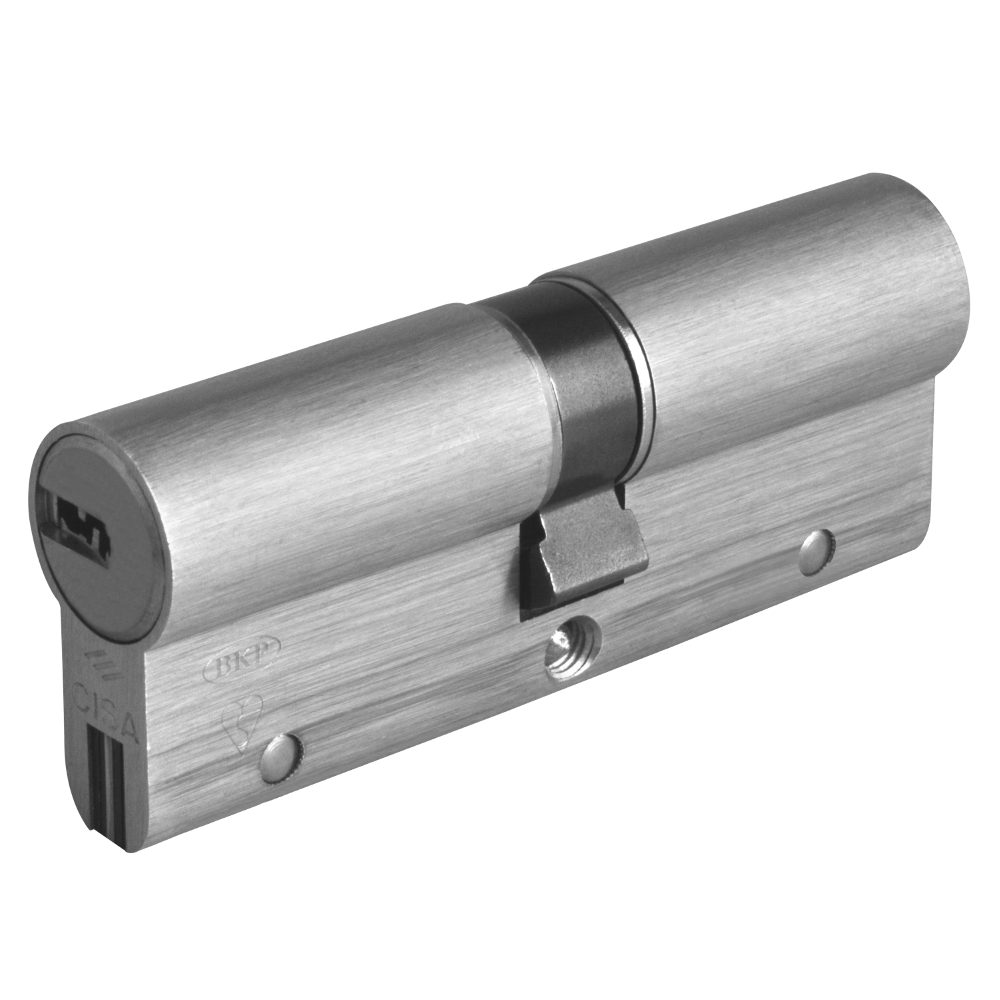

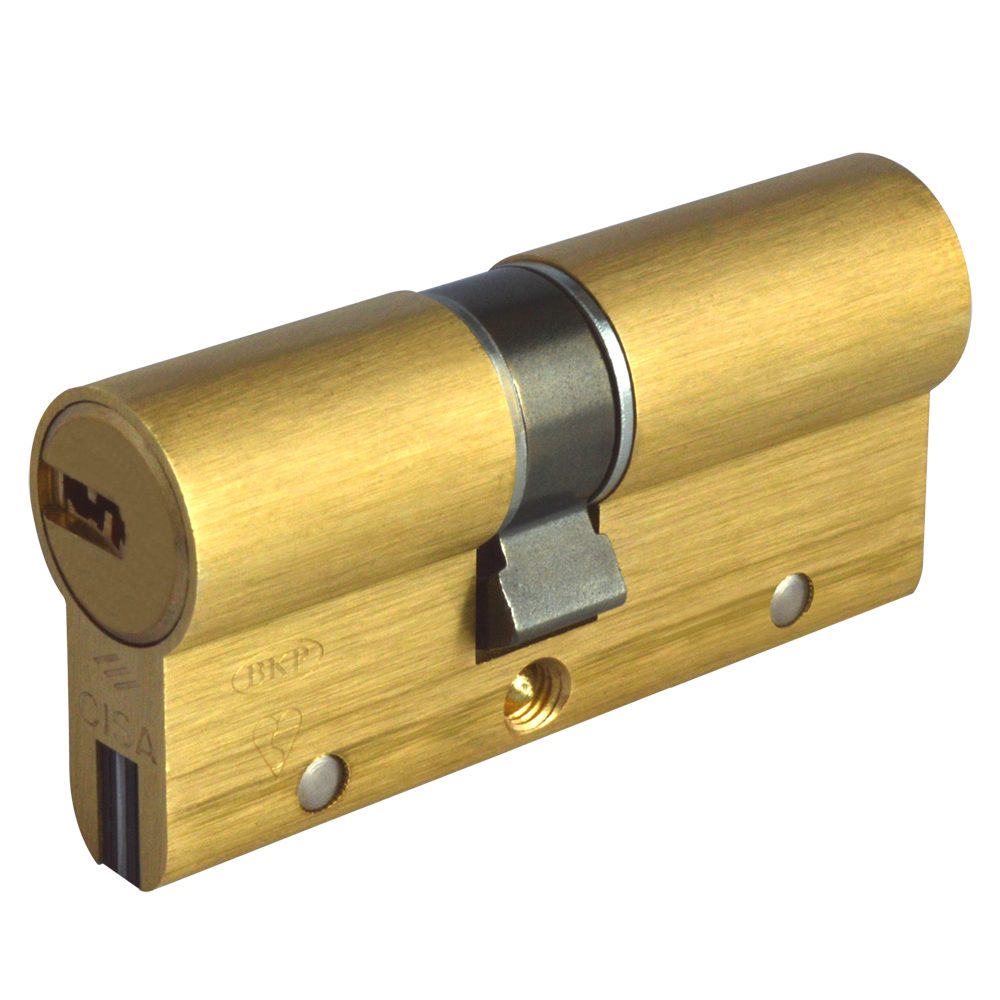

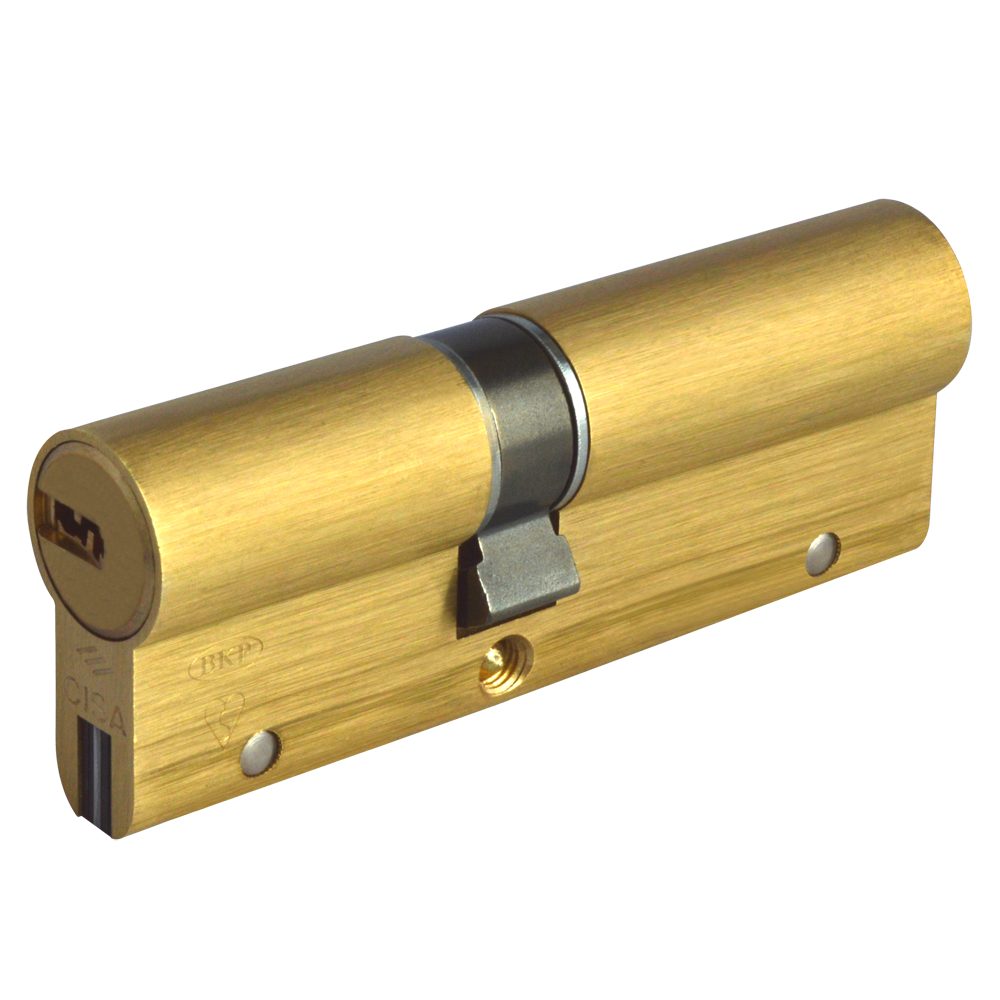

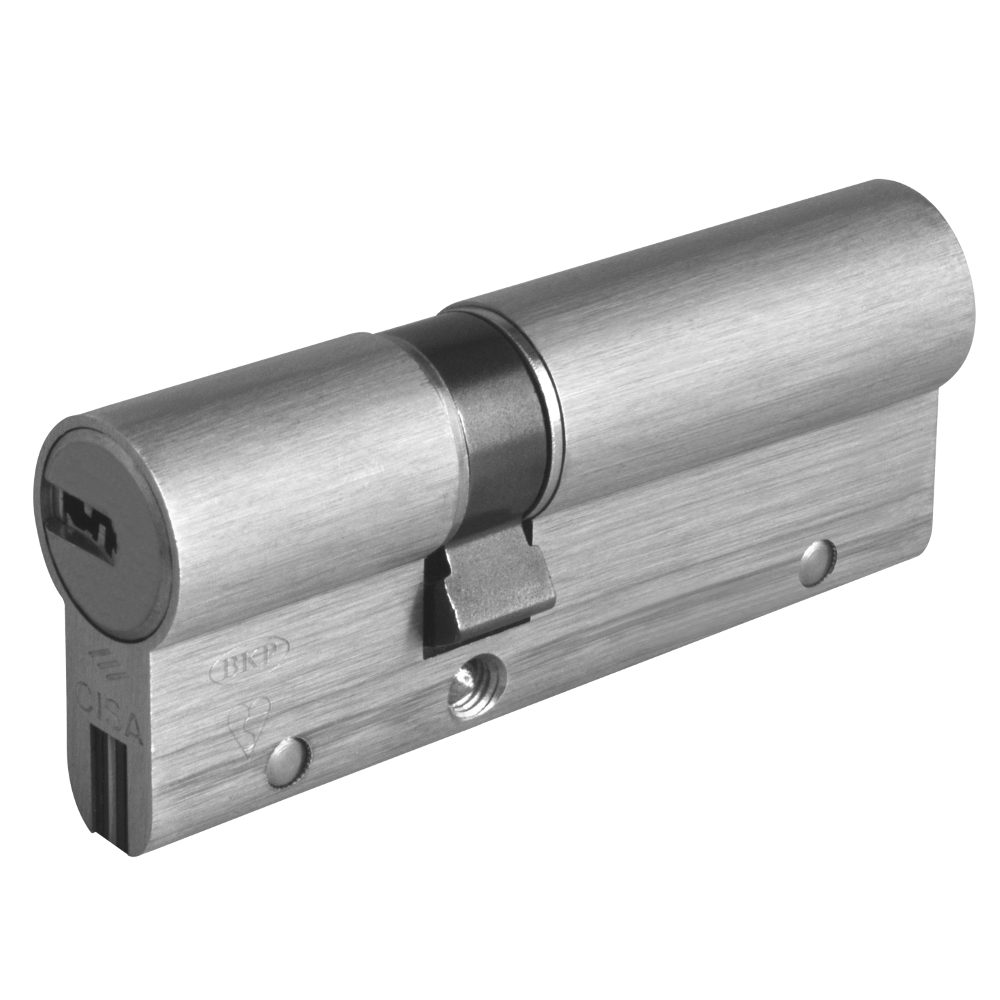

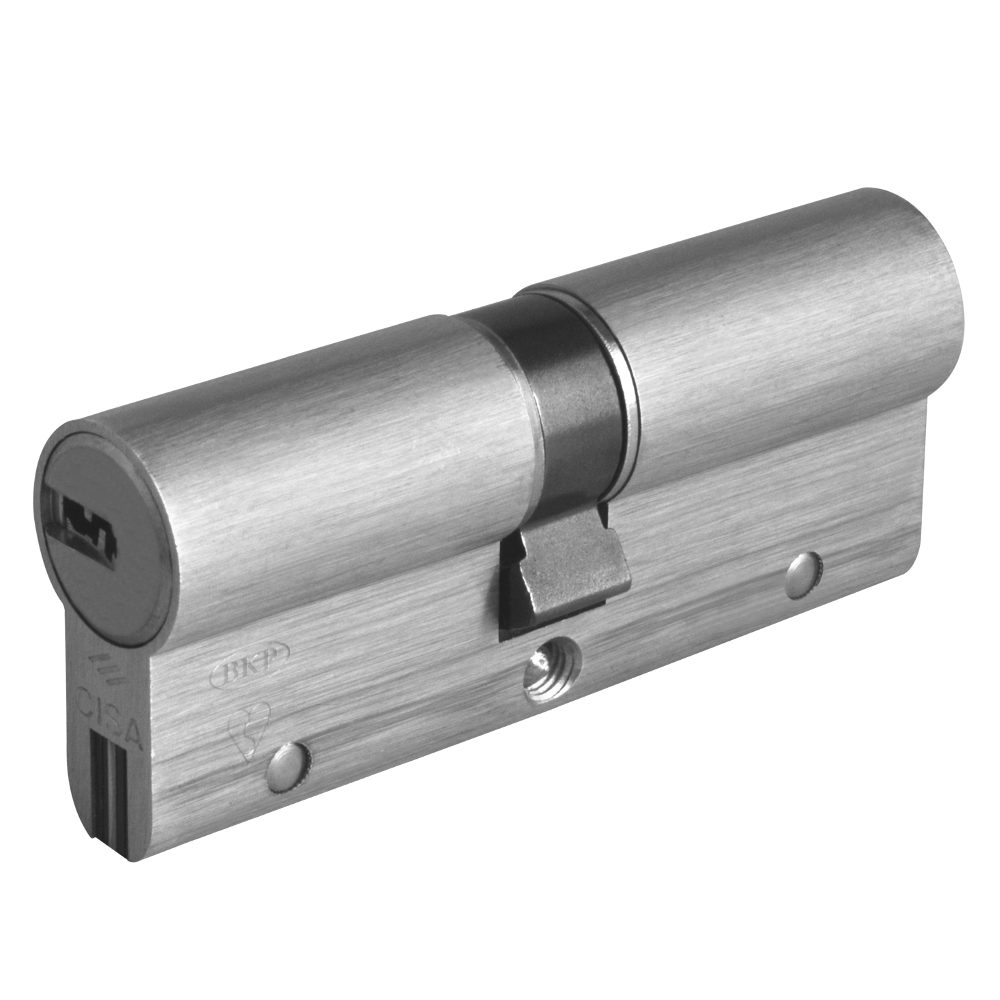

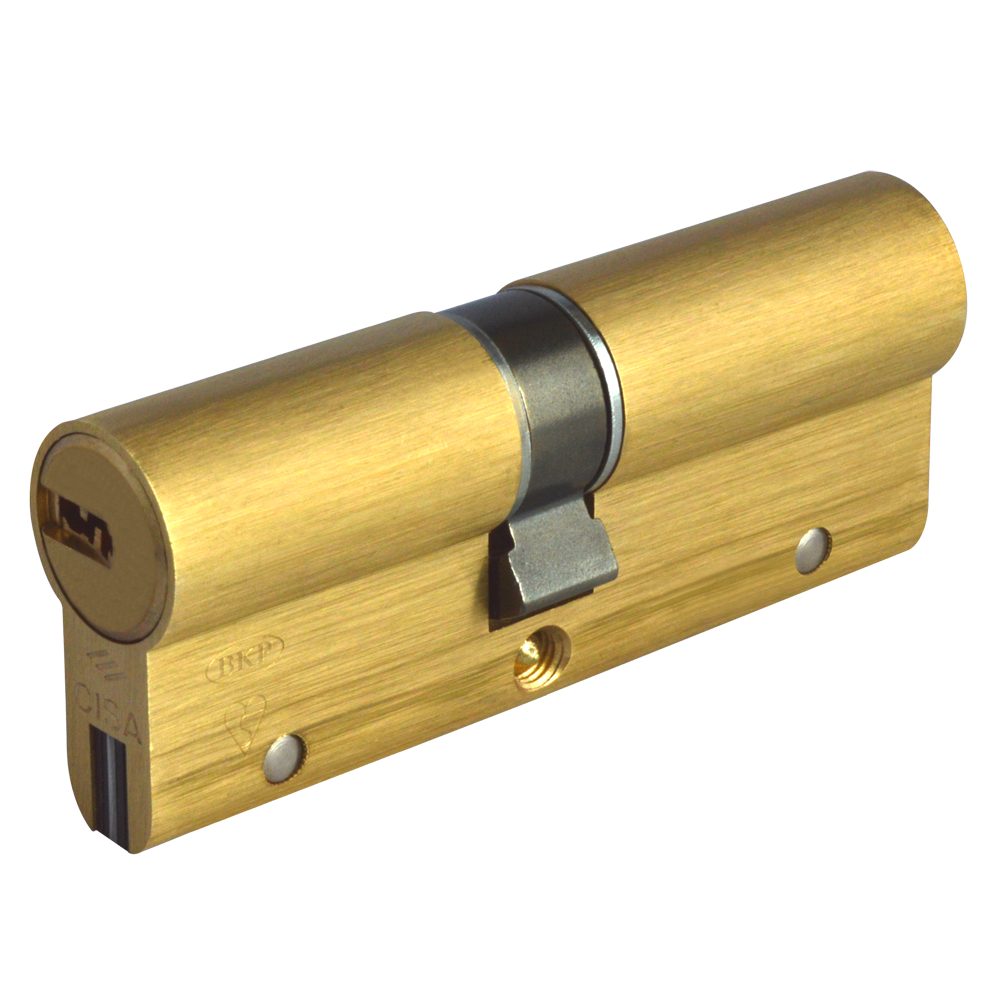

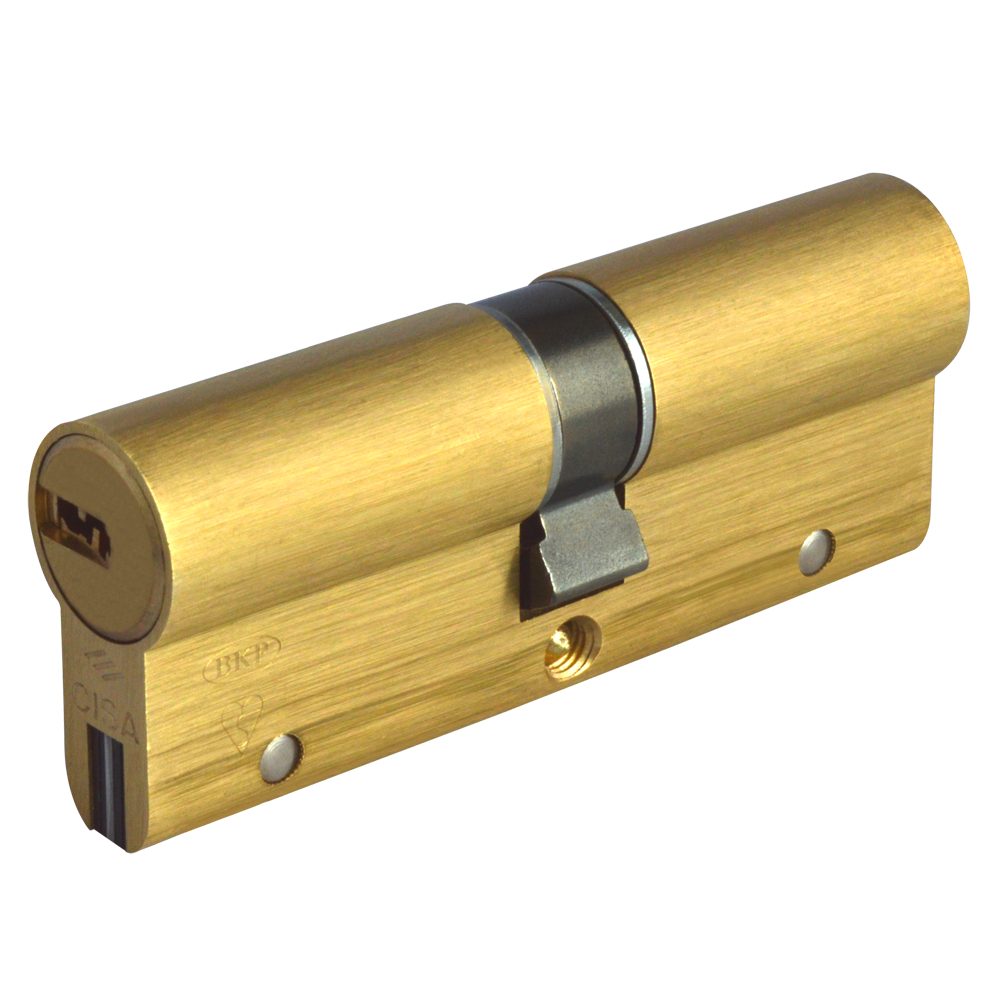

CISA Astral S Euro Double Cylinder

The CISA Astral S Euro Double Cylinder is a high-security, snap-resistant lock cylinder designed to protect your property against common forced entry methods. It features a unique laminated steel segment pack that runs through the core of the cylinder, providing exceptional resistance to lock snapping and pulling. Additionally, the cylinder is engineered to resist picking, drilling, and bump key attacks.

A key benefit of the Astral S is its double clutch (or emergency) system. This allows you to operate the lock from the outside even if another key has been left in the plug on the inside of the door. The cylinder is non-handed, meaning it offers equal security performance from both sides.

This cylinder is available in a wide selection of overall lengths (ranging from 60mm to 100mm) and offset sizes (A-side from 30mm to 50mm, B-side from 30mm to 60mm). It is also available in both Nickel Plated and Polished Brass finishes. Please choose your required size and finish from the options below.

Each cylinder is supplied with three reversible flat keys, a cylinder retaining screw, and a security code card for key duplication.

Technical Specifications

• Cylinder Profile: Euro
• Cylinder Type: Double Euro
• Mechanism: 10-pin key bitting system
• Body Material: Brass body and plugs with laminated steel core
• Standards: BS EN 1303:2005
• Fire Rating: Grade B
• Overall Lengths Available: 60mm to 100mm (please choose from the options below)
• A-Side Sizes Available: 30mm to 50mm (please choose from the options below)
• B-Side Sizes Available: 30mm to 60mm (please choose from the options below)
• Finishes Available: Nickel Plated and Polished Brass (please choose from the options below)
• Keys Supplied: 3 reversible flat keys

Key Features

• Snap Resistant Core: Laminated steel segment pack provides high resistance to lock snapping and extraction.
• Double Clutch System: Allows a key to turn and operate the lock even if another key is left inserted on the opposite side.
• Multi-Point Protection: Built-in resistance against picking, drilling, and bump key attacks.
• Non-Handed Design: Offers equal resistance to snapping and bumping from both sides of the door.
• High Key Security: 10-pin system offering up to 16 million key differs.
• Complete Package: Supplied with 3 keys, a fixing screw, and a code card for secure key duplication.
