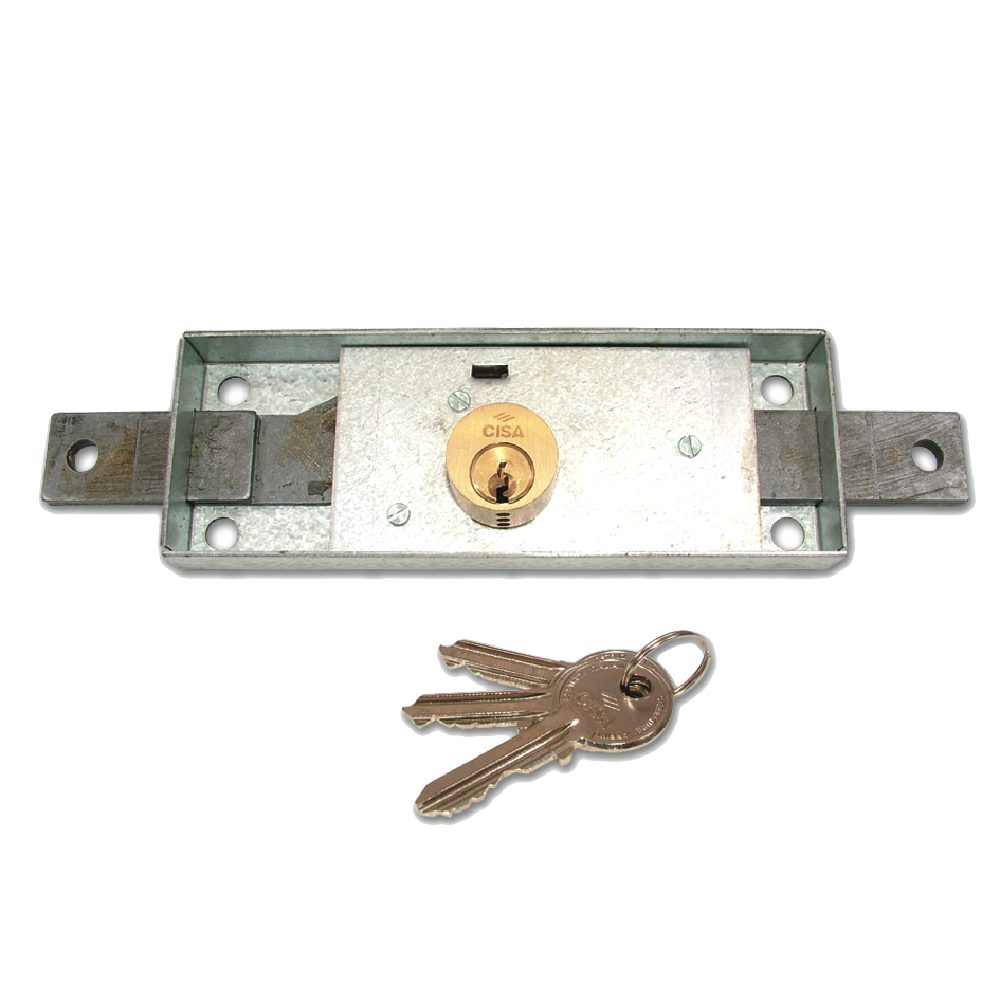

CISA 41320 Central Shutter Lock

The CISA 41320 Central Shutter Lock is a highly reliable security solution designed specifically for roller shutters on commercial, industrial, and residential premises. Installed centrally on the internal face of the shutter curtain, this lock operates two horizontal bolts that extend outwards into both side guides, providing balanced resistance against forced entry and prying.

A standout feature of the CISA 41320 is its double-throw mechanism. The first turn of the key throws the bolts 13mm, and the second turn extends them a further 13mm, achieving a robust 26mm total bolt projection. This deep engagement ensures maximum security for shopfronts, warehouses, and garage doors.

The lock is designed for convenient dual-sided operation and comes supplied with three keys: two keys specifically for operating the lock from the outside, and one key for use from the inside. With its durable build and polished brass cylinder, it is an ideal choice for both new installations and direct retrofitting.

Technical Specifications

• Case Width: 155mm
• Case Height: 55mm
• Case Depth: 15mm
• Cylinder Projection: 15mm
• Cylinder Finish: Polished Brass
• Bolt Throw: 26mm (Double throw - 13mm per throw)
• Keying: Keyed to differ
• Keys Supplied: 3 (2 for outside operation, 1 for inside operation)
• Weight: 560g

Key Features

• Dual-Side Bolt Extension: Central mounting design shoots horizontal bolts to both sides for balanced shutter security.
• Double-Throw Mechanism: Two-stage throw (13mm per turn) provides a deep 26mm total bolt projection to prevent forced lifting.
• Convenient Key Operation: Supplied with 2 keys for external use and 1 key for internal use.
• Durable Cylinder: Features a robust cylinder with a polished brass finish.
• Versatile Application: Ideal for securing shopfronts, commercial warehouses, and domestic garage shutters.
