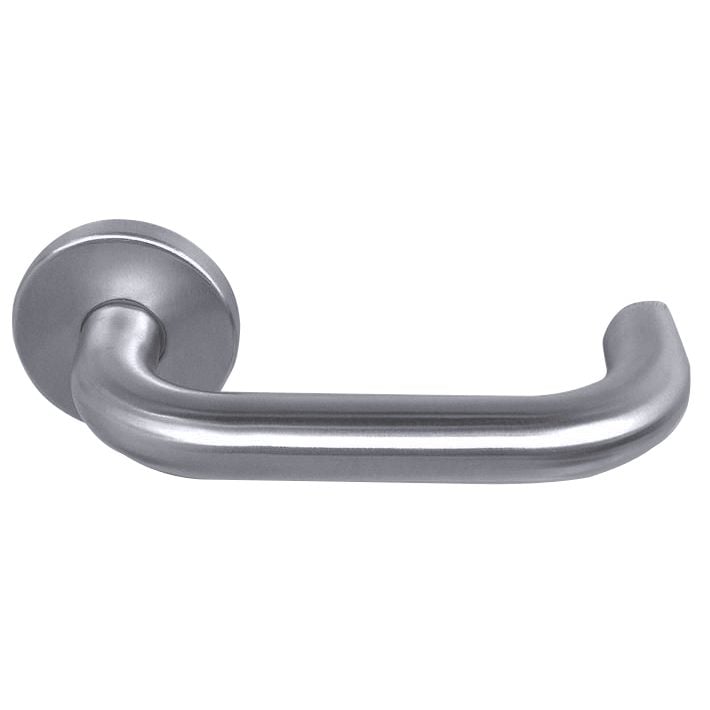

BRITON RTD Lever on Rose with Round Bar

The Briton 4200 Series RTD (Return to Door) Lever on Rose features a classic round bar lever design prefixed to an 8mm thick sprung rose. Constructed from high-quality grade 304 stainless steel, this durable lever handle set is designed to withstand heavy use in both commercial and residential environments.

This lever handle is fire tested to EN 1634, offering up to 2 hours of fire resistance on timber doors and up to 4 hours on steel doors, making it an excellent choice for fire-rated doors. It is supplied as a pair complete with an 8mm spindle and M4 bolt-through fixings, suitable for doors with a thickness between 38mm and 54mm. With its modern Satin Stainless Steel finish and ergonomic return-to-door design, it provides both safety and style.

Technical Specifications

• Brand: Briton
• Manufacturer Reference: 4201.19.SS
• Material: Grade 304 Stainless Steel
• Finish: Satin Stainless Steel
• Lever Design: Return to Door (RTD)
• Rose Diameter: 50mm
• Rose Thickness: 8mm
• Handle Diameter: 19mm
• Handle Length: 135mm
• Door Thickness Suitability: 38mm to 54mm
• Spindle Size: 8mm
• Handing: Reversible
• Standards: BS EN 1670:2007, BS EN 1634-1, BS EN 1634

Key Features

• Durable Construction: Made from grade 304 stainless steel for excellent corrosion resistance and longevity.
• Fire Tested: Certified to EN 1634 for up to 2 hours on timber doors and up to 4 hours on steel doors.
• Sprung Rose: Prefixed to 8mm thick sprung roses to ensure the lever returns smoothly to its original position.

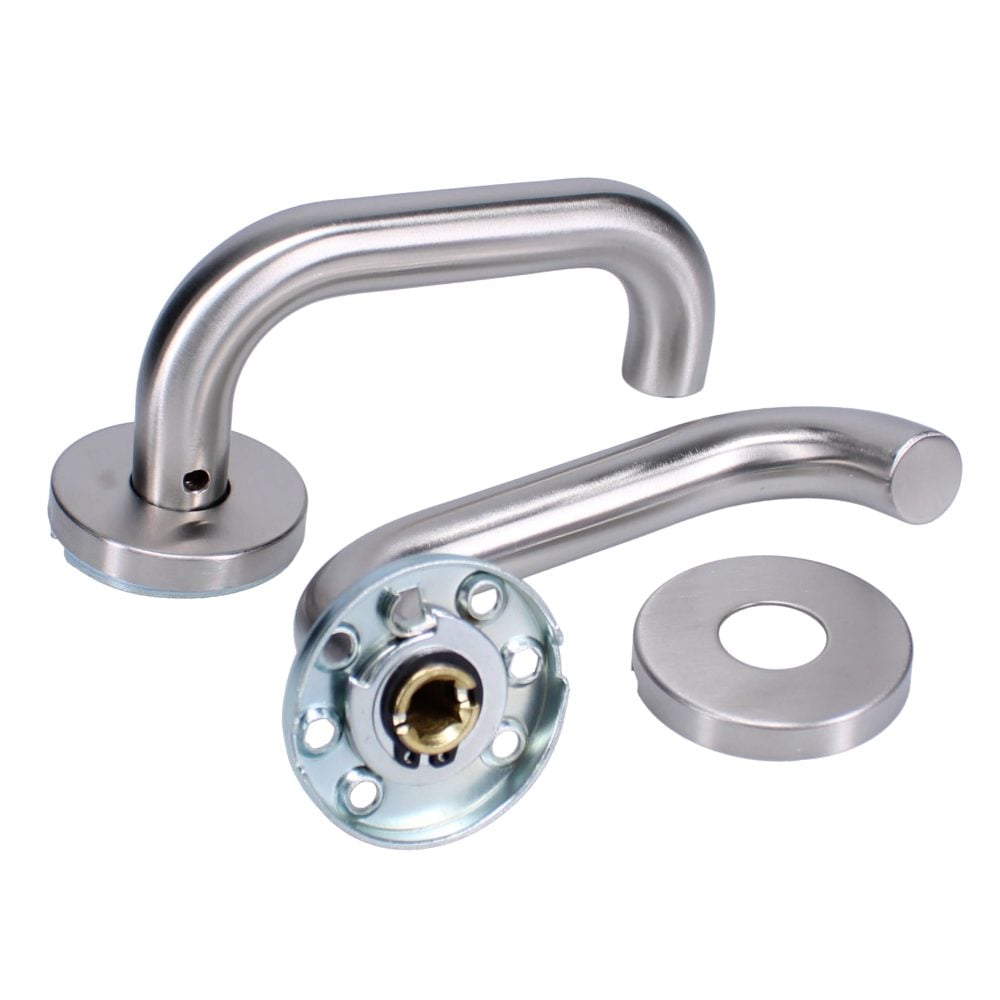

• Complete Set: Supplied as a pair with an 8mm spindle and M4 bolt-through fixings.
• Peace of Mind: Backed by a 5-year manufacturer's guarantee.
