BRITON 581 Slimline Push Pad Panic Latch

The Briton 581 Slimline Push Pad Panic Latch is a high-performance emergency exit device designed for single doors or in combination on double doors. It provides reliable single-point locking as standard, but can easily be expanded to multi-point locking using compatible Pullman latch kits.

Engineered for heavy-traffic environments, this push pad latch features a robust construction and a slimline body width of just 42.8mm, making it suitable for a wide range of door widths. It is fully certified for emergency exit applications and has been fire-tested for up to 2 hours on both timber and steel doors. The non-handed, reversible design ensures easy installation on left- or right-handed doors.

This product is available in multiple finishes, including Black and Silver Enamelled, with corresponding manufacturer references. Please choose your preferred finish, fire testing specification, standards, and manufacturer reference from the options below.

Technical Specifications

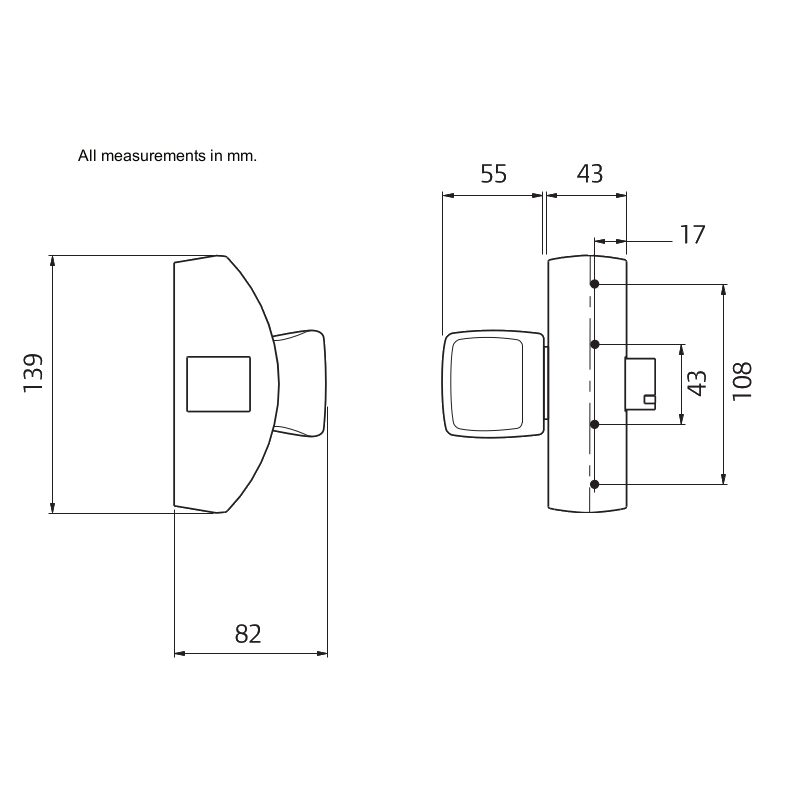

• Body Width: 42.8mm
• Max Door Weight: Suitable for doors up to 200kg
• Handing: Reversible (non-handed)
• Security Grade: Grade 5 (5,000N side load resistance)
• Standards: Certified to BS EN 179, BS EN 1634-1, and BS EN 1634 (please choose from the options below)
• Fire Testing: 2-hour timber and steel fire doors (please choose from the options below)

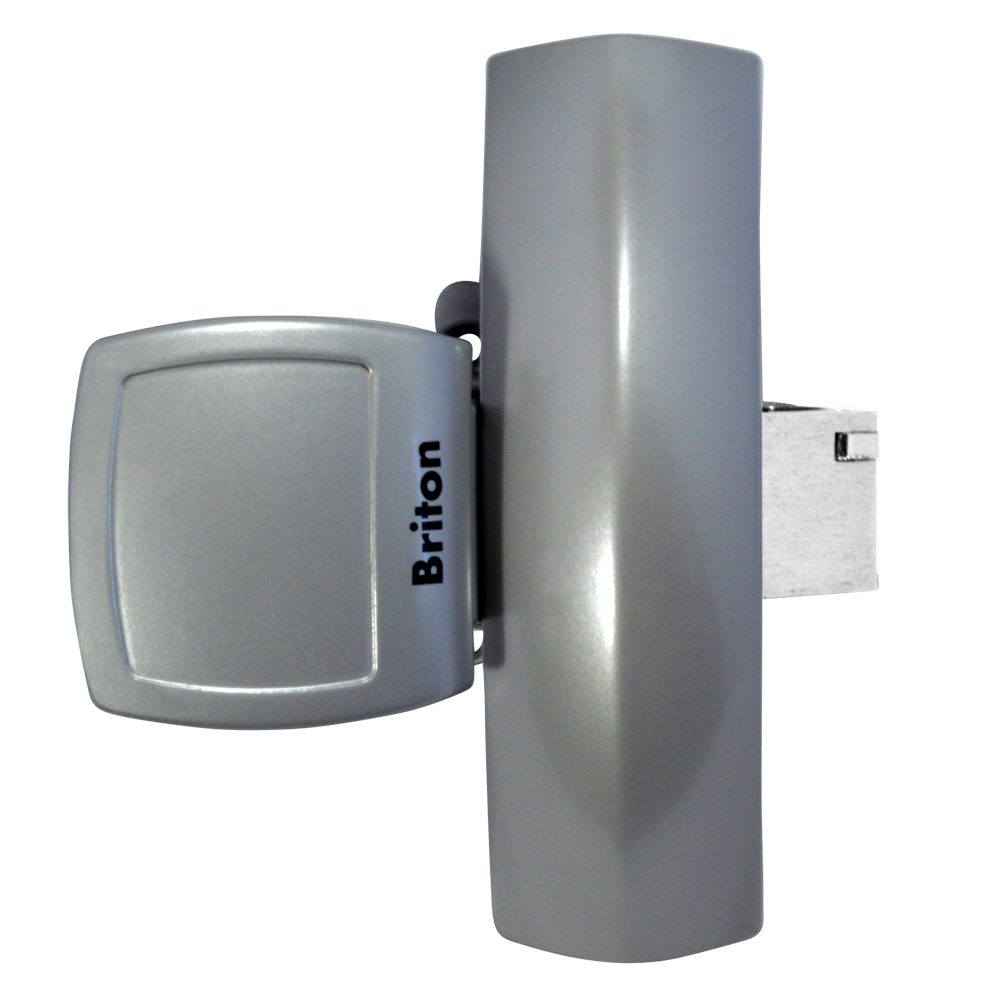

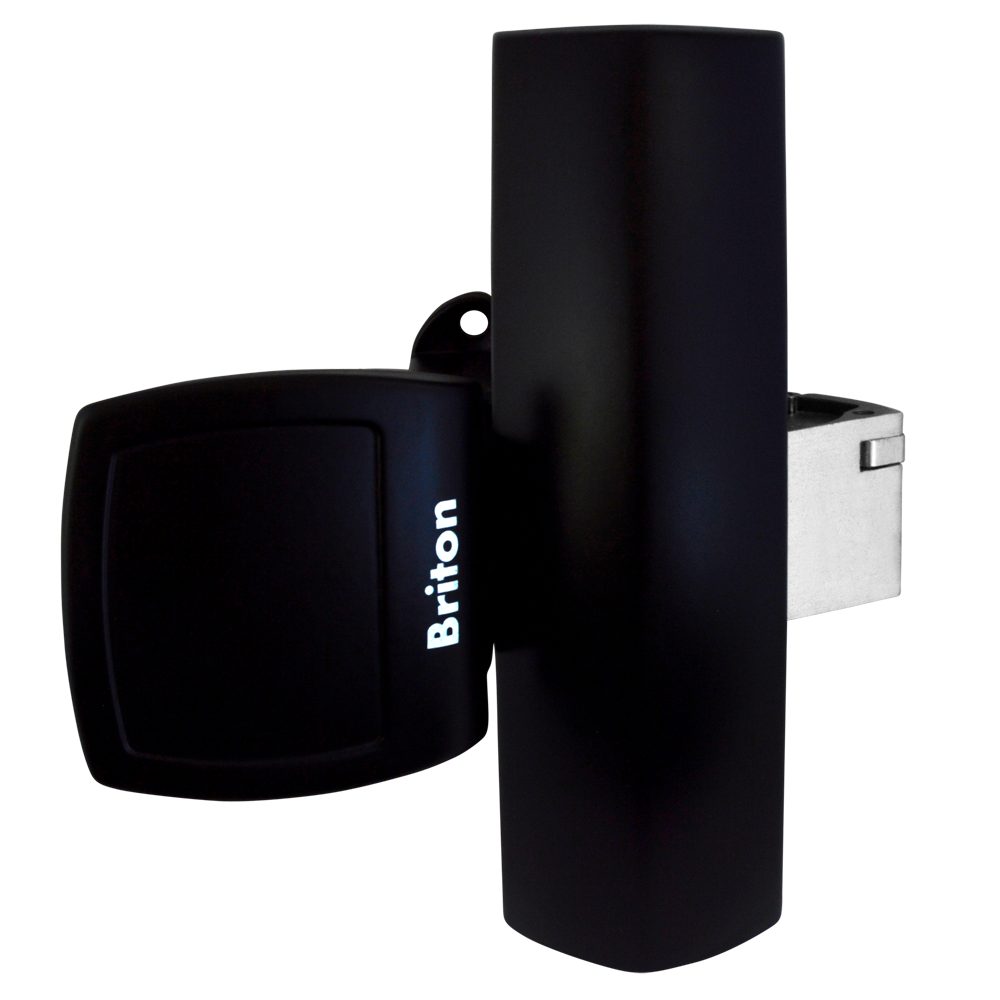

• Finish: Available in Black or Silver Enamelled (please choose from the options below)
• Manufacturer Reference: 581.BM or 581.SE (please choose from the options below)
• Weight: 1.23kg
• Pack Quantity: 1
• Guarantee: 5 years

Key Features

• Expandable Locking: Provides single-point locking with the ability to upgrade to multi-point locking using Pullman latch kits.
• Slimline Design: Compact 42.8mm body width makes it suitable for narrow stiles and various door widths.
• Heavy-Duty Performance: Robust construction suitable for heavy traffic areas and doors weighing over 200kg.
• High Security: Security Grade 5 rating with up to 5000N side load resistance.
• Easy Installation: Non-handed, fully reversible design for quick and simple fitting.
• Aesthetic Choices: Available in multiple finishes to match your existing door hardware (please choose from the options below).
