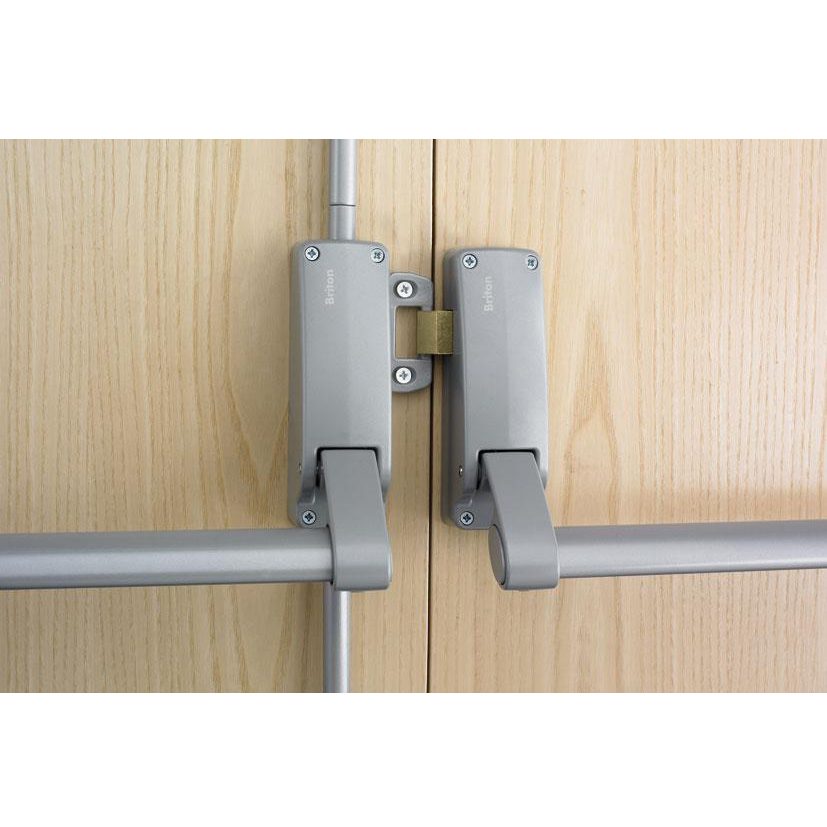

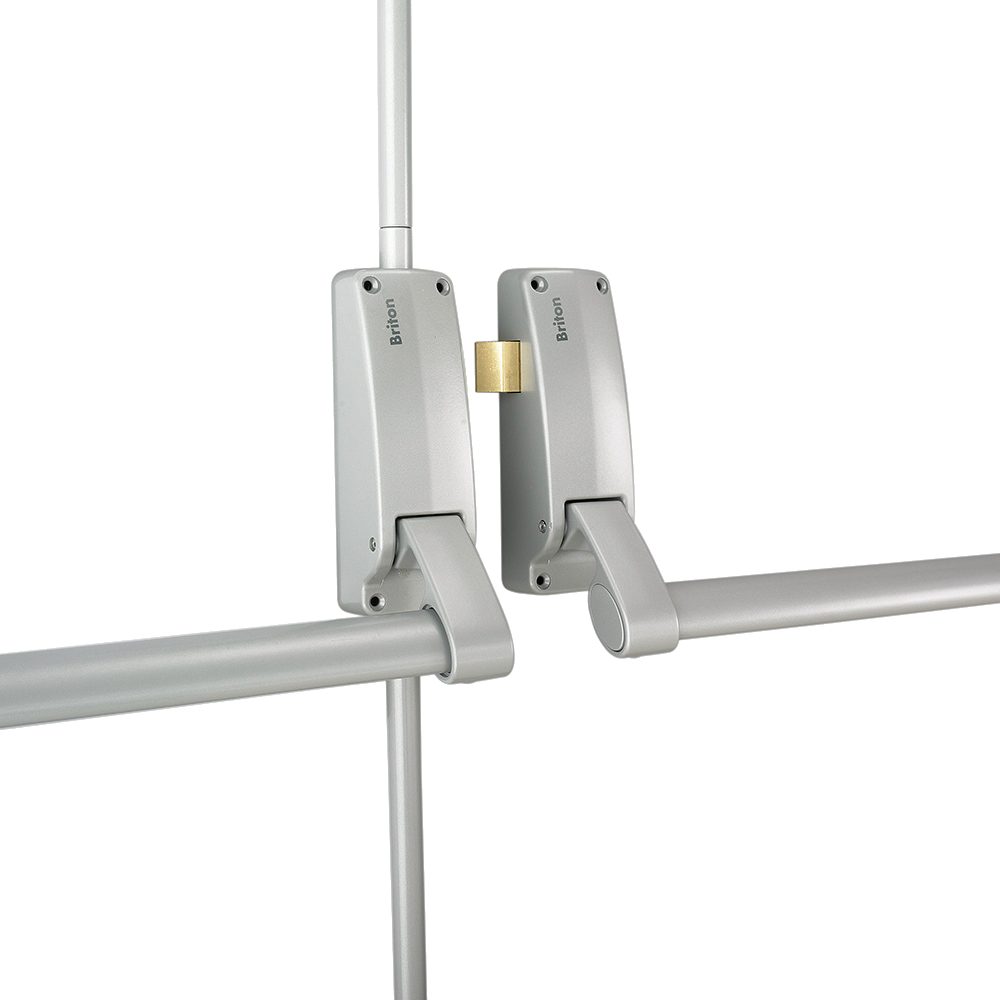

BRITON 377 Push Bar Double Rebated Door Panic Set

The Briton 377 is a high-performance push bar panic exit set designed specifically for rebated double doors. This complete emergency hardware solution comprises a Briton 376 vertical panic bolt, a Briton 378 rim panic latch, and a 378DDS double door strike. It is ideal for high-traffic public buildings such as schools, hospitals, and retail spaces where occupants require quick, intuitive egress in an emergency.

Engineered for safety and security, the Briton 377 features an anti-thrust mechanism that prevents the unauthorised retraction of the latch bolt from the outside. It includes adjustable top and bottom shoots for a precise fit, alongside an easy-clean floor socket to prevent dust and debris build-up.

The set is supplied handed but is fully site-reversible, offering maximum flexibility during installation. Additionally, the tubular steel cross bar and vertical shoots can be cut down on-site to perfectly match your door's dimensions.

Technical Specifications

• Brand: Briton
• Standards: BS EN 1125
• Finish: Silver Enamelled
• Handing: Right Hand (fully site-reversible)

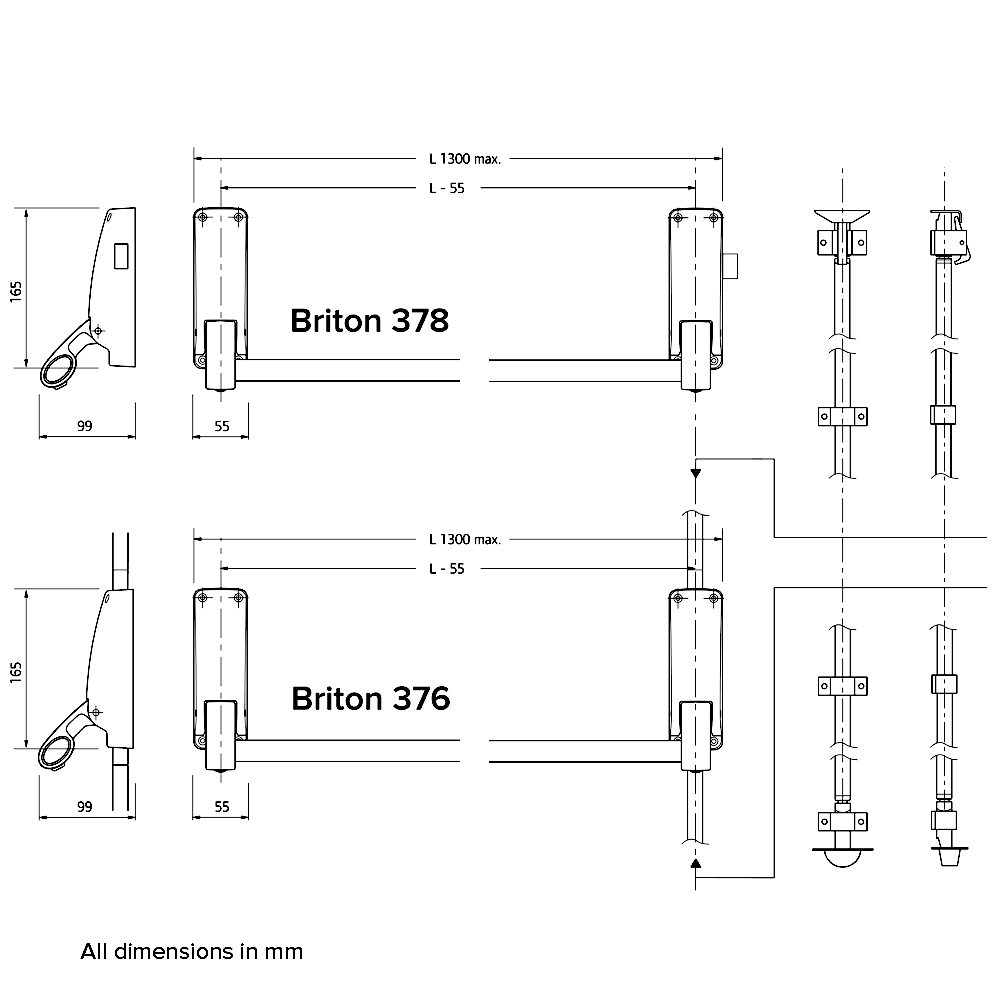

• Maximum Door Height: 2415mm (suits doors up to 2500mm)
• Maximum Door Width: 1210mm (suits doors up to 1300mm)
• Door Type: Rebated double doors
• Testing: Fire tested to EN 1634; Certifire approved

Key Features

• Complete Exit Solution: Includes a vertical panic bolt, rim panic latch, and double door strike for a seamless installation.
• Anti-Thrust Device: Prevents forced latch retraction from the outside, enhancing building security.
• On-Site Adjustability: Tubular steel cross bar and vertical shoots can be cut to size to fit your specific door dimensions.
• Easy Maintenance: Supplied with an easy-clean floor socket to prevent dirt accumulation.
• Reversible Handing: Supplied handed but easily reversed on-site to suit left or right-hand configurations.
• Certified Safety: Fully compliant with BS EN 1125 for peace of mind in public and commercial environments.
