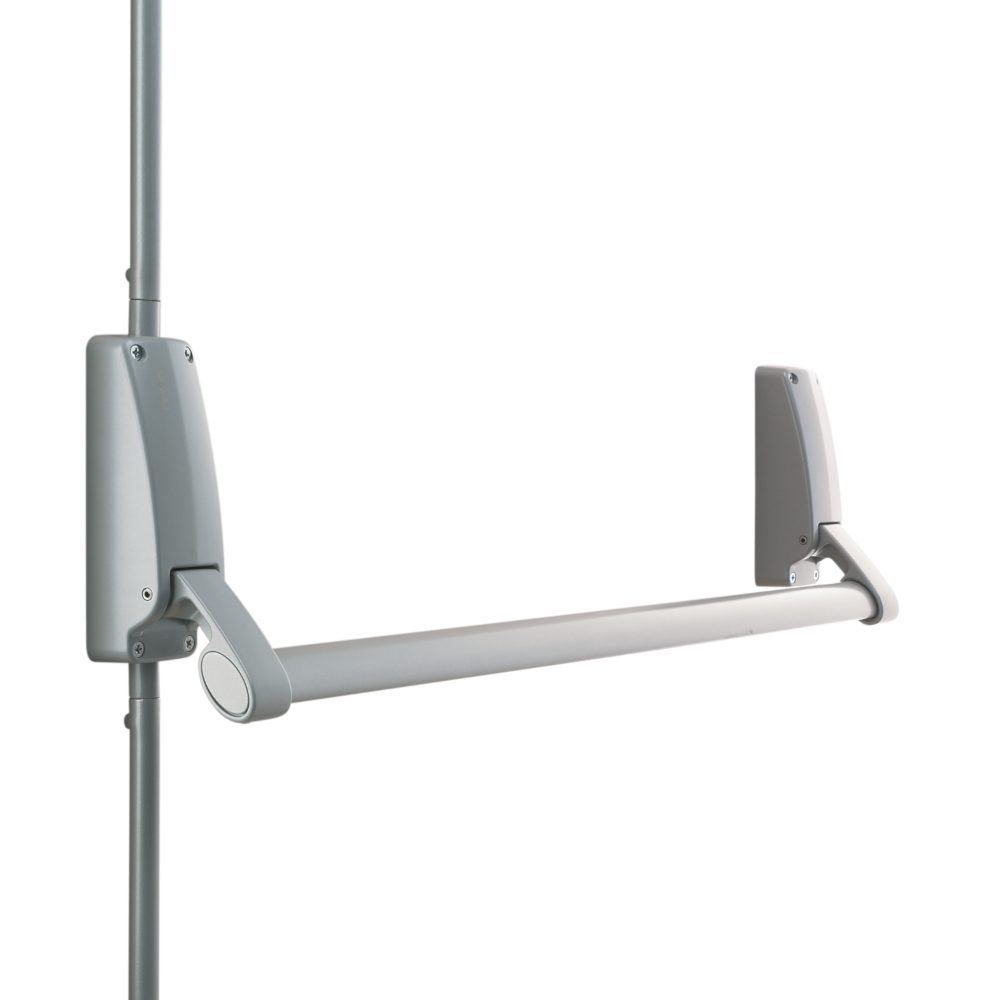

BRITON 376E Single Panic Bolt

The Briton 376E Single Panic Bolt is a highly reliable, surface-mounted push bar exit device designed to provide safe and easy egress in an emergency. Suitable for use on single doors and non-rebated double doors, this two-point locking panic bolt features a reversible design (self-handed) and is ideal for public buildings where users may not be familiar with the exit routes.

Constructed with durability in mind, the 376E features adjustable top and bottom shoots, along with a tubular steel cross bar and shoots that can be conveniently cut on-site to fit the exact dimensions of your door. Security is enhanced by an integrated anti-thrust device, which prevents unauthorised forced retraction of the latch bolts from the outside, and an automatic top catch that holds the bolts securely in place when the door is closed. It has been rigorously tested in excess of 200,000 cycles and is fire tested to EN 1634 for up to 2 hours on timber doors.

Technical Specifications

• Brand: Briton
• Model: 376E
• Finish: Silver Enamelled
• Standards: BS EN 1125, CE Marked (AAA011), UKCA Marked
• Certifire Approval: CF5506
• Fire Tested: EN 1634 (up to 2 hours on timber doors, up to 4 hours on steel doors)

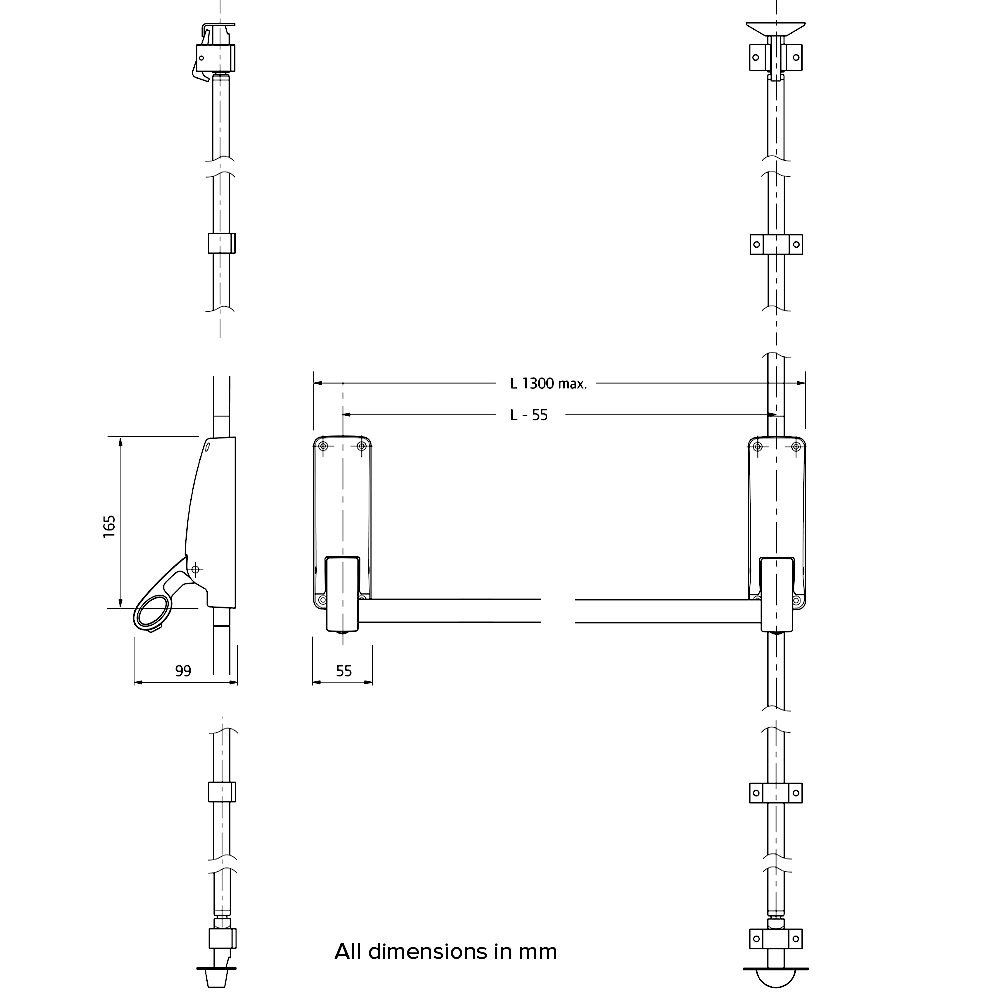

• Max Door Height: 2500mm
• Max Door Width: 1300mm
• Max Door Weight: 200kg
• Handing: Reversible (self-handed)
• Cycle Tested: In excess of 200,000 cycles

Key Features

• Two-Point Locking: Top and bottom shoot bolts provide enhanced security and stability.
• Reversible Handing: Self-handed design is suitable for both left and right-handed doors.
• On-Site Adjustable: Tubular steel shoots and cross bar can be cut on-site to suit door height and width.
• Anti-Thrust Protection: Integrated anti-thrust device prevents unauthorised forced retraction of the bolts.
• Automatic Top Catch: Holds the bolts securely in position when the door is closed.
• Complete Kit: Supplied complete with fixings and a 5-year manufacturer's guarantee.
