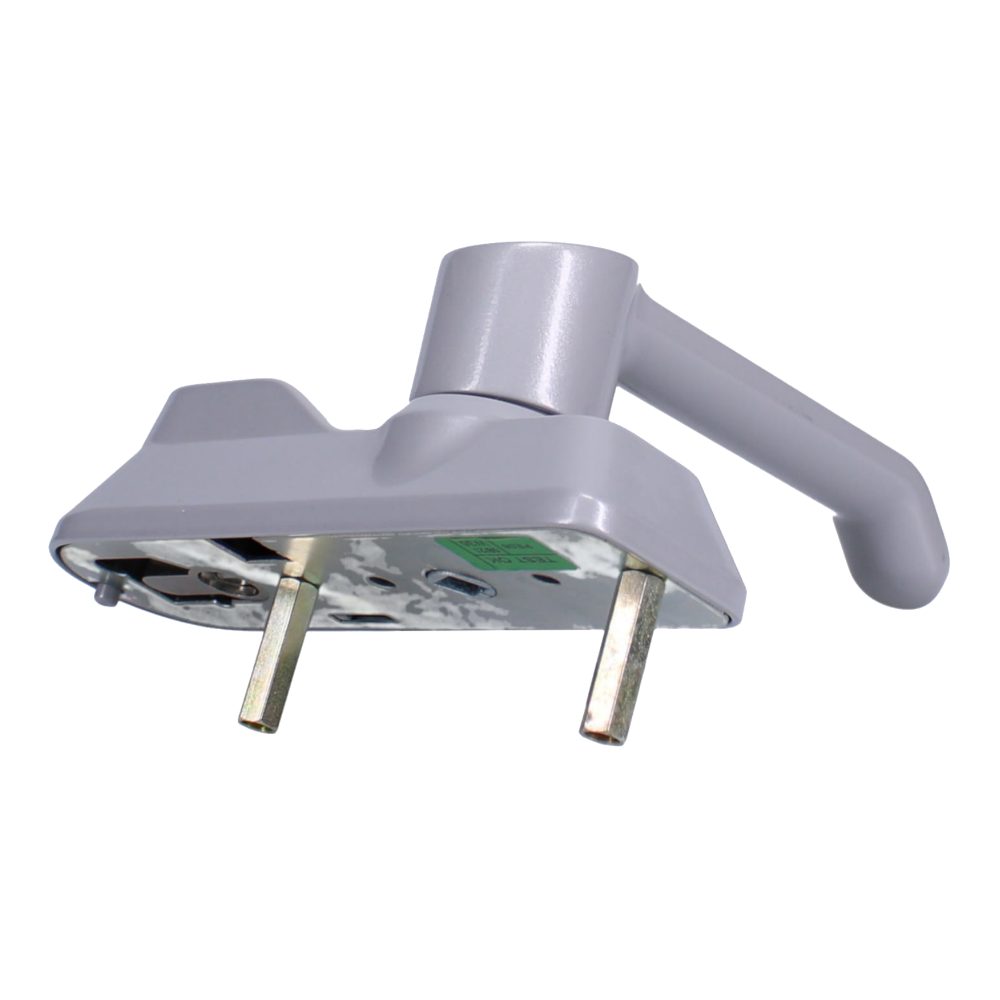

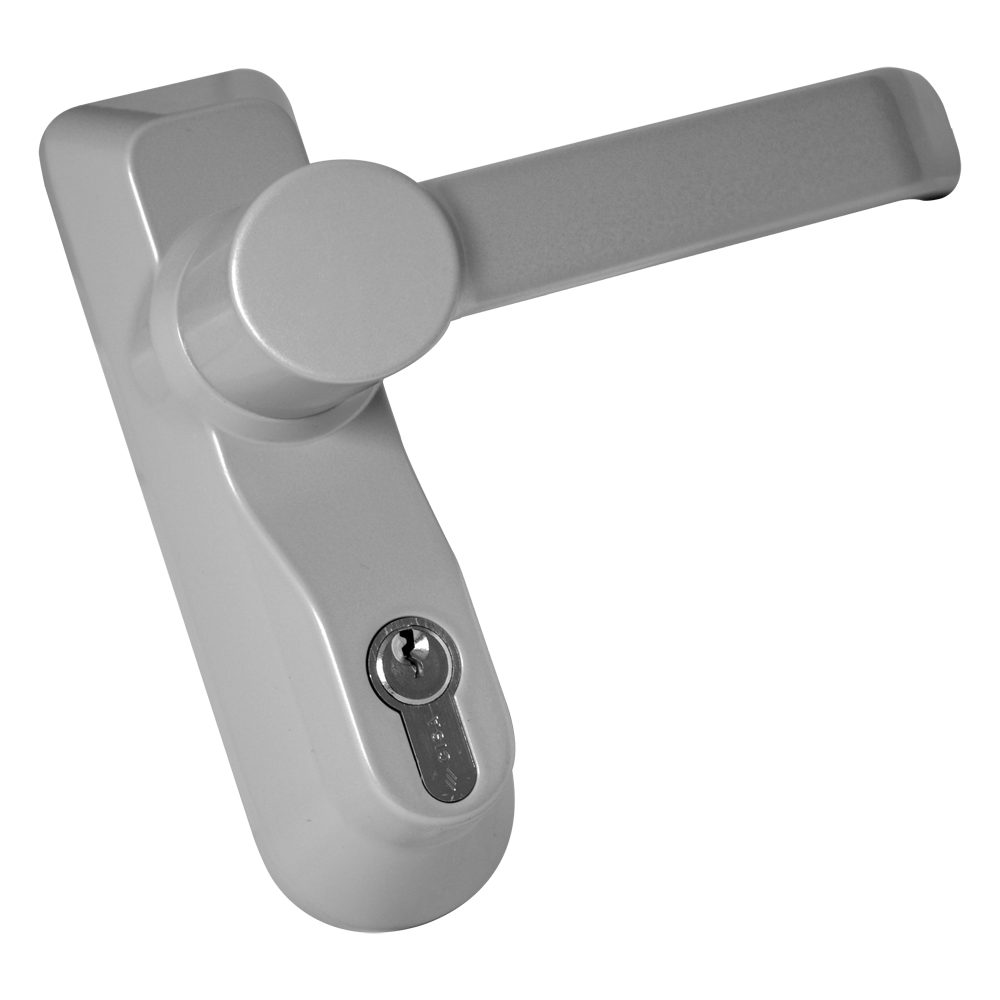

BRITON 1413ELE Lever Operated Outside Access Device

The Briton 1413ELE is a robust, lever-operated outside access device (OAD) designed to provide secure, keyed entry from the outside of a building. It is fully compatible with Briton panic and emergency exit hardware, including the popular Briton 376 series.

Engineered with security in mind, this device features an anti-vandal clutch mechanism that allows the lever to rotate freely when locked, preventing intruders from forcing the lock. For added protection, a built-in shear pin is designed to break under extreme abuse, safeguarding the internal mechanism from damage. This pin can be easily replaced to restore normal operation.

The Briton 1413ELE is BS 8300 compliant, ensuring it meets accessibility guidelines for ease of use. It is supplied loose for easy on-site handing, making it completely reversible for left- or right-handed doors. It comes complete with a Euro profile cylinder and fixings suitable for both timber and metal doors.

Technical Specifications

• Brand: Briton
• Manufacturer Reference: 1413ELE
• Finish: Silver Enamelled
• Handing: Reversible (on-site)
• Door Thickness: Suitable for doors between 40mm and 70mm thick
• Cylinder Type: Euro profile cylinder (included)
• Fixings: Suitable for timber and metal door sets
• Width: 55mm
• Depth: 81mm
• Weight: 1.16kg

Key Features

• Anti-Vandal Clutch: Allows the lever to rotate freely when locked, preventing forced entry attempts from damaging the lock.
• Shear Pin Protection: Features a sacrificial shear pin designed to break under severe abuse, protecting the internal mechanism.
• BS 8300 Compliant: Lever design meets accessibility standards for ease of operation.
• Reversible Handing: Supplied loose to allow quick and easy handing on-site for left- or right-hand doors.

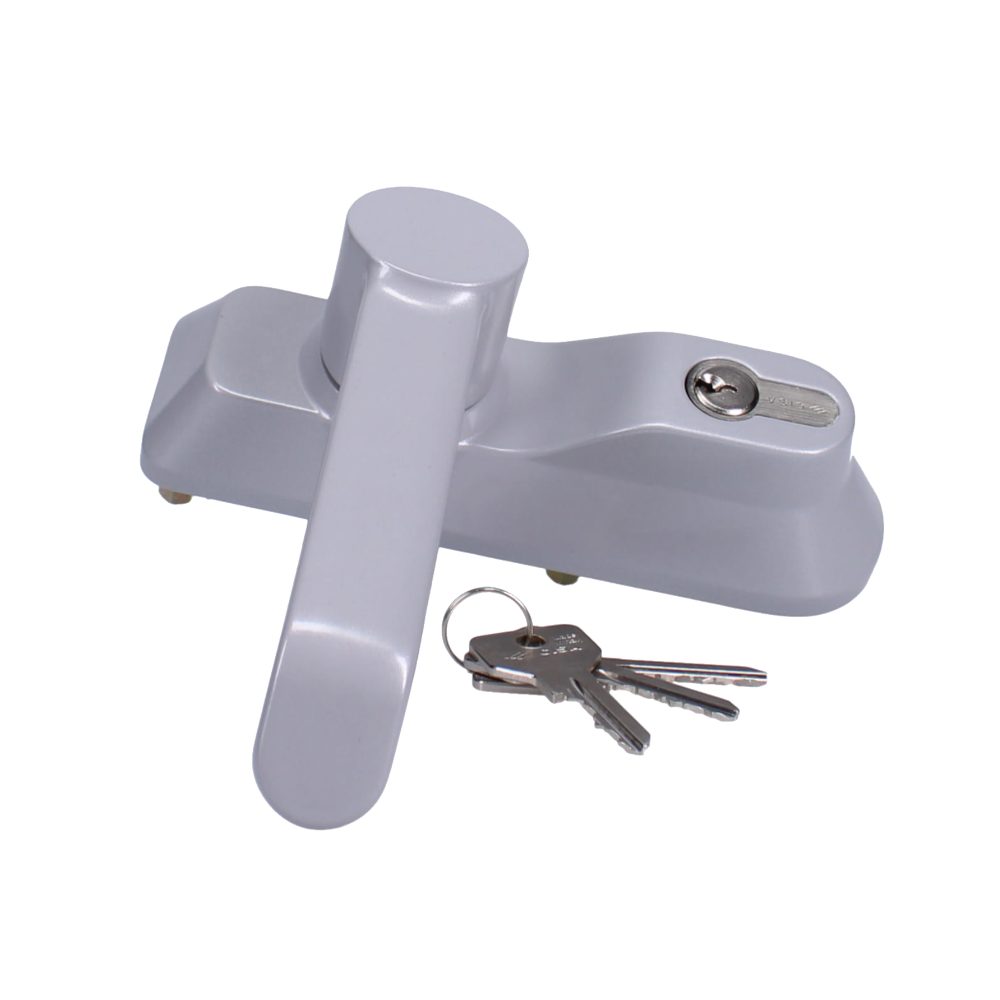

• Complete Package: Supplied with a Euro profile cylinder and all necessary fixings for timber or metal doors.
• Broad Compatibility: Designed to suite with Briton panic and emergency exit hardware.
