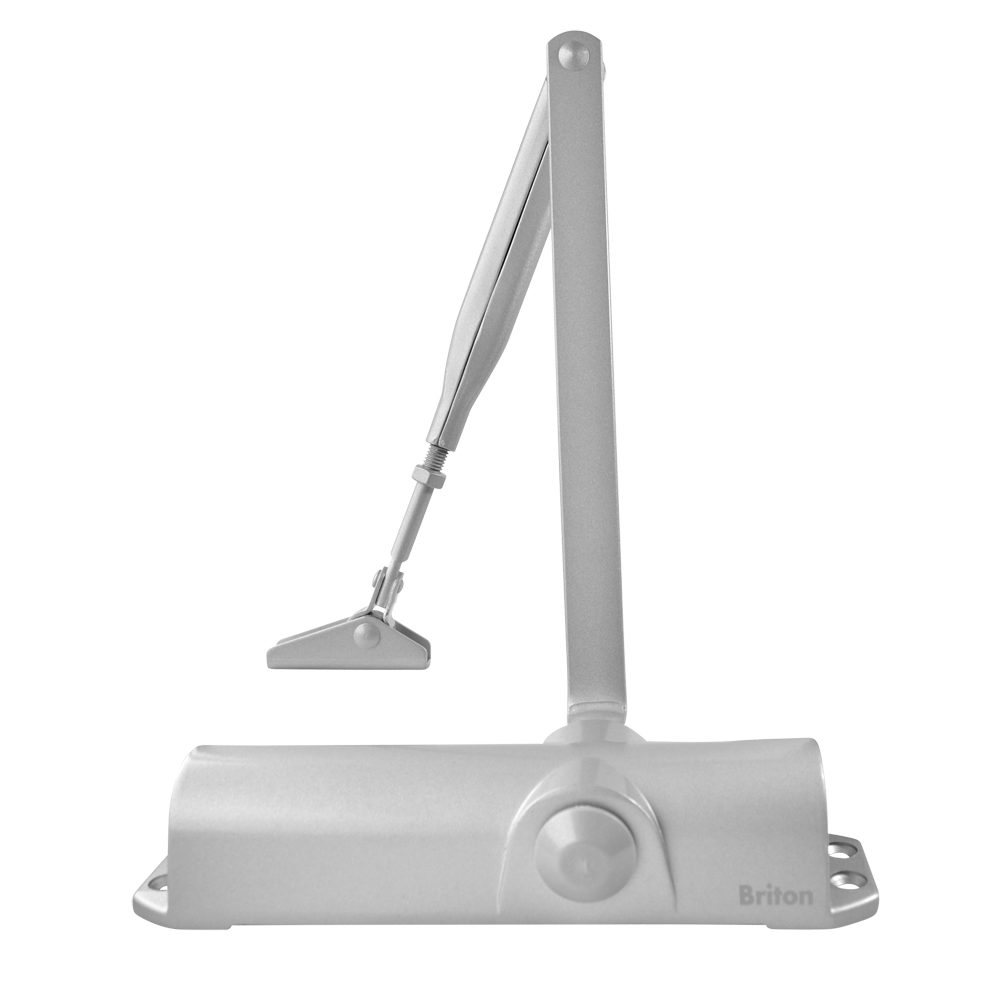

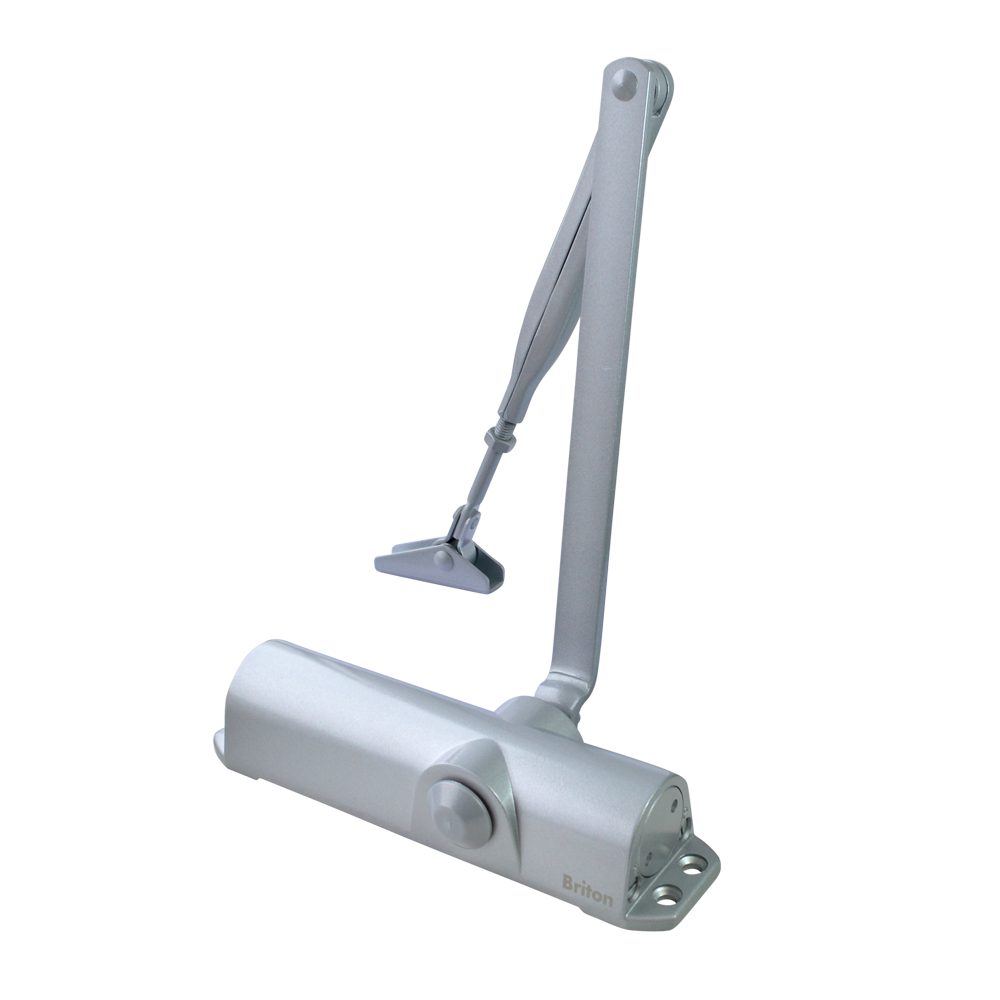

BRITON 131 Overhead Door Closer EN 2-4
Briton
The Briton 131 Overhead Door Closer is a compact, template-adjustable door closer designed for reliability and ease of installation. Featuring a robust cast aluminium body with a sprayed silver finish, it is ideal for low to medium-traffic areas in commercial, residential, and public buildings.
This non-handed overhead closer is highly versatile, offering adjustable power sizes from EN 2 to 4 depending on the mounting position. It features separate adjustments for both closing speed and latch action, allowing you to fine-tune the door's closing behaviour to suit your specific requirements. An optional hold-open armset is available as a special order item (please note that hold-open arms are not suitable for use on fire doors).
Supplied with a strong screw-thread armset and brackets, the Briton 131 is certified for regular door mounting (pull side), transom mounting (push side), and parallel arm mounting (push side). It is fully fire-tested and Certifire approved, making it suitable for timber fire doors up to 2 hours and steel fire doors up to 4 hours.
Technical Specifications
- Power Size: EN 2 to 4 (template adjustable)
- Maximum Door Width: 1100mm
- Maximum Door Weight: 80kg
- Body Material: Cast aluminium
- Finish: Sprayed Silver (SES)
- Handing: Non-handed
- Armset: Screw thread armset and brackets included
- Mounting Applications: Regular (Fig. 1), Transom (Fig. 15), and Parallel Arm (Fig. 61)
- Standards & Certifications: CE Marked & UKCA Marked to BS EN 1154, Certifire Approved (CF5512)
- Fire Rating: Fire tested to EN 1634-1 (up to 120 minutes on timber doors, up to 240 minutes on steel doors)
- Guarantee: 10-year manufacturer's guarantee
Key Features
- Adjustable Power: Template-adjustable power sizes EN 2-4 to suit varying door weights and sizes.
- Dual Adjustment: Independent controls for closing speed and latch action for a smooth, controlled close.
- Robust Construction: Durable cast aluminium body with a heavy-duty steel screw-thread armset.
- Fire Door Approved: Certifire approved and fire-rated for peace of mind on timber and metal fire doors.
- Universal Fitting: Non-handed design suitable for left or right-handed doors, with brackets for multiple mounting configurations.
- Long-Term Reliability: Backed by a 10-year manufacturer's guarantee.
