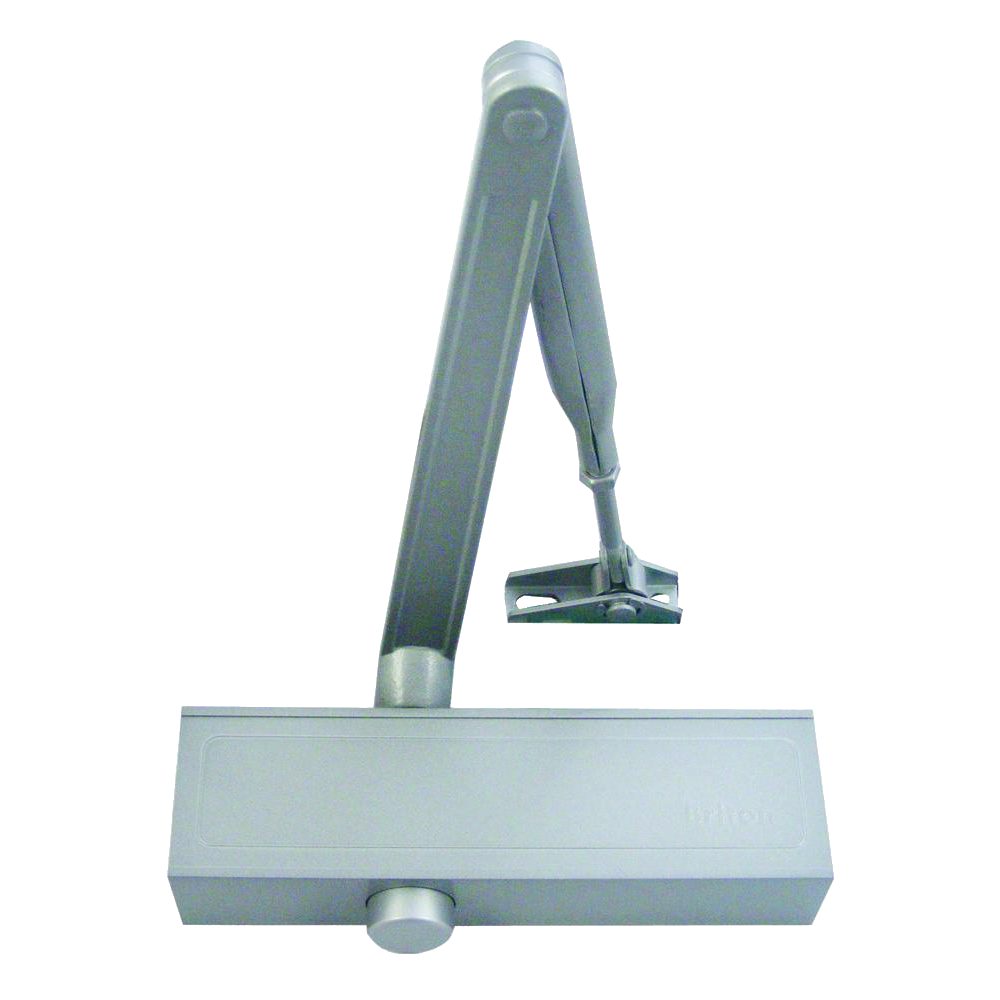

BRITON 1110 Size 2-4 Overhead Door Closer

The Briton 1110 Size 2-4 Overhead Door Closer is a compact, highly reliable solution designed for medium-duty applications, making it ideal for offices, commercial premises, and living accommodations. This versatile door closer features template-adjustable power sizing from EN 2 to 4, allowing it to be tailored to the specific requirements of your door.

With a reversible design, it is suitable for both left-handed and right-handed doors. It supports multiple mounting applications (Figure 1, Figure 61, and Figure 66) to provide maximum installation flexibility. The closer is equipped with separate, adjustable closing and latch speeds, which are concealed behind a sleek trimplate to prevent unauthorised tampering.

It is fully certified for use on fire doors, carrying Certifire CF388 approval and testing to BS EN 1154 and EN 1634 standards. Finished in a durable silver enamelled coating with a matching arm, this closer offers a neat, uniform appearance alongside a robust 10-year manufacturer's guarantee.

Technical Specifications

• Brand: Briton
• Manufacturer Reference: 1110
• Power Size: EN 2 - 4 (template adjustable)
• Application: Fig 1 (pull side), Fig 61 (transom mount), and Fig 66 (parallel arm)
• Finish: Silver Enamelled
• Max Door Width: 1110mm
• Max Door Weight: 80kg
• Handing: Reversible (non-handed)
• Fire Tested: Up to 2 hours (Certifire Approved CF388)
• Standards: BS EN 1154, EN 1634

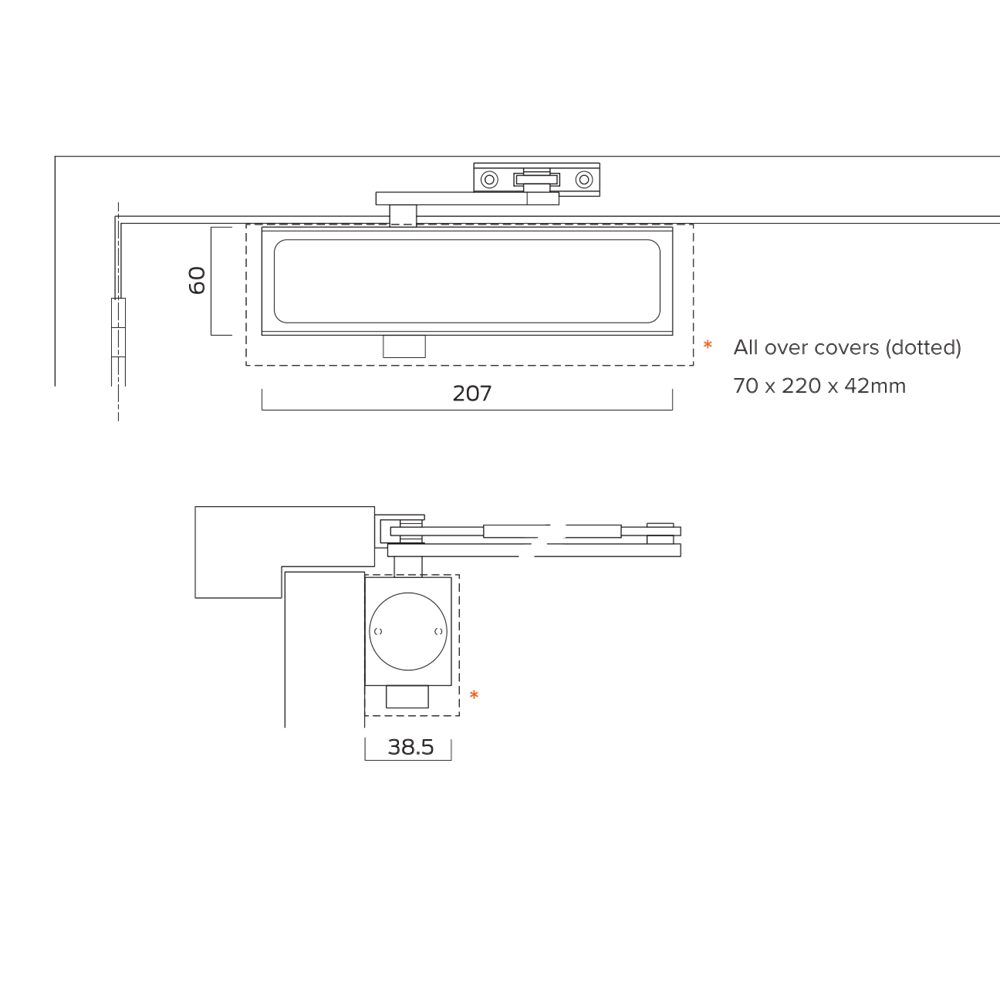

• Dimensions: 207mm (L) x 60mm (H) x 38.5mm (W) x 60mm (D)
• Weight: 2.18kg

Key Features

• Adjustable Closing & Latch Speeds: Dual independent regulators allow precise control over the full closing cycle.
• Concealed Adjustments: Fixing and adjustment screws are hidden behind a trimplate to prevent unauthorised tampering or vandalism.
• Universal Fitting: Supplied with a tri-pack armset suitable for regular, transom, or parallel arm mounting.
• Fire Door Approved: Certifire CF388 accredited and fire tested for safety compliance in commercial and residential properties.
• 10-Year Guarantee: Backed by a comprehensive 10-year manufacturer's warranty for long-term reliability.
