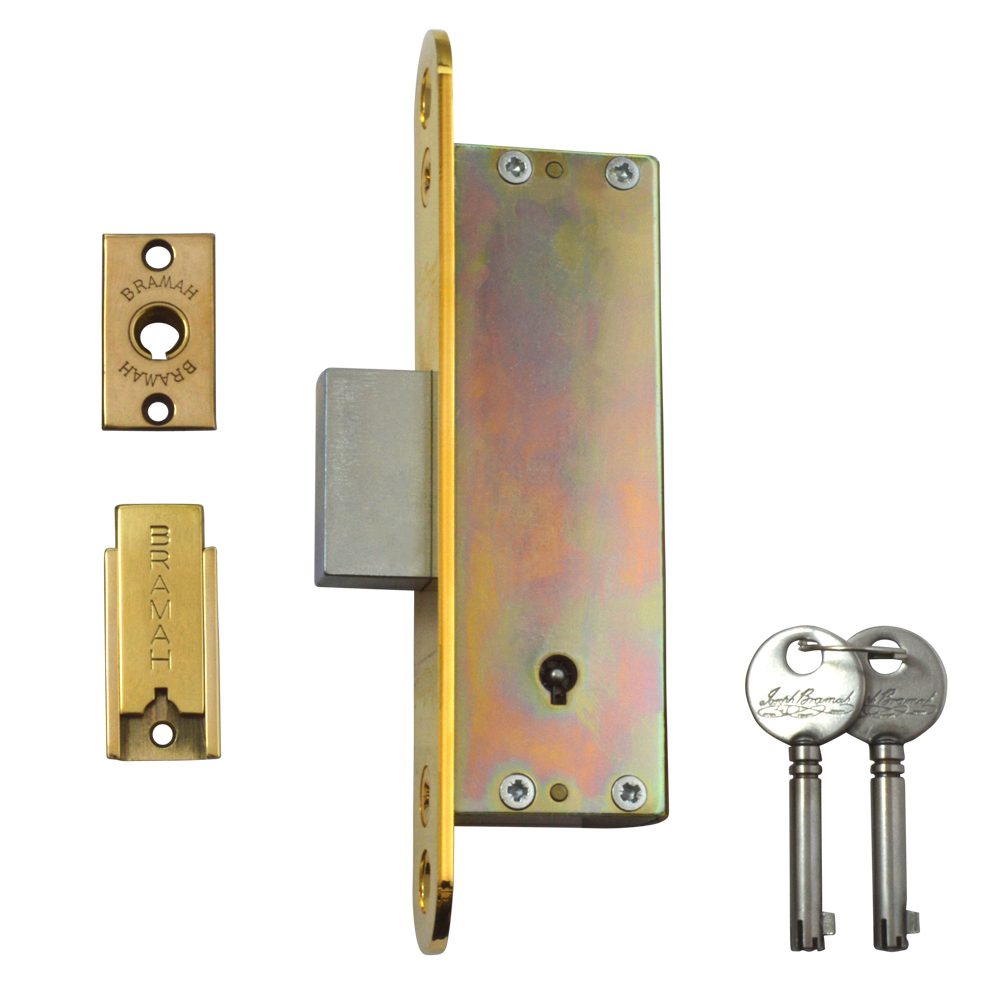

BRAMAH NS27M Deadlock

The Bramah NS27M Deadlock is a high-security, narrow-stile mortice lock designed for use on both timber and metal doors. It is particularly well-suited for narrow-profile metal doors, making it an ideal choice for securing retail shopfronts and commercial premises.

Constructed with a hardened case and deadbolt, this lock offers robust resistance against physical attack and tampering. The deadbolt is operated by key from either side, providing reliable security for final exit doors. It is designed as a standard deadlock for doors with a 12.5mm stop.

Equipped with Bramah's renowned 7-pin slider mechanism, the NS27M offers an impressive 500,000 key differs, ensuring excellent protection against lock picking and unauthorized key duplication. The lock is supplied boxed as keyed to differ, with options for keyed alike (KA) or master keyed (MK) suites available as a special order.

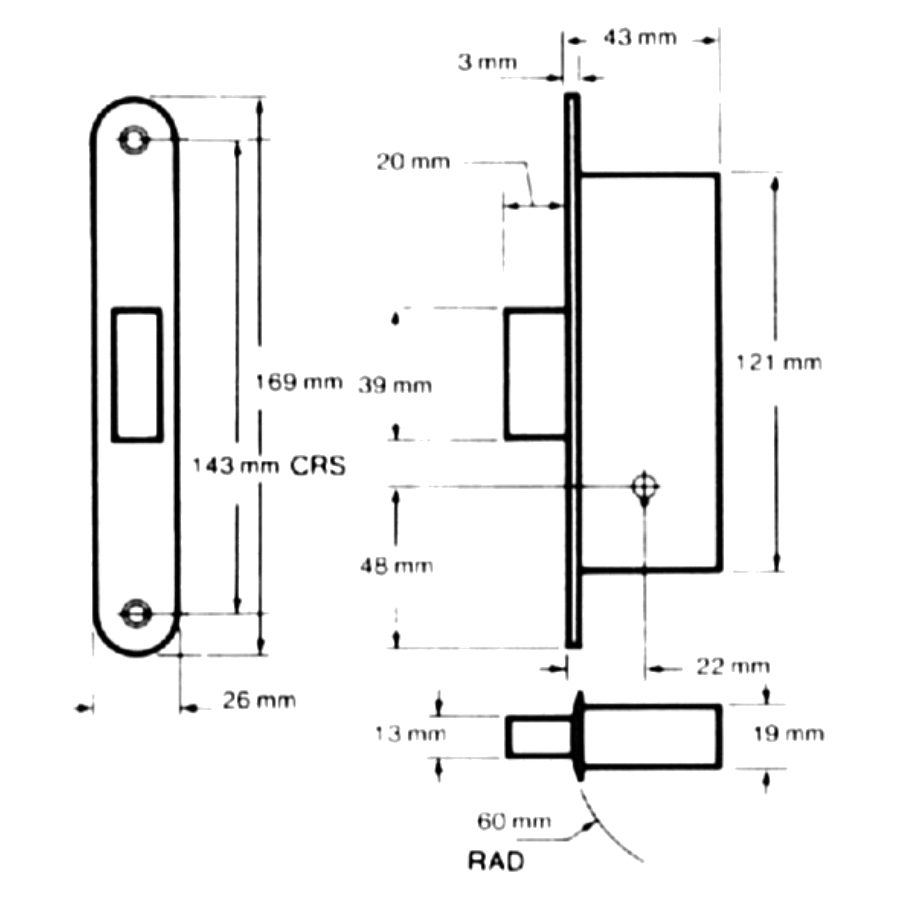

Technical Specifications

• Manufacturer Reference: NS27M
• Backset: 22mm
• Case Depth: 43mm
• Case Height: 121mm
• Forend Dimensions: 170mm (Length) x 25mm (Width)
• Mechanism: 7-Pin Slider
• Key Differs: 500,000
• Finish: Polished Brass (Forend)
• Case Finish: Nickel Brass
• Keying: Keyed to differ (standard); Keyed Alike (KA) and Master Keyed (MK) available to special order

Key Features

• Narrow Stile Design: Perfect for narrow-profile timber and metal doors, including retail shopfronts.
• Attack Resistant: Features a hardened case and deadbolt to resist physical attack.
• Double-Sided Key Entry: The deadbolt is locked or unlocked by key from either side of the door.
• High Security Mechanism: Utilises Bramah's 7-pin slider mechanism with over 500,000 differs for superior pick resistance.
• Versatile Application: Suitable for standard doors with a 12.5mm stop.
