AXIM Universal Bottom Pivot Assembly 8800 Series

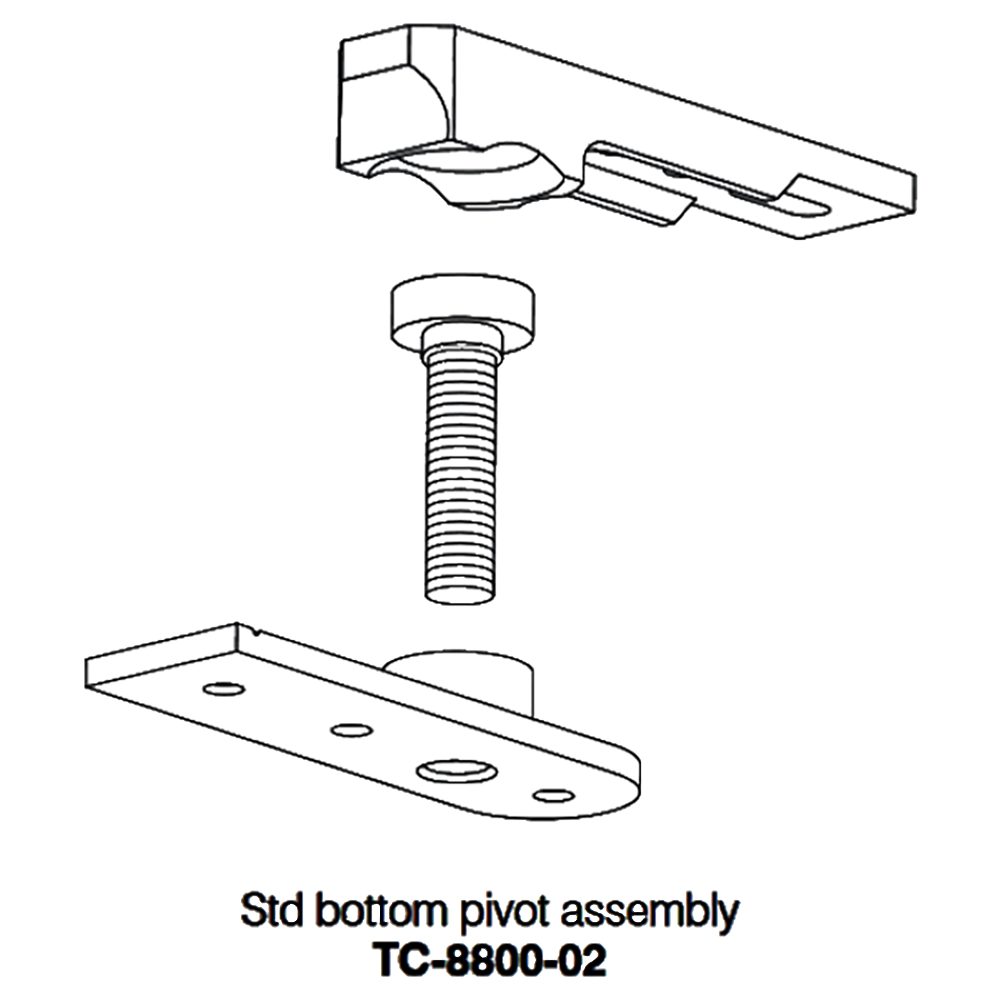

The Axim Universal Bottom Pivot Assembly (TC-8800-02) is a robust, high-quality bottom pivot designed for use with Axim 8800 Series concealed transom door closers, particularly the Axim 8802 Size 2. Engineered for commercial aluminium and glass door installations, this sturdy assembly provides reliable support and smooth operation for heavy-use doors.

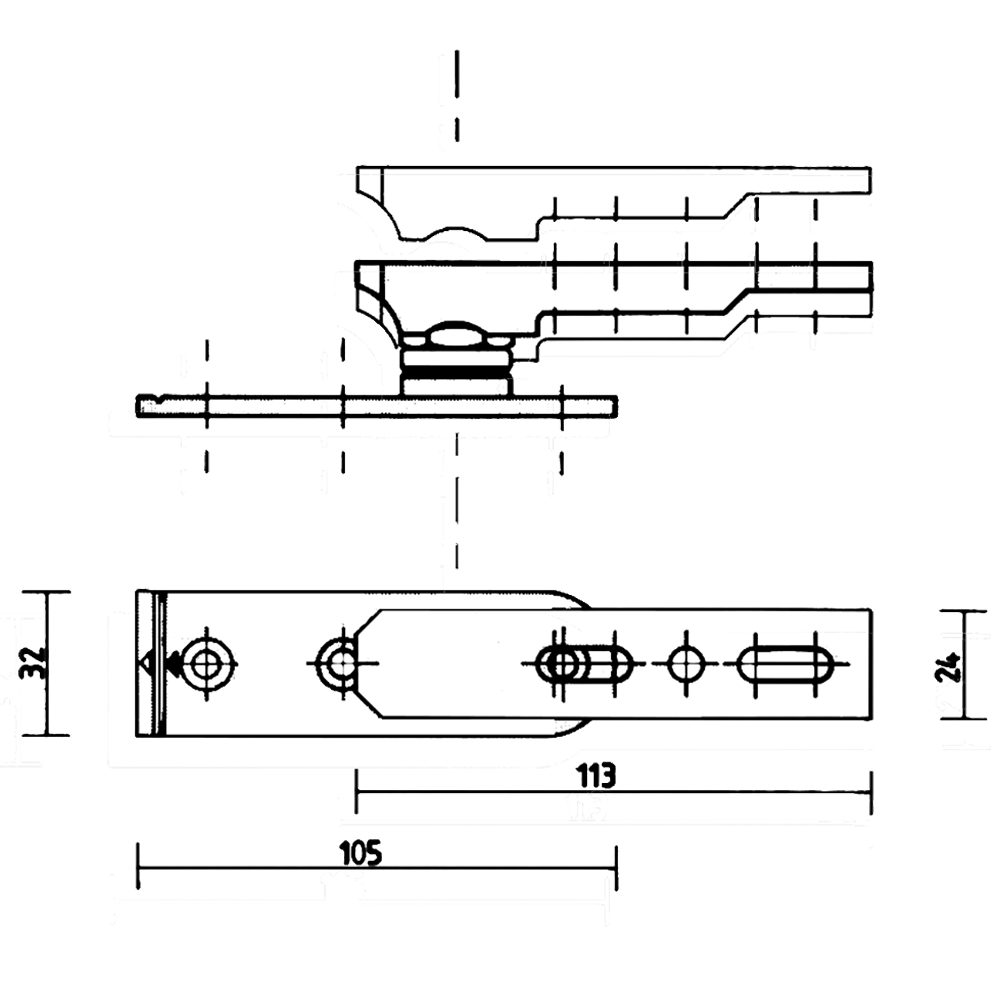

This versatile pivot assembly is fully height-adjustable from 31.5mm to 58.5mm, with a precision mechanism where one full turn equals 2mm of adjustment. It features a standard 70mm pivot point, which can be easily cut down to a 65mm pivot point for glass doors using the integrated 5mm groove line.

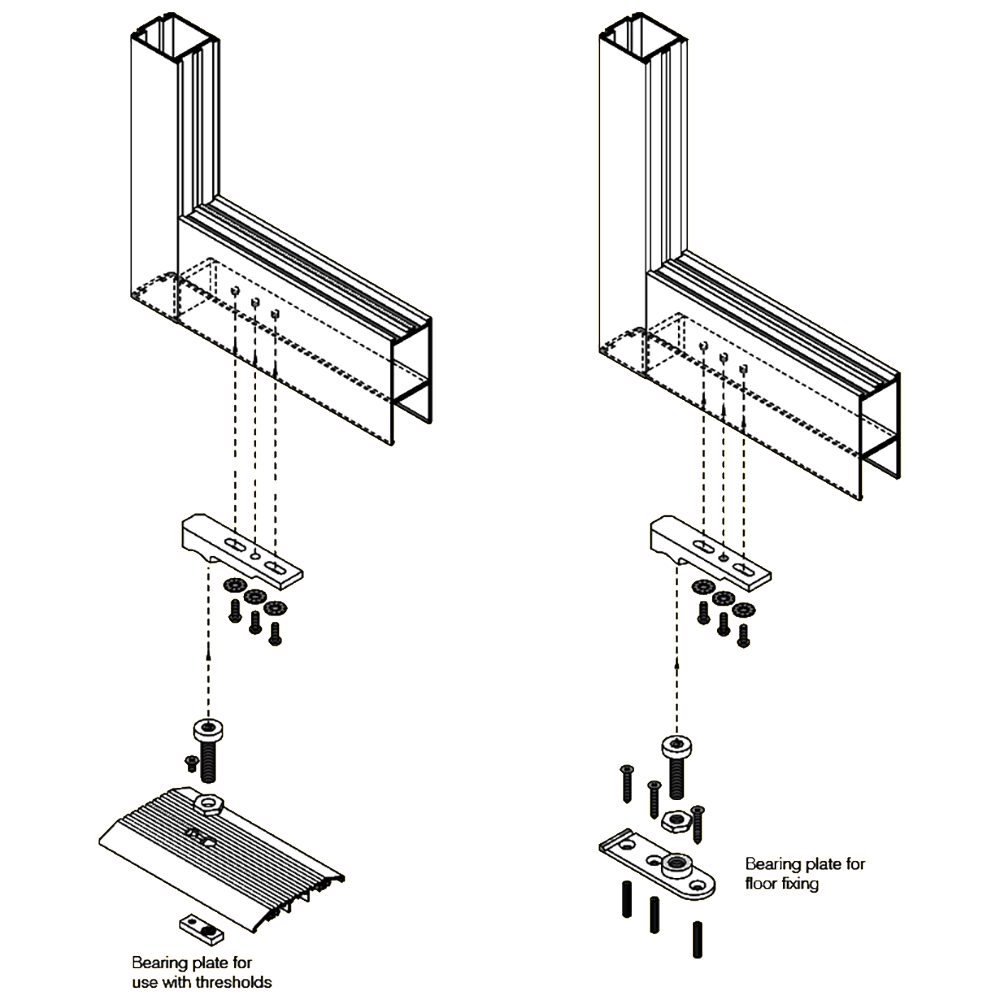

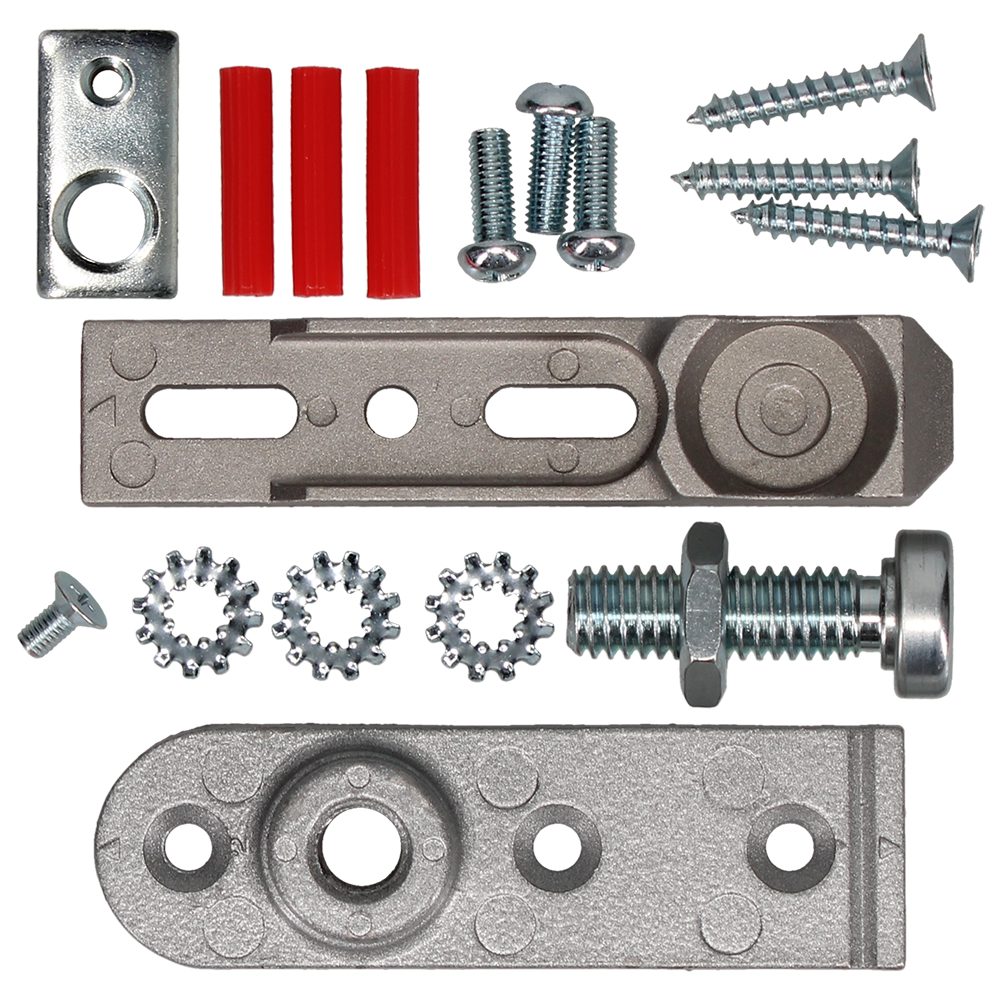

The kit is supplied complete with all necessary components and fixings to suit either floor or threshold mounting. It features a threaded backplate secured by a threshold and tie bar, and is finished in Satin Anodised Aluminium to match modern architectural hardware.

Technical Specifications

• Manufacturer Reference: TC-8800-02
• Finish: Satin Anodised Aluminium (SAA)
• Maximum Door Weight: 100kg
• Height Adjustment: 31.5mm to 58.5mm (2mm adjustment per full turn)
• Pivot Point: 70mm standard (can be cut down to 65mm using the 5mm groove line)
• Compatibility: Suitable for Axim 8800 Series transom closers (specifically Axim 8802 Size 2)
• Application: Transom concealed door closers (aluminium and glass doors)
• Pack Quantity: 1

Key Features

• Universal Fitting: Can be cut down to the required size using the integrated 5mm groove line.
• Dual Mounting Options: Supplied complete with all necessary fixings for either floor or threshold mounting.
• Precise Height Adjustment: Fully adjustable height between 31.5mm and 58.5mm, with 2mm of adjustment per full turn.
• Secure Design: Features a threaded backplate secured by a threshold and tie bar.
• Heavy Duty: Supports doors weighing up to 100kg, making it ideal for high-traffic commercial environments.
