AXIM Transom Door Closer Size 2 Body Only 8802

Axim More Axim Transom

Price

£151.26

Select size, finish, and quantity from the variant table.

View options

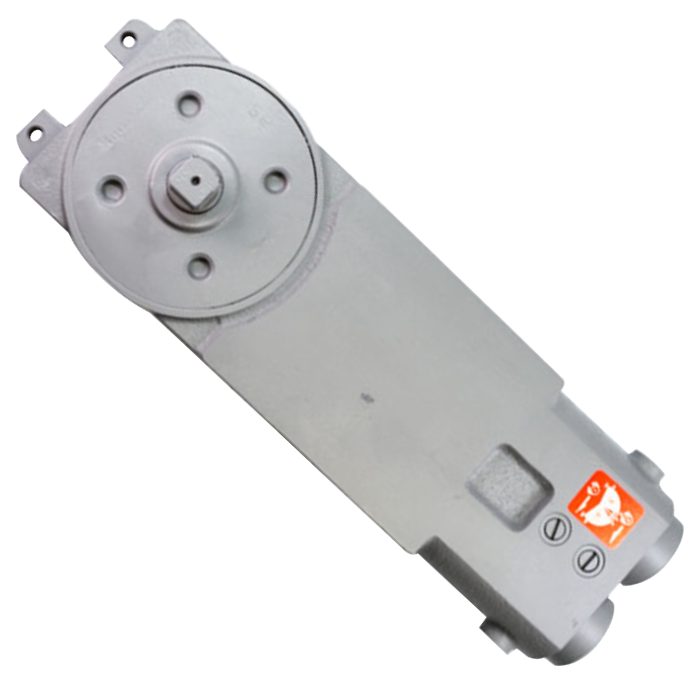

The Axim Transom Door Closer Size 2 (body only) is a neat, sturdy, and concealed door closing solution designed to fit integrally within the transom and door leaf. This concealed design ensures a clean, minimalist aesthetic with no external hardware on display, making it an ideal choice for modern commercial and architectural doors.

This medium-duty closer is suitable for both single and double-action doors with a maximum width of 751mm to 950mm. It features fully adjustable latching and sweep speeds, allowing you to fine-tune the closing action to suit your environment. A fixed cushioned backcheck is also included to prevent damage to the door and surrounding structure by cushioning the opening cycle.

This product is available in multiple options to suit your requirements. You can choose between a Non-Hold Open version (Manufacturer Reference: TC-8802-00, Cover Stamp Code 35) and a Hold Open version (Manufacturer Reference: TC-8802-90, Cover Stamp Code 36). Please select your preferred Hold Open option and corresponding barcode from the options below.

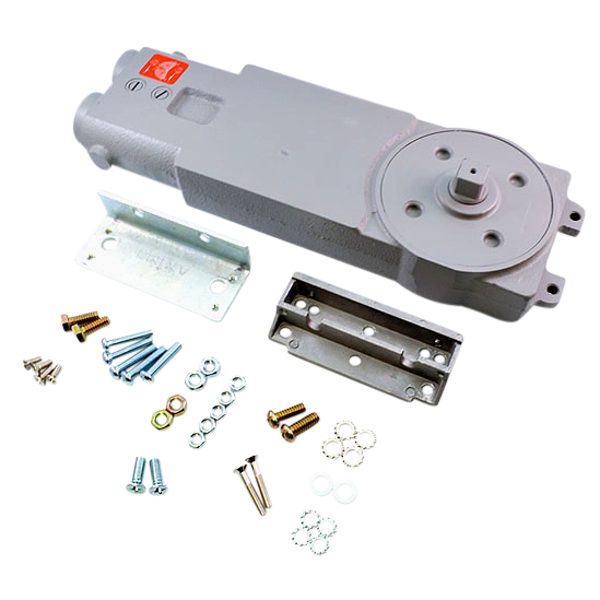

Please note that this is the closer body only, supplied complete with fixings and bearing plates. Associated accessories, such as arms and pivots, are sold separately.

Technical Specifications

Brand: Axim
Application: Transom
Strength Size: 2
Max Door Width: 751mm to 950mm
Handing: Reversible
Finish: Satin Anodised Aluminium
Adjustable Latch Action: Yes
Backcheck: Yes
Fire Tested: No

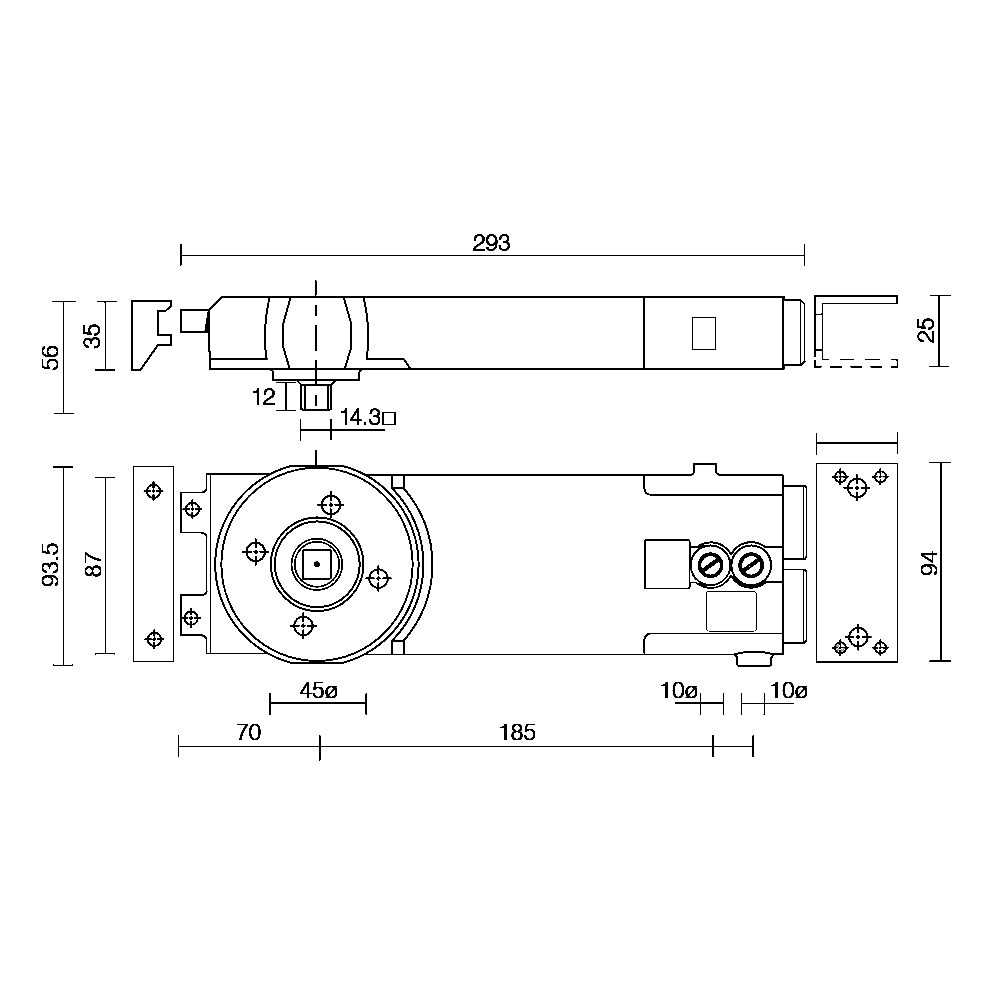

Length: 29.3cm
Height: 94mm
Width: 94mm
Depth: 94mm
Weight: 4.4kg
Pack Quantity: 1

Key Features

Concealed Design: Fits neatly inside the door transom for a clean, hardware-free aesthetic.
Adjustable Speeds: Fully adjustable sweep and latching speeds to tailor the closing action.
Cushioned Backcheck: Features a fixed cushioned backcheck for added safety and door protection.
Multiple Options: Available in both Hold Open and Non-Hold Open versions - please choose from the options below.
Supplied Complete: Comes complete with fixing screws and bearing plates.
Versatile Application: Suitable for single and double-action doors (body only, accessories sold separately).
