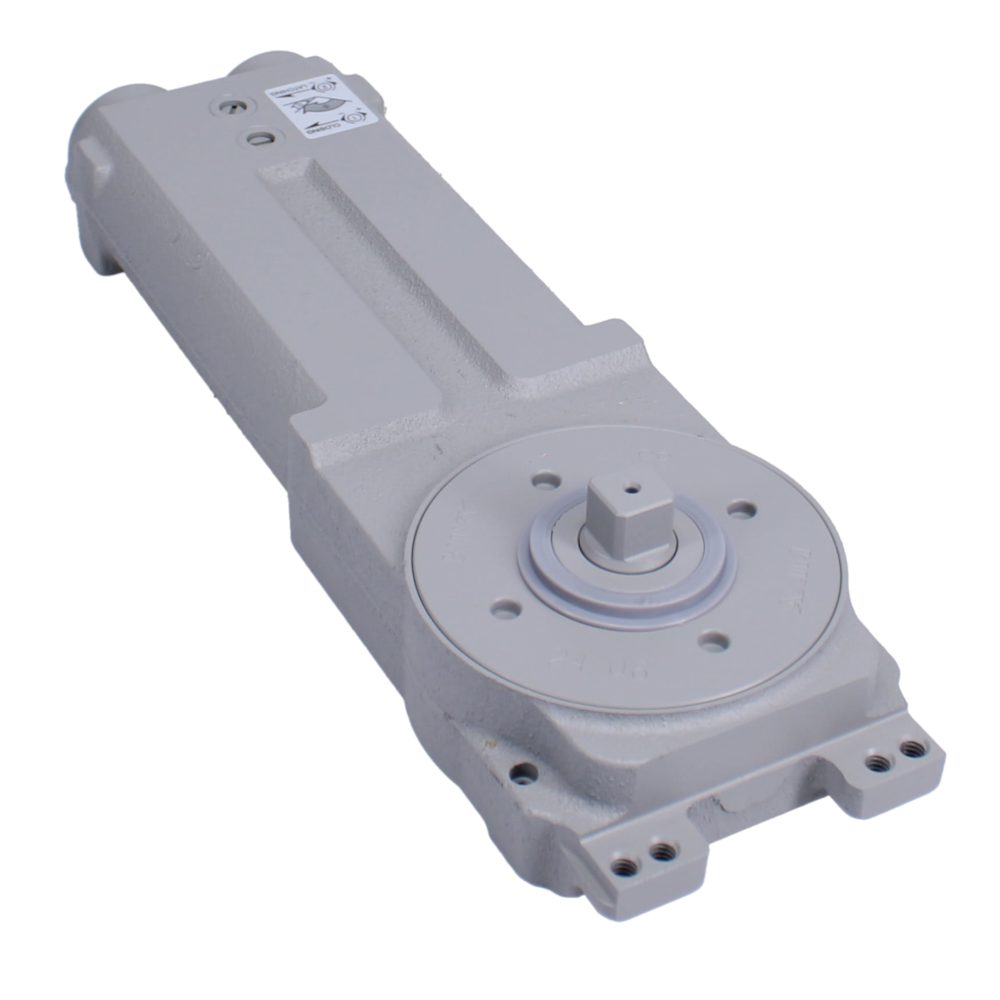

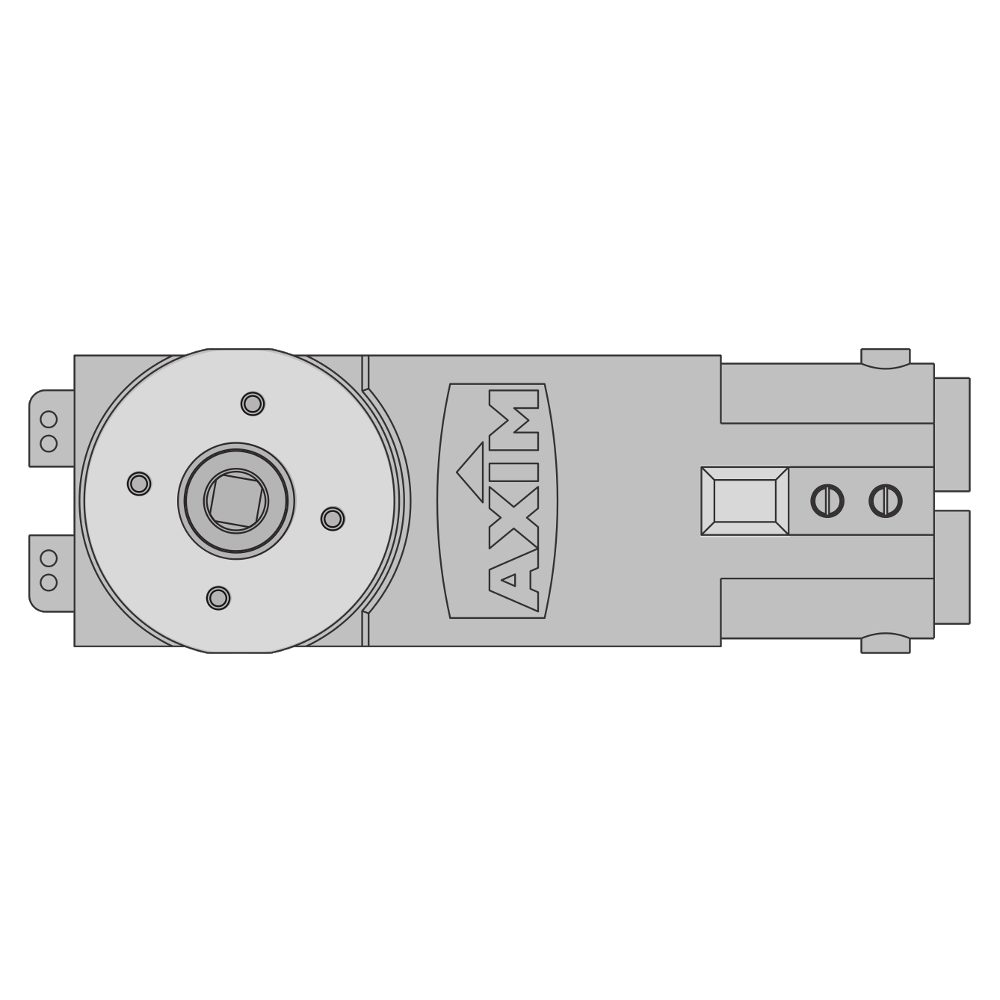

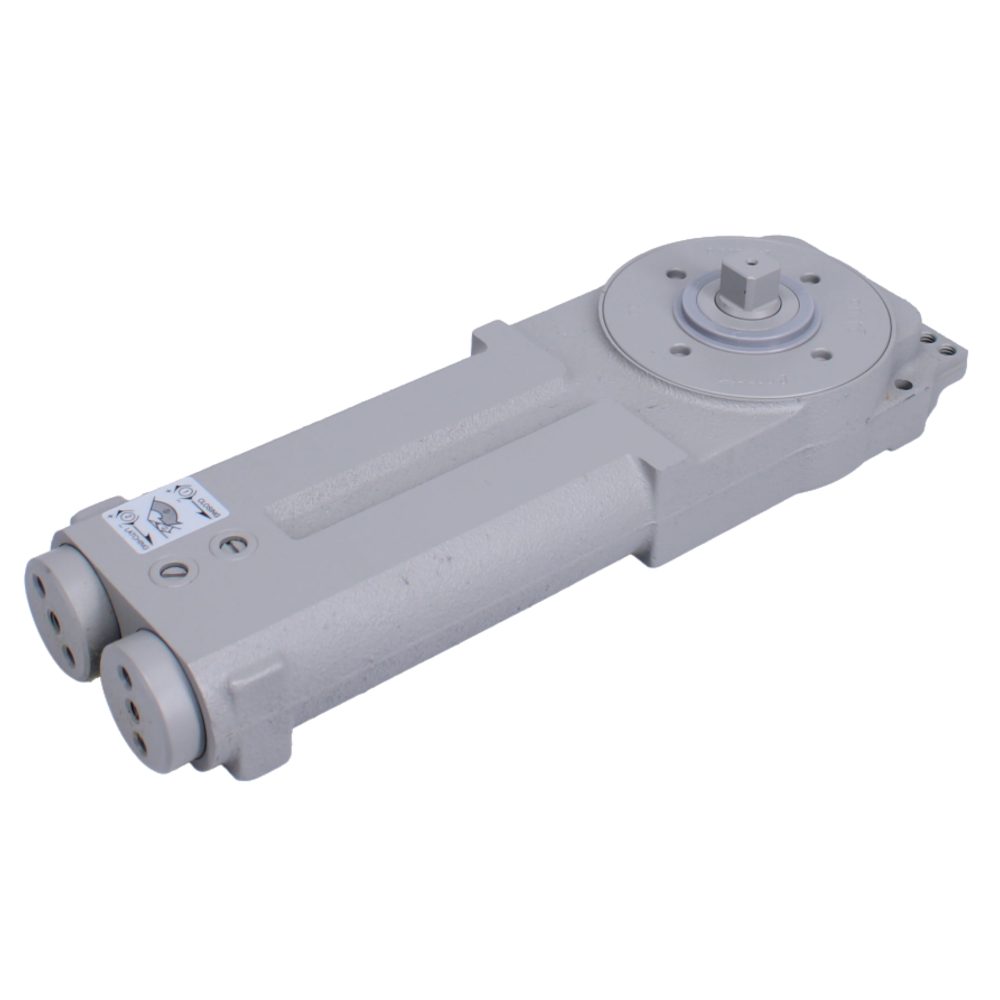

AXIM TC-9902 Concealed Transom Closer Body Only Size 2

The Axim TC-9902 Concealed Transom Closer (Body Only) is a robust, high-performance overhead door closer designed to fit discreetly within the door transom. This Size 2 model is ideal for medium-duty commercial applications, providing a clean, uninterrupted aesthetic for single or double-action aluminium doors.

This universal replacement unit is designed to replace the Axim 8800 series, Peters Jackson, Newman Tonks, Ryobi, and other leading transom closers. This allows for a straightforward installation without requiring costly modifications to the door or frame. The closer is supplied complete with all necessary fixings, including bearing plates, and comprehensive fitting instructions.

For tailored functionality, this closer is available in both Hold Open (90°) and Non-Hold Open configurations, with corresponding manufacturer references and barcodes. Please select your preferred option from the drop-down menu below.

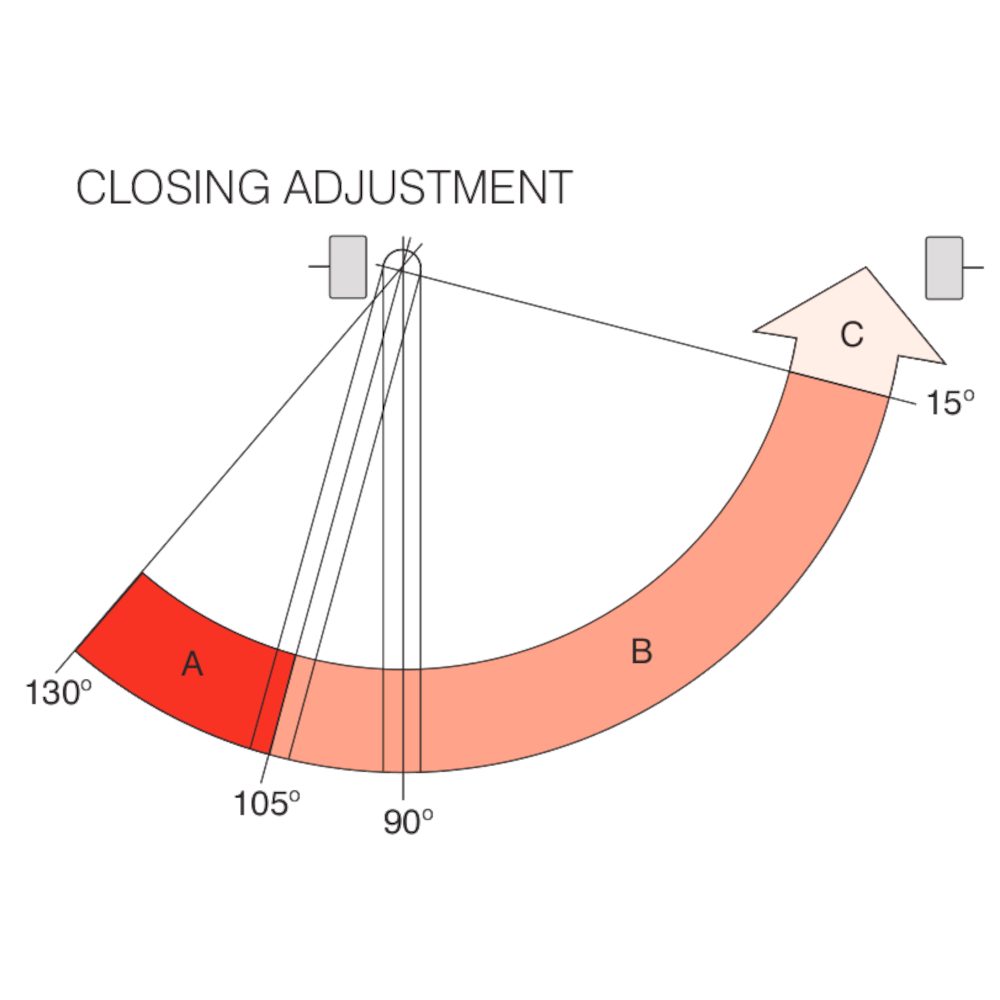

The TC-9902 is fully adjustable, featuring independent valve controls for both the latching and sweep speeds, alongside a mechanical backcheck to protect the door from damage. It also features captivated adjustment screws to prevent accidental removal during installation.

Technical Specifications

• Brand: Axim
• Model Range: TC-9902
• Application: Transom (Concealed Overhead)
• Strength Size: Size 2
• Suitable Door Width: 751mm to 950mm
• Maximum Door Weight: 100kg
• Finish: Satin Anodised Aluminium
• Handing: Reversible (Universal)
• Dimensions: 293mm (L) x 94mm (W) x 94mm (D)
• Adjustable Closing Speed: Yes
• Adjustable Latch Action: Yes
• Backcheck: Yes (Mechanical)
• Hold Open Options: Yes (90° Hold Open) or No (Non-Hold Open) - please choose from the options below
• Manufacturer Reference: TC-9902-00 or TC-9902-90 - please choose from the options below

Key Features

• Universal Compatibility: Replaces Axim 8800 series, Peters Jackson, Newman Tonks, Ryobi, and other leading transom closers without costly modifications.
• Concealed Aesthetic: Fits neatly inside the transom frame to maintain clean door lines.
• Dual Valve Adjustment: Independent control over both latching speed and closing sweep speed.
• Mechanical Backcheck: Built-in cushion helps protect the door and frame from forceful opening.
• Hold Open Options: Available in 90° hold-open or non-hold-open versions to suit your building's requirements (please choose below).
• Captivated Screws: Adjustment screws are captivated to prevent accidental removal during maintenance.
• Complete Package: Supplied with all required fixing screws, bearing plates, and fitting instructions.
