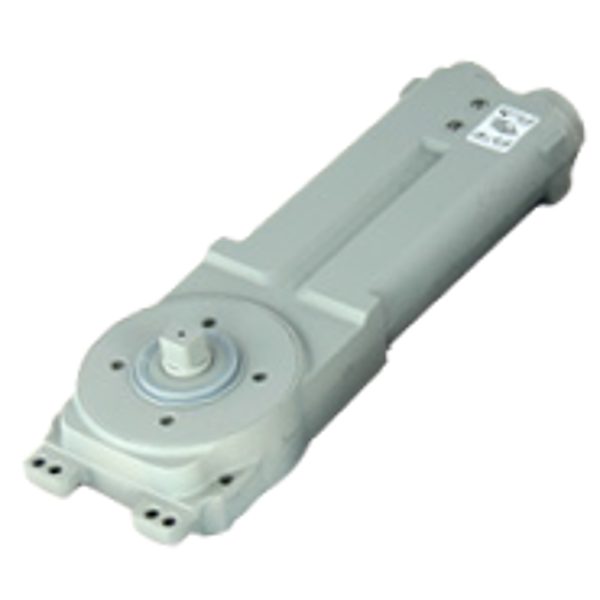

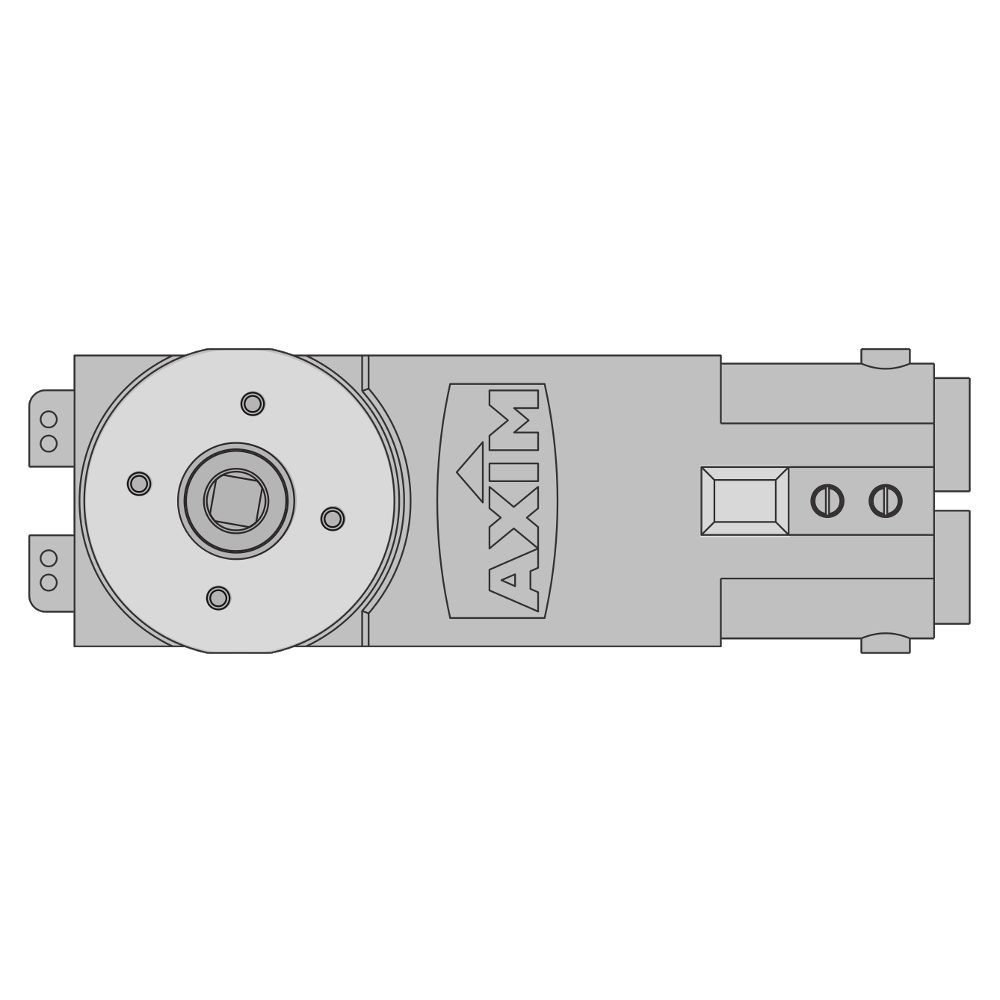

AXIM TC-9901 Concealed Transom Closer Body Only Size 1
Axim
The Axim TC-9901 Concealed Transom Closer (Body Only) is a robust and neat overhead door closer designed for concealed installation within the transom bar. This Size 1 closer is a universal model, making it an ideal replacement for older Axim 8800 series, Peters Jackson, Newman Tonks, Ryobi, and other leading transom closers without requiring costly modifications to the door or frame.

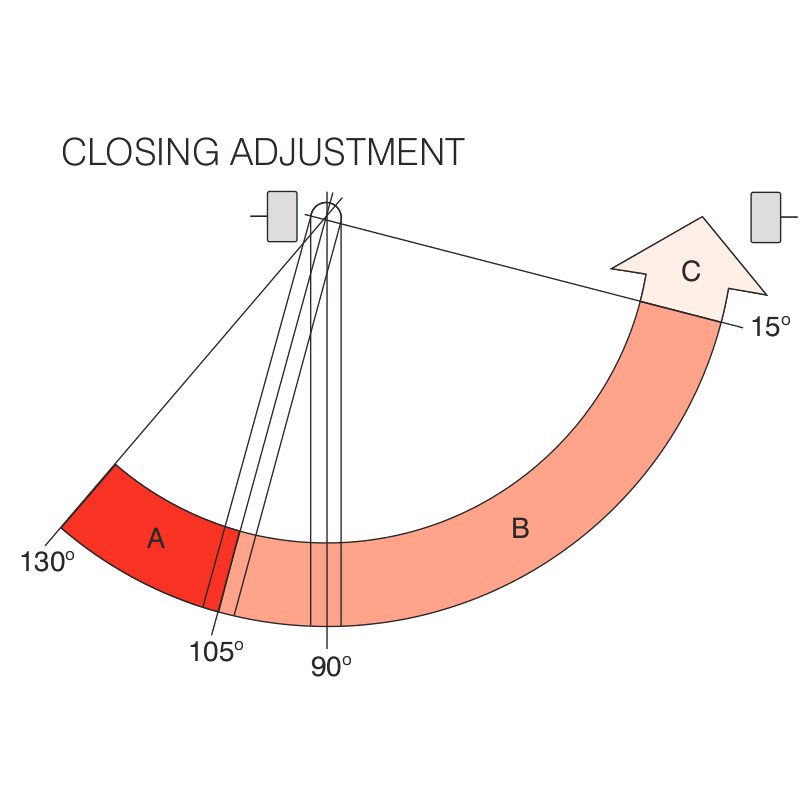

Suitable for doors up to 750mm wide and weighing up to 100kg, this unit features fully adjustable latching and closing (sweep) speeds, alongside a mechanical backcheck to cushion the door's opening. The captivated adjustment screws prevent accidental removal during maintenance.
This model is available in both Hold Open (90°) and Non-Hold Open options, with manufacturer references TC-9901-00 and TC-9901-90. Please choose your preferred hold-open functionality, manufacturer reference, and barcode from the options below. It comes complete with fixings, including bearing plates, and comprehensive fitting instructions.
Technical Specifications
- Brand: Axim
- Application: Transom
- Strength Size: Size 1
- Maximum Door Width: 750mm
- Maximum Door Weight: 100kg
- Dimensions: 29.3cm (Length) x 94mm (Width) x 94mm (Height)
- Finish: Satin Anodised Aluminium
- Handing: Reversible
- Adjustable Closing Speed: Yes
- Adjustable Latch Action: Yes
- Backcheck: Yes (Mechanical)
- Hold Open: Available in 'Yes' (90° Hold Open) or 'No' (Non-Hold Open) options (please choose from the options below)
- Manufacturer Reference: TC-9901-00 or TC-9901-90 (please choose from the options below)
- Barcode: 5055120784748 or 5055120784755 (please choose from the options below)
Key Features
- Universal Replacement: Replaces Axim 8800 series, Peters Jackson, Newman Tonks, Ryobi, and other leading transom closers without costly modifications
- Concealed Design: Fits neatly inside the transom bar for a clean, unobtrusive aesthetic
- Fully Adjustable: Features independent, fully adjustable closing and latching speeds
- Built-in Backcheck: Mechanical backcheck cushions the door opening to prevent damage
- Accidental Removal Prevention: Captivated adjustment screws prevent accidental removal during setup
- Complete Kit: Supplied complete with fixings, bearing plates, and comprehensive fitting instructions
Master locksmiths with BSI accreditation
MLA approved locksmiths, BSI certified key systems, and independently audited security standards.
| Image | Part No. | Manufacturer Ref | Price | Actions |
|---|---|---|---|---|
|
L27252 | TC-9901-00 |
£
181.73
|
|
|
L27253 | TC-9901-90 |
£
181.73
|
