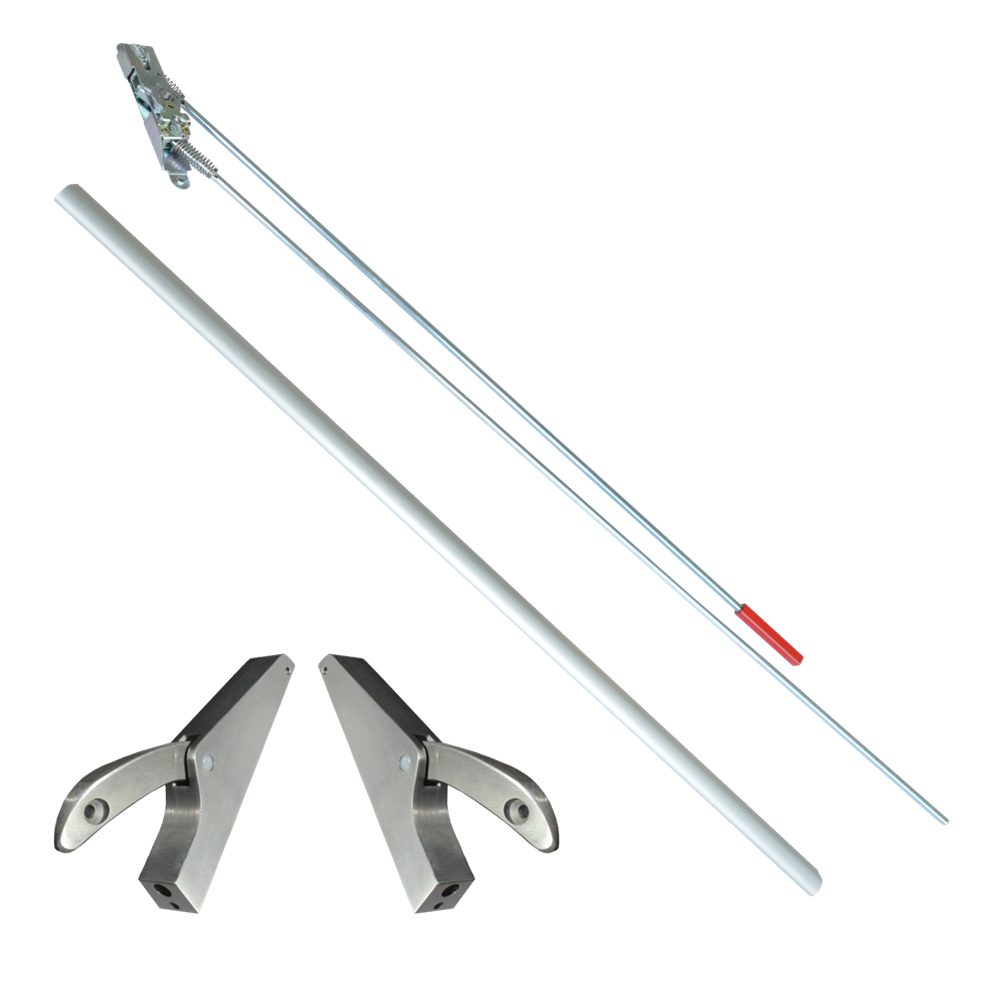

AXIM PR7085 Concealed Rod Panic Bar Exit Device

The AXIM PR7085 is a high-quality concealed rod panic bar exit device designed to provide secure, reliable, and smooth emergency egress. Suitable for single doors up to 2135mm high and 1155mm wide, this non-handed, fully reversible exit device is ideal for commercial and public buildings where safety and aesthetic appeal are paramount.

Constructed with durability in mind, the PR7085 features an extruded aluminium crossbar with an anodised silver finish, complemented by abrasive-resistant housings and lever arms. The internal mechanism is manufactured from stainless and plated steel, supported by heavy-duty lever springs to ensure long-lasting performance. For a clean, modern look, all fixings are completely concealed.

Operation is exceptionally quiet thanks to integrated nylon brushes. The unit utilizes 8.5mm diameter steel operating rods with a 16mm bolt throw, and the bolt length is fully adjustable to ensure precise alignment during installation. Fully compliant with BS EN 1125 standards, the AXIM PR7085 provides peace of mind and dependable performance when it matters most.

Technical Specifications

• Brand: Axim
• Manufacturer Reference: PR-7085-AL
• Standards: BS EN 1125 compliant
• Handing: Reversible (non-handed)
• Max Door Height: 2135mm
• Max Door Width: 1155mm
• Finish: Silver
• Operating Rods: 8.5mm diameter steel rods
• Bolt Throw: 16mm
• Internal Mechanism: Stainless and plated steel
• Weight: 2.5kg

Key Features

• Concealed Rod Design: Offers a clean, modern aesthetic with all fixings and rods neatly concealed within the door.
• Adjustable Bolt Length: Allows for precise adjustment and alignment during installation.
• Silent Operation: Integrated nylon brushes ensure smooth, quiet use.
• Heavy-Duty Durability: Features robust lever springs and abrasive-resistant housings to withstand high-traffic environments.
• High-Quality Construction: Extruded aluminium crossbar with a corrosion-resistant anodised finish.
• Fully Reversible: Non-handed design simplifies installation on both left and right-handed doors.
