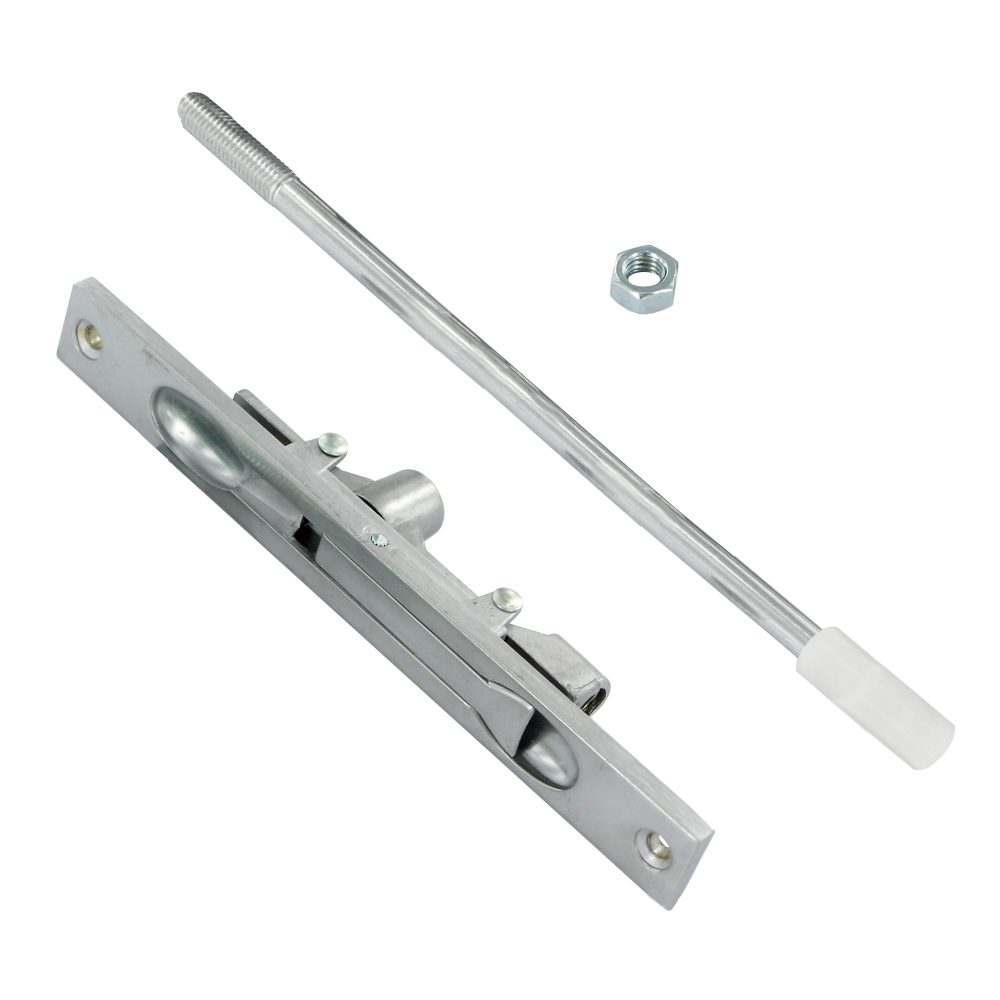

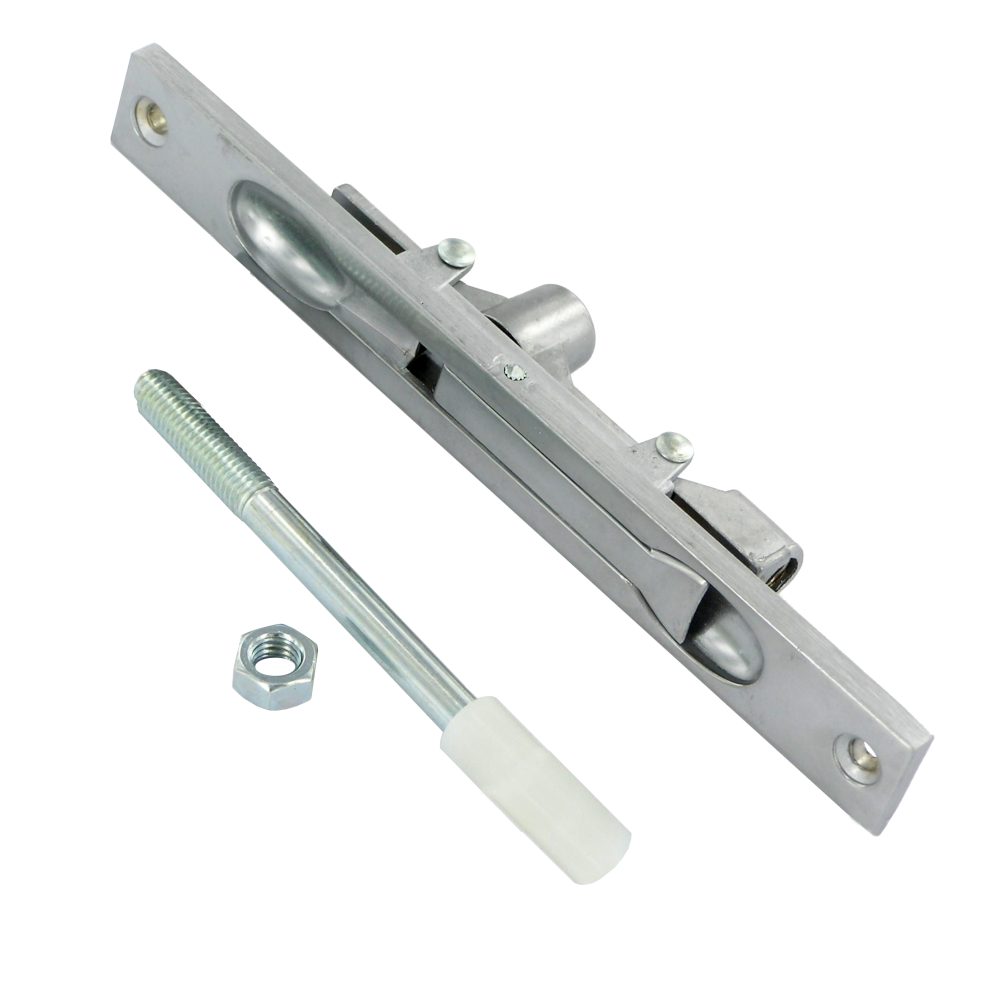

AXIM FB6401 Series Flush Bolt 20mm Wide Flat Face Silver Anodised

The Axim FB6401 Series Flush Bolt is a high-quality, reliable security solution designed for aluminium doors. Featuring a 20mm wide flat face with a silver anodised finish, this flush bolt integrates seamlessly into modern door profiles. It is equipped with a hardened steel bolt and an anti-rattle sleeve to ensure smooth, quiet operation.

Designed with user convenience in mind, the FB6401 features a deep finger recess and a large operating lever, making it easy to engage and disengage. A practical "centre punch" tip on the bolt allows for precise marking of the keep's centre during installation, saving time and ensuring an accurate fit.

This flush bolt is available in multiple rod lengths (11cm or 23cm) to suit different door heights and installation requirements. Please choose your preferred length and specification from the options below. Each unit comes supplied complete with all necessary fixings for a straightforward installation.

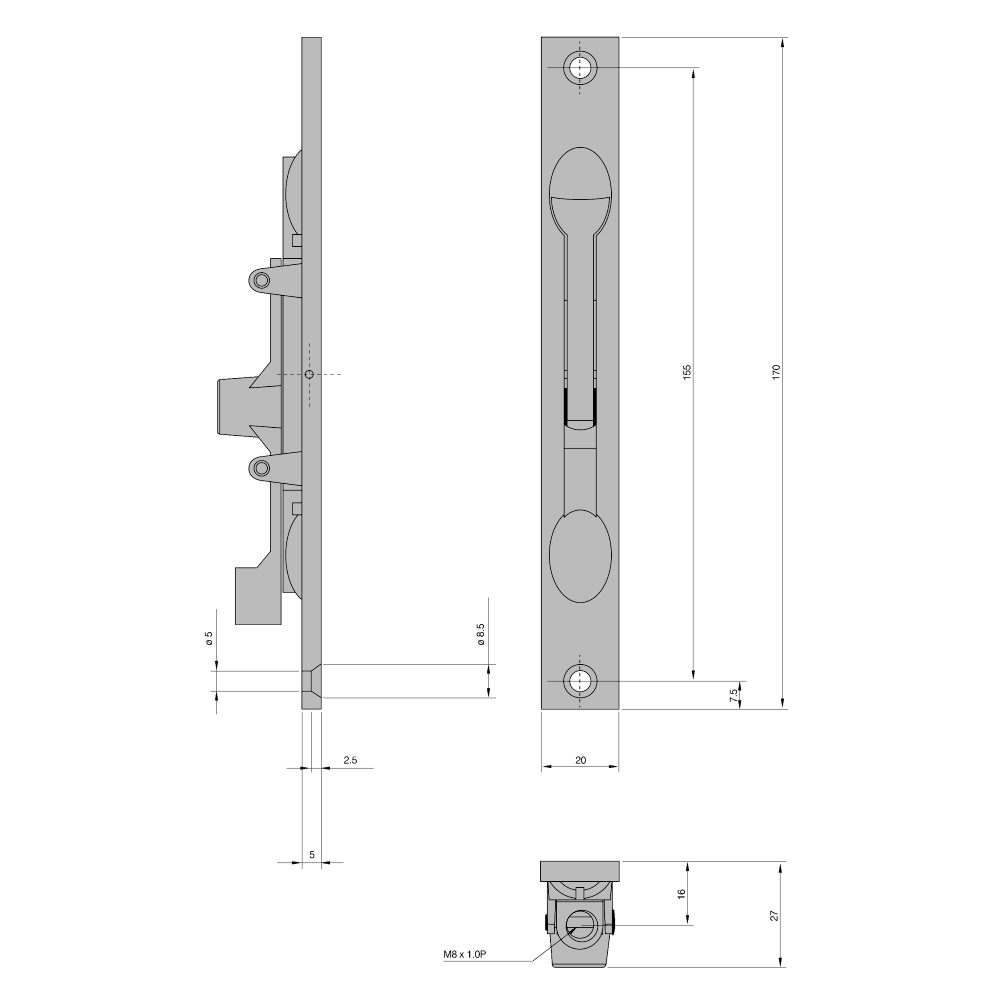

Technical Specifications

• Brand: Axim
• Body Width: 20mm
• Body Length: 170mm
• Screw Centres: 155mm
• Body Material: Die-cast zinc alloy
• Bolt Material: Zinc-plated hardened steel with anti-rattle sleeve
• Rod Diameter: 7mm (with 30mm thread)
• Rod Length: 11cm or 23cm (please choose from the options below)
• Bolt Stroke: 18mm
• Fixing Holes: M5 tapped
• Finish: Silver
• Weight: 159g - 172g (please choose from the options below)

Key Features

• Smooth Operation: Hardened steel bolt features an anti-rattle sleeve for quiet, reliable use.
• Ergonomic Design: Deep finger recess and a large lever allow for effortless manual operation.
• Easy Installation: "Centre punch" tip on the bolt marks the exact centre of the keep for precise alignment.
• Complete Kit: Supplied complete with all necessary fixings.
• Versatile Options: Available in multiple rod lengths to suit your specific door requirements.
