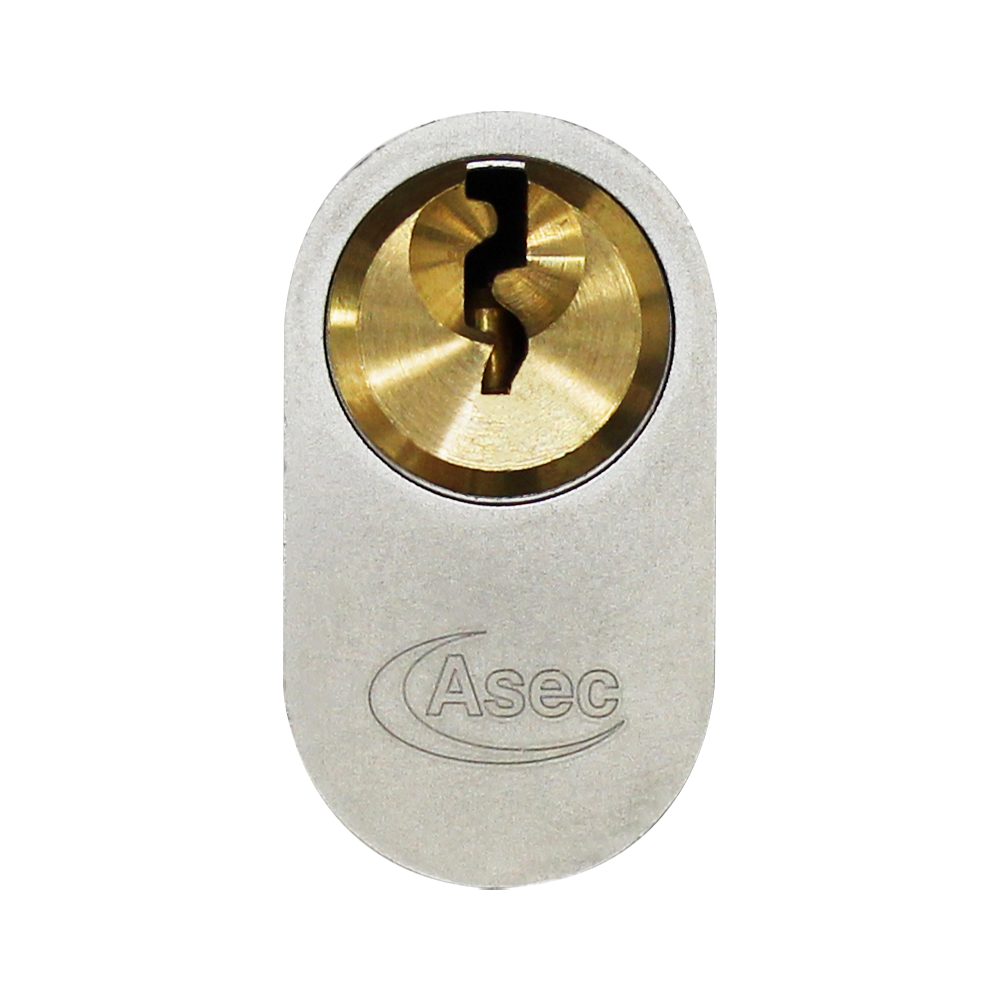

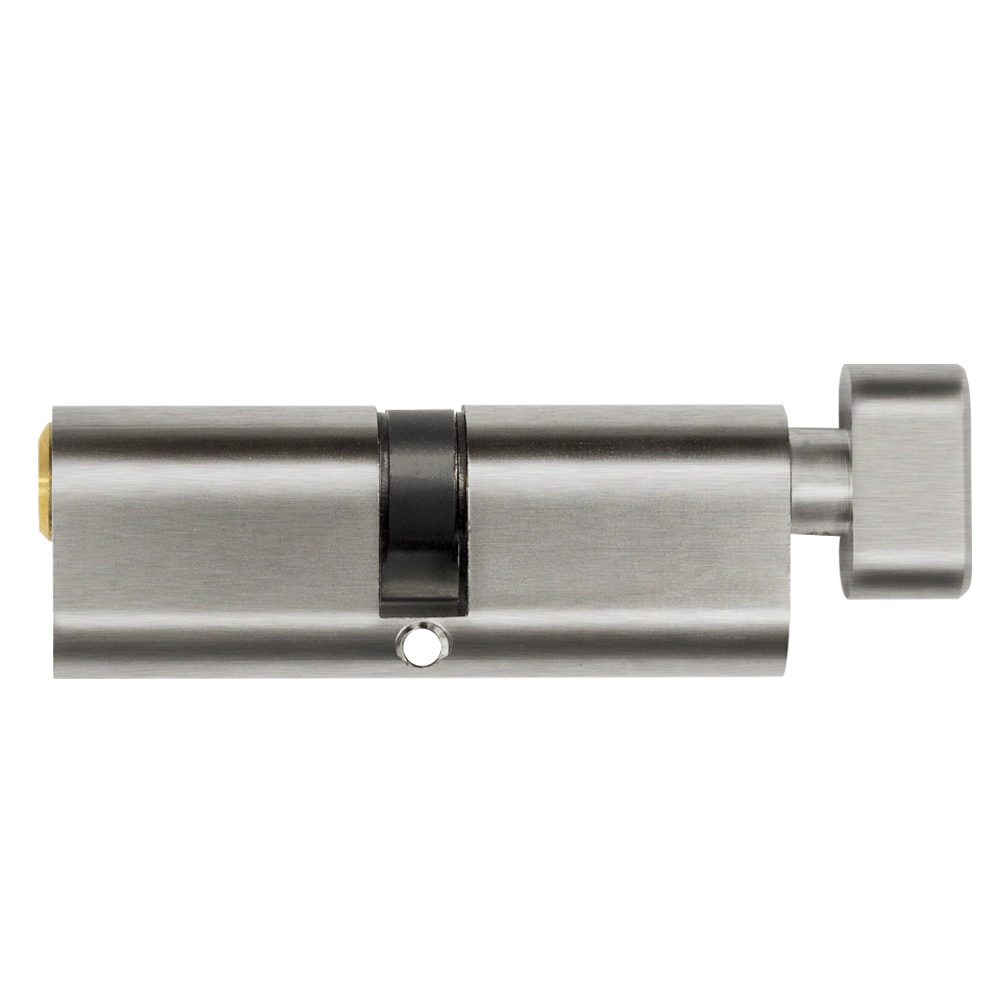

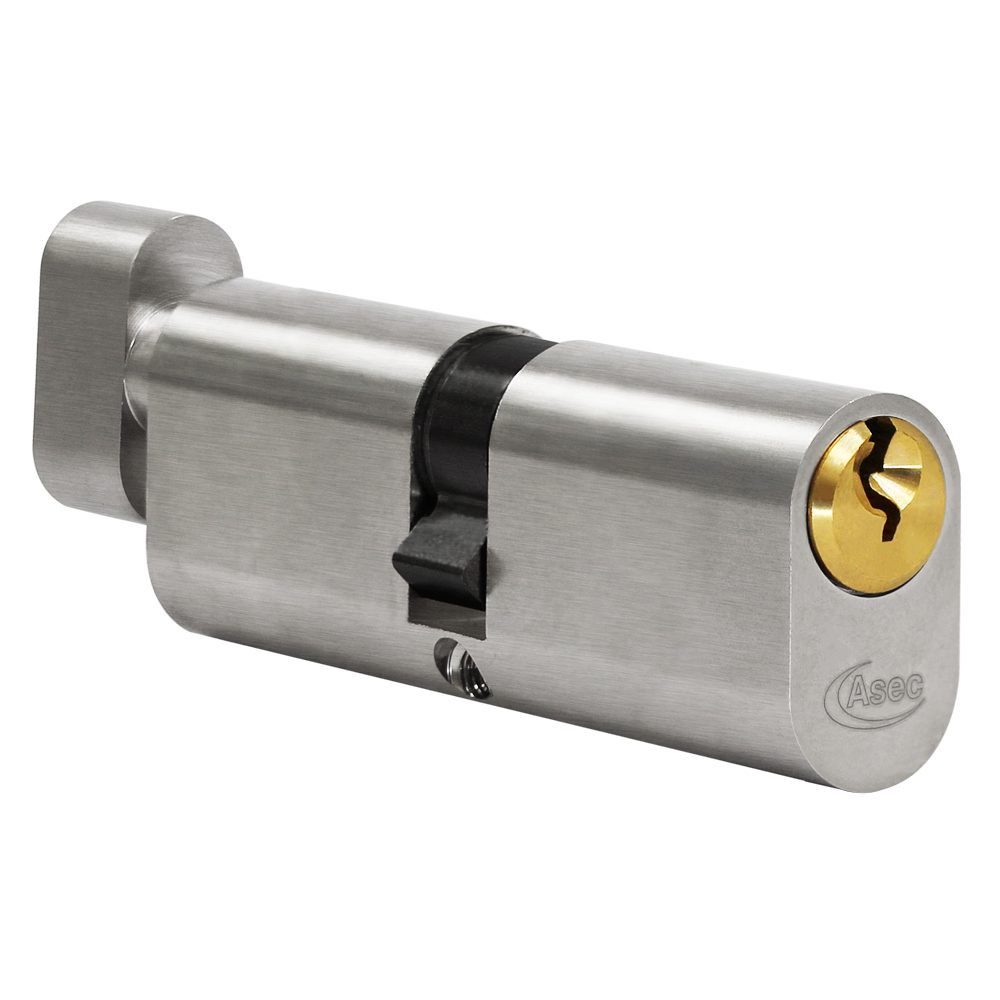

ASEC Vital 6 Pin Oval Key & Turn Cylinder

The Asec Vital 6 Pin Oval Key & Turn Cylinder is a reliable, cost-effective entry-level cylinder designed for oval profile locks. Featuring a stylish dual finish with a nickel-plated body and a polished brass plug, this cylinder is highly versatile and blends seamlessly with both brass and nickel door hardware.

This cylinder is available in multiple sizes, with overall body lengths ranging from 60mm to 80mm (including A-side options from 30mm to 40mm and B-side turn options from 30mm to 40mm). Please choose your required size and specifications from the options below.

For added convenience, Asec Vital 6-pin oval cylinders can be keyed alike with other Asec Vital euro and rim cylinders in the same range. Please note, however, that they are not compatible for keying alike with Asec Vital screw-in cylinders. Each cylinder comes complete with a retaining screw and keys.

Technical Specifications

• Cylinder Profile: Oval
• Cylinder Type: Key & Turn
• Mechanism: 6 Pin
• Finish: Dual Finish (Nickel Plated / Polished Brass)
• Overall Length: 60mm to 80mm (please choose from the options below)
• A Side (Key): 30mm to 40mm (please choose from the options below)
• B Side (Turn): 30mm to 40mm (please choose from the options below)
• Cylinder Size Overall: 30/T30 to 40/T40 (please choose from the options below)
• Cylinder Size with Cam: 25/10/T25 to 35/10/T35 (please choose from the options below)
• Standards: BS EN 1303:2005
• Fire Tested: Grade 0
• Keying: Keyed to Differ (Keyed Alike options available in-house)
• Keys Supplied: 5 keys
• Weight: 322g to 378g (please choose from the options below)

Key Features

• Dual Finish: Nickel-plated body with a polished brass plug, making it suitable for both brass and nickel applications.
• Cost-Effective Security: A reliable, budget-friendly 6-pin cylinder.
• Keyed Alike Compatible: Can be keyed alike with other Asec Vital euro and rim cylinders (not compatible with Asec Vital screw-in cylinders).
• Complete Kit: Supplied with a cylinder retaining screw and keys.
• Thumbturn Convenience: Allows quick and easy locking or unlocking from the inside without needing a key.
