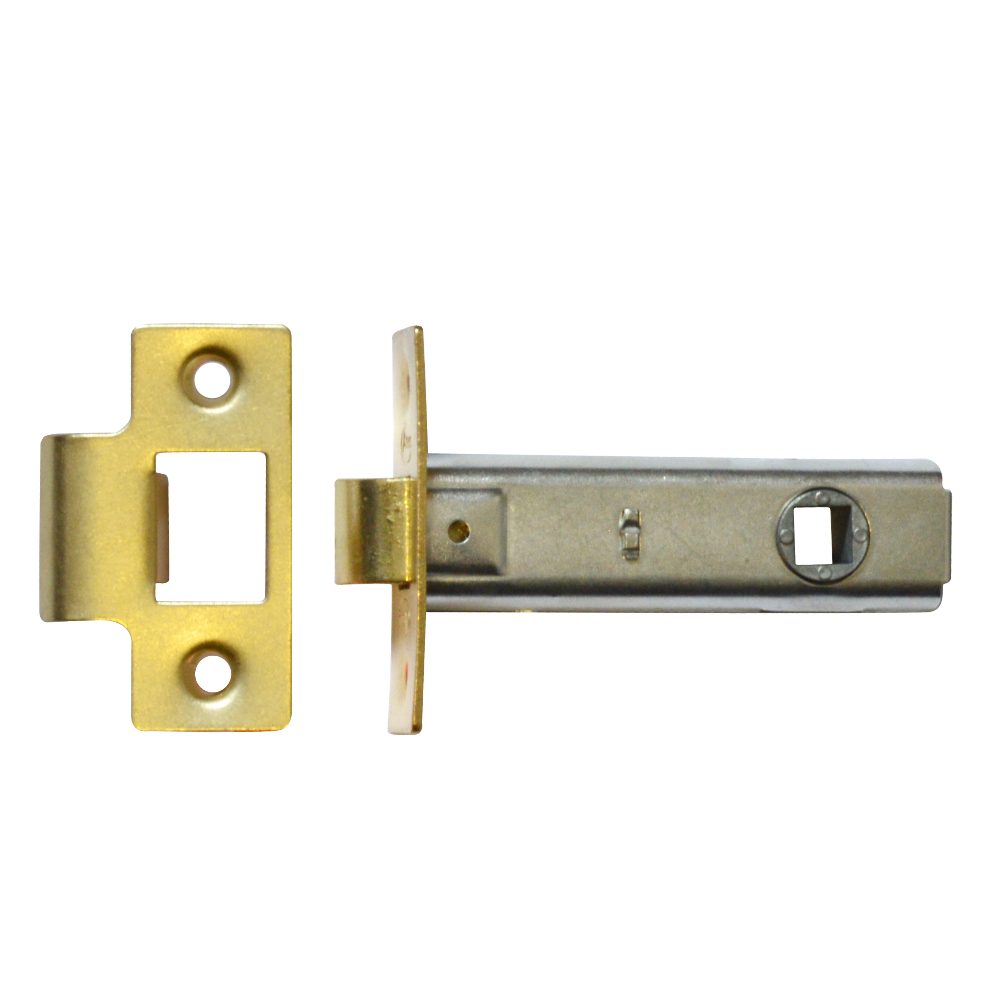

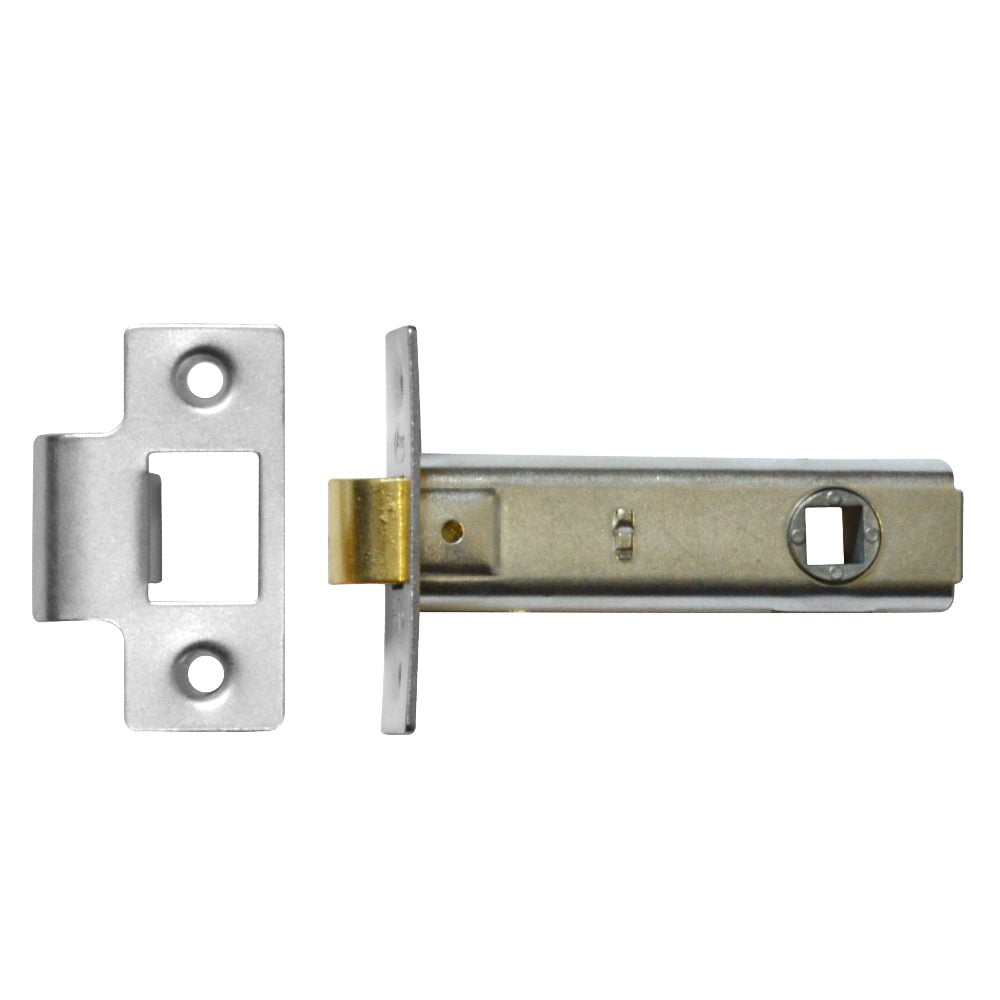

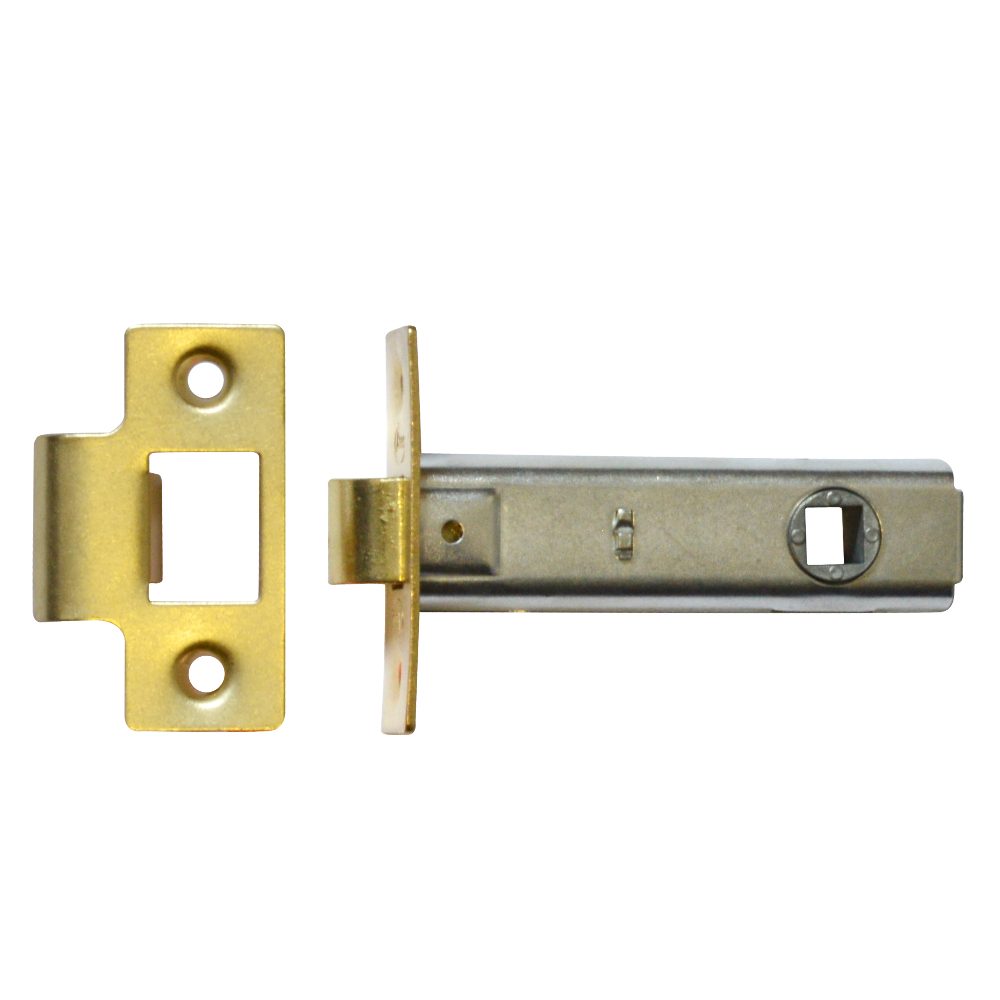

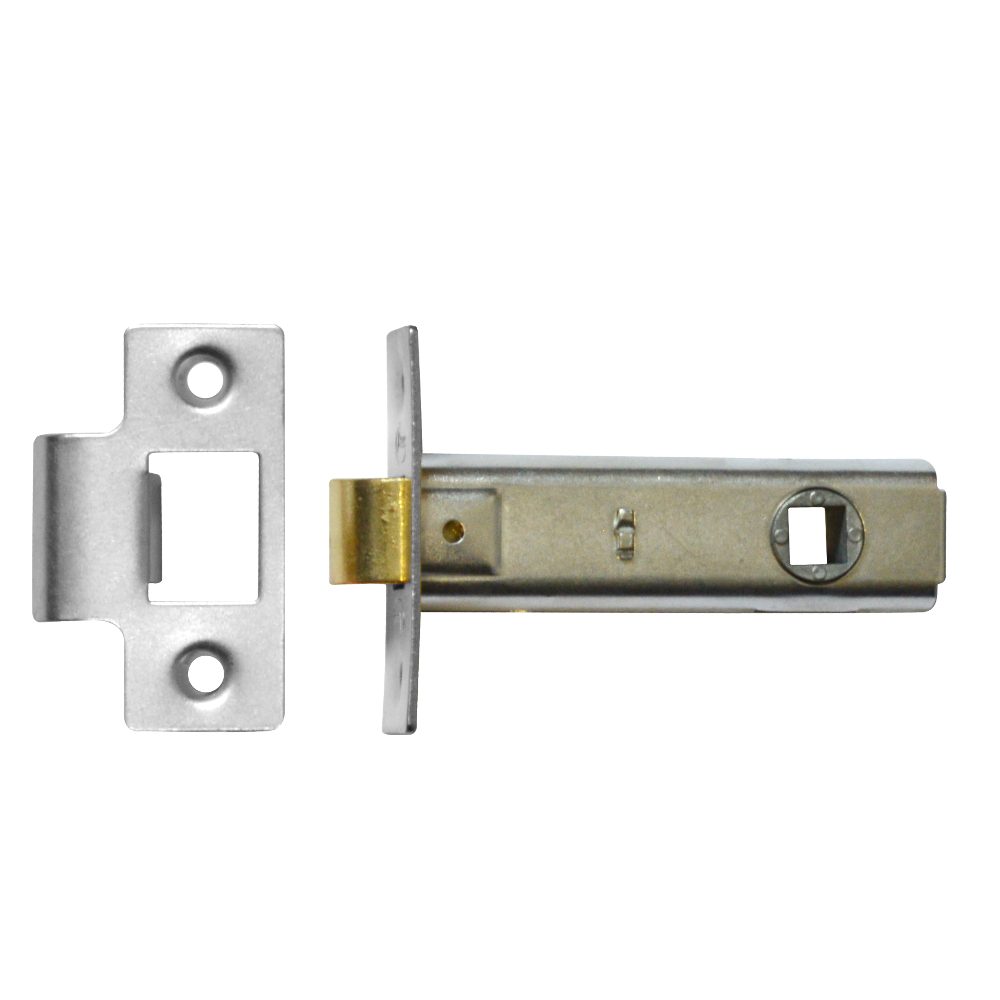

ASEC Tubular Latch

The Asec Tubular Mortice Latch is a reliable and straightforward latching solution designed for internal doors, keeping them securely closed until the handle or knob is operated. Featuring a reversible latch bolt, it is suitable for both left and right-handed doors, offering straightforward installation without the need for complex adjustments.

This tubular latch is available in multiple sizes and finishes to suit your door preparation and interior decor. Please choose your preferred case depth (64mm or 76mm), finish (Electro Brass or Nickel Plated), and forend width (24mm or 25mm) from the options below.

Each latch is supplied boxed with a matching forend and strike plate, featuring countersunk screw holes to ensure a neat, flush, and professional finish on your door.

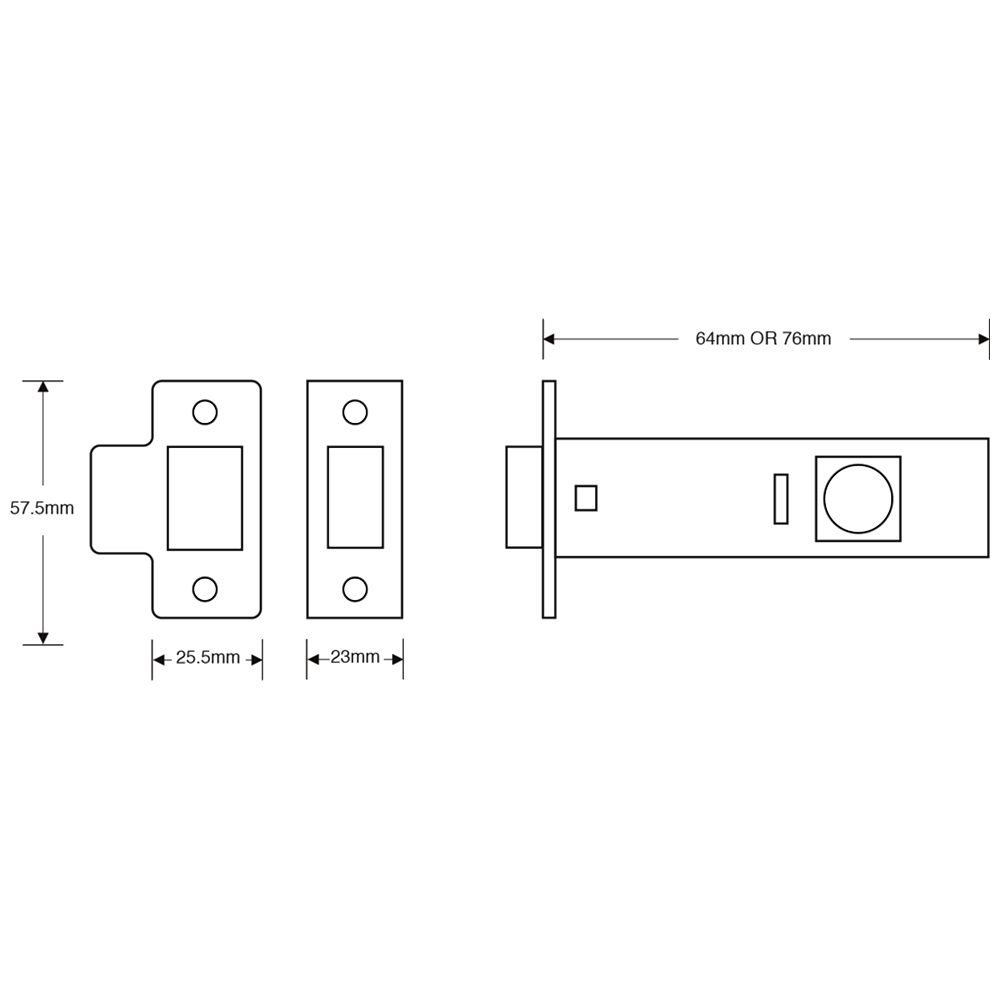

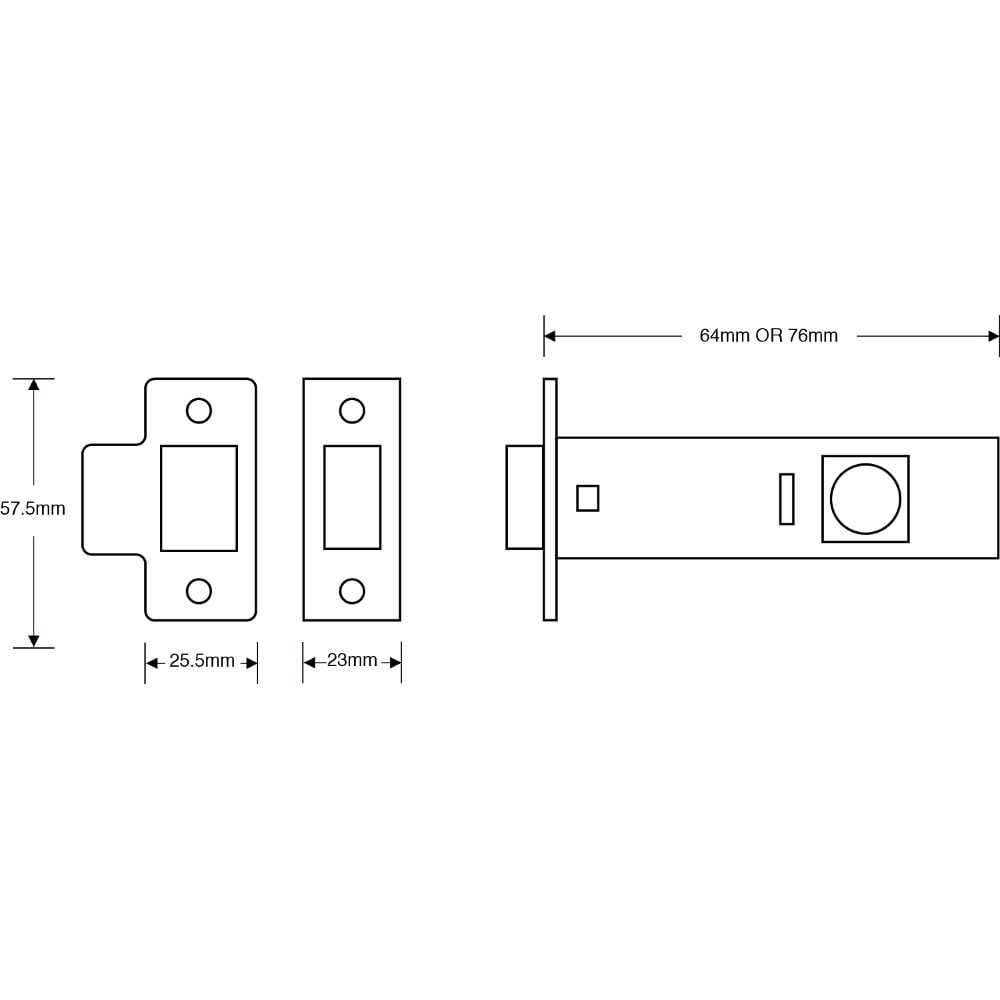

Technical Specifications

• Case Depth: 64mm or 76mm (please select from the options below)
• Finish: Electro Brass or Nickel Plated (please select from the options below)
• Forend Width: 24mm or 25mm (please select from the options below)
• Manufacturer Reference: AS3252, AS3253, AS3254, or AS3255 (please select from the options below)
• Weight: 184g, 187g, or 255g (please select from the options below)
• Case Height: 22mm
• Case Finish: Zinc Plated
• Forend Length: 57mm
• Screw Centres: 42mm
• Follower: 8mm
• Handing: Reversible
• Mechanism: Latch Only
• Pack Quantity: 1

Key Features

• Reversible latch bolt suitable for both left and right-handed doors
• Countersunk screw holes for a neat, flush-fitting, and professional finish
• Zinc-plated latch case for enhanced durability
• Available in multiple case depths and finishes to match your existing door hardware
• Supplied boxed with matching forend and strike plate
