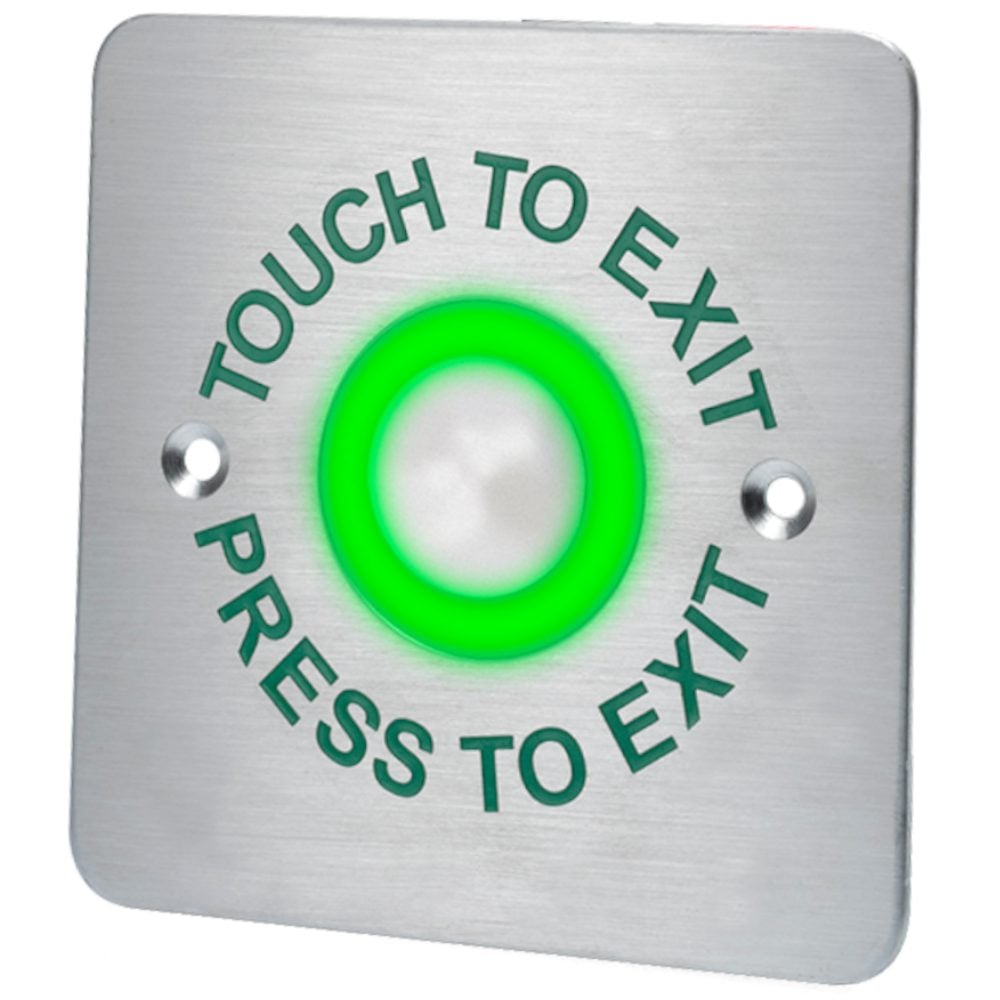

ASEC Touch Sensitive Illuminated Red/Green Halo Exit Button
Asec
The ASEC Touch Sensitive Illuminated Red/Green Halo Exit Button (AS9856) is a sleek and modern access control solution designed for contemporary architectural installations. Featuring a high-quality brushed stainless steel finish, this flush-fitting plate integrates seamlessly into any professional environment.
At the heart of the unit is a 25mm touch-sensitive button surrounded by a dual-colour LED halo. The halo provides clear visual feedback, illuminating in red and green and changing colour when activated. It operates on a 12/24V DC input and features an integrated, adjustable timer that can be set between 1 and 30 seconds. With an IP67 rating on the front face, it is highly durable and protected against dust and water ingress. The button is equipped with COM, NO, and NC changeover contacts, offering versatile integration with a wide range of electronic locking systems.
Technical Specifications
- Brand: Asec
- Part Number: AS9856
- Fitting: Flush
- Plate Finish: Brushed Stainless Steel
- Input Voltage: 12/24V DC
- Current Consumption: 2A
- Rating: 0.1 Amp
- IP Rating: IP67 (Front only)
- Button Diameter: 25mm
- Outputs: COM / NO / NC (Changeover contacts)
- Operation: Momentary
- Timer Adjustment: 1 - 30 seconds

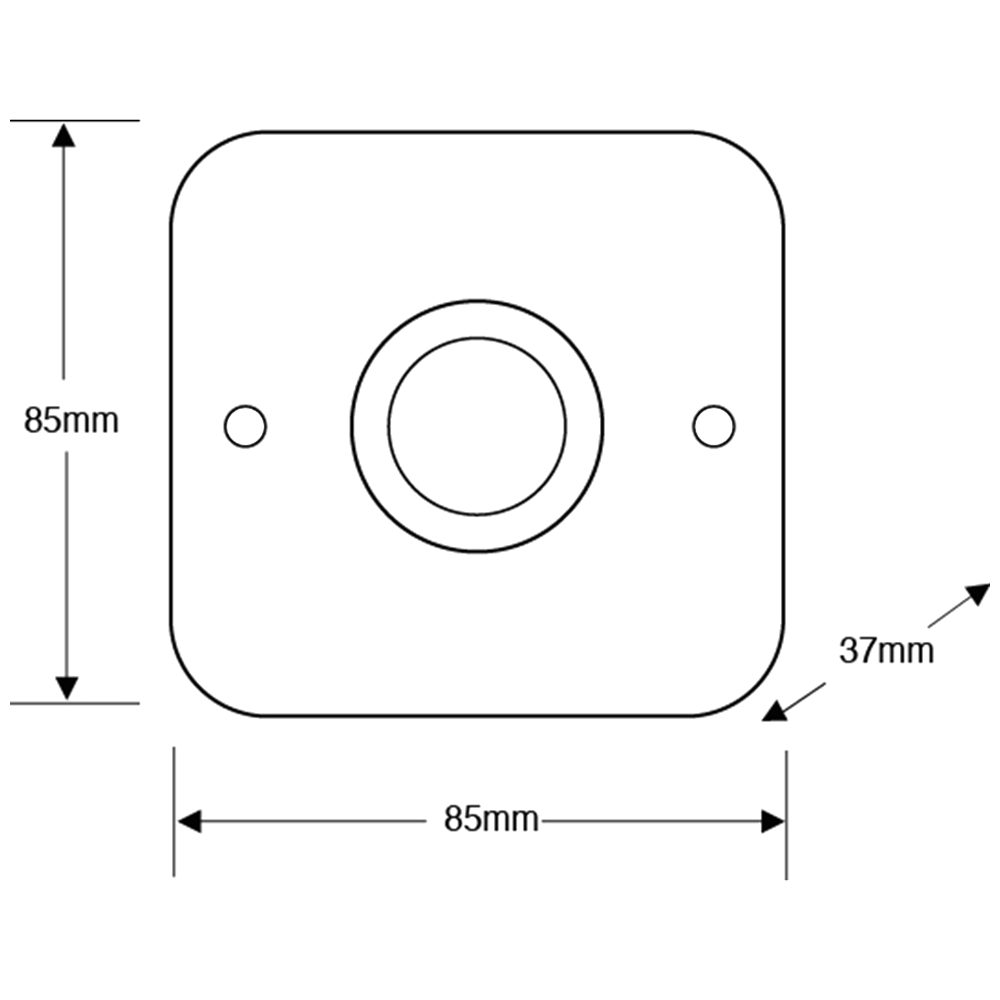

- Dimensions: 85mm (H) x 85mm (W) x 37mm (D)
- Weight: 950g
- Legend: Touch/Press To Exit
Key Features
- Touch-Sensitive Operation: Effortless activation with a 25mm touch-sensitive button.

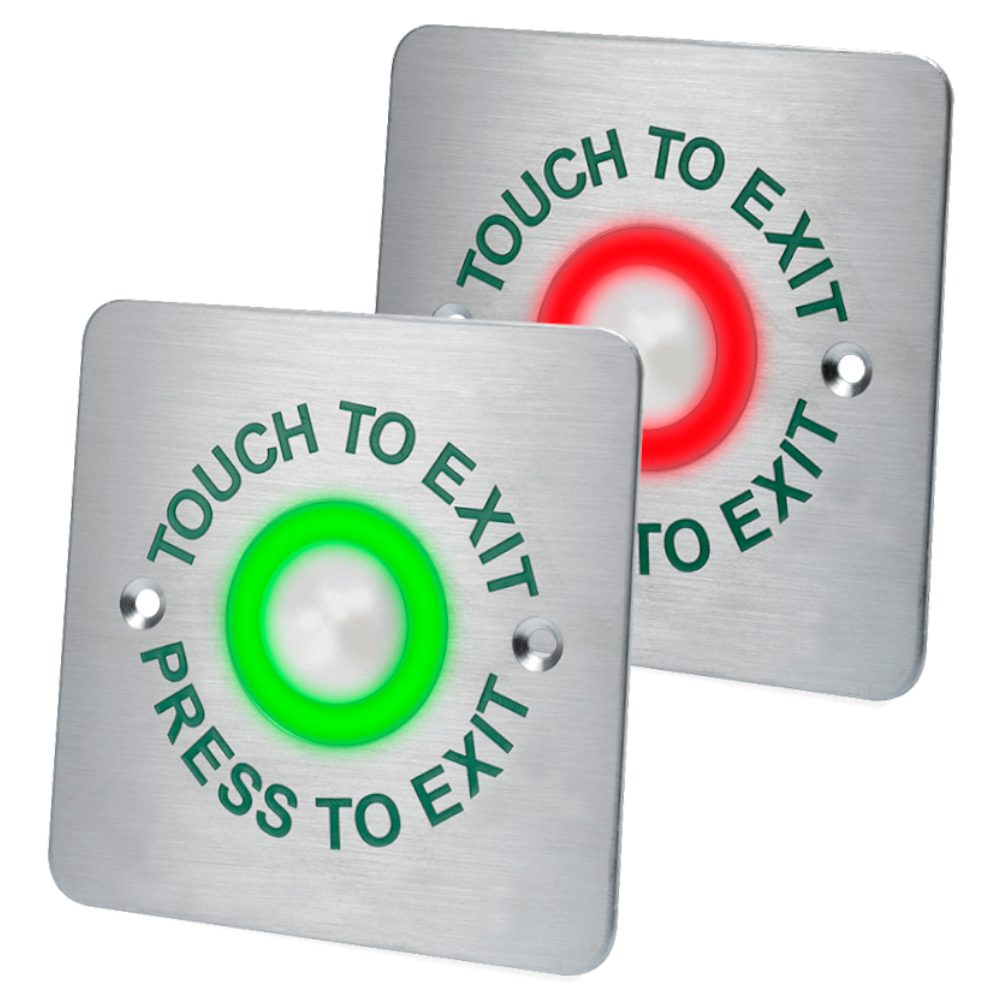

- Dual-Colour Halo Illumination: Features a red and green halo effect that changes colour when pressed, providing clear visual feedback.
- Built-In Adjustable Timer: Integrated timer can be set from 1 to 30 seconds to suit your access control requirements.
- Durable Stainless Steel Finish: Brushed stainless steel plate offers an attractive, modern design ideal for high-end architectural applications.
- Weather Resistant Front: IP67 rated (front only) for reliable performance in demanding environments.
- Versatile Wiring: COM / NO / NC changeover contacts ensure compatibility with various electronic locks and systems.
