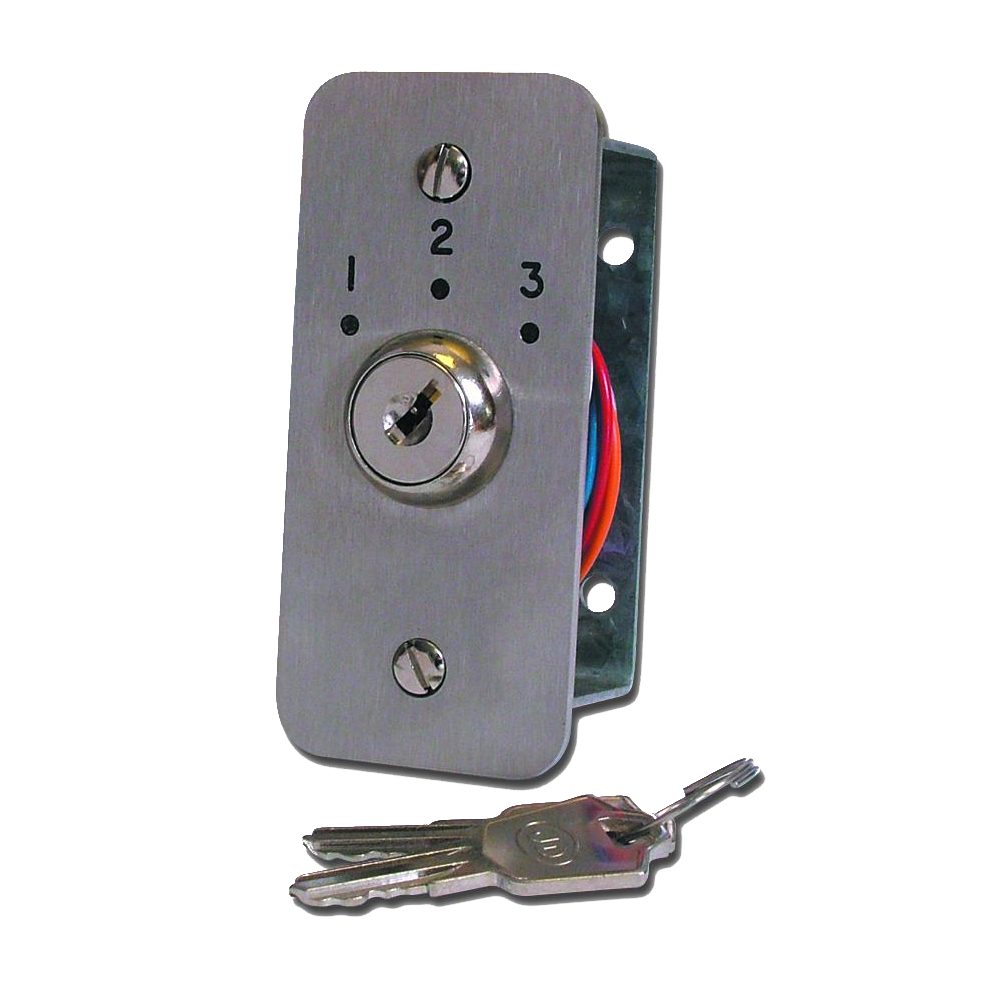

ASEC Three Position Key Switch Numbered

The Asec Three Position Key Switch (Numbered) is a narrow-style, flush-mounted electric key switch designed for secure access control and industrial applications, making it ideal for operating roller shutter doors. It features a robust stainless steel plate with a chrome cylinder, offering a clean and durable finish suitable for commercial environments.

This switch operates on a maintained contact basis and is clearly engraved with the numbers '1', '2', and '3'. For maximum convenience and operational flexibility, the key can be inserted and removed in any of the three positions. The unit is supplied complete with two keys and the necessary fixings for a straightforward flush installation.

Technical Specifications

• Brand: Asec
• Manufacturer Reference: AS8044
• Plate Finish: Stainless Steel
• Cylinder Finish: Chrome
• Fitting Type: Flush (Narrow Style)
• Operation: Maintained
• Input Voltage: 12/24V AC/DC
• Outputs: Normally Open (N/O) & Normally Closed (N/C)
• Engraving (Legend): 1, 2, 3

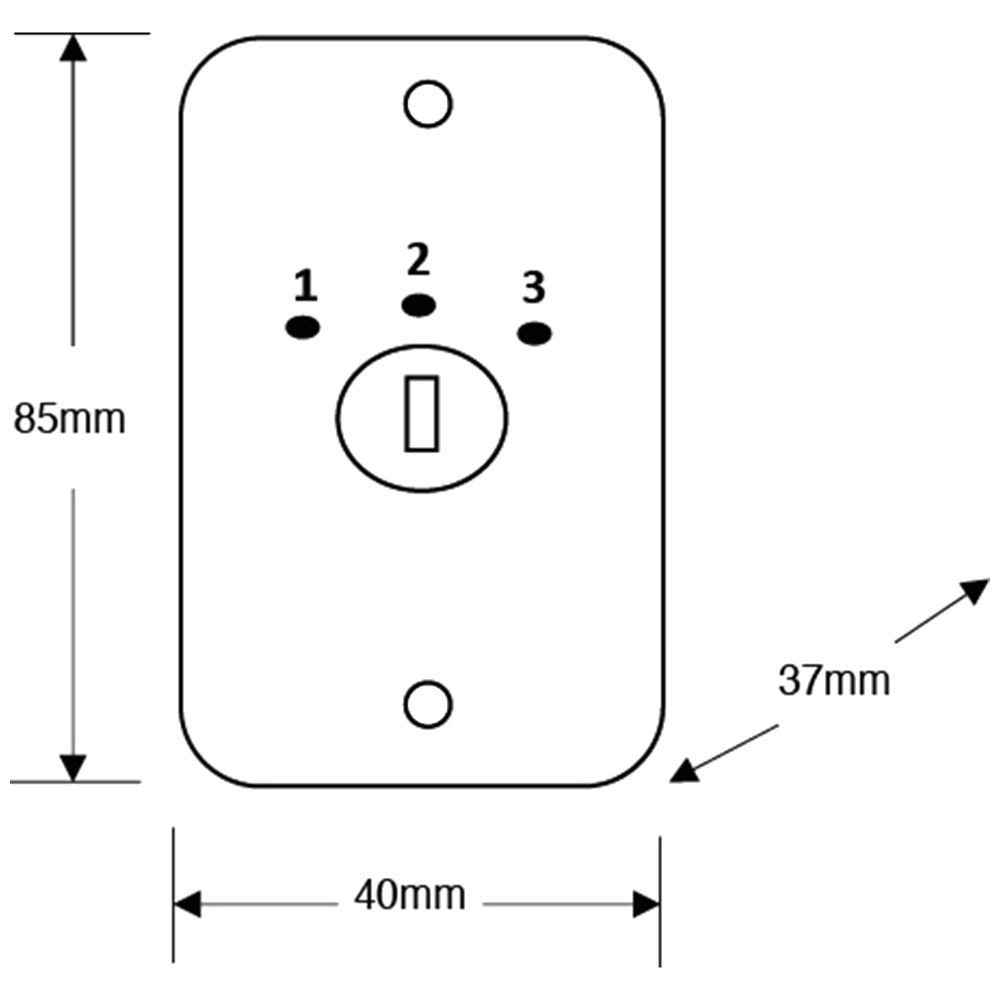

• Height: 85mm
• Width: 40mm
• Depth: 37mm
• Weight: 160g

Key Features

• Three-Position Control: Engraved with '1', '2', and '3' for clear, multi-stage operation.
• Key Removable in All Positions: Offers maximum flexibility, allowing the key to be removed in any of the three states.
• Durable Construction: Features a high-quality stainless steel plate and chrome cylinder for long-lasting performance.
• Maintained Operation: The switch remains in the selected position until manually turned.
• Complete Kit: Supplied with two keys and all necessary fixings for flush mounting.
• Versatile Application: Ideal for controlling roller shutter doors and integrating into access control systems.
