ASEC Surface Mounted Dome Button

The Asec Surface Mounted Dome Button is a highly durable, high-impact exit button designed for external access control systems. Featuring a robust grey cross-polymer housing and a zinc alloy green dome, this button is built to withstand demanding environments and heavy use. With an IP66 ingress protection rating, it offers exceptional weatherproofing, making it ideal for outdoor gates, barriers, and external doors.

This momentary-operation dome button is equipped with both Normally Open (N/O) and Normally Closed (N/C) contacts, providing versatile wiring options for various security setups. It also features pre-moulded M16/20 conduit knockouts for a clean, straightforward surface-mounted installation.

This product is available with different legends, weights, barcodes, and manufacturer references. Please choose your preferred option from the selection below, including "Press To Exit", "Press To Open", or "Gate Release" legends.

Technical Specifications

• Height: 85mm
• Width: 89mm
• Depth: 59mm
• IP Rating: IP66
• Input Voltage: 12/24V DC
• Operation: Momentary

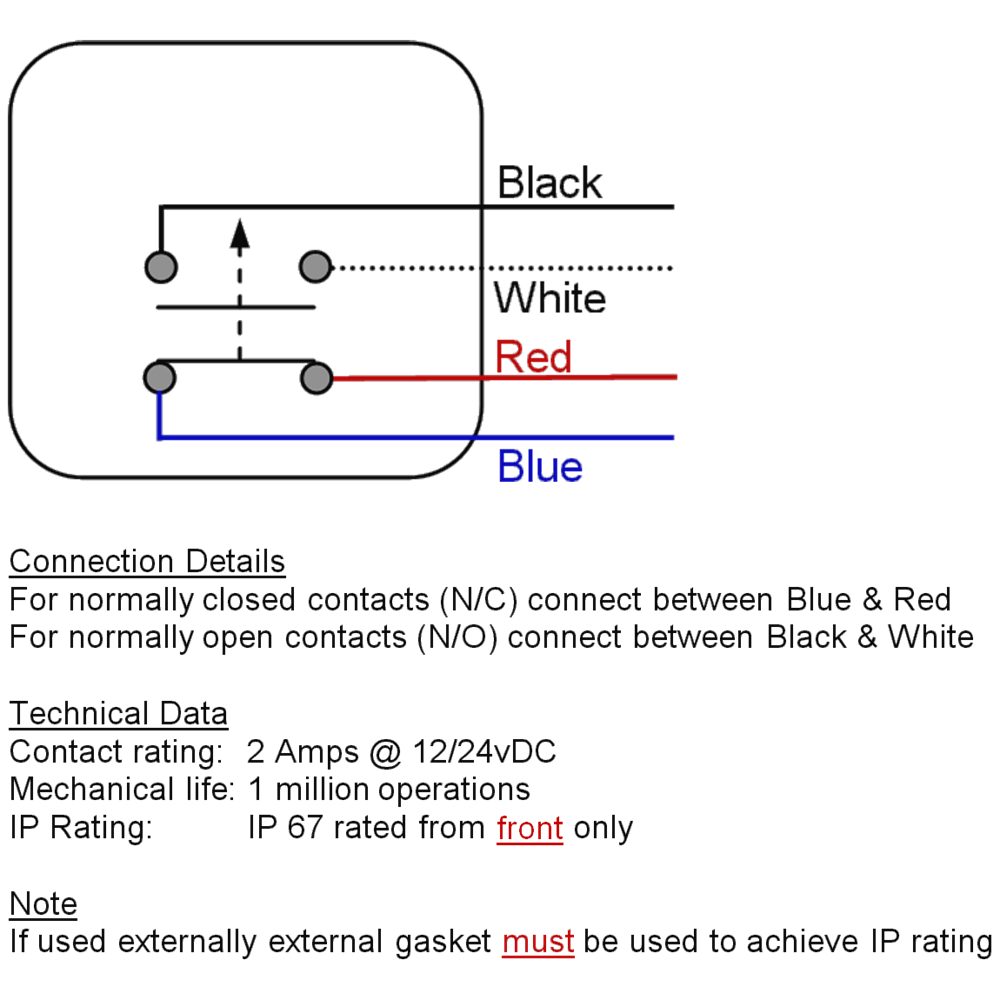

• Outputs: N/O & N/C contacts
• Case Material: Robust cross polymer (Grey finish)
• Dome Material: Zinc Alloy (Green finish)
• Operating Temperature: -40°C to +125°C
• Conduit Knockouts: Pre-moulded M16/M20

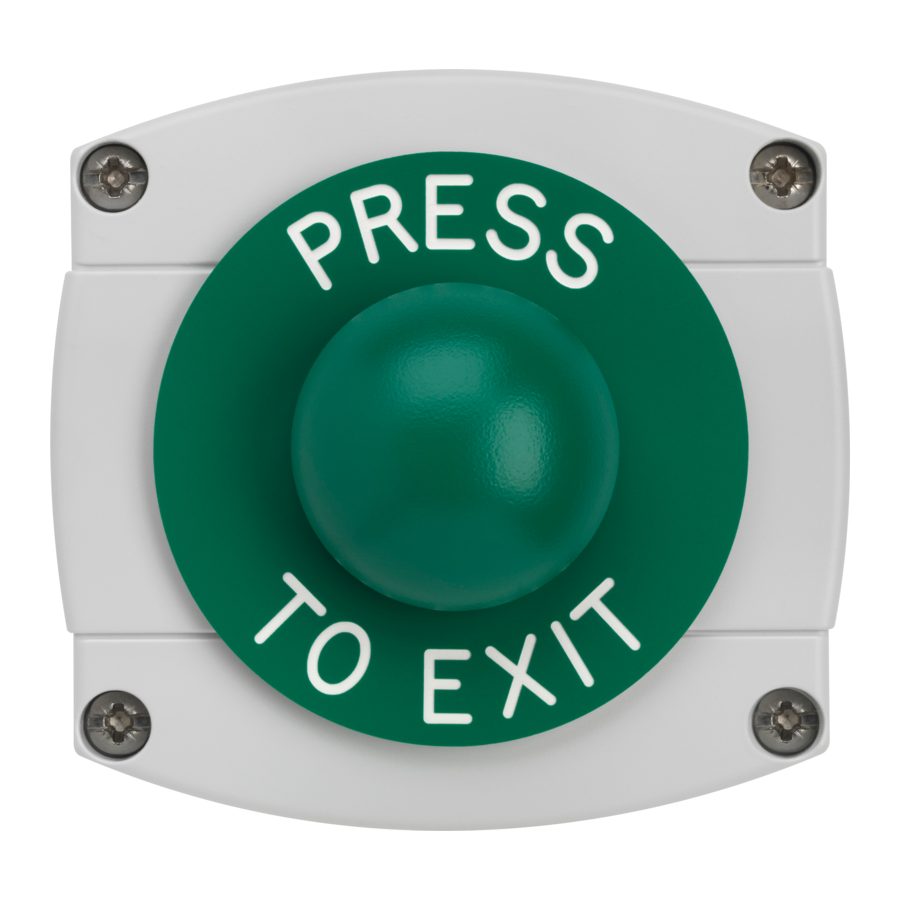

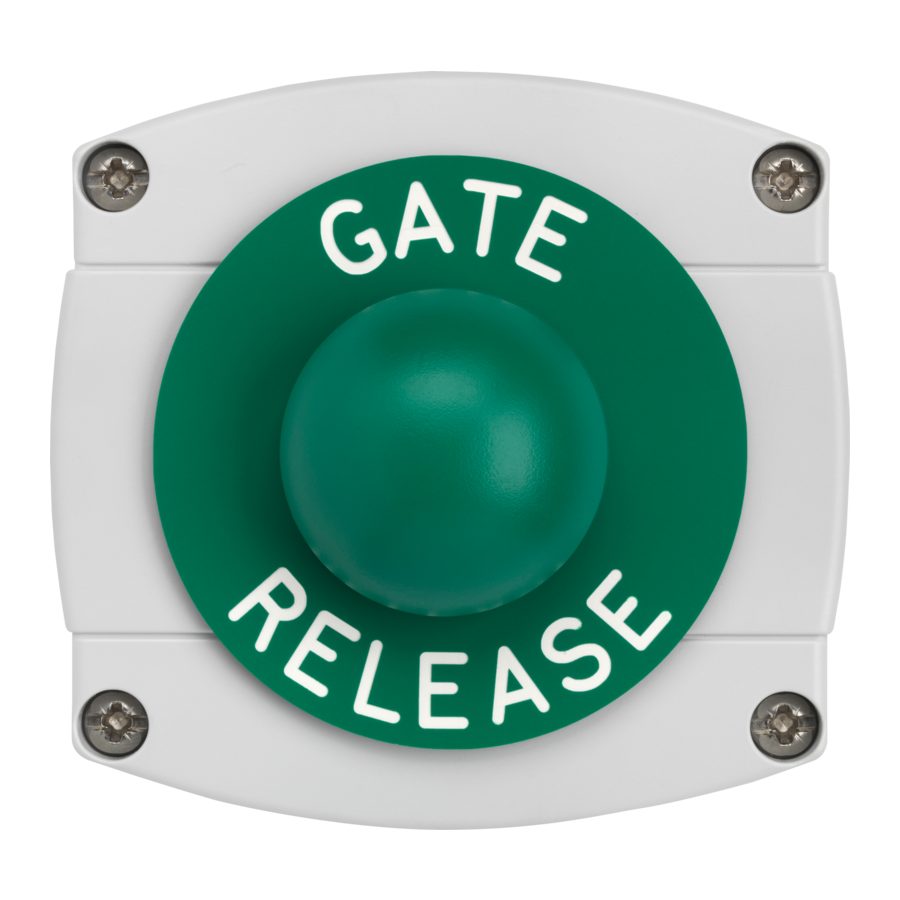

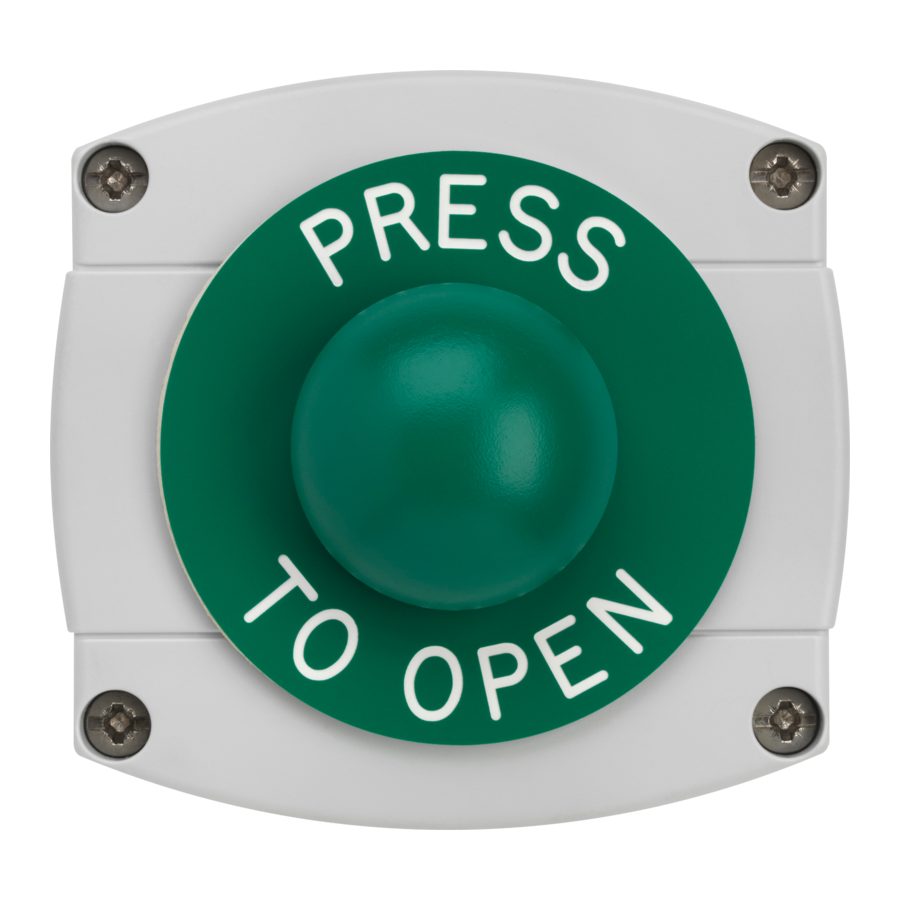

• Legend: Multiple options available (choose from "Press To Exit", "Press To Open", or "Gate Release" below)
• Weight: 260g or 300g (choose from options below)
• Manufacturer Reference: AS10692, AS10693, or AS10694 (choose from options below)
• Barcode: Multiple options available (choose from options below)

Key Features

• High-impact construction suitable for demanding external environments
• IP66 ingress protection rating ensures excellent weather resistance
• High-visibility green dome button with clear white text
• Versatile N/O and N/C contacts for flexible wiring configurations
• Pre-moulded M16/20 conduit knockouts for straightforward surface mounting
• RoHS compliant
