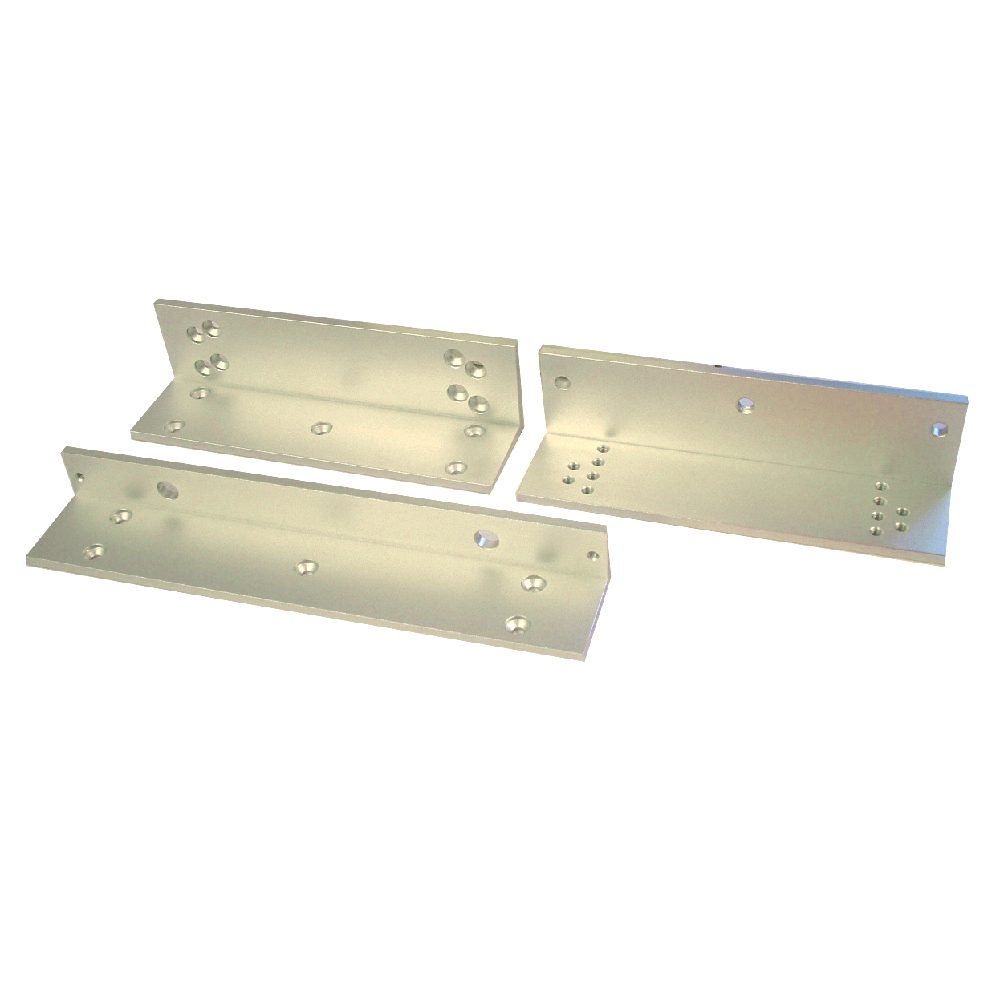

ASEC Slim Line Z & L Bracket Inward Opening

The Asec Slim Line Z & L Bracket is a robust and highly adjustable mounting solution designed specifically for installing Asec slim line (mini) magnetic locks on inward opening doors. Crafted from high-quality solid aluminium with a satin anodised finish, this bracket set provides a clean, professional look while ensuring a secure and reliable installation.

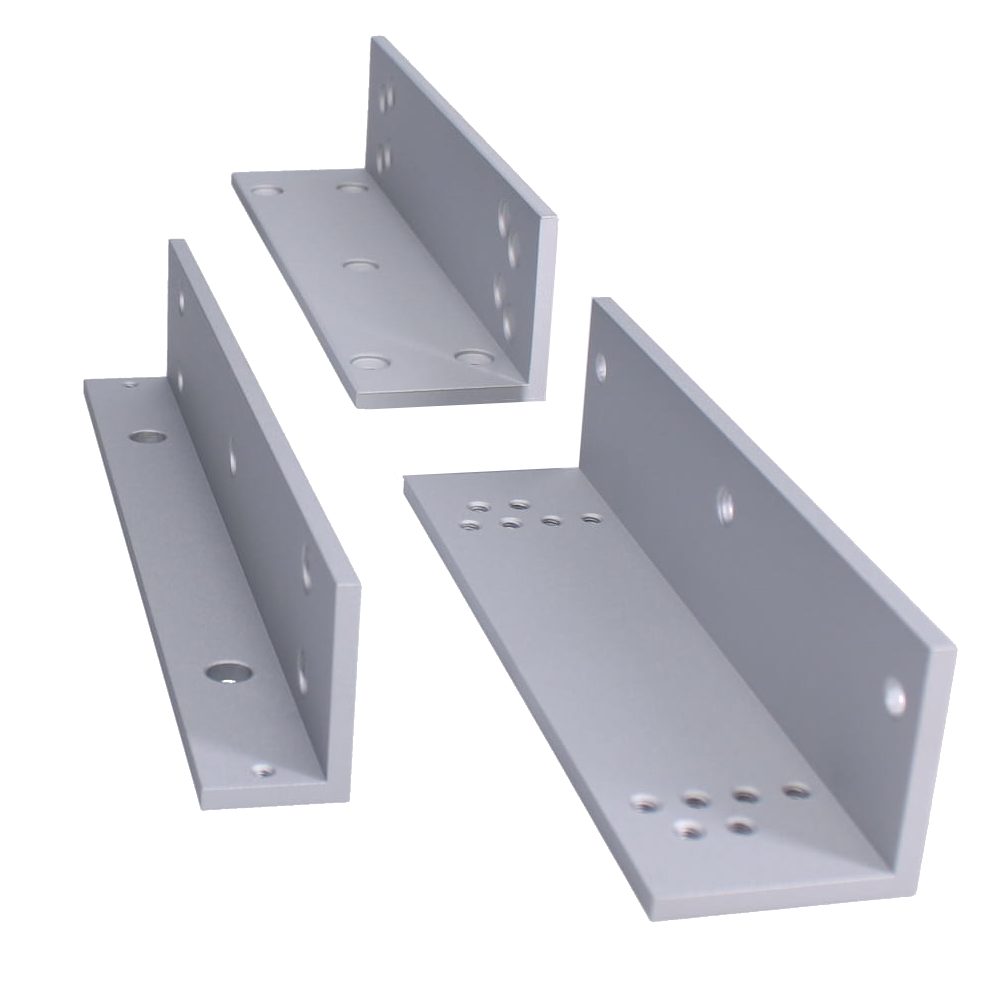

The kit consists of a standard L-bracket used to face-fit the magnet to the door frame, and a two-part adjustable Z-bracket to mount the armature plate onto the door leaf. With multiple fixing hole positions, it offers installers maximum flexibility and ease of adjustment during setup, making it an ideal choice for a variety of access control applications.

Technical Specifications

• Brand: Asec
• Manufacturer Reference: AS8522
• Finish: Satin Anodised Aluminium
• Suitable For: Inward opening doors and Asec Slim Line (Mini) magnets
• L-Bracket Dimensions: 250mm (Length) x 48mm (Height) x 30mm (Depth)
• Z-Plate Dimensions: 160mm (Length) x 50mm (Height) x 50mm (Depth)
• Material: Solid Aluminium
• Weight: 810g
• Guarantee: 1 Year

Key Features

• Inward Opening Compatibility: Specifically designed to facilitate the secure installation of magnetic locks on inward opening doors.
• Adjustable Design: Features a two-part adjustable Z-bracket for precise alignment of the armature plate.
• Easy Installation: Equipped with multiple fixing hole positions to provide versatile mounting options and simplify the installation process.
• Durable Construction: Manufactured from robust solid aluminium with a professional satin anodised finish.
• Perfect Fit: Tailored to suit the Asec Slim Line (Mini) series magnetic locks.
