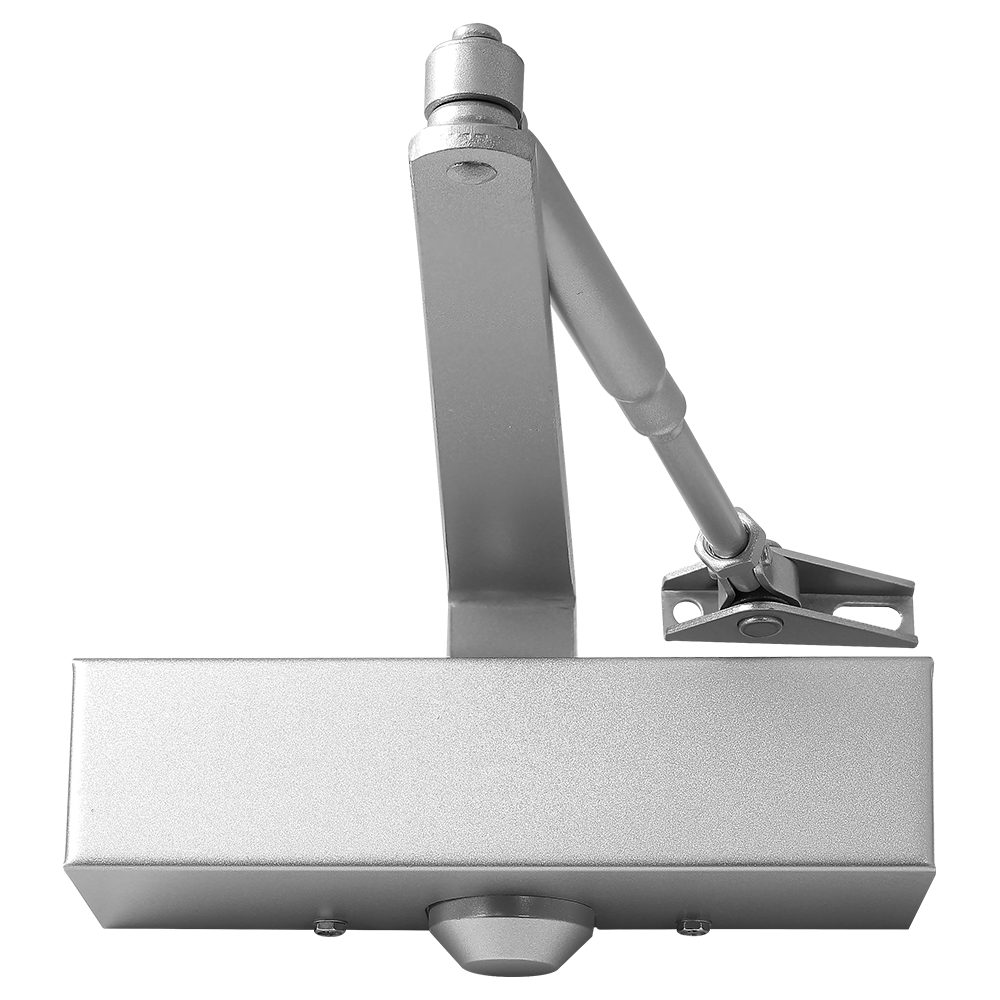

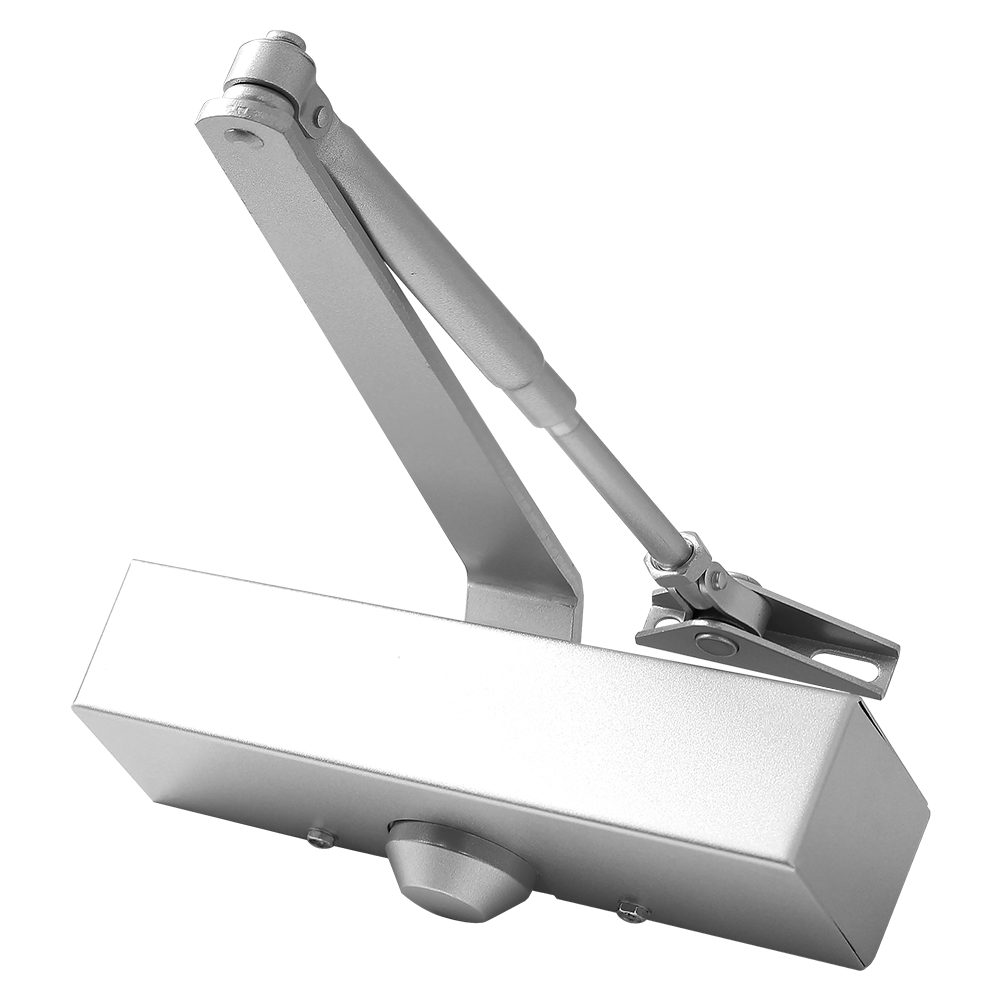

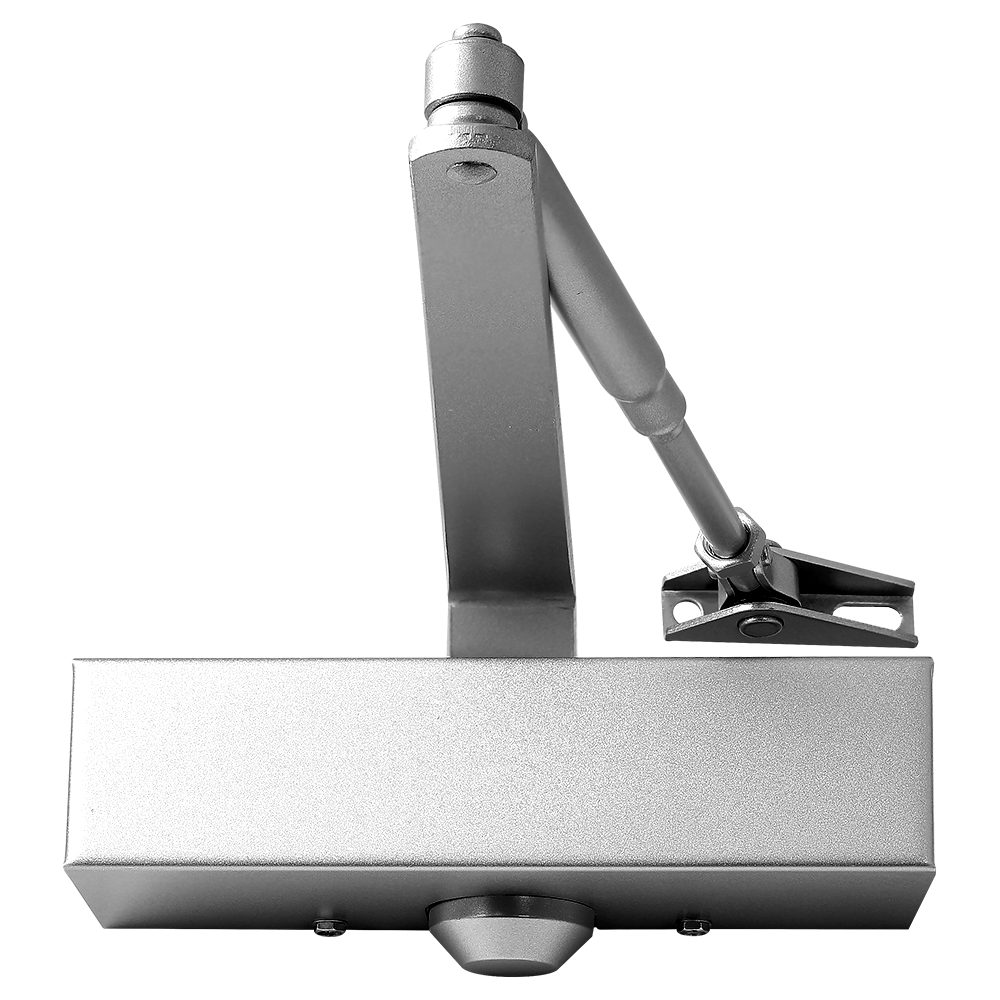

ASEC Size 3 Contract Door Closer with Cover

Asec More Asec Overhead

From

£62.46

Select size, finish, and quantity from the variant table.

View options

The Asec Size 3 Contract Door Closer with Cover is a versatile and reliable overhead door closer designed for universal application (Fig 1, Fig 61, and Fig 66). This non-handed closer is suitable for doors with a maximum width of 950mm and a maximum weight of 60kg. While it features a fixed strength of size 3, it is power adjustable by position to suit your specific installation requirements.

For enhanced safety and compliance, this overhead door closer has been successfully fire tested to EN 1634 and is CE marked against EN 1154 in Fig 1 applications. It also features fully adjustable sweep and latch speeds, allowing you to fine-tune the closing cycle to prevent slamming and ensure smooth operation.

This door closer is available in a choice of high-quality finishes, including Polished Stainless Steel, Satin Stainless Steel, and Silver, with corresponding manufacturer references and barcodes. Please select your preferred finish, manufacturer reference, and barcode from the options below.

Technical Specifications

Brand: Asec
Strength Size: 3 (power adjustable by position)
Max Door Width: 950mm
Max Door Weight: 60kg
Application: Fig 1, Fig 61, and Fig 66
Handing: Non-handed
Fire Tested: To EN 1634
CE Marked: Against EN 1154 (in Fig 1 applications)
Adjustable Closing Speed: Yes
Adjustable Latch Action: Yes
Backcheck: No
Weight: 1.85kg
Finish: Polished Stainless Steel, Satin Stainless Steel, or Silver (please choose from the options below)
Manufacturer Reference: AS11412, AS11413, or AS11414 (please choose from the options below)
Barcode: Multiple options available (please choose from the options below)

Key Features

Universal Application: Suitable for Fig 1, Fig 61, and Fig 66 mounting positions.
Adjustable Speeds: Features independent sweep and latch speed adjustments to ensure a controlled close.
Fire Safety Certified: Successfully fire tested to EN 1634 and CE marked against EN 1154 in Fig 1 applications.
Non-Handed: Suitable for both left and right-handed doors.
Smart Cover: Supplied with an attractive cover to conceal the mechanism, available in multiple finishes.
