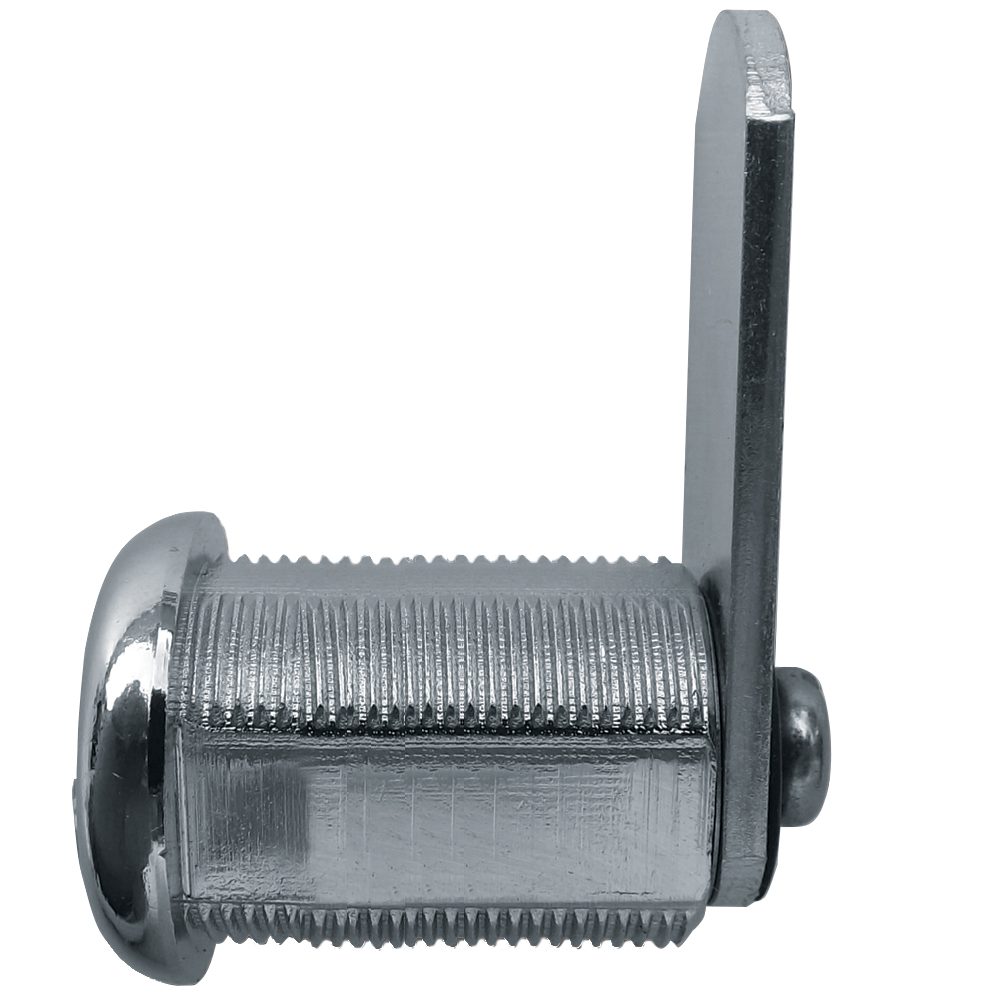

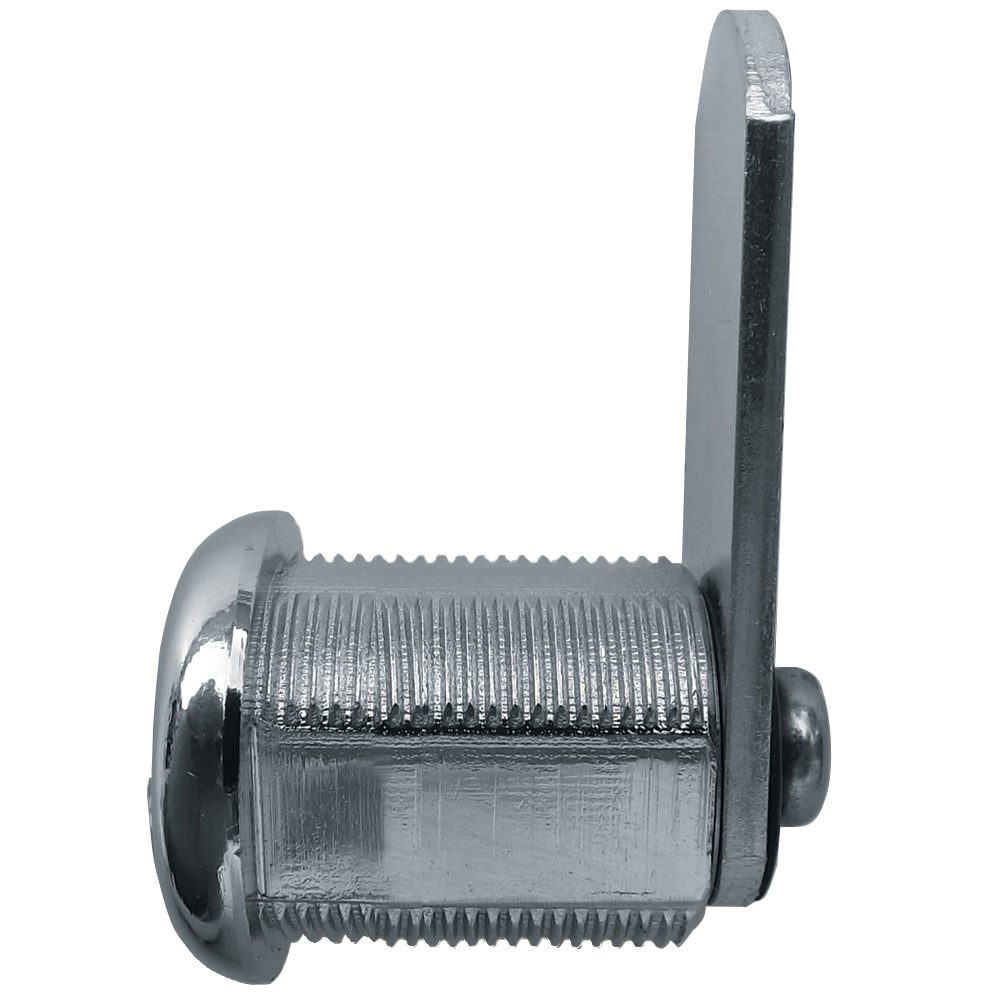

ASEC Round MK Nut Fix Camlock 90°

The Asec Round MK Nut Fix Camlock 90° is a highly versatile and easy-to-install locking solution designed specifically for securing metal and timber cupboards, cabinets, and lockers. Featuring a robust 5-pin mechanism, this round-faced camlock offers reliable security with 200 key differs.

This camlock operates with a smooth 90° clockwise turn and is supplied master keyed (MK) on the 92 key series, making it an excellent choice for commercial environments, schools, or offices where master key access is required. Each lock comes complete with two keys.

With a secure nut-fix design, installation is quick and straightforward. To suit a wide variety of door and panel thicknesses, this lock is available in multiple body lengths ranging from 11mm to 32mm (measured from the rose to the cam), with weights ranging from 58g to 176g. Please select your required size, manufacturer reference, and specifications from the options below.

Technical Specifications

• Brand: Asec
• Mechanism: 5 Pin
• Key Series: 92
• Keying: Master Keyed (In-House)
• Body Length: 11mm to 32mm (multiple options available below)
• Body Height: 19mm
• Body Width: 19mm
• Cam Height: 42mm
• Movement: 90° Clockwise
• Fixing: Nut Fix
• Finish: Chrome Plated
• Head Shape: Round
• Differs: 200
• Keys Supplied: 2
• Weight: 58g to 176g (multiple options available below)
• Manufacturer Reference: AS11467 to AS11472 (multiple options available below)
• Barcode: Multiple options available below (please choose from the options below)

Key Features

• Versatile Application: Ideal for securing both metal and timber cupboards, cabinets, and lockers.
• Master Keyed System: Supplied master keyed on the 92 key series, perfect for multi-user environments requiring master key override.
• Easy Installation: Simple round-faced, nut-fix design ensures quick and secure mounting.
• Smooth Operation: Features a reliable 90° clockwise movement.
• Complete Package: Supplied with 2 keys per lock.
• Multiple Sizes Available: Choose from a range of body lengths to perfectly match your panel thickness.
