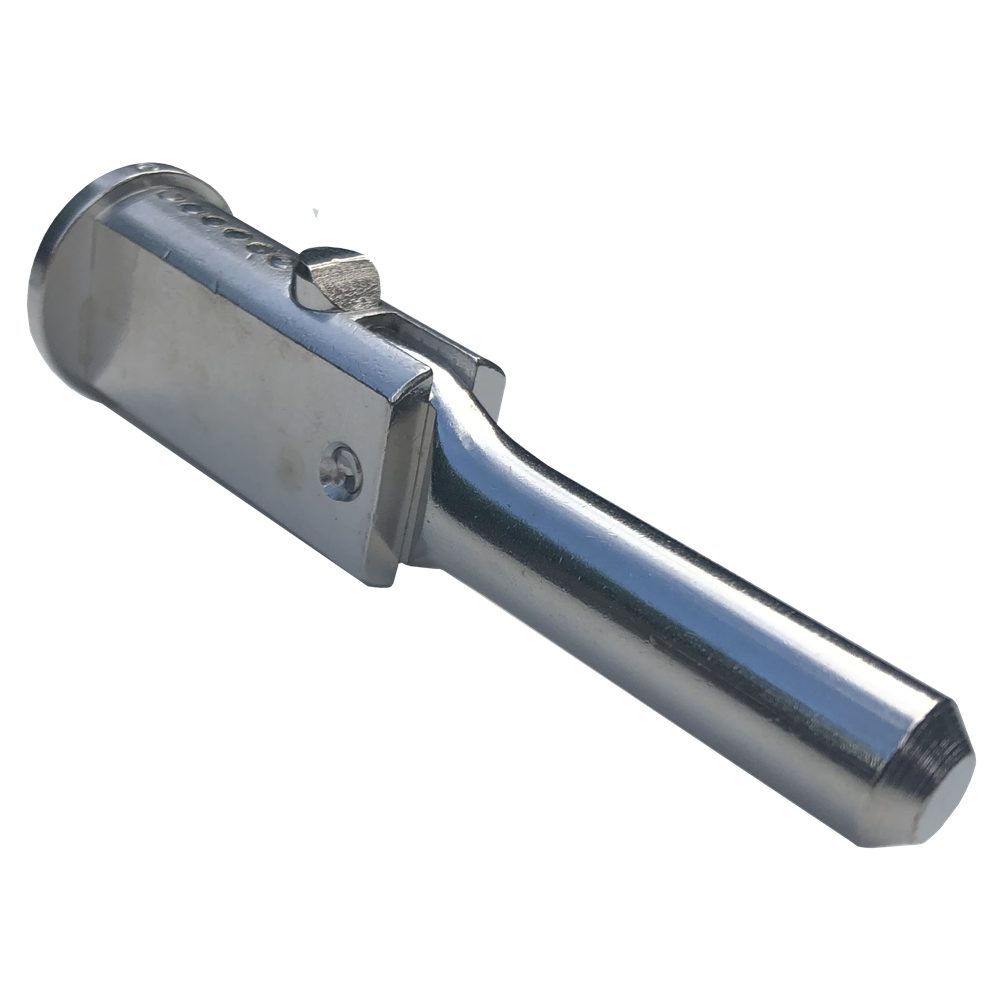

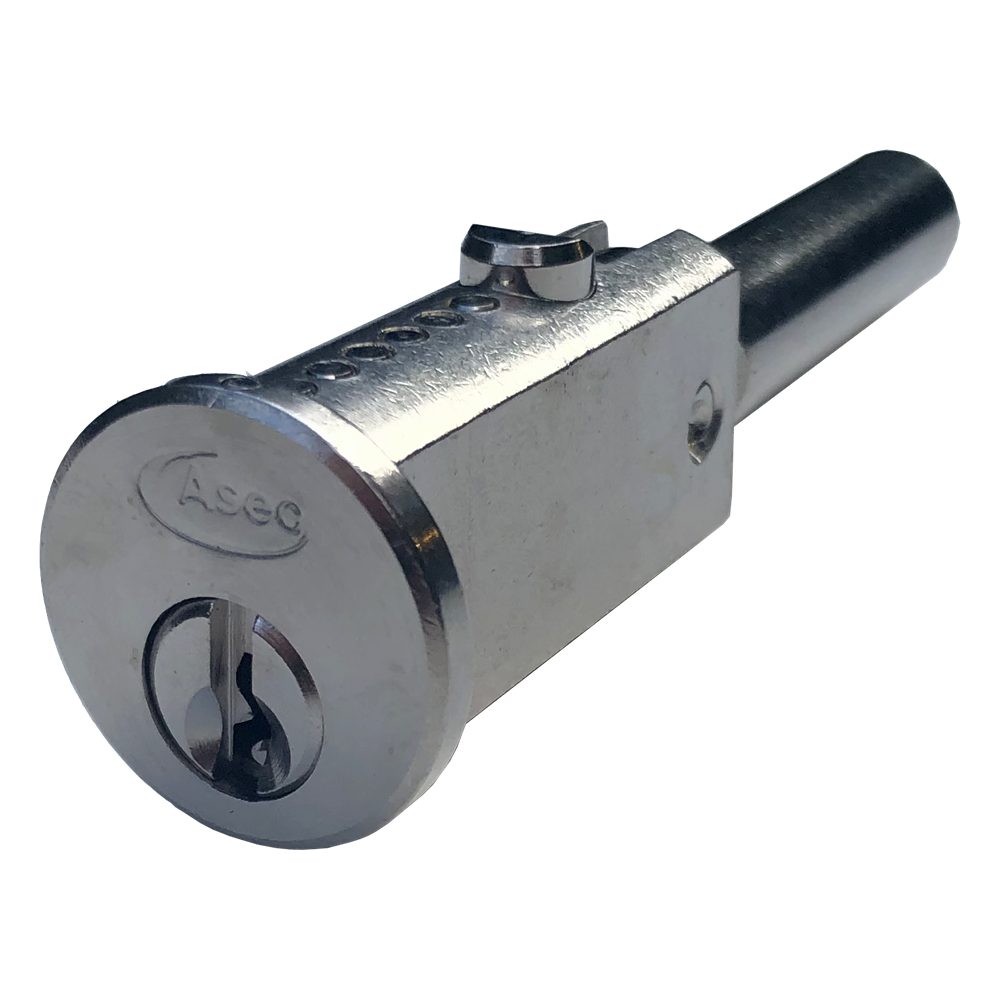

Asec Round Faced Bullet Lock

The Asec Round Faced Bullet Lock is designed to secure the most popular styles of roller shutters. This robust lock operates via a sprung locking pin on top of the cylinder barrel, which is depressed by turning the key, allowing the lock to be easily inserted into or withdrawn from its housing. When locked, the tail of the bullet lock extends into the roller door, preventing it from being opened.

Please note that the lock housings are sold separately and are typically welded to either side of the shutter frame. For added security, the key is only removable when the lock is in the fully locked position.

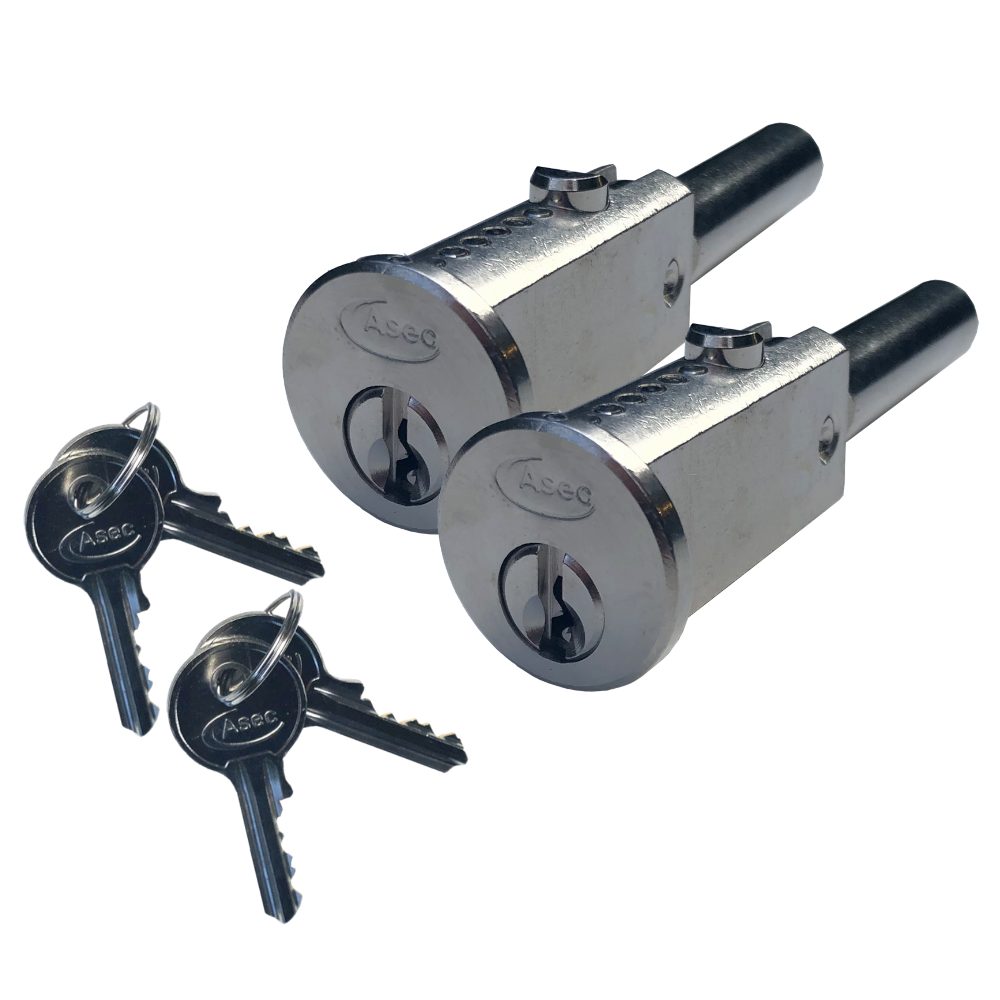

This bullet lock is available in multiple configurations to suit your security requirements. You can choose between a single lock keyed to differ or keyed alike pairs (available in Keyed Alike - A or Keyed Alike - B options). Depending on your selection, they are supplied with either 2 or 4 keys. Please choose your preferred keying option, pack quantity, and key requirements from the options below.

Technical Specifications

• Cylinder Diameter: 25mm
• Cylinder Finish: Nickel Plated
• Body Dimensions: 45mm (Length) x 21mm (Height) x 15mm (Width)
• Total Length: 95mm
• Pin Length: 50mm
• Locking Mechanism: 5 Pin
• Key Retaining: Yes (key removable in locked position only)
• Keys Supplied: 2 or 4 (please choose from the options below)
• Pack Quantity: 1 or 2 (please choose from the options below)

Key Features

• Roller Shutter Security: Designed to secure the most popular styles of roller shutter doors.
• Key Retaining Design: Key is only removable when the lock is in the locked position, preventing accidental unlocking.
• Flexible Keying Options: Available as a single lock keyed to differ or in keyed alike pairs (please choose from the options below).
• Housings Sold Separately: Designed to fit standard round-faced bullet lock housings.

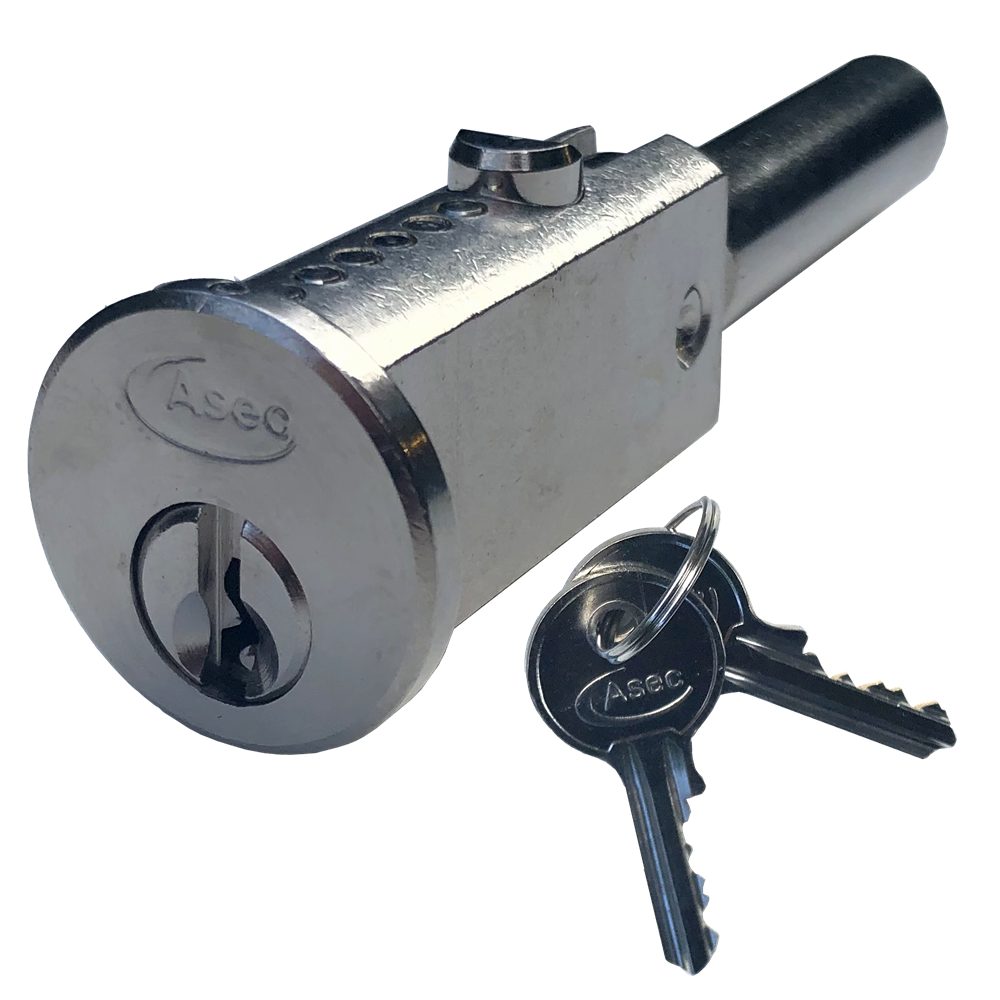

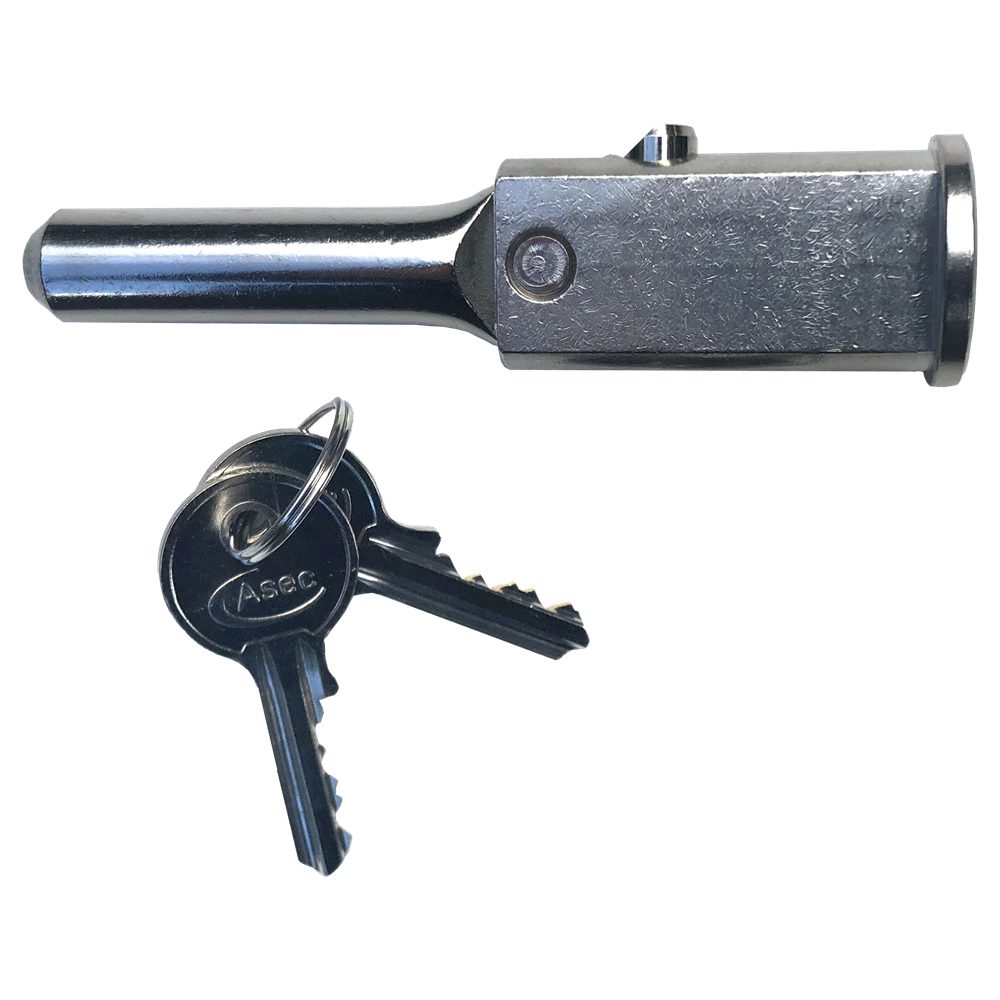

• Supplied with Keys: Comes complete with 2 keys for single locks or 4 keys for keyed alike pairs.
