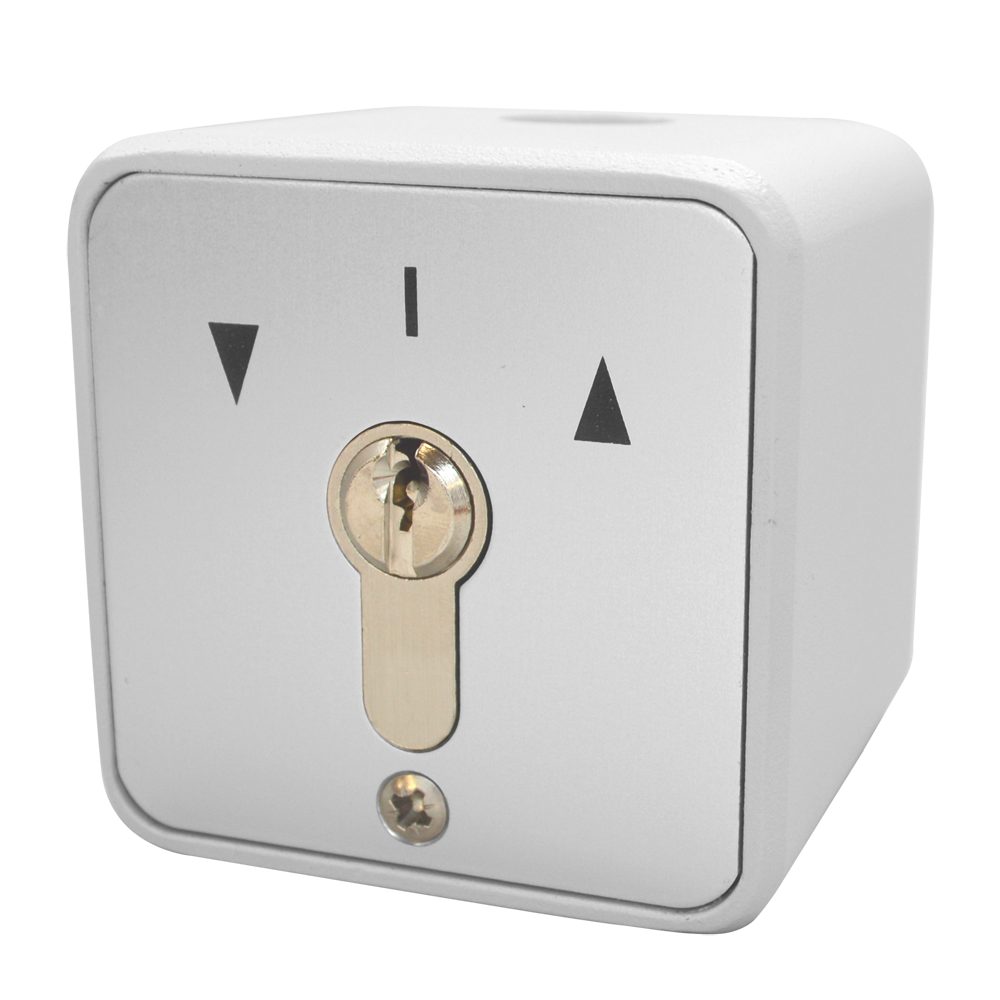

ASEC Roller Shutter Keyswitch With Cylinder

The Asec Roller Shutter Keyswitch with Cylinder (AS9806) is a robust and reliable surface-mounted control switch, specifically designed for operating roller shutter doors. Featuring a durable stainless steel faceplate, this momentary contact, 3-position keyswitch provides secure and straightforward operation.

Designed for standard 230V AC mains systems, the switch is rated at 16A and features clear "Up" and "Down" arrow legends to guide the user. It is supplied complete with a non-removable Euro cylinder and 2 keys, ensuring you have everything needed for a secure setup right out of the box. Its surface-mounted design allows for quick and convenient installation on a variety of surfaces.

Whether you are upgrading an existing shutter control or installing a new system, this Asec keyswitch offers the perfect blend of security, durability, and ease of use.

Technical Specifications

• Brand: Asec
• Manufacturer Reference: AS9806
• Input Voltage: 230V AC mains
• Current Rating: 16 A
• Operation: Momentary (3-position)
• Mechanism: Euro Cylinder (non-removable)
• Outputs: Normally Open (N/O)
• Finish: Stainless Steel
• Fitting: Surface mounted
• Keys Supplied: 2
• Legend: Up & Down Arrows

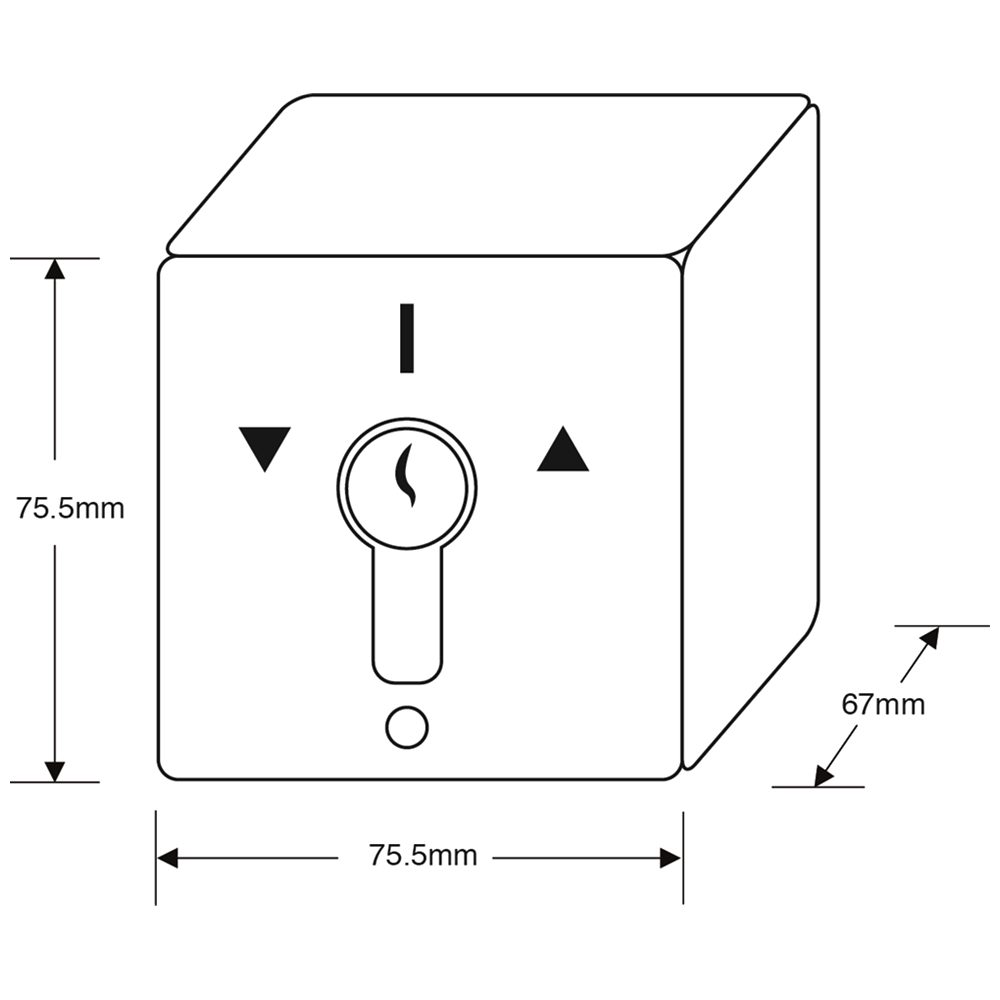

• Dimensions: 75mm (W) x 68mm (D)
• Weight: 603g

Key Features

• Purpose-Built for Shutters: Ideal for the secure operation of roller shutter doors.
• Momentary Operation: 3-position switch with spring-return momentary action.
• Clear Legend: Features highly visible Up and Down arrow markings for user clarity.
• Complete Kit: Supplied with a non-removable Euro cylinder and 2 keys.
• Durable Construction: High-quality stainless steel finish ensures long-lasting performance.
• Easy Installation: Surface-mounted design simplifies the fitting process.
