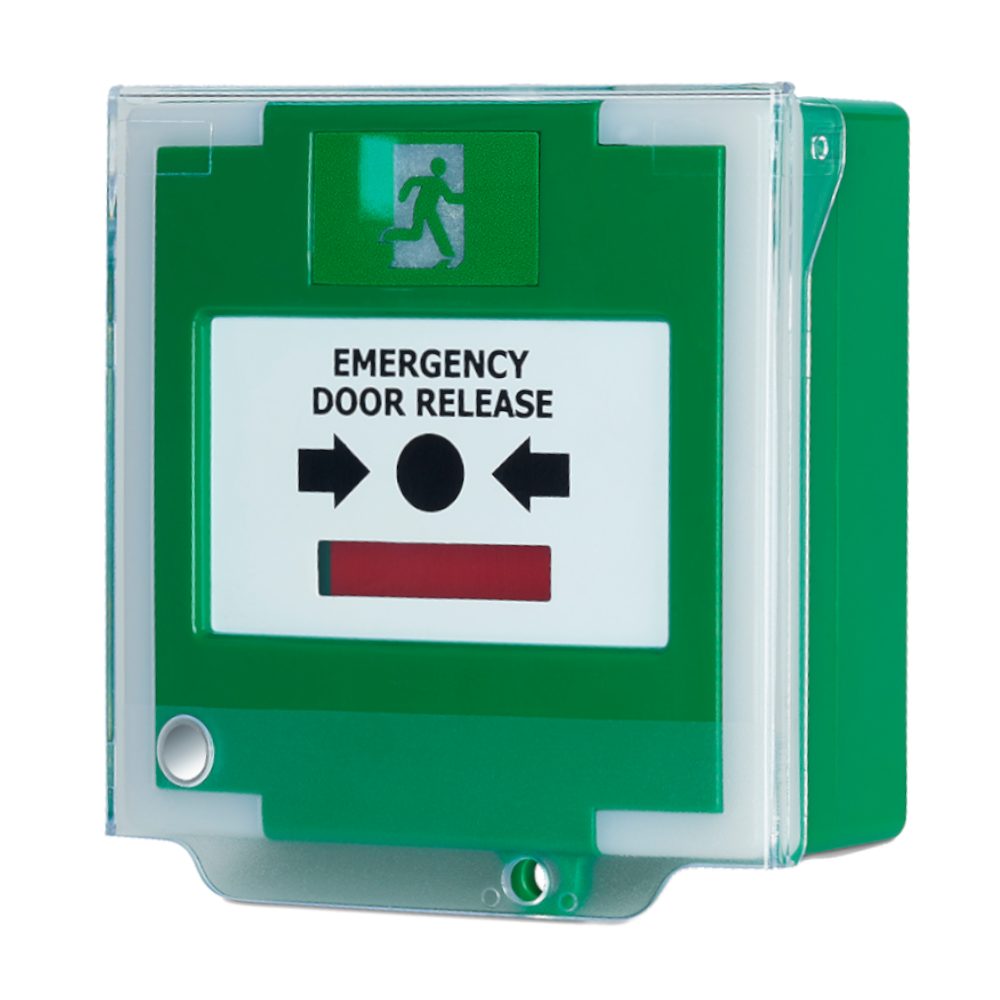

ASEC Resettable Illuminated Triple Pole Call Point With Cover, Timer & Sounder

The Asec Resettable Illuminated Triple Pole Call Point (AS12367) is a highly versatile and secure solution designed for emergency door release and access control systems. This surface-mounted unit features a triple-pole configuration, providing flexible wiring options with two sets of COM / NO / NC change-over contacts to integrate seamlessly with various security systems.

Equipped with an adjustable timer, the call point allows for a time delay of up to 60 seconds, making it ideal for controlled egress applications. It operates on a dual 12/24V DC input voltage. To ensure maximum visibility and clear status indication, the unit features an adjustable LED and an adjustable activation sounder.

Designed for durability and ease of use, this resettable call point eliminates the need for replacement glass after activation - simply reset the unit using a compatible key. It also includes a protective cover with an alarmed cover sounder to prevent accidental activation or tampering. Finished in a highly visible green with an "Emergency Door Release" legend, it is a reliable choice for commercial and public buildings.

Technical Specifications

• Brand: Asec
• Part Number: AS12367
• Input Voltage: 12/24V DC

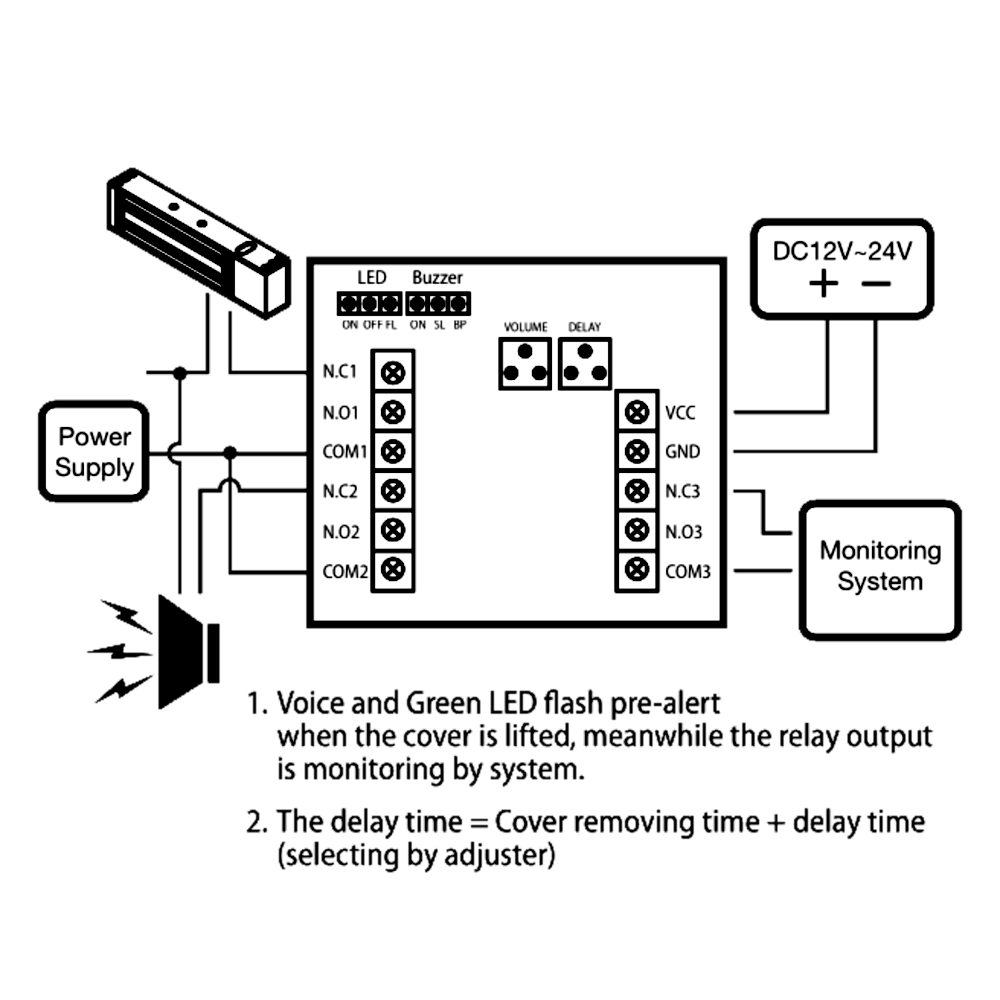

• Pole Configuration: Triple pole (COM / NO / NC / Change-over-contacts x 2)

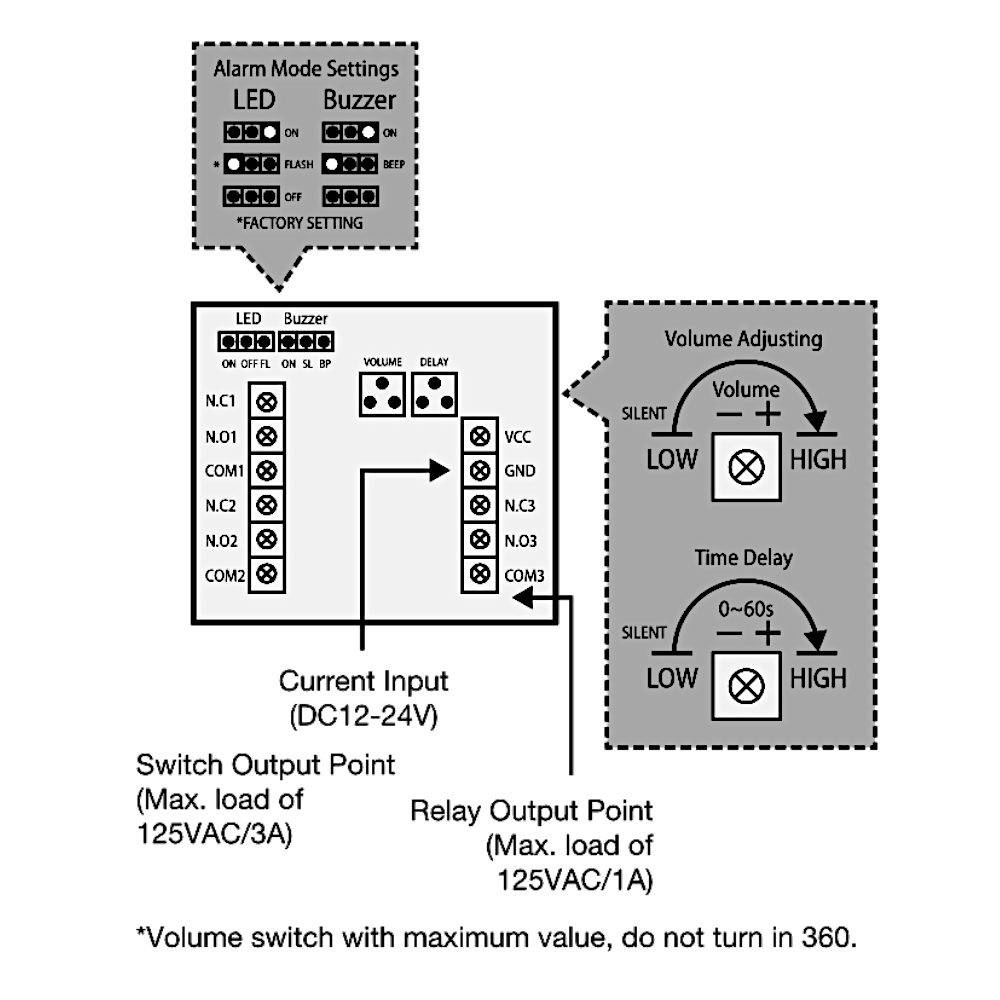

• Time Delay: Adjustable up to 60 seconds
• Fitting: Surface mounted
• Finish: Green
• Legend: Emergency Door Release

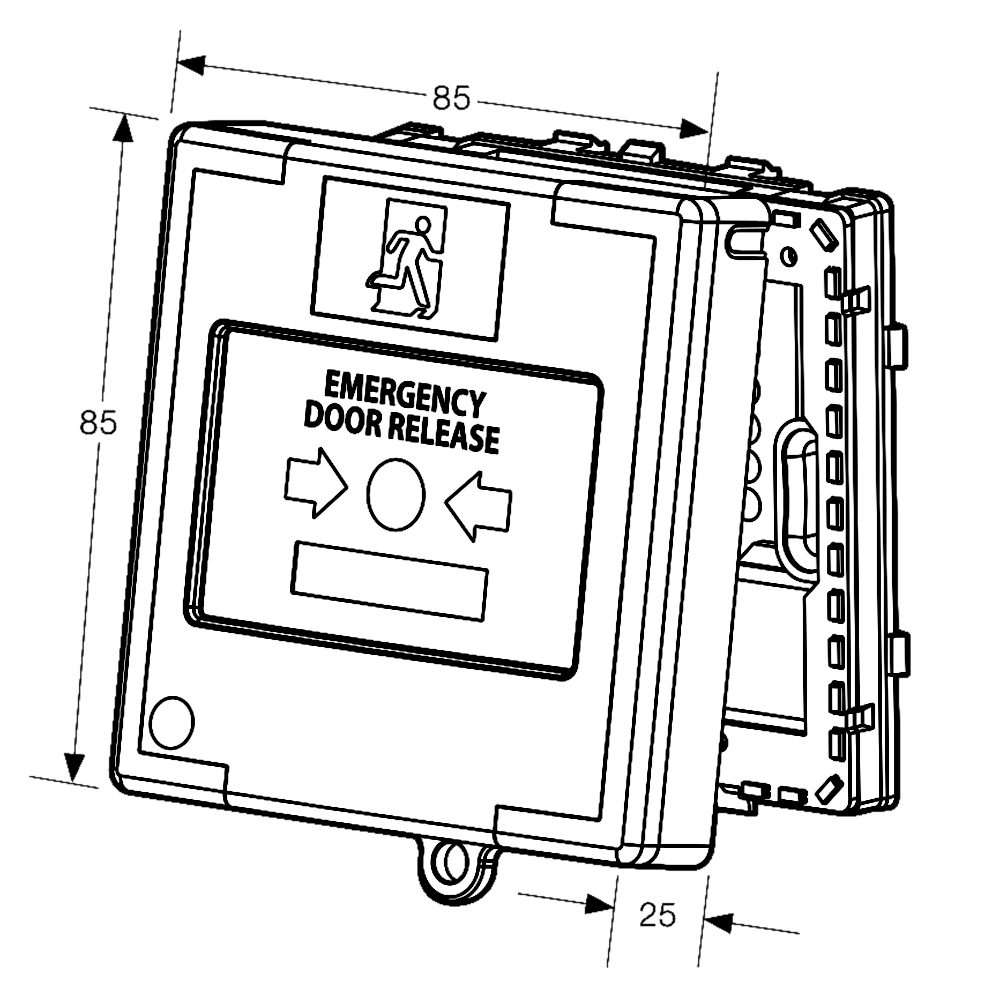

• Dimensions: 85mm (H) x 85mm (W) x 25mm (D)
• Weight: 200g

Key Features

• Resettable Design: Easily reset after activation without the need to replace broken glass.
• Dual Alert System: Features an adjustable LED and an adjustable activation sounder for clear visual and audible feedback.
• Protective Cover: Includes a cover with an alarmed sounder to deter tampering and prevent accidental activation.
• Flexible Integration: Triple-pole configuration with dual change-over contacts supports connection to multiple security devices.
• Adjustable Timer: Built-in timer allows egress delay settings of up to 60 seconds.
