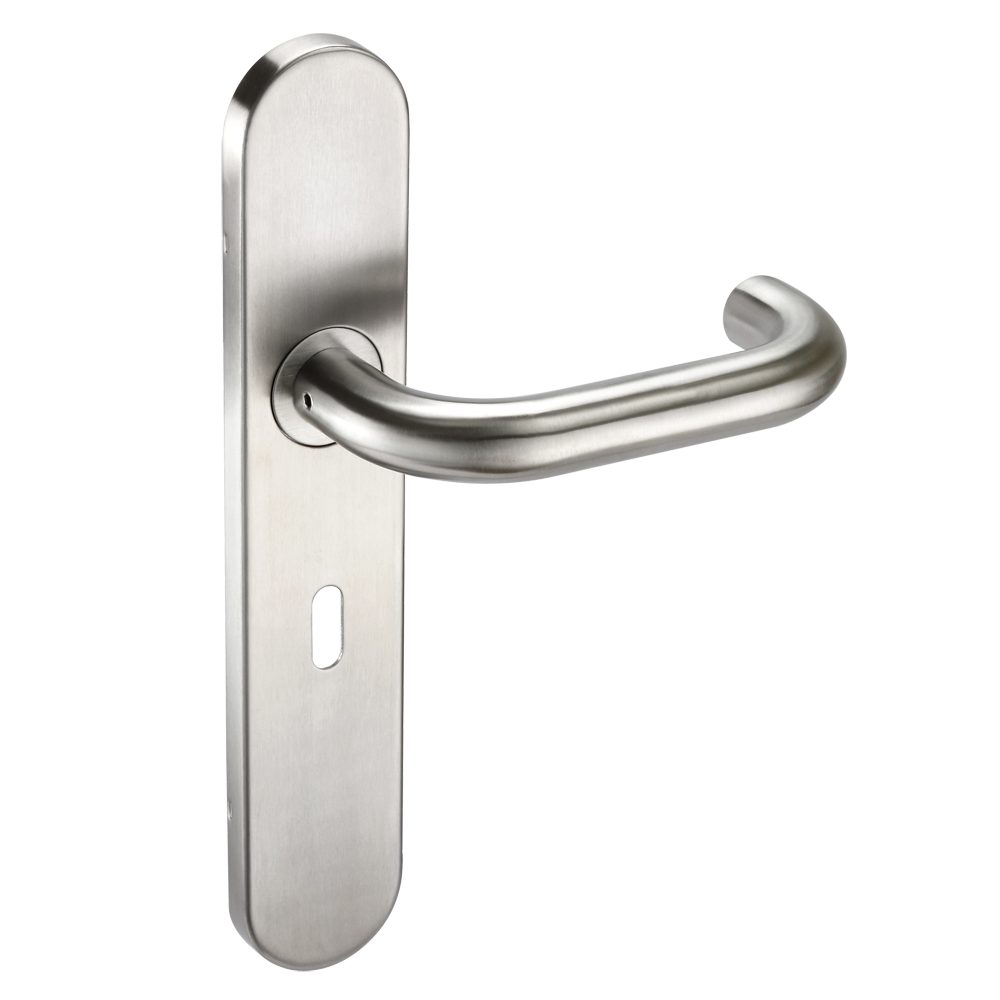

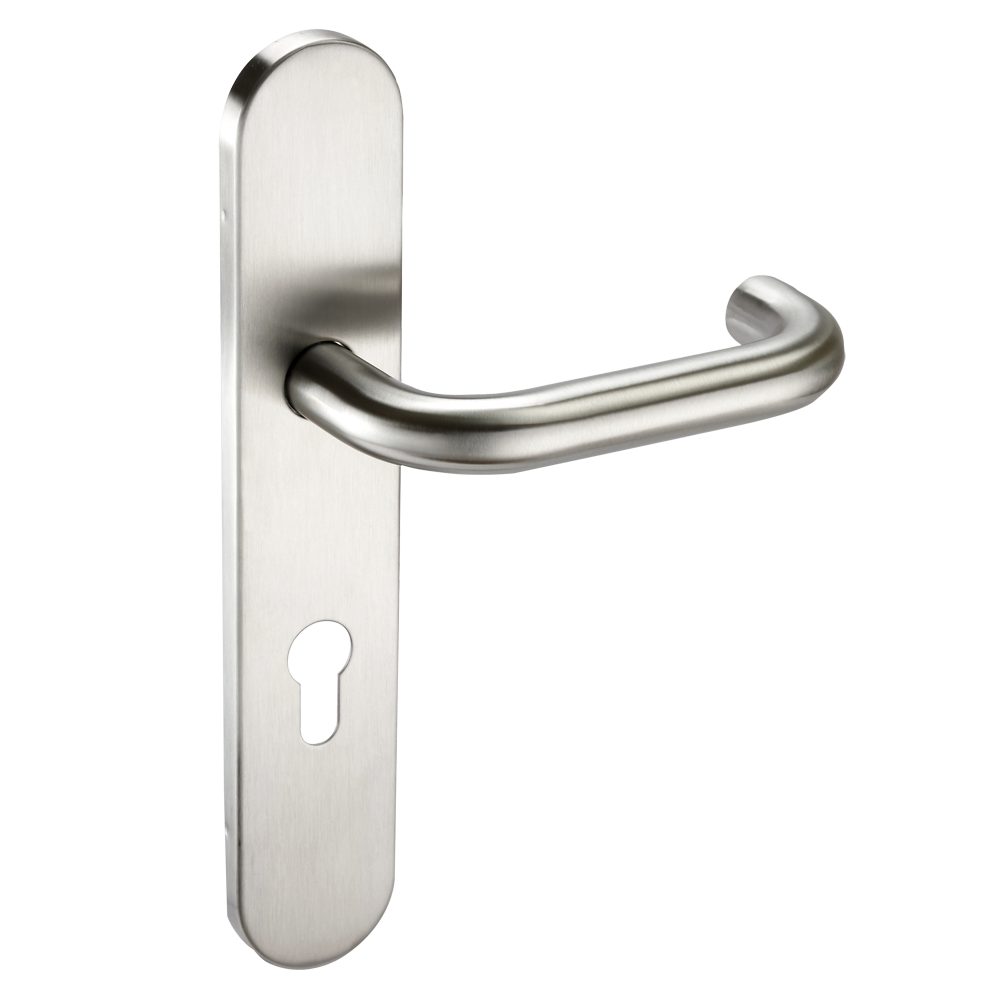

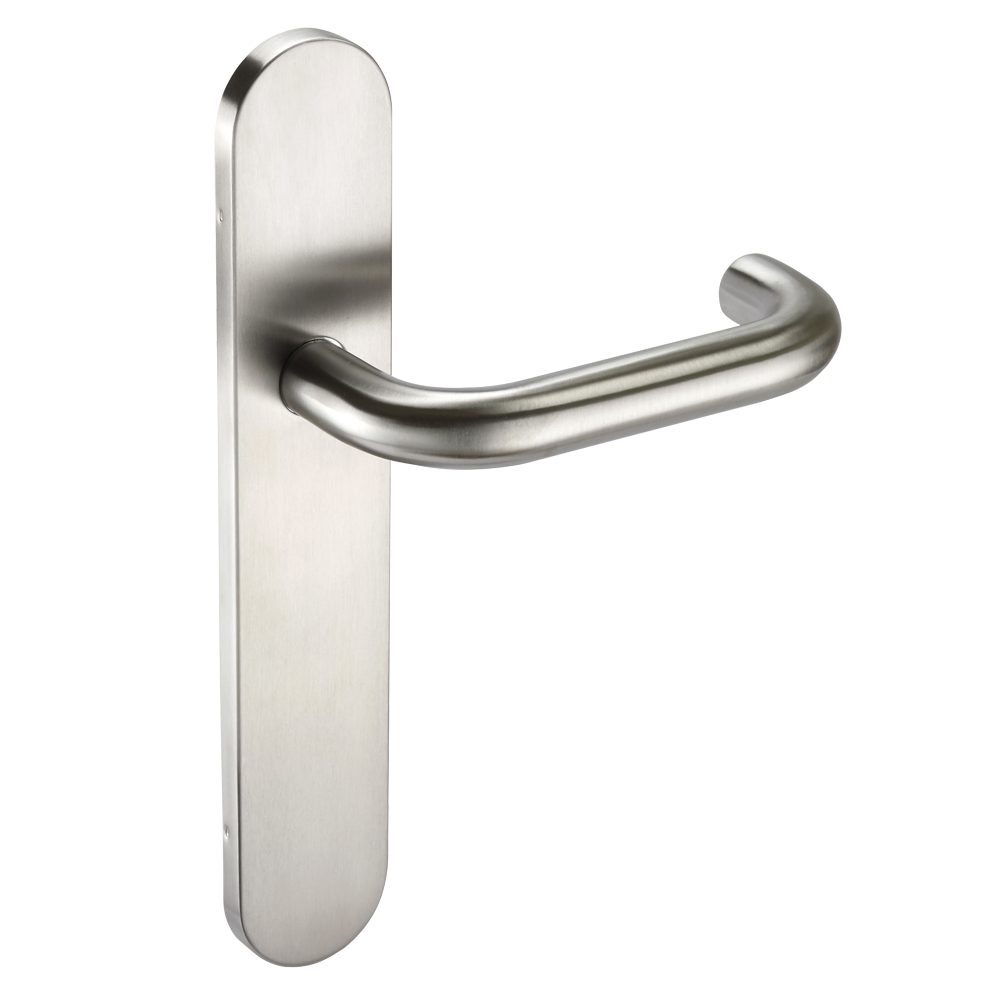

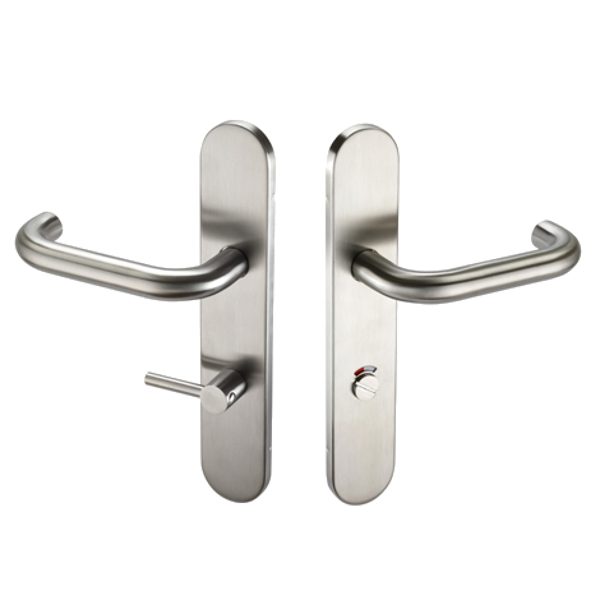

ASEC Radius Backplate Lever Furniture DDA

The Asec Radius Backplate Lever Furniture is a high-quality, DDA-compliant (Disability Discrimination Act) door handle set designed for commercial, public, and residential environments. Featuring a modern, round-ended radius plate and a comfortable round bar lever, this sprung door furniture is manufactured from durable Grade 304 stainless steel with a sleek satin finish.

To suit different door setups and lock types, this lever furniture is available in multiple mechanisms, including Latch Only, UK Mortice, Euro Cylinder, and Bathroom configurations. Depending on your chosen mechanism, lock centres are available in 72mm or 78mm options. Please select your required mechanism and specifications from the options below.

The handles feature a concealed bolt-through fixing for a clean, professional finish, with standard 200mm screw centres. They are fully sprung to ensure the lever returns smoothly to its original position after use.

Technical Specifications

• Plate Height: 245mm
• Plate Width: 45mm
• Screw Centres: 200mm
• Material: Grade 304 Stainless Steel
• Finish: Satin Stainless Steel
• Available Mechanisms: Latch Only, UK Mortice, Euro Cylinder, or Bathroom (please choose from the options below)
• Centres: 72mm or 78mm (depending on mechanism; please choose from the options below)
• Weight: 900g or 975g (please choose from the options below)
• Manufacturer References: AS11447, AS11448, AS11449, or AS11450 (please choose from the options below)

Key Features

• DDA Compliant: Suitable for use in applications requiring compliance with the Disability Discrimination Act
• Sprung Lever: Fully sprung mechanism ensures the handle returns smoothly to its original position
• Durable Construction: Manufactured from robust Grade 304 stainless steel for long-lasting performance
• Sleek Aesthetic: Modern satin stainless steel finish with a stylish radius-ended backplate
• Concealed Fixings: Bolt-through fixings are concealed for a clean, secure installation
