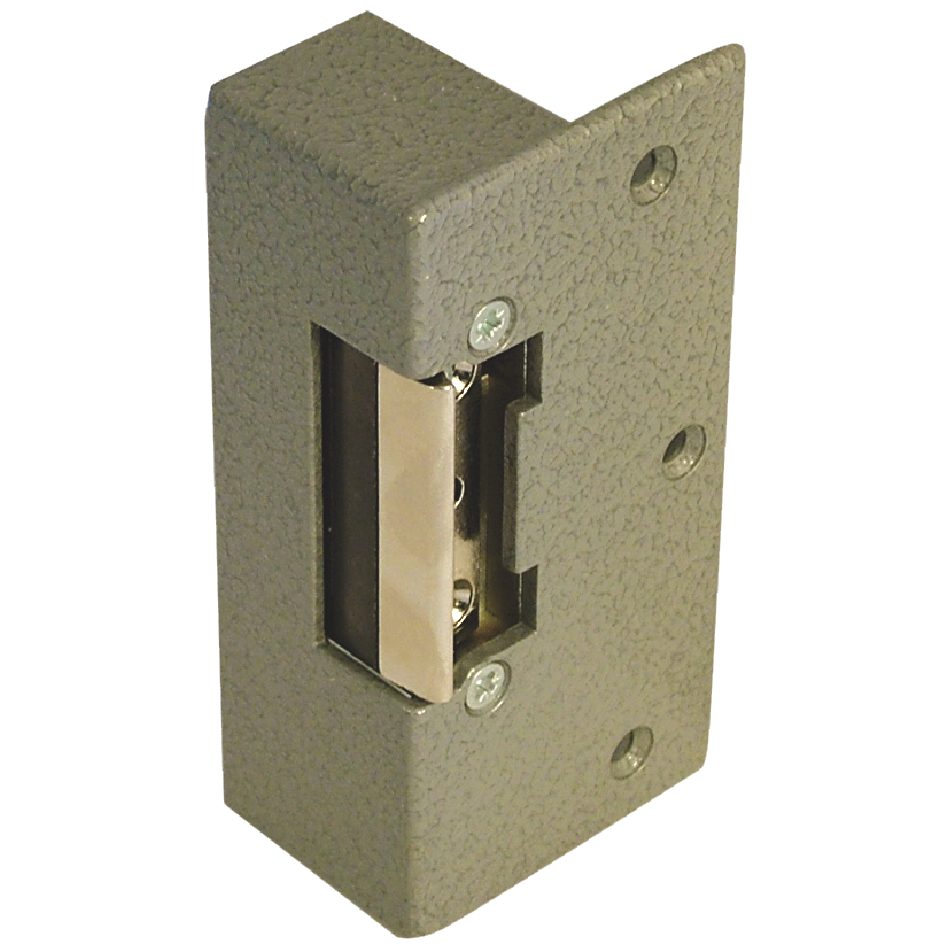

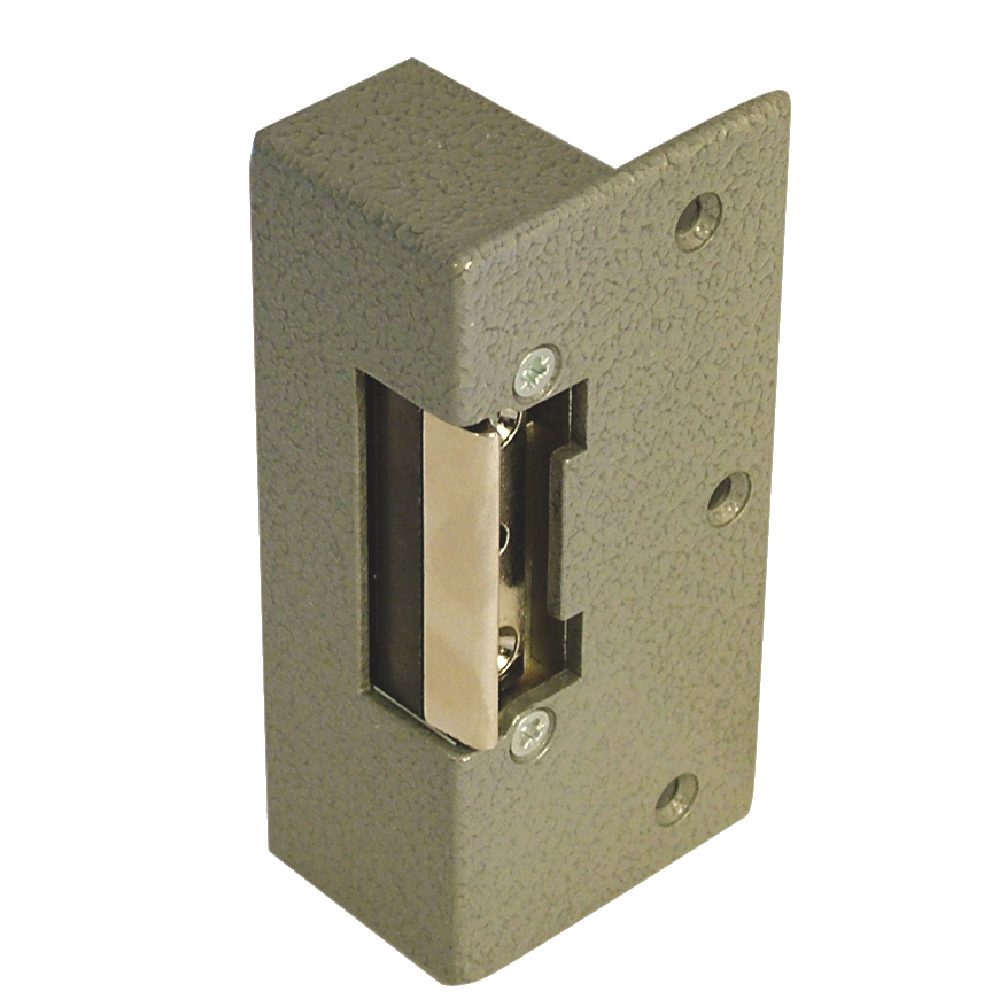

ASEC R12 Rim Release

The Asec R12 Rim Release is a surface-mounted electric strike designed to replace the standard keeper on a rim nightlatch. It is ideal for retrofitting access control to existing doors or for new installations where a rim-mounted lock is preferred.

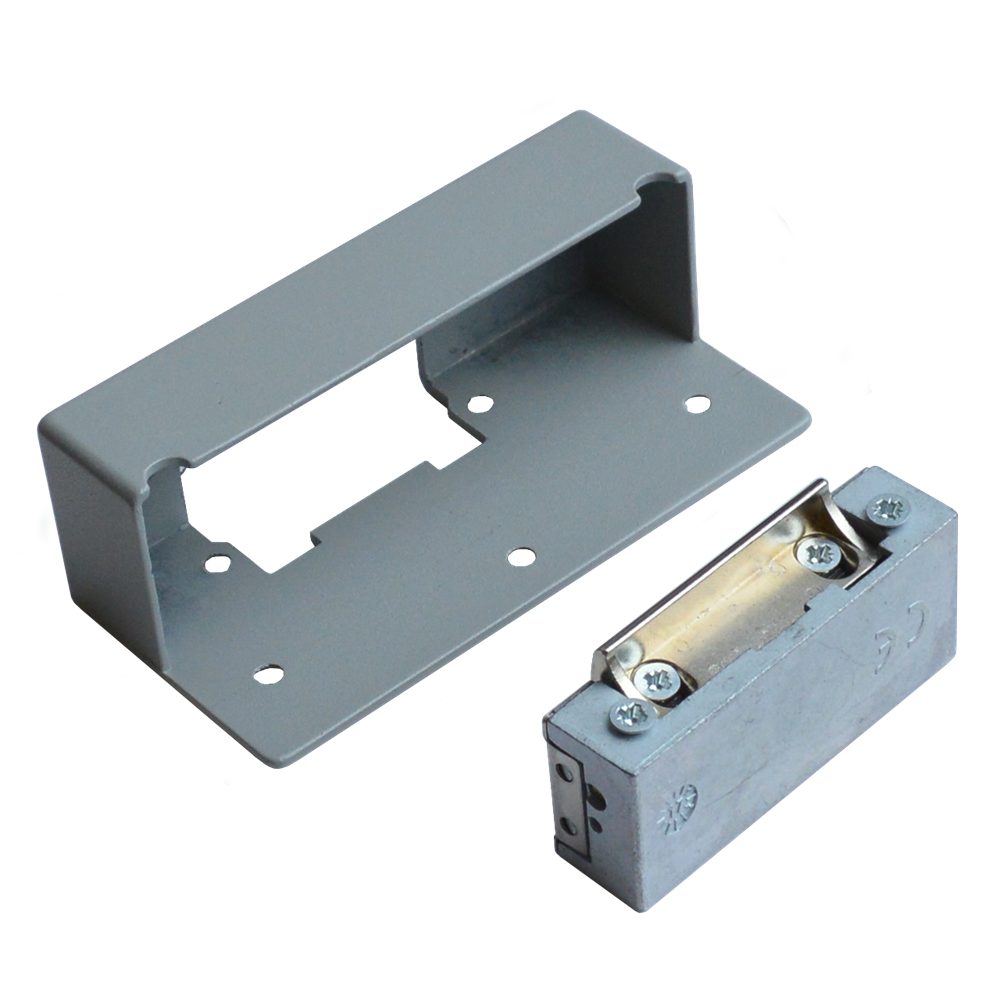

Constructed with a robust, one-piece solid rim case, this low-to-medium duty release is designed for inward-opening doors. It features an adjustable jaw to ensure precise alignment with the nightlatch bolt.

This versatile rim release is available in multiple configurations to suit your specific access control setup. You can choose between 12V AC or 12V DC input voltages, as well as Fail Locked (fail secure) or Fail Unlocked (fail safe) operations. Depending on your selection, the unit's current consumption is either 0.16A or 0.65A, with a weight of 320g or 330g. Please select your preferred voltage, operation, and manufacturer reference from the options below.

Technical Specifications

• Brand: Asec
• Fitting: Rim

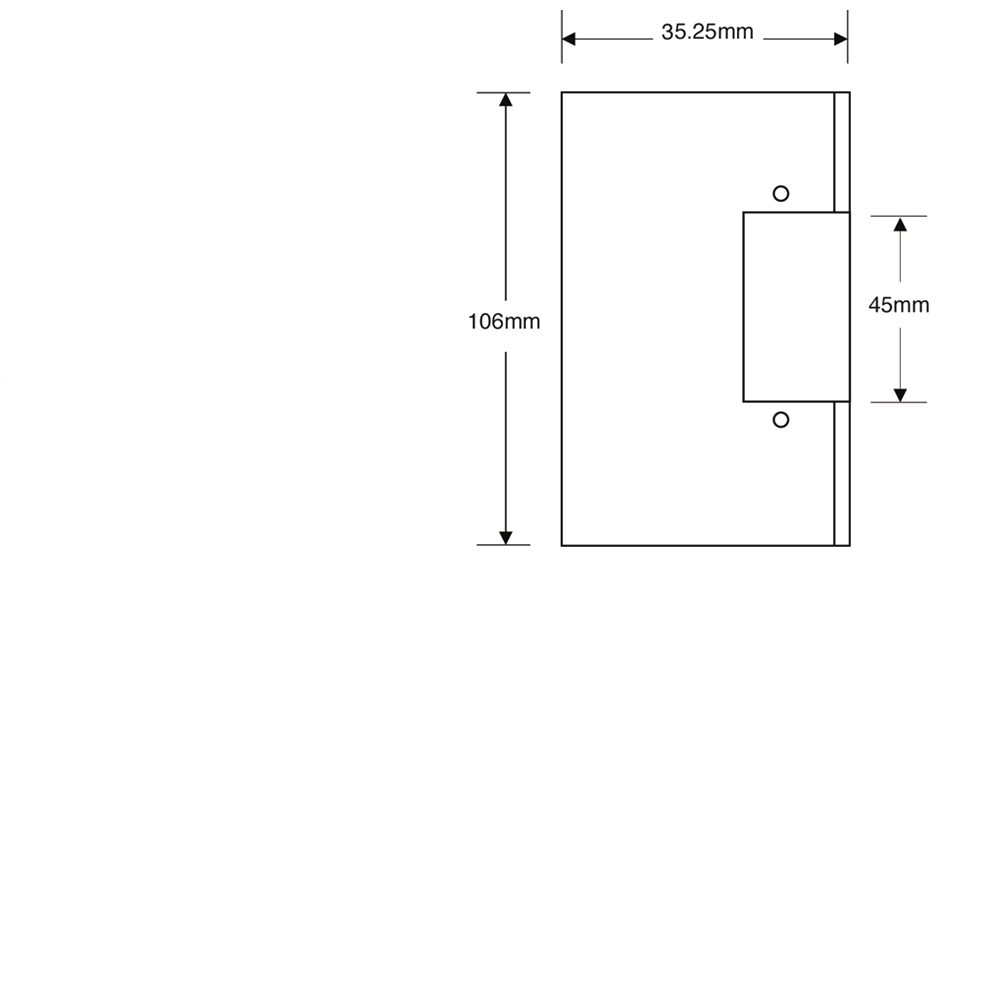

• Body Height: 105mm
• Body Depth: 23mm
• Faceplate Height: 105mm
• Faceplate Width: 48mm
• Jaw Dimensions: 41mm (H) x 12mm (W) x 7mm (D)
• Holding Force: 295Kg / 650Lbs
• Input Voltage: 12V AC or 12V DC (please choose from the options below)
• Operation: Fail Locked or Fail Unlocked (please choose from the options below)
• Current Consumption: 0.16A or 0.65A (depending on selection)
• Weight: 320g or 330g (depending on selection)
• Finish: Grey
• Handing: Inward opening only
• Guarantee: 1 Year

Key Features

• Direct Replacement: Designed to fit in place of the standard keeper on a rim nightlatch.
• Adjustable Jaw: Allows for precise alignment with the latch bolt.
• Solid Construction: Features a robust, one-piece solid rim case.
• Multiple Configurations: Available in 12V AC or DC, and Fail Locked or Fail Unlocked operations to suit your system requirements.
• Low to Medium Duty: Ideal for standard access control applications.
