ASEC Push To Open Blue Dome DDA Exit Button

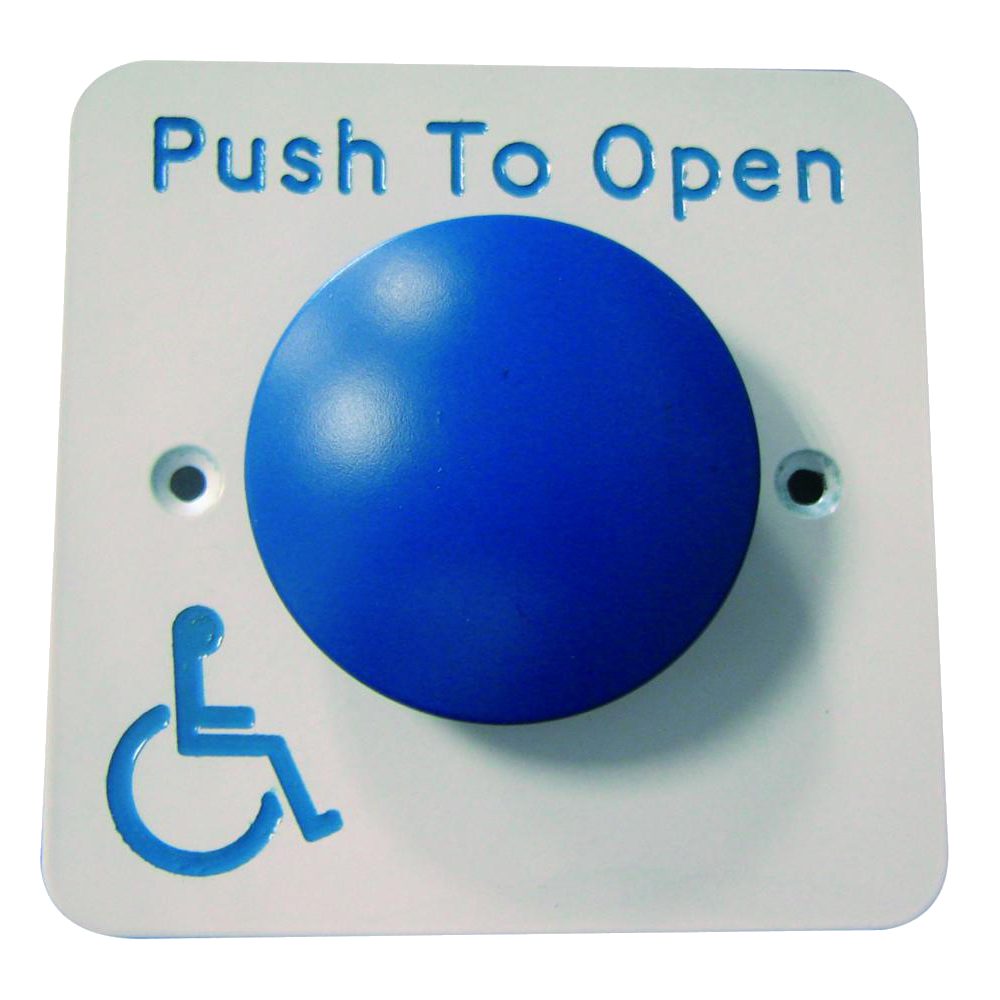

The Asec Push To Open Blue Dome DDA Exit Button is a highly durable and visible solution designed to assist with accessible door release in commercial, public, and residential buildings. Featuring a large, easily operated blue dome button with a clear "Push To Open" legend, this exit button is ideal for installations requiring compliance with DDA guidelines.

Constructed with a robust, white powder-coated stainless steel plate (RAL 9016), the unit is built to withstand heavy use in demanding environments. It boasts an impressive mechanical lifespan of 1,000,000 operations and an Impact Rating of 9. The front of the button is IP67 rated, offering excellent protection against dust and water. For straightforward installation, it comes complete with a flush-fitting back box, 150mm flying leads, and an SPDT microswitch that supports both Normally Open (N/O) and Normally Closed (N/C) operations.

Technical Specifications

• Brand: Asec
• Manufacturer Reference: AS9851
• Fitting: Flush (flush box included)
• Plate Finish: Powder-coated stainless steel (RAL 9016)
• Button: Large blue dome
• Legend: Push To Open
• Input Voltage: 12V AC/DC
• IP Rating: IP67 (Front only)
• Impact Rating: 9
• Switch Type: SPDT microswitch
• Outputs: Normally Open (N/O) & Normally Closed (N/C)
• Wiring: 150mm flying leads
• Mechanical Life: 1,000,000 operations

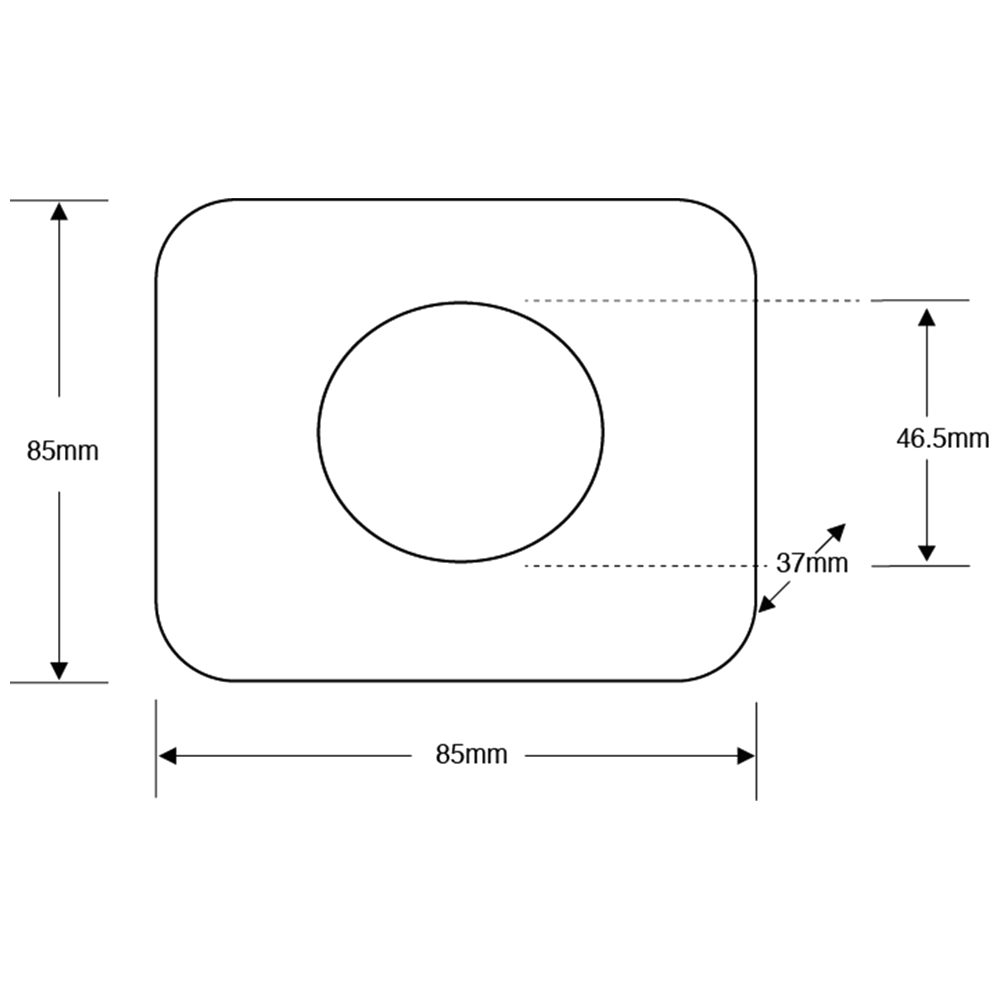

• Dimensions: 85mm (W) x 37mm (D)
• Weight: 950g

Key Features

• DDA-Friendly Design: Large blue dome button and clear "Push To Open" legend ensure easy operation and high visibility for all users.
• Robust Construction: Features a powder-coated stainless steel plate with an Impact Rating of 9 for high vandal resistance.
• Weatherproof Front: IP67 rating (front only) protects the unit against dust and water ingress.
• Exceptional Durability: Tested to withstand up to 1,000,000 mechanical operations for long-lasting reliability.
• Easy Installation: Supplied complete with a flush mounting box and 150mm flying leads.
• Flexible Wiring: SPDT microswitch offers both Normally Open (N/O) and Normally Closed (N/C) contacts to suit various access control systems.
