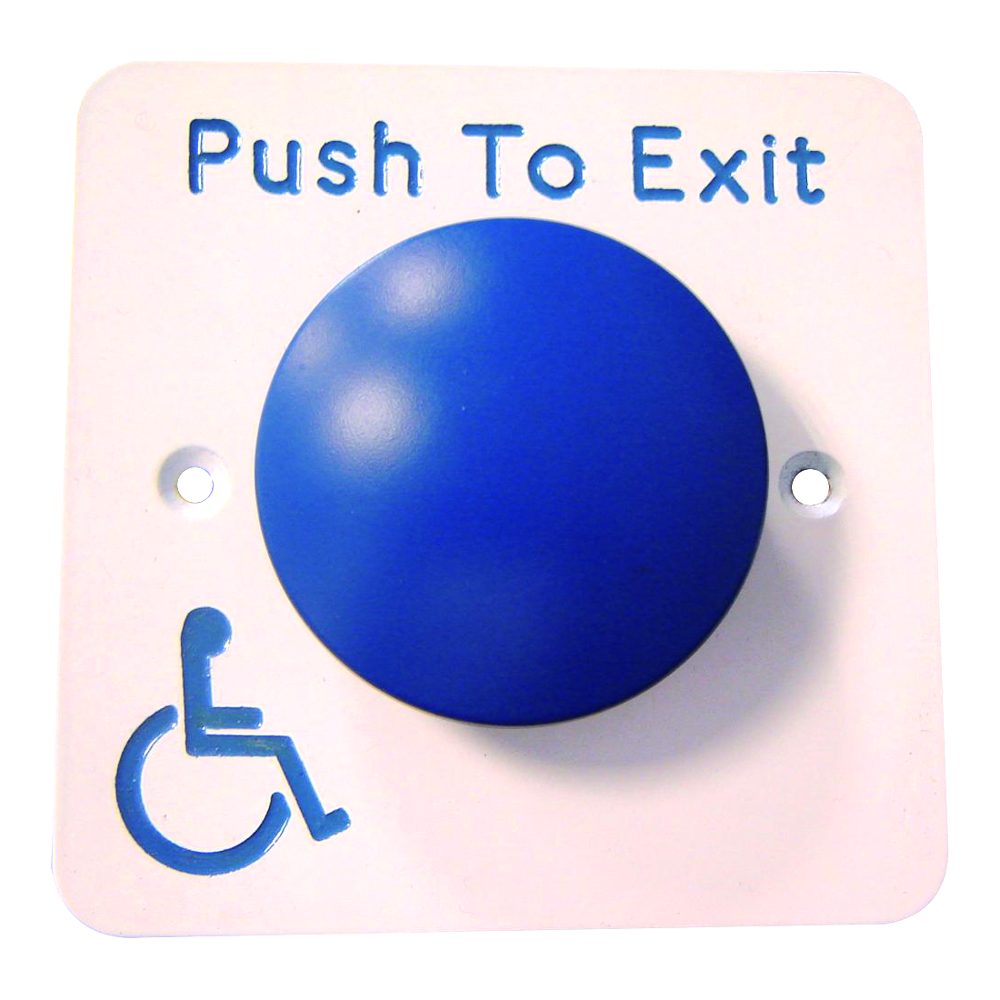

ASEC Push To Exit Blue Dome DDA Exit Button

The Asec Push To Exit Blue Dome DDA Exit Button is a highly durable and accessible egress solution designed to assist with Disability Discrimination Act (DDA) compliance. Featuring a large, high-visibility blue dome button on a flush-fitting plate, it is exceptionally easy to operate from any angle, making it ideal for users with limited dexterity or physical impairments.

Built for demanding environments, this exit button features a robust powder-coated stainless steel plate finished in RAL 9016 white. It boasts an impressive Impact Rating of 9 and an IP67 weatherproof rating on the front, ensuring reliable performance in high-traffic or exposed areas.

Installation is straightforward thanks to the included flush-mounting box and pre-wired 150mm flying leads. The integrated SPDT microswitch provides momentary operation with both Normally Open (N/O) and Normally Closed (N/C) outputs, offering excellent compatibility with a wide range of electronic locking and access control systems. Tested to 1,000,000 mechanical operations, this button offers long-term reliability you can trust.

Technical Specifications

• Brand: Asec
• Part Number: AS9850
• Plate Finish: Powder-coated stainless steel (RAL 9016 White)
• Fitting: Flush
• Input Voltage: 12V AC/DC
• IP Rating: IP67 (Front only)
• Impact Rating: 9
• Operation: Momentary
• Outputs: Normally Open (N/O) & Normally Closed (N/C)
• Switch Type: SPDT microswitch
• Mechanical Life: 1,000,000 operations

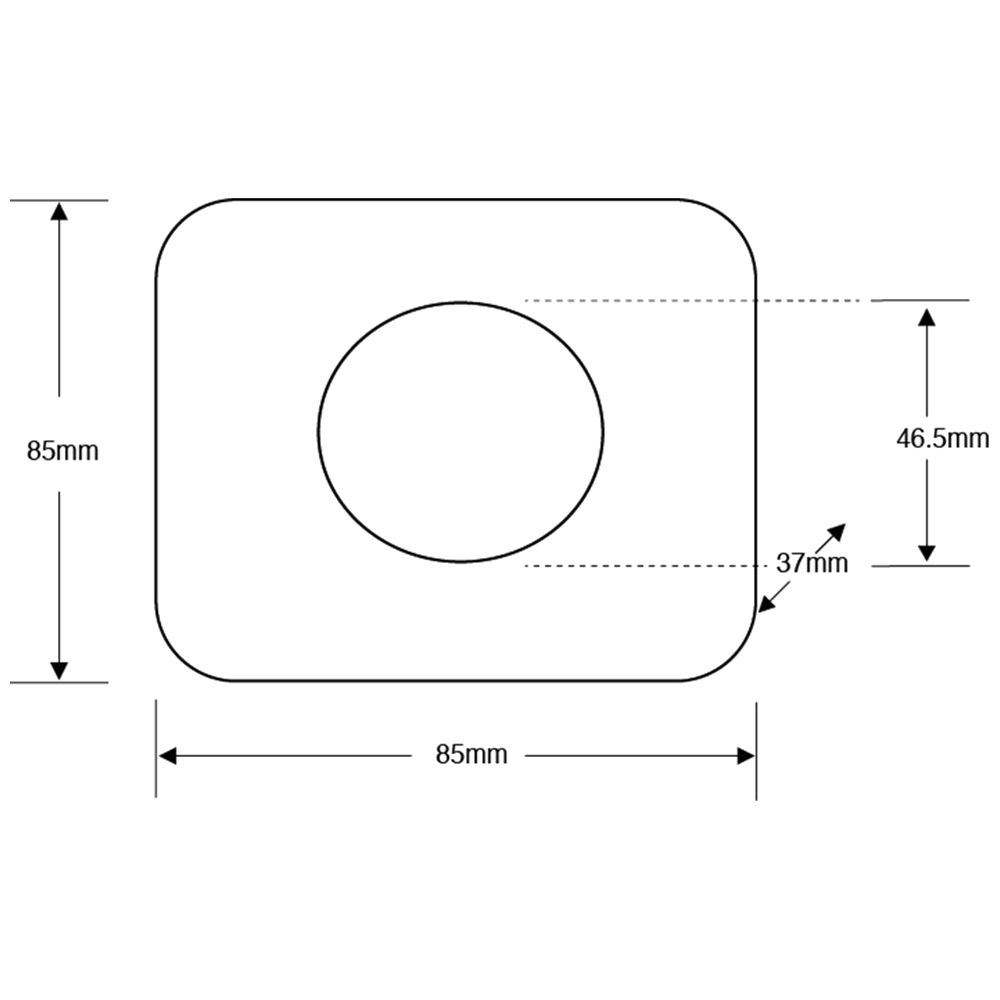

• Dimensions: 85mm (W) x 37mm (D)
• Wiring: 150mm flying leads

Key Features

• DDA Compliant Design: Large, high-visibility blue dome button is easy to operate from any angle, assisting users with limited dexterity.
• Robust Construction: Powder-coated stainless steel plate with an Impact Rating of 9 for high durability.
• Weatherproof Front: IP67 rated front face protects against dust and water ingress.
• Easy Installation: Supplied complete with a flush-mounting box and 150mm pre-wired flying leads.
• Clear Signage: Features a bold, clear "Push To Exit" legend.
• Long Service Life: Tested to withstand up to 1,000,000 mechanical operations.
