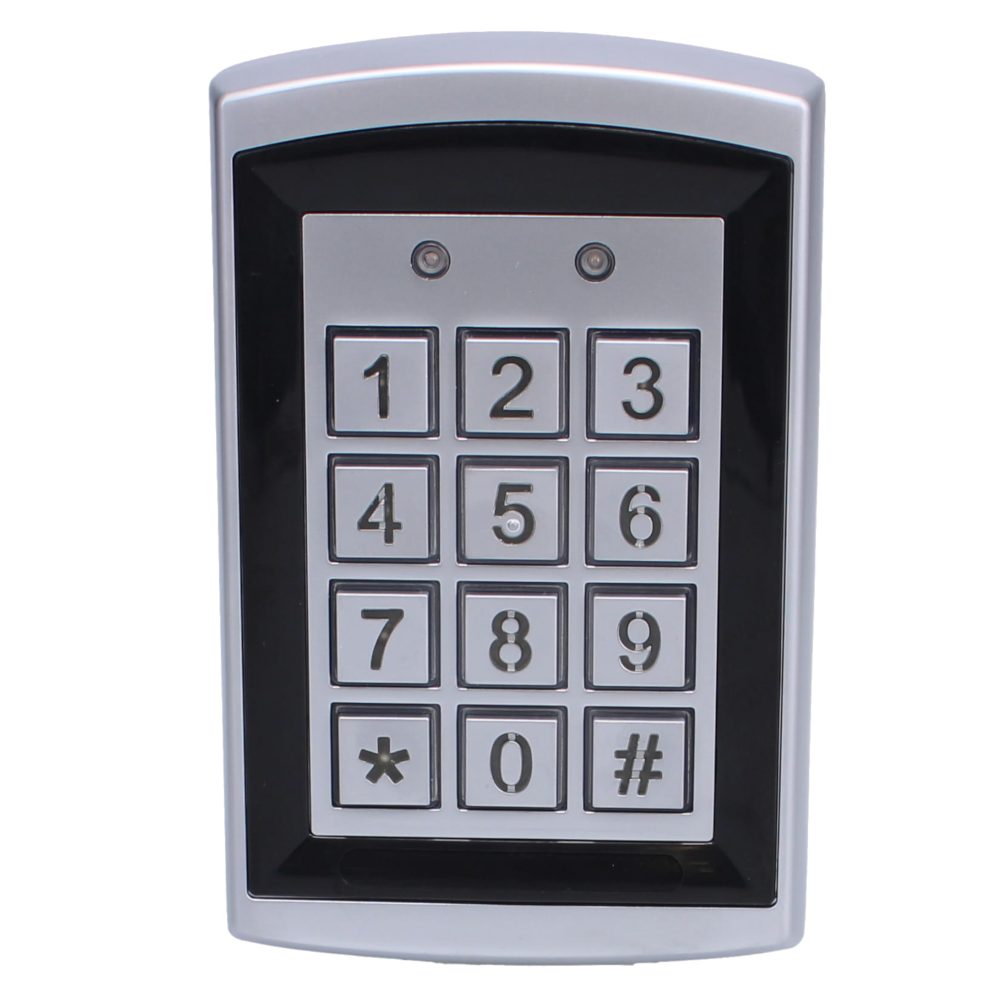

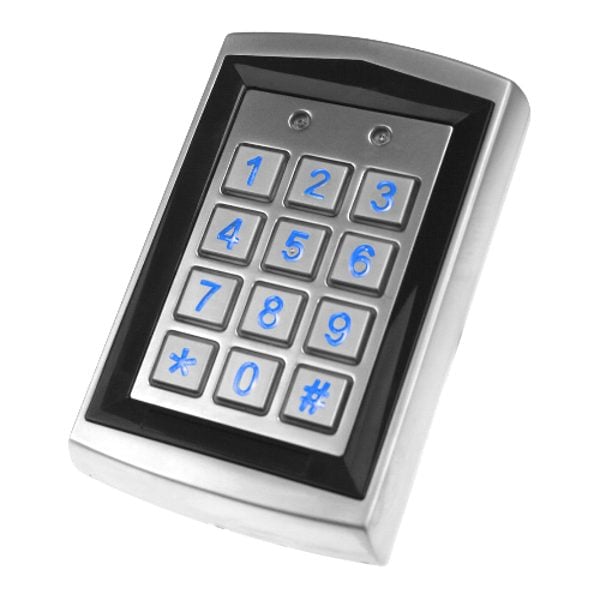

ASEC Proximity Reader & Keypad

The Asec Combined Keypad and Proximity Access Control System is a robust, vandal-resistant solution designed for internal single-door entry control. Ideal for offices and commercial premises, this standalone unit allows you to manage access for up to 1,000 users using proximity cards, tokens, or a secure 5-digit PIN.

Constructed from durable die-cast metal with a sleek silver finish, this surface-mounted reader features both audible and visual indicators to guide users. It operates on a dual 12/24V AC/DC voltage and does not require an external controller, making installation straightforward. With a 5cm read range and two relay outputs, it provides a reliable and secure access control solution for any internal door.

Technical Specifications

• Height: 120mm
• Width: 76mm
• Depth: 21mm
• Body Material: Die-cast metal
• Finish: Silver
• Input Voltage: 12/24V AC/DC
• Current Consumption: 100mA
• Frequency: EM 125kHz
• Read Range: 5cm
• Relay Output: 2 Relays (COM / NO / NC), 2 Amp Max
• Operating Temperature: -20°C to 70°C

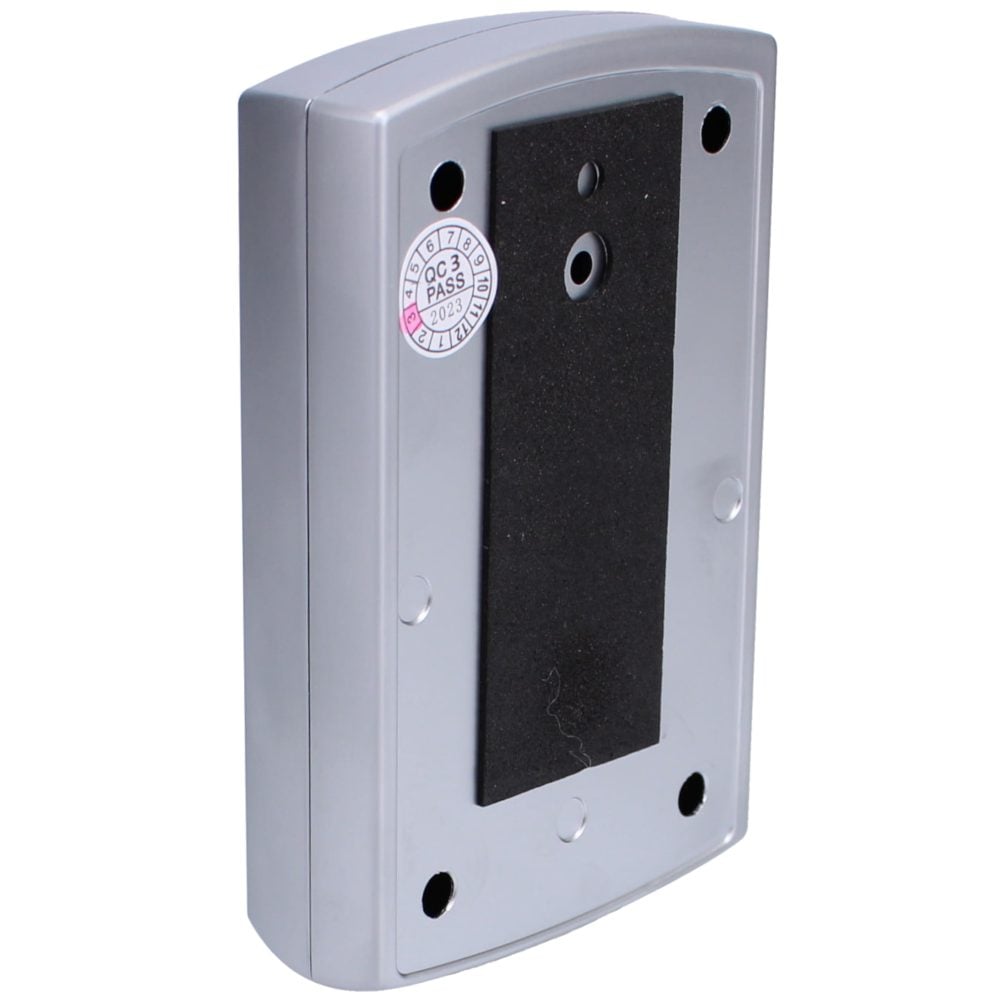

• Fitting: Surface mounted
• Connections: Terminals

Key Features

• High User Capacity: Supports up to 1,000 users with proximity cards, tokens, or 5-digit PINs
• Vandal Resistant: Durable die-cast construction provides excellent protection
• Standalone Operation: Simple to set up and run without requiring an external controller
• Clear Feedback: Built-in audible and visual indicators for ease of use
• Single Door Control: Ideal for managing access to internal offices and secure rooms
