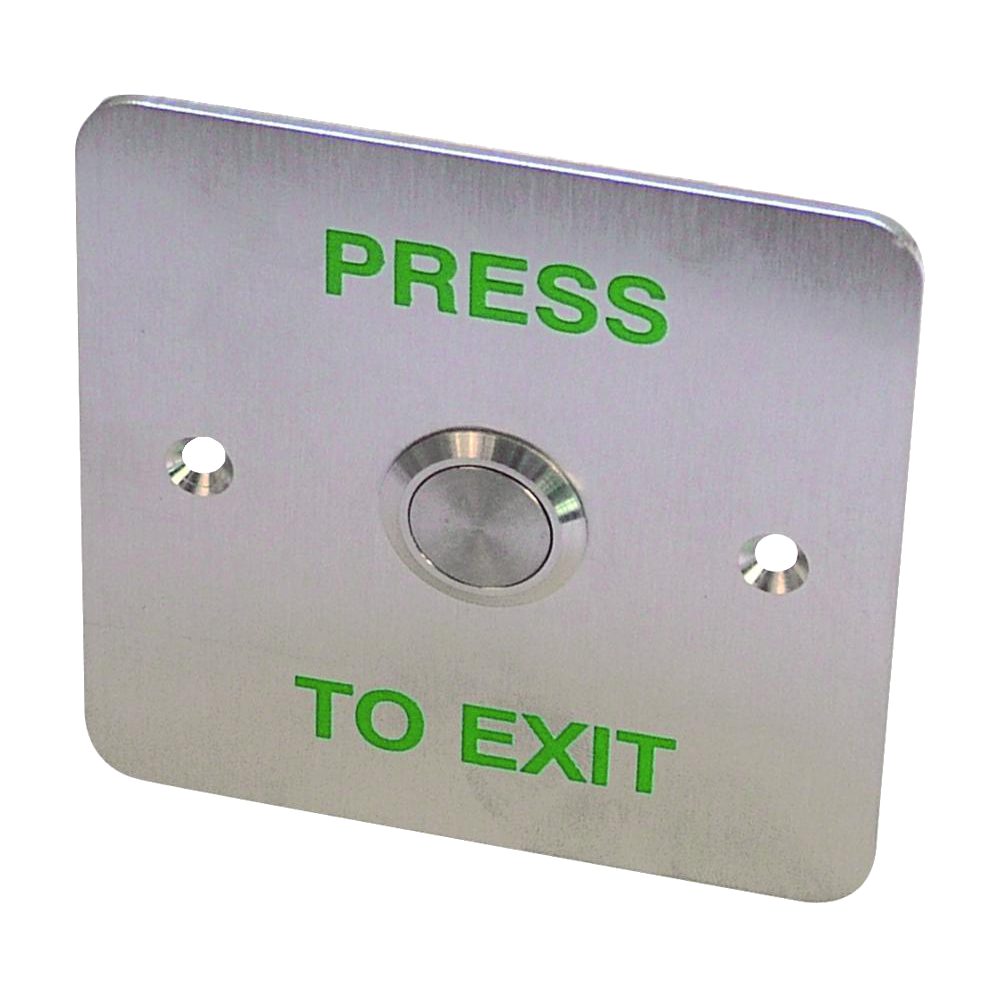

ASEC Press To Exit Stainless Steel Surface 1 Gang Button

The Asec AS8012 Press To Exit Stainless Steel Surface 1 Gang Button is a robust and reliable egress control solution designed for modern access control systems. Featuring a high-quality 2mm stainless steel mounting plate, this single-gang exit button is built to withstand frequent use in commercial, public, and residential environments.

This surface-mounted unit comes complete with a 25mm surface gang box and security screws, ensuring a secure and straightforward installation. It operates on a momentary basis, springing back to its original position once released. The low-profile switch at the rear of the plate keeps the overall depth minimal while housing reliable 5 Amp double pole contacts. With both Normally Open (N/O) and Normally Closed (N/C) outputs, it offers versatile integration with a wide range of electronic locking systems.

Technical Specifications

• Brand: Asec
• Manufacturer Reference: AS8012
• Finish: Stainless Steel
• Fitting: Surface
• Operation: Momentary
• Outputs: N/O (Normally Open) & N/C (Normally Closed)
• Rating / Current Consumption: 5 Amps @ 30V DC (Voltage-free double pole)
• Input Voltage: 12/24V DC
• Illumination: No
• Plate Thickness: 2mm

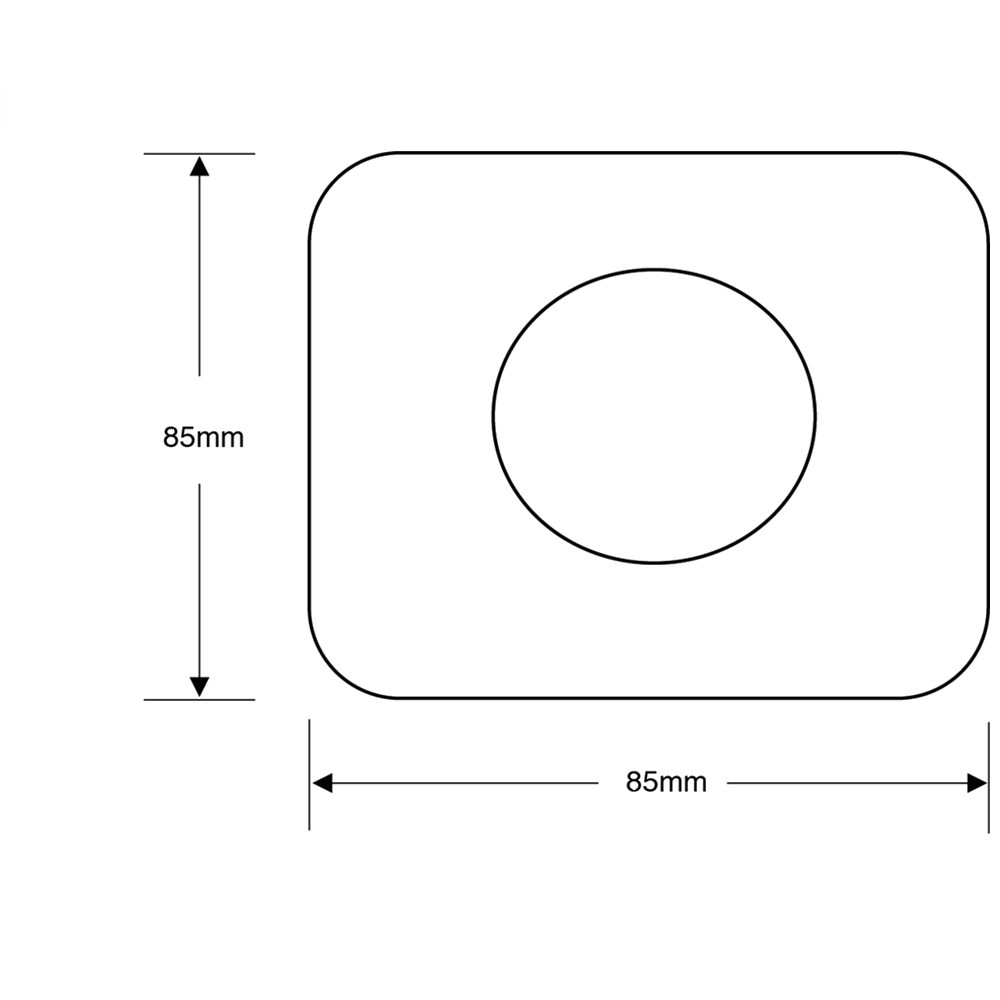

• Dimensions: 85mm (Width) x 20mm (Depth)
• Weight: 351g
• Legend: Press To Exit

Key Features

• Robust Construction: Made with a durable 2mm stainless steel mounting plate for long-lasting performance.
• Complete Installation Kit: Supplied with a 25mm surface-mounting gang box and security screws.
• Low-Profile Design: Features a low-profile switch at the rear of the plate to ensure a neat, unobtrusive fit.
• Versatile Wiring: Double pole contacts with both N/O and N/C outputs to suit various access control setups.
• Clear Legend: Clearly engraved with "Press To Exit" for easy user identification.
