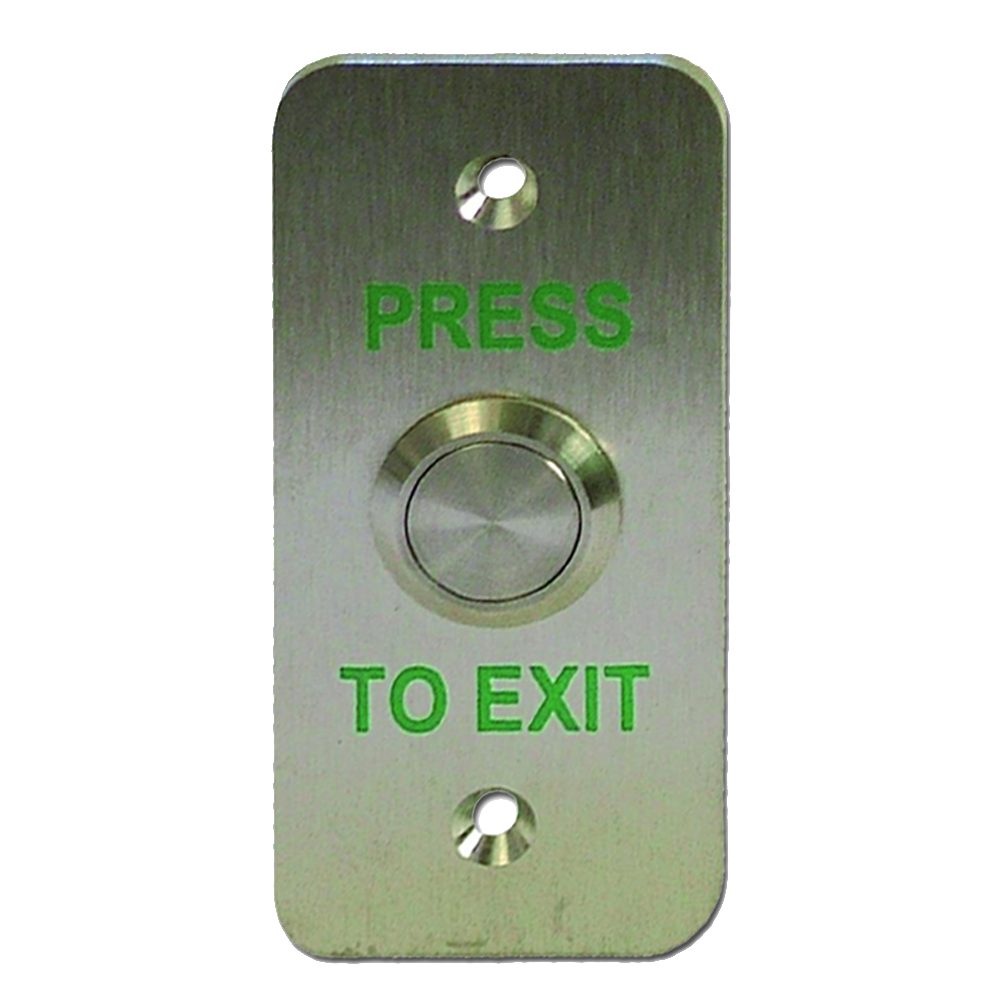

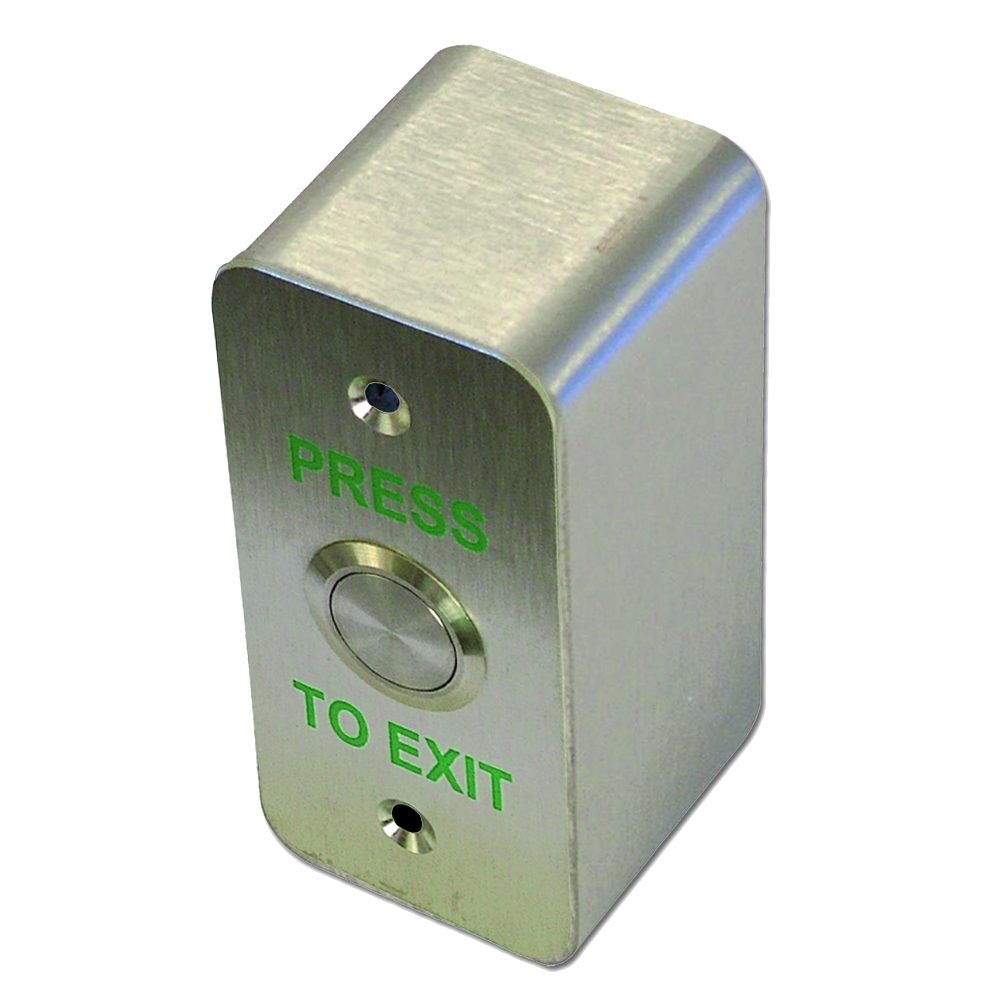

ASEC Press To Exit Narrow Style Surface Button Stainless Steel

The Asec Narrow Style Stainless Steel "Press To Exit" Button is a robust and reliable solution designed for access control systems where space is limited. Featuring a slim, narrow profile, this surface-mounted exit button is ideal for installation on narrow door frames, architraves, or posts.

Constructed from a durable 2mm stainless steel mounting plate, it is built to withstand frequent use in busy commercial or public environments. The unit features a large, easy-to-activate momentary push button that springs back into place once released. It is supplied complete with a surface mounting box and security screws to ensure a secure, tamper-resistant installation.

Equipped with voltage-free double pole contacts rated at 5 Amps at 30V DC, this switch offers both Normally Open (N/O) and Normally Closed (N/C) outputs. This versatile configuration makes it highly compatible with a wide range of electronic locks, magnetic locks, and access control systems.

Technical Specifications

• Brand: Asec
• Part Number: AS8013
• Material: 2mm Stainless Steel
• Fitting: Surface mounted (mounting box included)
• Operation: Momentary push button
• Contacts: Double pole (5A @ 30V DC)
• Outputs: N/O (Normally Open) and N/C (Normally Closed)
• Input Voltage: 12/24V DC
• Legend: "Press To Exit"

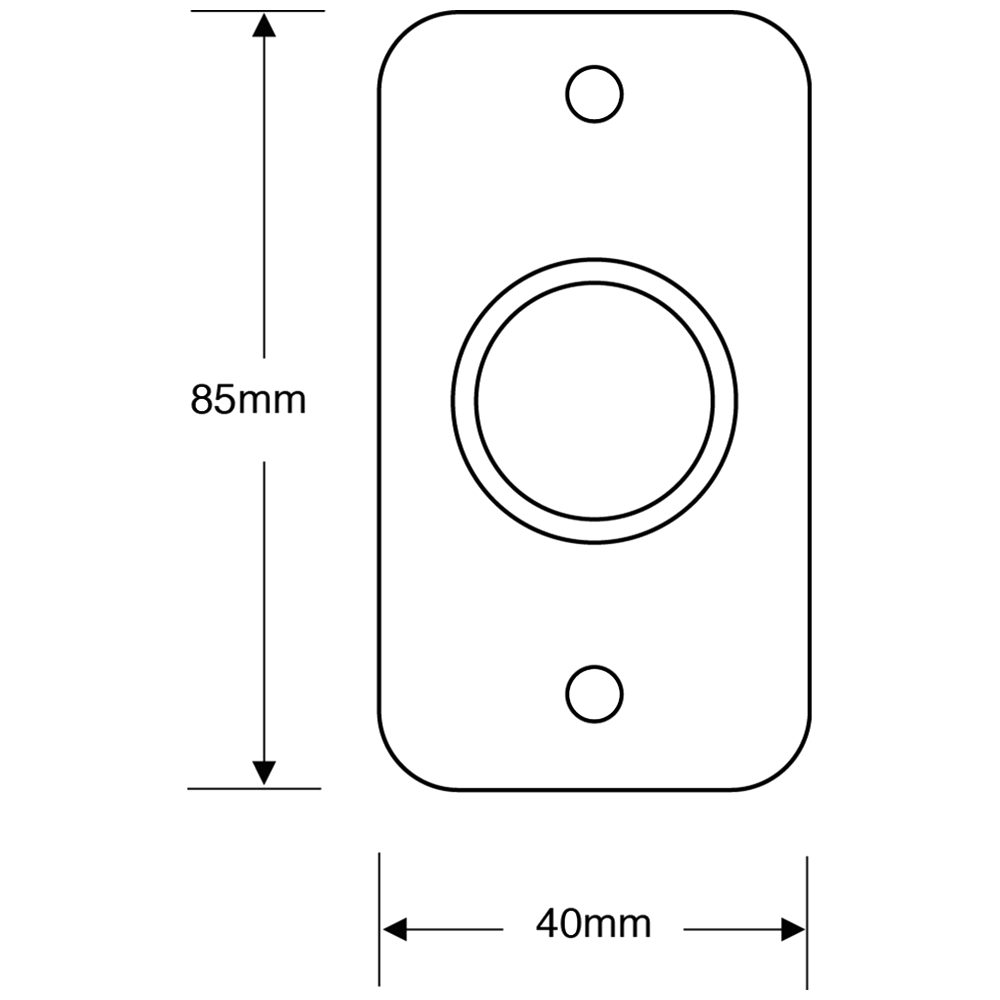

• Width: 40mm
• Depth: 38mm
• Weight: 770g

Key Features

• Narrow Profile: Slim design is ideal for installation on narrow door frames and architraves.
• Durable Construction: Made with a robust 2mm stainless steel plate for long-lasting performance.
• Vandal Resistant: Supplied with security screws to prevent unauthorized tampering.
• Easy Operation: Features a large, highly visible push button for straightforward user activation.
• Versatile Integration: Voltage-free double pole contacts with N/O and N/C outputs ensure compatibility with various access control systems.

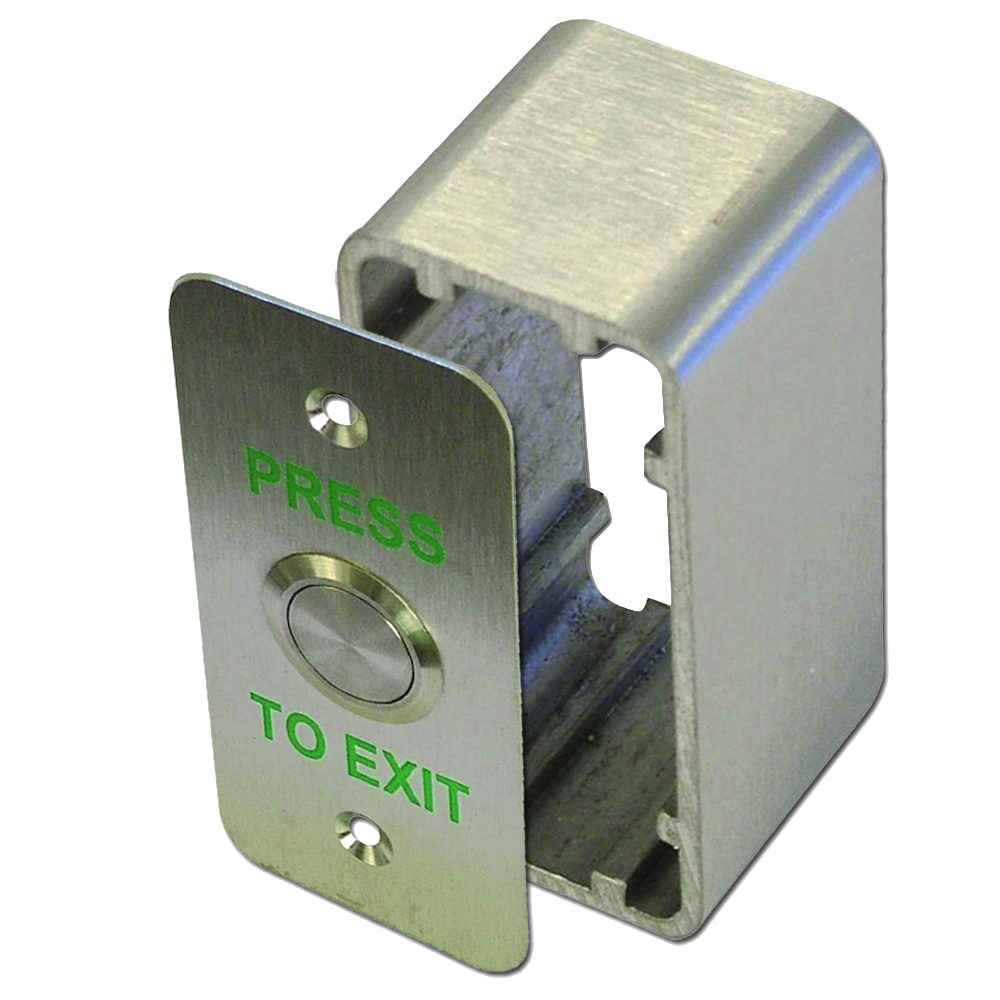

• Complete Kit: Comes boxed with a surface mounting box and necessary fixings for quick installation.
