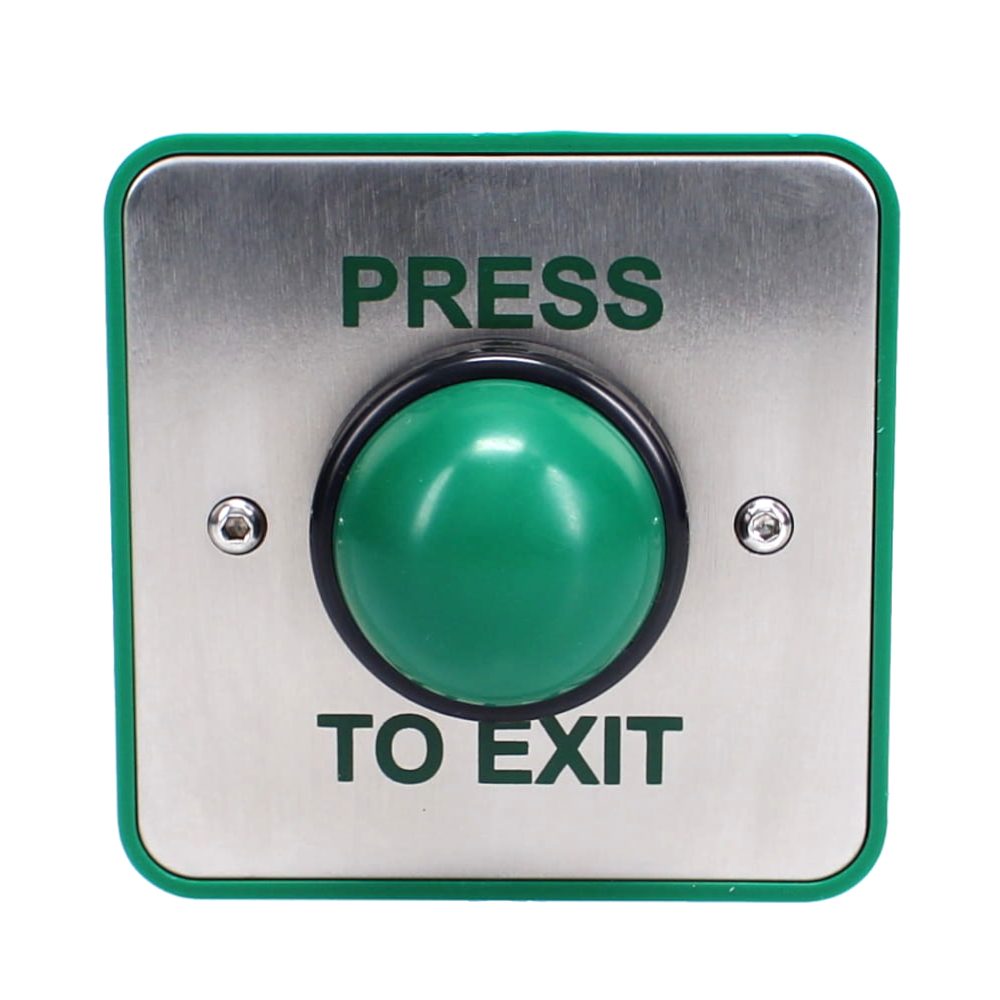

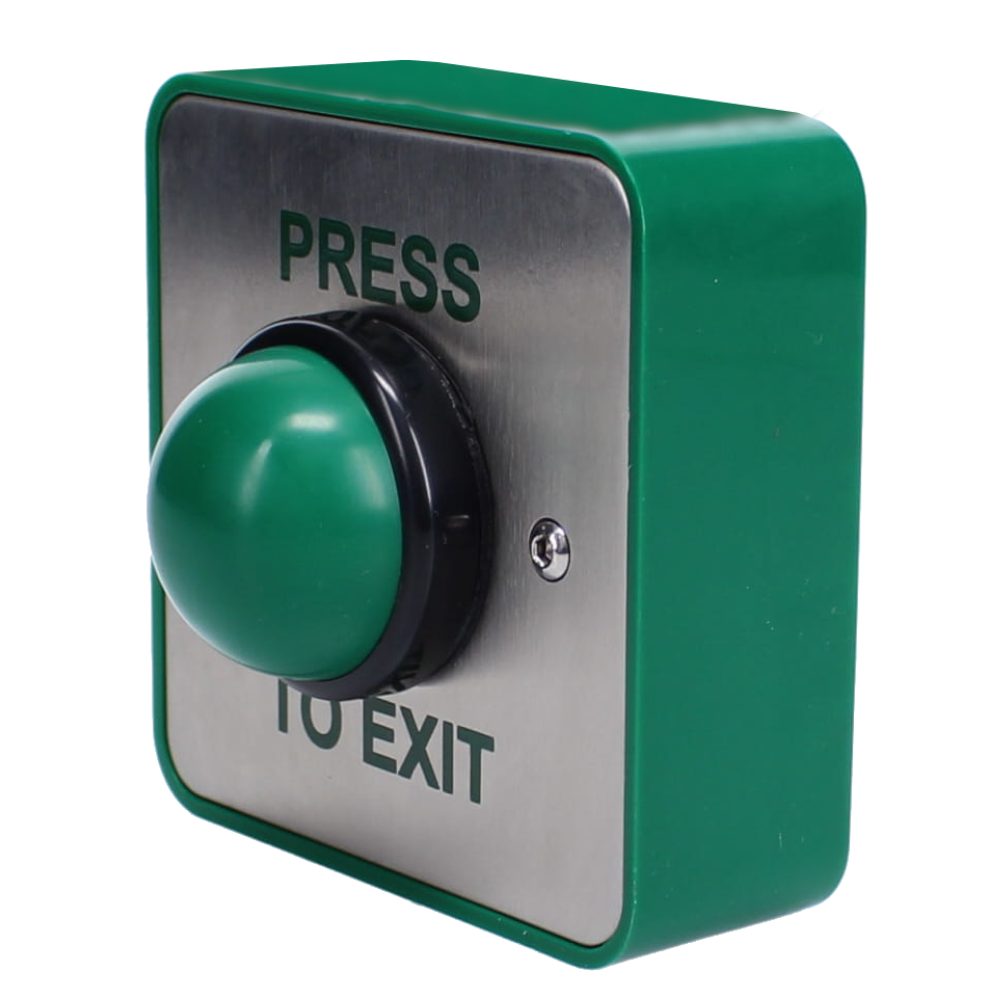

ASEC Press To Exit Green Dome Button With Tamper Proof Collar
Asec
The Asec Press To Exit Green Dome Button with Tamper Proof Collar is a highly durable exit button, specifically designed for high-traffic areas where there is a risk of vandalism. Featuring a robust 2mm stainless steel mounting plate and a protective tamper-proof collar, this button is built to withstand heavy use and physical interference.

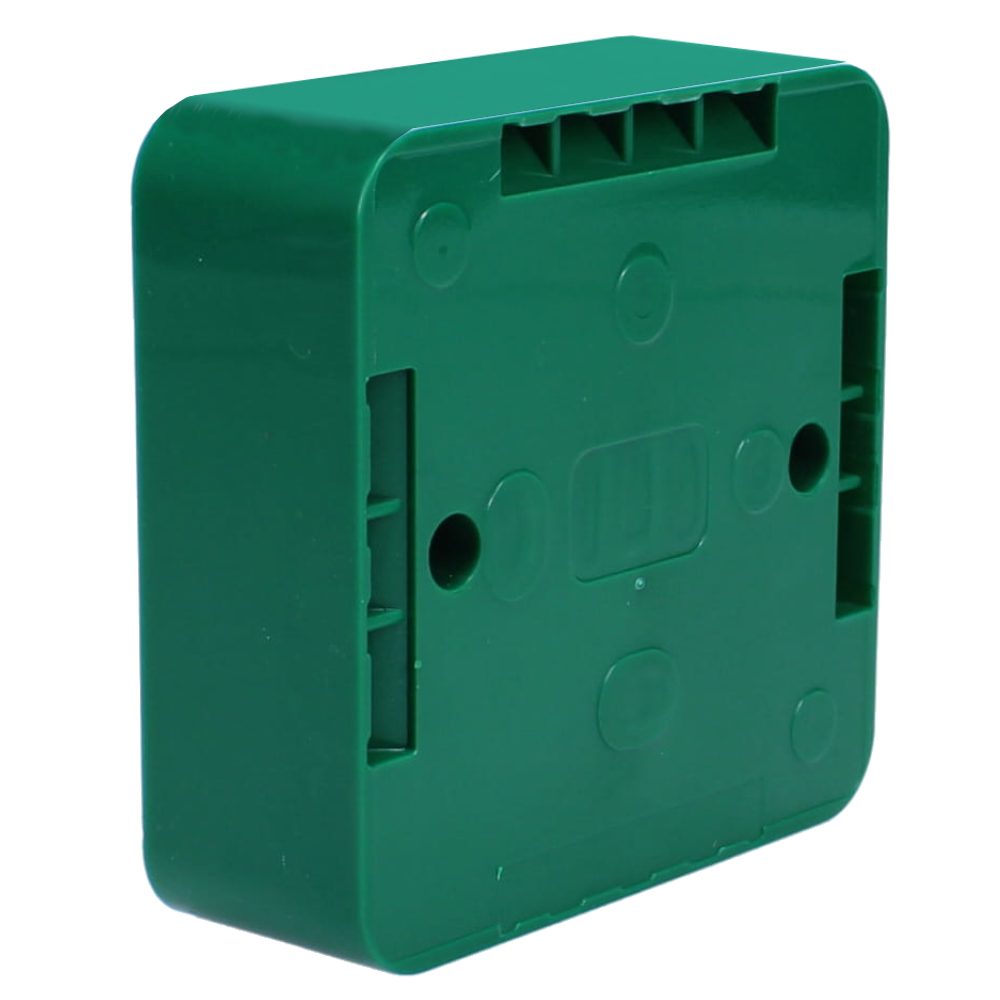

This surface-mounted unit comes complete with a 25mm gang box and security screws, ensuring a straightforward and secure installation. The low-profile switch at the rear of the plate allows for a neat fit, while the momentary operation and dual N/O and N/C outputs provide versatile integration with standard access control systems.
Technical Specifications
- Brand: Asec
- Manufacturer Reference: AS9871
- Finish: Stainless Steel
- Fitting: Surface
- Input Voltage: 12/24V DC
- Current Rating: 5A @ 30V
- Outputs: N/O & N/C (Normally Open & Normally Closed)
- Connections: 2 to 4
- Operation: Momentary
- Illumination: No
- Dimensions: 85mm (Width) x 28mm (Depth)
- Weight: 233g
- Legend: Press To Exit
Key Features
- Ideal for high-usage areas with potential for vandalism
- Protective tamper-proof collar prevents unauthorised interference
- Robust 2mm stainless steel mounting plate
- Low-profile switch at the rear of the plate
- Complies with risk assessment RA001
- Supplied with a 25mm gang box and security screws
