ASEC Press To Exit Green Button

The Asec Press To Exit Green Button (AS8010) is a highly reliable and durable exit button designed for modern access control systems. Featuring a clear, bold "Press To Exit" legend on a full green finish, this button provides an obvious and easy-to-use egress point for users.

Engineered for versatility, the unit is designed for flush mounting as standard, allowing it to sit neatly against the wall. For installations where flush mounting is not possible, a compatible surface box is available separately. With an IP67 rating on the front cover, the button features sealed contacts that protect against dust and water ingress, making it suitable for both internal and external applications.

The button operates via a momentary press actuator, springing back to its original position immediately after release. It is equipped with both Normally Open (N/O) and Normally Closed (N/C) contacts, offering flexible wiring options to suit various lock and access control configurations.

Technical Specifications

• Brand: Asec
• Manufacturer Reference: AS8010
• Finish: Green
• Fitting: Flush
• IP Rating: IP67 (Front Only)
• Input Voltage: 12/24V DC
• Outputs: N/O & N/C
• Operation: Momentary Press Actuator
• Legend: Press To Exit
• Illumination: No

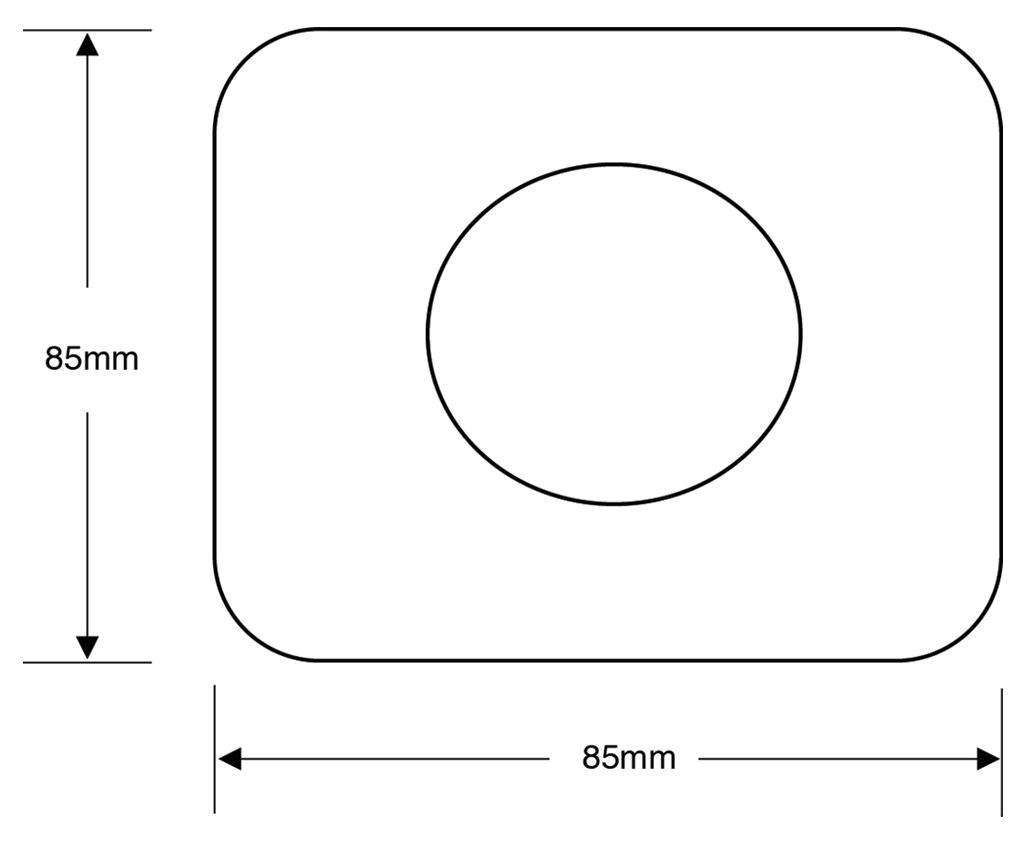

• Width: 85mm
• Depth: 30mm
• Weight: 360g
• Pack Quantity: 1

Key Features

• Weatherproof Front Cover: IP67 rated front cover with sealed contacts, making it suitable for both internal and external installations.
• Flexible Wiring: Features both Normally Open (N/O) and Normally Closed (N/C) contacts to support a wide range of access control systems.
• Momentary Operation: Reliable spring-back momentary actuator ensures the button resets immediately after use.
• Clear Legend: High-visibility green finish with a bold "Press To Exit" message for easy identification.
• Versatile Mounting: Designed for flush fitting, with surface mounting boxes available separately.
