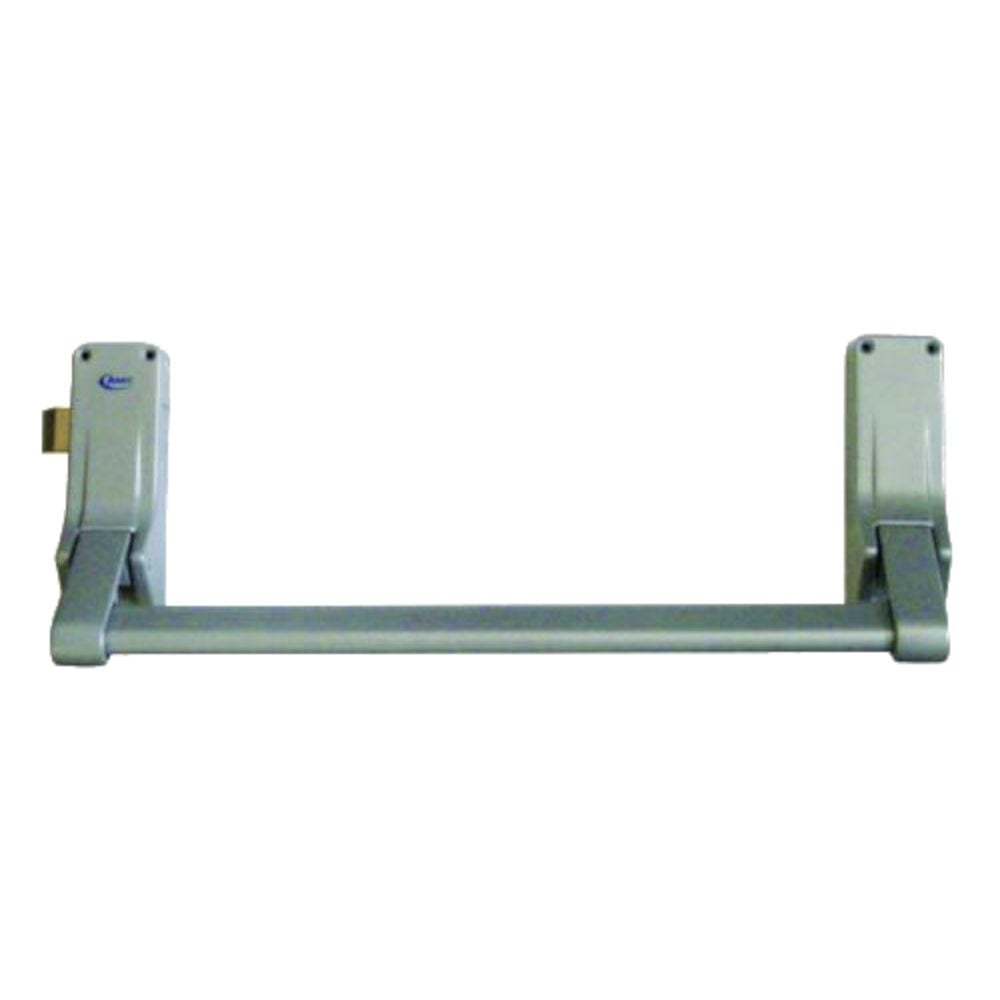

ASEC Panic Latch

The Asec Panic Latch is a robust emergency exit solution designed to facilitate safe and swift egress from a building. Fully certified to BS EN 1125, this single push bar panic latch is ideal for public buildings where occupants may be unfamiliar with escape routes.

Operating via a simple push bar, depressing the bar instantly disengages the latch to allow the door to open. It is suitable for single doors or the first opening leaf of rebated double doors, accommodating door leaves up to 2500mm high and up to 200kg in weight.

This panic latch is finished in silver enamelled and is available in multiple handing configurations (Left Hand or Reversible), manufacturer references (AS3101 or AS3102), and door width options. Please select your preferred handing, manufacturer reference, and door width from the options below.

Technical Specifications

• Standards: BS EN 1125
• Finish: Silver Enamelled
• Maximum Door Height: 2500mm
• Maximum Door Width: Multiple options available (please select below)
• Maximum Door Weight: 200kg
• Body Dimensions: 165mm (H) x 50mm (W)
• Bar Length: 1200mm
• Bar Projection: 100mm
• Handing: Left Hand or Reversible (please select below)
• Manufacturer Reference: AS3101 or AS3102 (please select below)
• Pack Quantity: 1

Key Features

• Safe Egress: Push bar instantly disengages the latch for quick and easy emergency exit
• Flexible Handing: Available in Left Hand or Reversible options to suit your door setup
• Robust Capacity: Supports heavy doors up to 200kg and 2500mm high
• Certified Protection: Fully compliant with BS EN 1125 standards for public safety
• Durable Finish: Supplied in a clean, professional silver enamelled finish
