ASEC Mortice Release

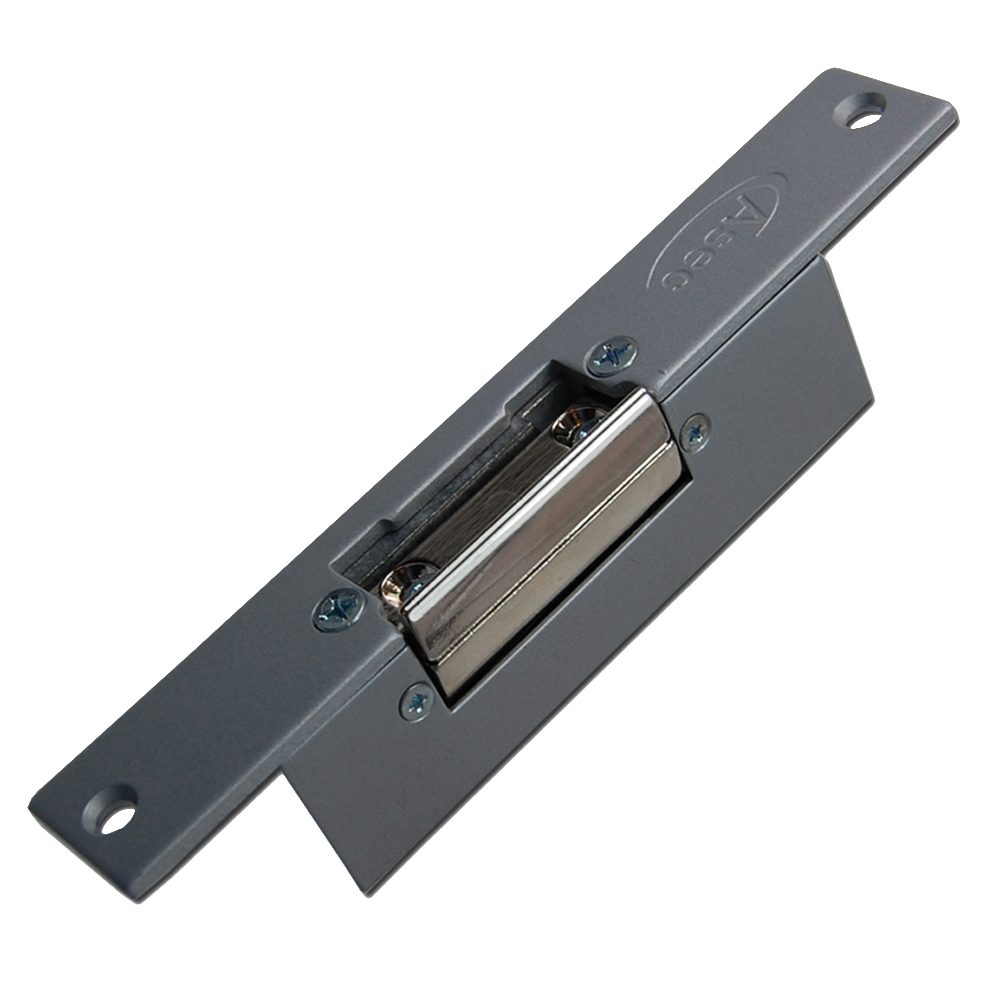

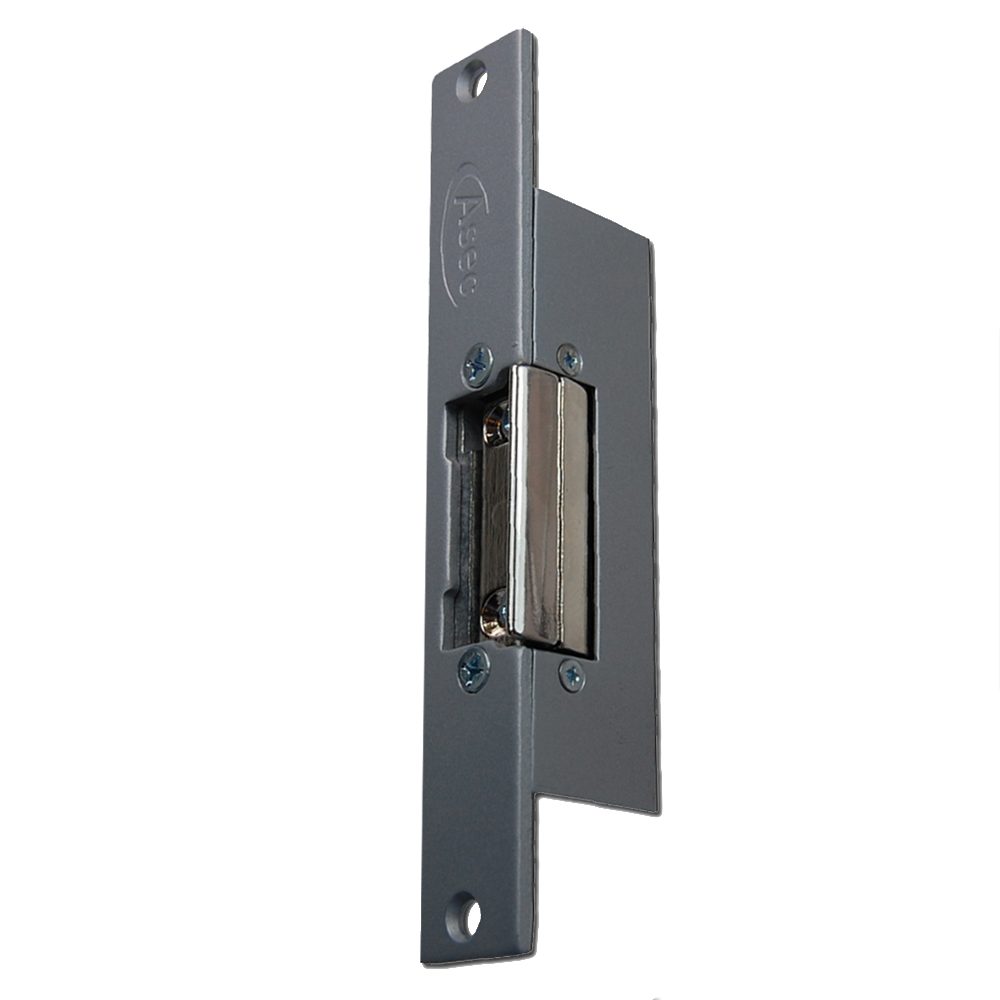

The Asec A25 Mortice Electric Release (AS9547) is a low-duty electric strike designed to be fitted within a door frame. When used in conjunction with a latch, it allows the door to be unlocked remotely as part of an access control or intercom system.

Operating on a 12V DC input, this electric release features a fail-unlocked (fail-safe) configuration, meaning it will unlock in the event of a power failure to ensure safe egress. It is continuously rated and boasts a holding force of 295kg (650lbs). A key benefit of this model is its conveniently adjustable jaw (ranging from 13mm to 17mm), making it an ideal retrofit solution for doors with additional play. It comes finished in grey and is backed by a 1-year manufacturer's guarantee.

Technical Specifications

• Input Voltage: 12V DC (continuously rated)
• Current Consumption: 0.16A @ 12V DC
• Operation: Fail Unlocked (Fail Safe)
• Fitting: Mortice
• Holding Force: 295kg / 650lbs

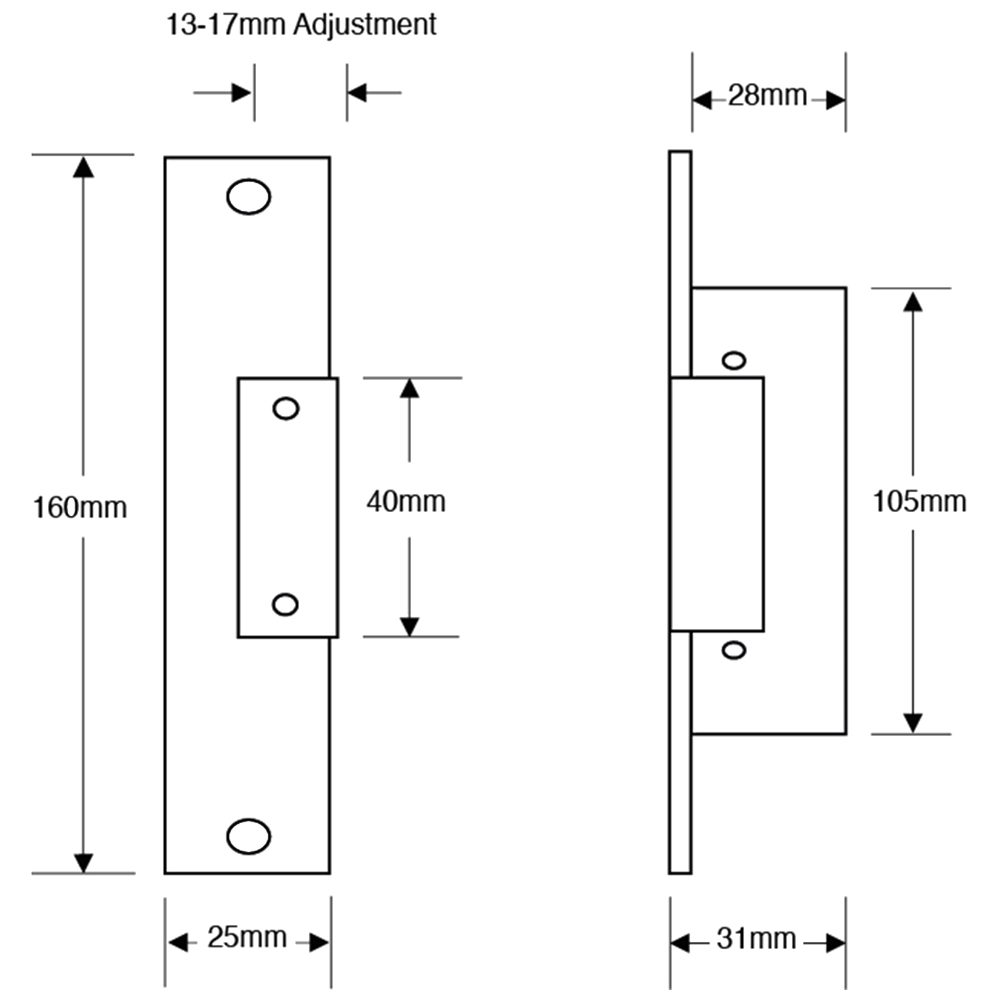

• Faceplate Dimensions: 160mm (H) x 25mm (W)
• Body Dimensions: 105mm (H) x 28mm (D)
• Jaw Dimensions: 42mm (H) x 13mm to 17mm (W) x 6mm (D)
• Finish: Grey
• Monitored: No
• Pack Quantity: 1

Key Features

• Adjustable Jaw: Easily adjusts from 13mm to 17mm to accommodate doors with extra play, making it ideal for retrofit installations.
• Fail Unlocked Operation: Unlocks automatically when power is cut, ensuring safe emergency egress.
• Continuously Rated: Designed for reliable, continuous operation on 12V DC power.
• Robust Holding Force: Delivers a secure 295kg (650lbs) holding force.
• Manufacturer's Guarantee: Supplied with a 1-year manufacturer's guarantee for peace of mind.
